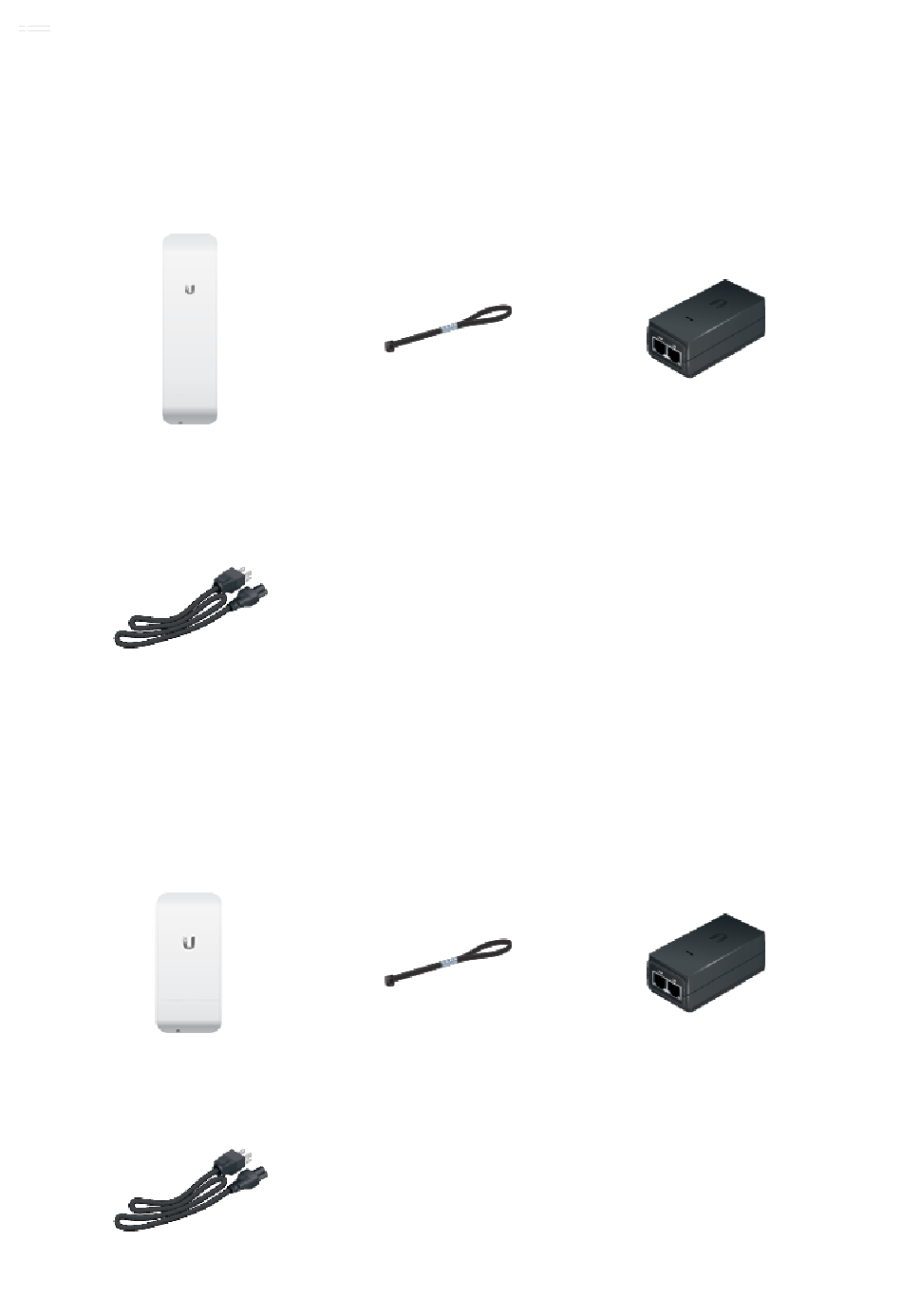

- Page 1 NanoStationM/locoM Series Quick Start Guide Package Contents NSM2/NSM3/NSM365/NSM5 NanoStation M2/M3/M365/M5 Zip Tie PoE (24V, 0.5A) with Mounting Bracket Power Cord locoM2/locoM5 NanoStationloco M2/M5 Zip Tie PoE (24V, 0.5A) with Mounting Bracket...
-
Page 2: Installation Requirements
Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the NanoStation and the other at the entry point to the building. -
Page 3: Hardware Overview
NanoStationM/locoM Series Quick Start Guide Hardware Overview NSM2/NSM3/NSM365/NSM5/locoM2/locoM5... - Page 4 NanoStationM/locoM Series Quick Start Guide Power LED The LED will light green when the device is connected to a power source.
- Page 5 LAN1 LED NanoStationM/locoM Series Quick Start Guide The LED will light steady green when an active Ethernet connection is made to the Main/LAN port and flash when there is activity. LAN2 LED (NanoStation M2/M3/M5 only) The LED will light steady green when an active Ethernet connection is made to the Secondary port and flash when there is activity.
- Page 6 NanoStationM/locoM Series Quick Start Guide Power LED The LED will light green when the device is connected to a power source. LAN1 LED The LED will light steady green when an active Ethernet connection is made to the Main/LAN port and flash when there is activity. Signal LEDs In airOS®, you can modify the threshold values for the wireless signal strength LEDs on the Advanced tab under Signal LED Thresholds.
-
Page 7: Installation
NanoStationM/locoM Series Quick Start Guide RP-SMA Antenna Connector Reserved for future use. Main/LAN Port This 10/100 Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. - Page 8 NanoStationM/locoM Series Quick Start Guide...
- Page 9 NanoStationM/locoM Series Quick Start Guide...
- Page 10 NanoStationM/locoM Series Quick Start Guide...
-
Page 11: Connecting Power
NanoStationM/locoM Series Quick Start Guide Connecting Power WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. - Page 12 NanoStationM/locoM Series Quick Start Guide Optional Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host system is connected via Ethernet to the device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
-
Page 13: Installer Compliance Responsibility
The airOS Configuration Interface will appear, allowing you to customize your settings as needed. For details, refer to the User Guide available at ui.com/download/airmax You can also manage your device using the Ubiquiti Internet Service Provider. Setup using the UISP™ app requires the U-Installer, sold separately. Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s... - Page 14 NSM2/NSM3/NSM365 Operating Frequency (MHz) NanoStationM/locoM Series Quick Start Guide NSM365 3650 - 3675 NSM5 Operating Frequency (MHz) Worldwide 5150 - 5875 5150 - 5350, 5470 - 5725, 5725 - 5875 U-NII-1 5150 - 5250 U-NII-2A 5250 - 5350 U-NII-2C 5470 - 5725 U-NII-3 5725 - 5850 5470 - 5600, 5650 - 5725, 5725 - 5850...
-
Page 15: Safety Notices
locoM5 Operating Frequency (MHz) NanoStationM/locoM Series Quick Start Guide U-NII-1 5150 - 5250 U-NII-2A 5250 - 5350 U-NII-2C 5470 - 5725 U-NII-3 5725 - 5850 5470 - 5600, 5650 - 5725, 5725 - 5850 locoM9 Operating Frequency (MHz) Worldwide 902 - 928 Safety Notices 1. - Page 16 ui.com/support/warranty NanoStationM/locoM Series Quick Start Guide The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
-
Page 17: Australia And New Zealand
NanoStationM/locoM Series Quick Start Guide IMPORTANT NOTE Radiation Exposure Statement This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. -
Page 18: Weee Compliance Statement
MHz frequency range within all member states. Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2022 Ubiquiti Inc. All rights reserved.
