installation requirements
•Phillips screwdriver
•Drill and bit (6mm for wall mount or 3mm for ceiling mount) •Optional: drywall or
jigsaw (to cut 18mm hole for wire
Ethernet)
• UTP Cat5/6 cable for indoor installations
Outdoor Installation Requirements
•The cable outlet opening must be located on the opposite side of the open
environment. •The cable should face downward when mounting on the wall.
•Category 5 (or higher) shielded cabling with drain wire must be used for all outdoor wired
Ethernet connections and must be connected to the AC ground of the PoE.
•We recommend that you protect your networks from harmful outdoor environments and
electrostatic discharge phenomena with Ubiquiti's industrial grade shielded Ethernet cable. For
more information, visit
System Requirements
Mac OS X or Microsoft Windows 7/8/10 •Java
Runtime Environment 1.7 (1.8 or later recommended) •Web
Browser: Google Chrome (Other browsers may have limited functionality) •UniFi Controller
Software v5 .4 or later (available at:

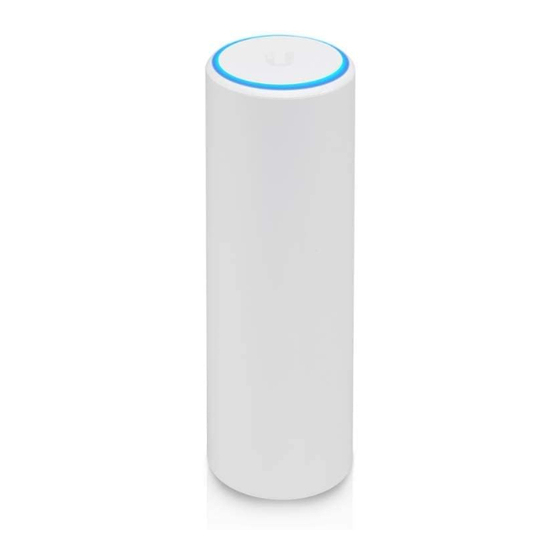

U6-MESH Quick Start Guide
ui.com/toughcable
•Linux,
ui.com/download/unifi)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ubiquiti U6-MESH
Summary of Contents for Ubiquiti U6-MESH
- Page 1 Ethernet connections and must be connected to the AC ground of the PoE. •We recommend that you protect your networks from harmful outdoor environments and electrostatic discharge phenomena with Ubiquiti's industrial grade shielded Ethernet cable. For more information, visit ui.com/toughcable System Requirements •Linux,...
- Page 2 U6-MESH has auto detection compatible with the following sources: • UniFi Power with Ubiquiti PoE • Switch compatible with PoE+ 802.3at/PoE 802.3af • Ubiquiti Gigabit PoE Adapter (48 Vdc, 0.5 A ) The U6-PRO single pack includes a Gigabit PoE adapter. For multi-pack units, PoE adapters or a UniFi switch with PoE can be purchased separately.
- Page 3 Mounting the PoE adapter (optional) 1.Remove the PoE mounting bracket from the adapter, place the bracket in the desired position and mark the two holes. 2.Drill holes, if necessary, and secure the bracket using two rivets (not included). 3.Align the slots on the adapter with the tabs on the PoE mounting bracket, then slide the adapter down.
- Page 4 For information on setting up and using the UniFi Controller software, see the User's Guide. Installing the mobile app Ubiquiti also offers a UniFi app, available from the App Store® (iOS) or the Google Play™ Store (Android). You can use it to make use of basic UniFi access point features without the need to set up a UniFi controller.
- Page 5 safety instructions 1. Read, follow and save these instructions. 2. Pay attention to all warnings. 3. Only use the devices or accessories indicated by the manufacturer. electrical safety information 1. It is mandatory to comply with the current, frequency and voltage requirements indicated on the manufacturer's label.
- Page 6 limited warranty ui.com/support/warranty The limited warranty requires arbitration to resolve disputes on a case-by-case basis and, where appropriate, specifying arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 7 CE marked WEEE Compliance Statement Declaration of conformity online resources...
