High-Performance GPON CPE
Model: UF-Nano

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nano G and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti Nano G

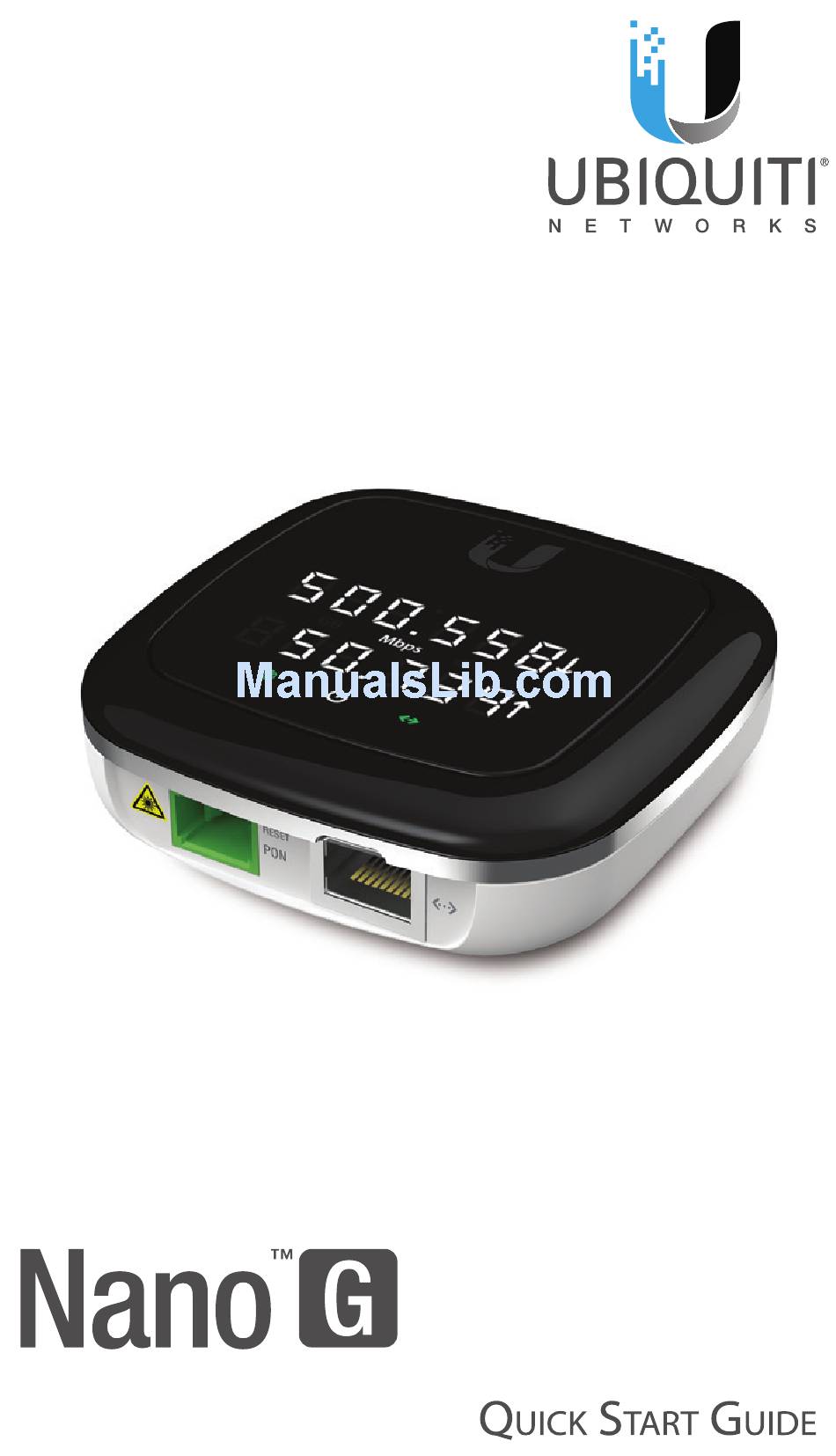

  • Page 1 High-Performance GPON CPE Model: UF-Nano...
  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® Nano ™ High-Performance GPON CPE. This Quick Start Guide is designed to guide you through the installation and also includes the warranty terms. Package Contents Nano G Wall Mount Bracket Screws Screw Anchors (Qty.
  • Page 3: System Requirements

    System Requirements • Linux, Mac OS X, or Microsoft Windows 7/8/10 • Web Browser: Google Chrome (Other browsers may have limited functionality) Hardware Overview Ports Port Description SC/APC GPON port supports WAN connections of 2.488 Gbps downstream and 1.244 Gbps upstream. RJ45 Ethernet port supports 10/100/1000 Mbps connections and passive PoE to power the device.
  • Page 4: Led Display

    LED Display Digital Power Display GPON Ethernet State Status GPON connected and device is Green integrated into a network and working properly No GPON connection. Error code is shown on the Digital Display. Device is discovered by OLT and Flashing Red waiting to be integrated No power, device is off White...
  • Page 5: Digital Display

    Digital Display The Digital Display shows device status and RX/TX details of the PON connection. The Digital Display is also a physical button. Press the display to cycle through the information. • Mbps Displays the active download (RX) and upload (TX) speeds of the PON connection.
  • Page 6 • Displays the total aggregate data sent downstream and upstream through the PON connection. The counter can be reset using the U Fiber Configuration Interface. • Displays the PON (LAN) IP address. • Time Only shown when the time is synced correctly from the servers.
  • Page 7: Hardware Installation

    Hardware Installation The Nano G can be mounted on a wall or placed on a desktop. WARNING: To reduce the risk of fire or electric shock, do not expose the Nano G to rain or moisture. Wall Mounting 1. Use the Wall Mount Bracket as a template and drill four 6 mm holes as shown below.
  • Page 8 3. Mount the Nano G by inserting the top of the Nano G into the Mount Bracket and then pivot the bottom into the bracket until it locks into place.
  • Page 9: Connecting Fiber

    Connecting Fiber Connect the fiber optic cable from the Passive Optical Network to the PON port.
  • Page 10: Connecting Power

    • Using the included Gigabit PoE Adapter: Go to “Connecting to the PoE Adapter” . • Using a separate PoE switch: Connect the Ethernet cable from the Nano G to a PoE-enabled Ethernet port on the switch. WARNING: The PoE switch must comply with the power specifications listed in the Specifications section of this Quick Start Guide.
  • Page 11 Connecting to the PoE Adapter 1. Connect the Ethernet cable from the Nano G to the PoE port on the Gigabit PoE Adapter. 2. Connect an Ethernet cable from your LAN to the LAN port on the Gigabit PoE Adapter.
  • Page 12 Mounting the Gigabit PoE Adapter (Optional) 1. Remove the PoE Mounting Bracket from the adapter, place the bracket at the desired location, and mark the two holes. 2. Pre-drill the holes if necessary, and secure the bracket using two fasteners (not included). 3.
  • Page 13: Accessing The Configuration Interface

    Accessing the Configuration Interface 1. Ensure that your computer (or other host system) is connected to the Nano G. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3. Launch your web browser. Type https://192.168.1.1 in the address field.
  • Page 14 OLT Compatibility Profiles The Nano G is compatible with most major brands of OLT (Optical Line Terminals) and compatibilty may be selected by using one of three compatiblity profiles. By default, the Nano G is set to Profile 1 - Ubiquiti Networks U Fiber OLT. For other brands, manually select Profile 2 or 3: 1.
  • Page 15: Specifications

    Specifications UF-Nano Dimensions 77 x 77 x 28 mm (3.03 x 3.03 x 1.1") Weight 110 g (3.88 oz) Networking Interfaces (1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN Networking Interface Speeds (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps Management Interface...
  • Page 16: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 17: Limited Warranty

    Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
  • Page 18: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 19 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
  • Page 20: Industry Canada

    Industry Canada CAN ICES-3(A)/NMB-3(A) This Class A digital apparatus complies with Canadian CAN ICES-3(A). CAN ICES-3(A)/NMB-3(A) Cet appareil numérique de la classe A est conforme à la norme NMB-3(A) Canada. Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 21 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 22 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 23: Declaration Of Conformity

    Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más [Hungarian] vonatkozó 2014/30/EU, 2014/35/EU irányelvek rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana [Icelandic] 2014/30/ESB, 2014/35/ESB. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è...
  • Page 24: Online Resources

    ©2016-2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, Nano G, and U Fiber are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
