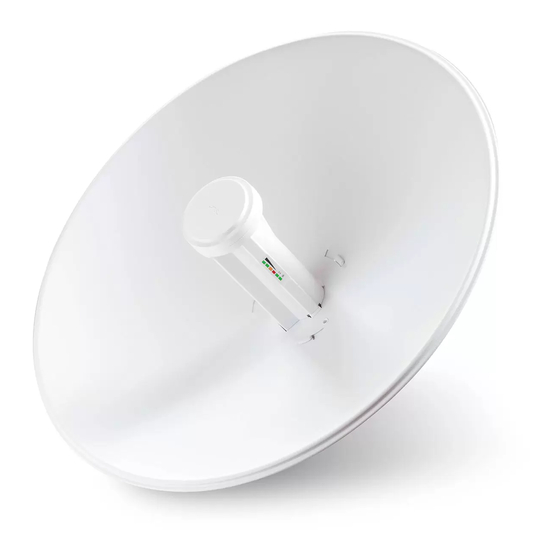

Summary of Contents for Ubiquiti Airmax NBE-M2-400

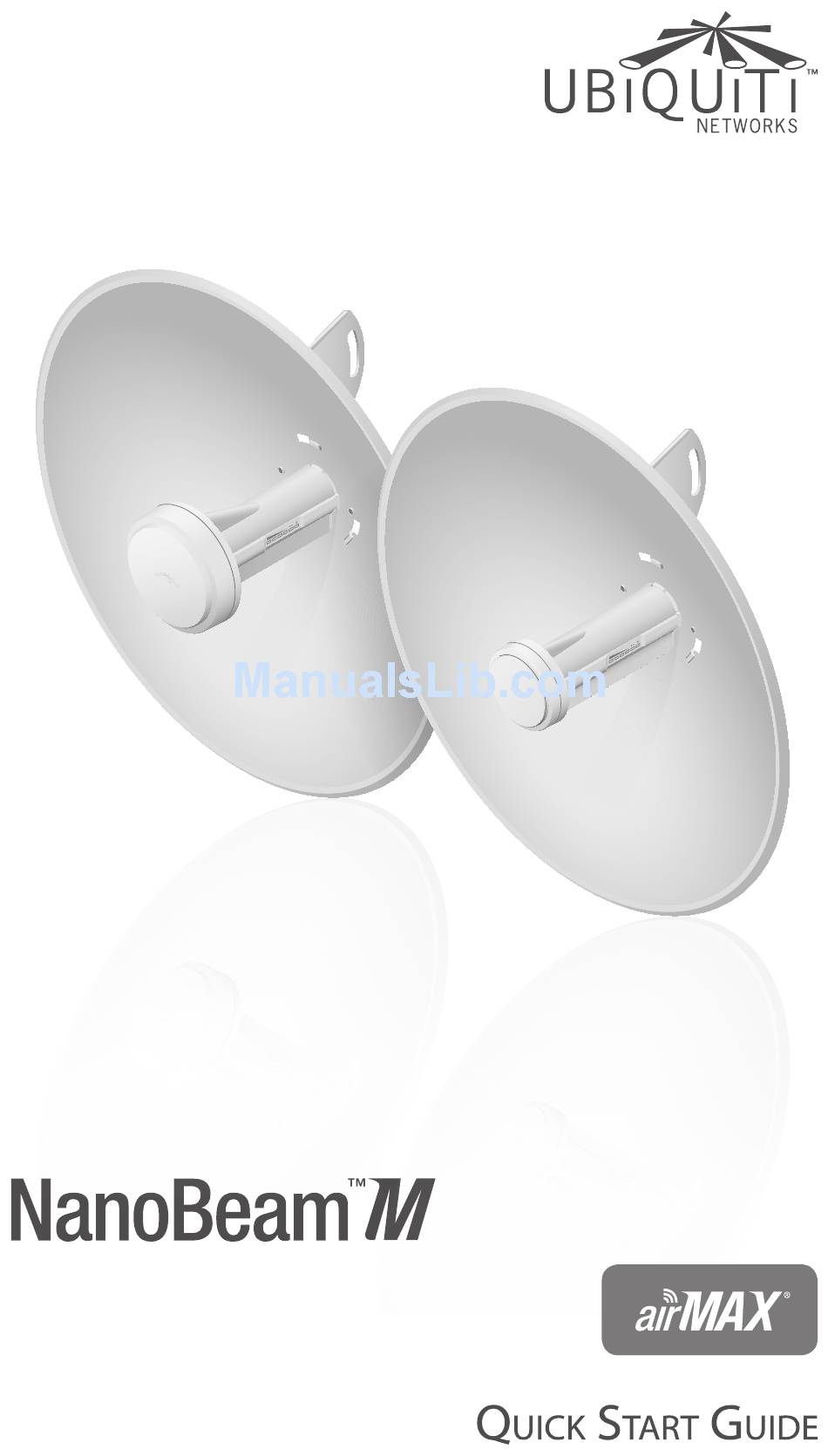

- Page 1 High-Performance Integrated InnerFeed ™ airMAX Bridge ® Models: NBE-M2-400, NBE-M5-400...
-
Page 2: Package Contents
Introduction NanoBeam Thank you for purchasing the Ubiquiti Networks ™ ™ This Quick Start Guide is designed to guide you through the installation, and show you how to access the airOS® Configuration Interface. This Quick Start Guide also includes the warranty terms and is for use with the NanoBeamM2, model NBE-M2-400, and the NanoBeamM5, model NBE-M5-400. -
Page 3: Hardware Overview
Hardware Overview Bottom View Antenna Feed Technology Ethernet Port Reset Button Release Button Dish Reflector Dish Bracket Alignment Pins Rear Housing Release Button Slot Cable Door Antenna Feed The NanoBeamM2 Antenna Feed is shown; however, the NanoBeamM5 Antenna Feed has the same layout for the Ethernet Port, Reset button, and Release button. - Page 4 Release Button After you assemble the NanoBeam, check the Release button; it should be fully engaged in the Release Button Slot of the Rear Housing. This ensures that the Antenna Feed is locked into place. If you need to remove the Antenna Feed, you must depress the Release button first.
-
Page 5: Application Examples
Application Examples The NanoBeam mounted outdoors with the Dish Reflector installed provides directional outdoor coverage (gain is reflector-dependent). The NanoBeam mounted outdoors without the Dish Reflector installed provides outdoor-to-indoor coverage using the 3 dBi Antenna Feed only. Installation Requirements • 13 mm or ½" wrench •... -
Page 6: Installation
Installation The installation instructions show the NanoBeamM2; however, the same instructions apply to the NanoBeamM5. 1. Align and insert the tabs of the Dish Bracket into the slots of the Dish Reflector. Rotate the Dish Bracket counter-clockwise until the tabs lock into place. 2. - Page 7 3. Push in the sides of the Cable Door and detach it from the Rear Housing. 4. Attach the Antenna Feed: a. I nsert the Antenna Feed into the Rear Housing, and push until it locks into place with a click. b.
- Page 8 5. Connect the Ethernet cable: a. Connect an Ethe rnet cable to the Ethernet Port of the Antenna Feed. b. Re-attach the Cable Door to the Rear Housing. 6. Slide the Pole Clamp onto the Dish Bracket.
- Page 9 7. Insert the U-Bolt into the Pole Clamp and Dish Bracket. Secure each end of the U-Bolt with a Flange Nut. 25 N-m (18 lb-ft) Note: The mounting assembly can accommodate a Ø 1.25" - 2.2" pole. 8. Optional: If you have the NanoBeam Radome (optional accessory), then align the arrows on the bottoms of the Radome and Dish Reflector so the Drain Holes on the Radome point downward.
- Page 10 9. Connect the other end of the Ethernet cable from the NanoBeam to the Ethernet port labeled POE on the PoE Adapter. 10. Connect an Ethernet cable from your LAN or computer to the Ethernet port labeled LAN on the PoE Adapter. 11.
- Page 11 Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected via Ethernet to the NanoBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.
- Page 12 5. Select the NanoBeam Dish Reflector size: a. Click the Wireless tab. b. F rom the Antenna drop-down list, select the appropriate option. c. Click Change to save. d. Click OK to confirm. Customize additional settings as needed to complete the configuration.
-
Page 13: Installer Compliance Responsibility
Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna and Output Power fields are provided to the professional installer to assist in... -
Page 14: Specifications
Specifications NanoBeam Dimensions 420 x 420 x 289 mm (Mount Included) NBE-M2-400 420 x 420 x 275 mm (Mount Included) NBE-M5-400 Weight 1.795 kg (Mount Included) NBE-M2-400 1.753 kg (Mount Included) NBE-M5-400 Operating Frequency 2405 - 2475 MHz NBE-M2-400 Worldwide: 5170 - 5875 MHz NBE-M5-400 USA: 5725 - 5850 MHz Gain... -
Page 15: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 16: Limited Warranty
UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. -
Page 17: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 19: Industry Canada
Industry Canada This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. - Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. -
Page 23: Online Resources
NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. - Page 24 . u b n t . c o m ©2013 Ubiquiti Networks, Inc. All rights reserved. airMAX®, airOS®, InnerFeed™, NanoBeam™, TOUGHCable™, Ubiquiti Networks™, and the Ubiquiti logo® are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. JL092713...
