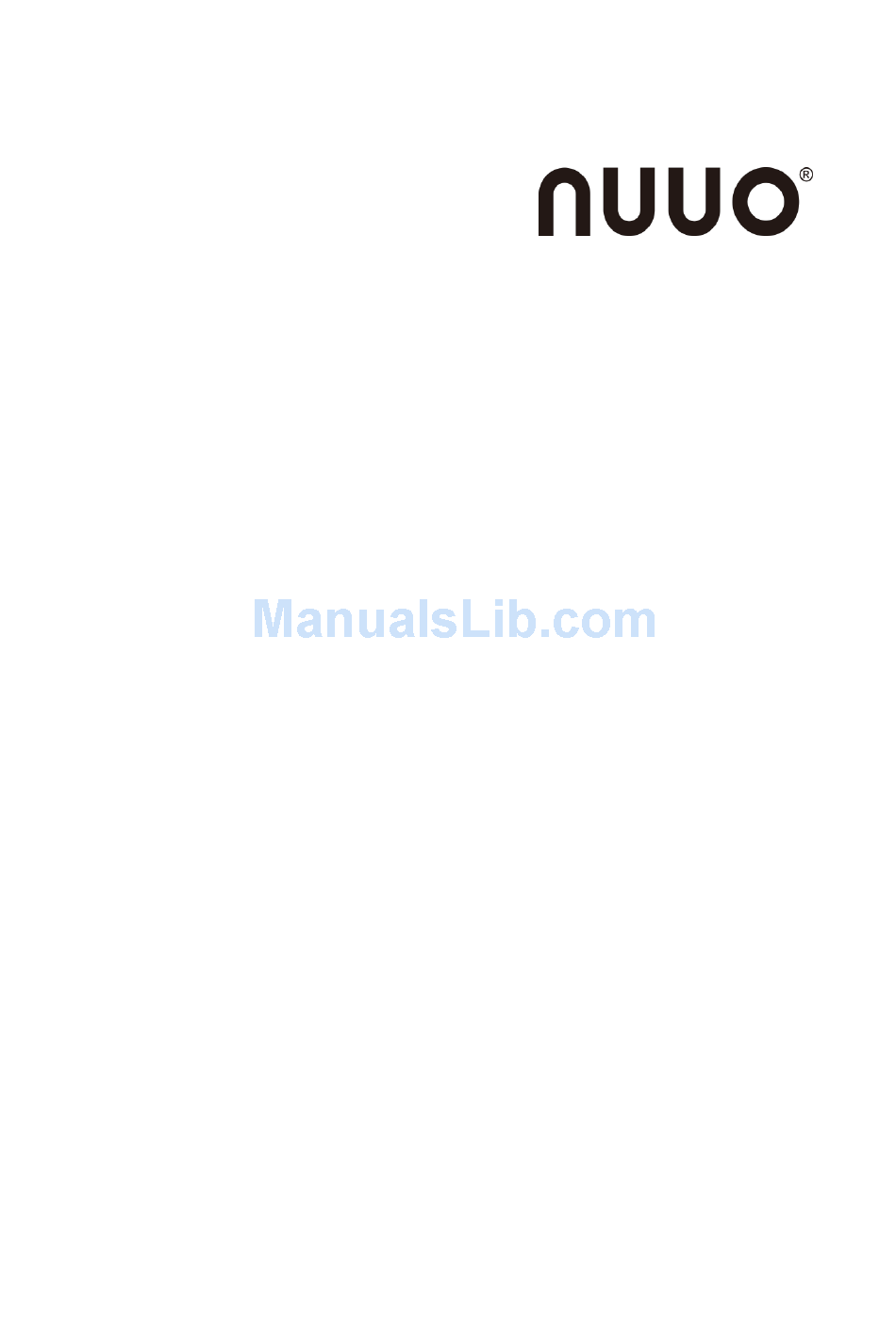

Page 1: User Manual
The Intelligent Surveillance Solution NVRmini 2 User Manual Ver. 1.7.5.131119.00...
Page 2: Table Of Contents
Table of Contents Installation ..............8 Installation Process ............. 8 LED Status Definitions ..........16 Settings ..............17 Camera Setup ............17 2.1.1 Add Cameras by Camera Search......17 2.1.2 Add Cameras Manually ........19 2.1.3 Modify Camera Information ......20 2.1.4 Modify Camera Parameters .......
Page 3 2.5.4 Network Service Setup ........52 2.5.5 CMS Service Setup .......... 53 Management ............. 54 2.6.1 View the List of Users ........54 2.6.2 Create New Users ..........54 2.6.3 Modify User Information ........55 2.6.4 Change a User’s Password ........ 56 2.6.5 Delete Users ...........
Page 4 3.3.1 Add New Tag Filter ........... 80 3.3.2 Edit Tag Filter ..........83 3.3.3 Delete Tag Filter ..........83 3.3.4 Import/Export Tag Filter ........84 POS Display Font ............84 3.4.1 Live View ............84 3.4.2 Remote Live Viewer ......... 85 3.4.3 Playback............
Page 5 5.1.1 Live View Control Panel ........100 5.1.2 Live View Setting ........... 103 5.1.3 General Setting ..........103 5.1.4 Stream Profile Setting ........104 5.1.5 OSD (On-screen display) Setting ..... 105 5.1.6 Monitor Display Setting ........105 5.1.7 Notification ........... 106 5.1.8 Set up Joystick Control ........
Page 6 7.1.5 Recorded Video Enhancement ......130 7.1.6 Save a Video ..........131 7.1.7 Save an Image ..........132 7.1.8 Print an Image ..........133 7.1.9 Backup the Recorded Video ......134 Remote Playback System Application ......136 7.2.1 Playback System Application Control Panel ..136 7.2.2 Set up Unit Connections .........
Page 7 13.4 Restore the Default Administrator’s Password ..156 13.5 Restore All Default Configuration ......157 13.6 Install ActiveX ............. 157 13.7 Cannot Log in to the Unit with Internet Explorer ..158 Appendix – RAID System............159 Introduction to RAID ............159 RAID 0 –...
Page 8: Gnu General Public License
General Public License. Please see the GNU General Public License (GPL) for the exact terms and conditions of this license at www.gnu.org. The GPL source code incorporated into the product is available for free download at our web site http://www.nuuo.com/. Subject to GPL, you may re-use, re-distribute and modify the GPL source code.
Page 9: Installation
1. Installation 1.1 Installation Process Step 1: Unpack the Unit This package contains the following items: The unit  Quick Start Guide  Screws for disk drives   Power cord  Warranty card  19V DC power transformer  CD with Install Wizard, Backup, Live View, Playback, Verification ...
Page 10 4 bay unit front/rear view Reset System Status ; eSATA Status eSATA Conn. Ethernet 1 & 2 Activity 1& 2 DISK 1 & 2 Status DISK 3 & 4 Status USB Conn. Power Status RJ45 Network Conn. 1 & 2 Lock Cooling Fan Power Connection...
Page 11 The software Installation Wizard performs the setup procedures on the unit. After the procedure, you can begin using it. 1. Go to Start > NUUO NVRmini 2 > NUUO Install Wizard. 2. This program will show the default language setting and initiation mode.
Page 12 and RAID level. Advanced Mode: configure all settings manually: network, license,  camera, Date/Time, upgrade notification, and RAID level “Add license” function is supported in v1.0.0.20 and later version. 4. The Installation Wizard program starts searching for all the units on the internet currently.
Page 13 Obtain network settings automatically from external DHCP server:  apply all settings which are automatically generated by the DHCP server, such as IP, subnet mask, gateway, and DNS. Configure network settings manually: configure the preferred settings  one by one. 7.
Page 14 selecting the searched cameras and manually configuring the cameras. Click the button after completing camera list.
Page 15 9. Set up the time zone, date, and time, and adjust daylight saving changes if needed. Once daylight saving function is enabled, the time change will activate automatically every year based on the recurrence you set. Click button. 10. Check “Enable Upgrade Notification” box if you want to receive notification when there is a newer FW version.
Page 16 11. Follow the following instruction and select the RAID type you want to create. Click the button. For 2 bay unit, only RAID 0 and 1 are available. 12. Review your settings. If the settings are correct, click the Finish button to exit the settings procedure and activate the system.
Page 17: Led Status Definitions
Once the “FINISH” button is clicked, the unit will start working. In order to ensure the stability of the unit, never pull any disks out when the system is running. 1.2 LED Status Definitions Function LED Status Power Status  Power-on: blue ...
Page 18: Settings
2. Settings After setting up the unit, log in to the system by entering its IP address in the browser (Internet Explorer 8 and later). When connecting, choose your language, enter the username and password, and then begin using this system.
Page 19 4. Click the Search button. 5. The system will list all the currently available cameras. The inserted cameras are shown in blue. Click the icon to add a camera into your camera list. 6. After clicking the icon, the camera setting page will pop up. Click the item to which you want to add a camera.
Page 20: Add Cameras Manually
9. After clicking the Add button, the updated camera list will be displayed in the Camera Setting tab. 2.1.2 Add Cameras Manually 1. Open Internet Explorer and log in to the unit. 2. Click IP Camera / Camera Settings. 3. Click the Camera Settings tab, and the camera list will be displayed on the bottom of the page.
Page 21: Modify Camera Information
lens/channels. Protocol: Data transmission protocol.  Vendor: Camera vendor name.  Model: Camera model name.  To have better compatibility between camera and system, please make sure the privilege of camera credential is admin-level. 5. Click the Save button. Save: Save the information of this camera. ...
Page 22: Set Up Lens Settings
Camera Name: The name of the camera.  Video Format: Choose the type of format which this camera supports.  Frame rate: Select the frame rate of the camera.  Resolution: Select the resolution of the camera.  Quality: Select the image quality of the camera. ...
Page 23: Set Up 2Nd Stream
ImmerVision and Vivotek (FE8171V). Generic Dewarp is a general method, which done by software technique, and it’s suitable for most fisheye cameras. You are not allowed to select type so far, type depends on camera model. Lens: Enable or disable lens function. ...
Page 24: View Camera Status
mobile client multi-view. 2.1.7 View Camera Status 1. Open Internet Explorer and log in to the unit. 2. Click IP Camera / Camera Status. Connection Status: The status of the connection. Click the Connect or  Disconnect button to change the connection status. Status Icon Connection Status...
Page 25: Recording & Event Setup
Recording Status No Recording Recording Status Always Recording – Recording Recording Status Always Recording – Stopped Recording Status Schedule Recording – Recording Recording Status Schedule Recording – Stopped Frame Rate: The frame rate of this camera.  Rate: The transmission bit rate of this camera. ...
Page 26: Recording Schedule / Event Setup
Recording: Turn off the recording.  Record by Schedule: Recording by schedule.  Always Record: Permanently turn on the chosen cameras.  Automatic Recycle: Check the Enable option and select the timing of  automatic recycle works. We strongly suggest recycling the disk(s) when the storage space is less than 10%.
Page 27 Insert: Insert new schedules.  Delete: Delete the selected schedule.  Configure: Modify the schedule and recording mode settings.  Copy: Copy current Day Schedule to other channel(s); copy current  Week Schedule to other day(s) of a week or to other channel(s).
Page 28 7. The default setting of the camera’s recording schedule is from 00:00 to 24:00. If you want to modify the time slot, click the Configure button to modify the default settings first. 8. Choose the recording mode. Always Record: Always record. ...
Page 29 10. Click the Save button. When changing the motion detection settings of a camera, make sure to disconnect your unit and that camera first. Once you have finished, re-connecting them will update the settings in your unit. When setting an event, Motion or Digital input can be triggered from other cameras. This means that if the system detects motion or digital input from other cameras or I/O Box, the camera will begin recording.
Page 30: Camera Events And Responding Actions Setup
2.2.3 Camera Events and Responding Actions Setup 1. Open Internet Explorer and log in to the unit. 2. Click Recording & Event / Event & Action Management. 3. Choose the camera, and then select one of the events. The event list depends on camera its own ability.
Page 31 Connect lost: When a connection between the camera and this unit is  lost, the system will trigger an action. Motion from Camera: When video motion is detected, the camera  triggers an action. Input: Any external input can trigger an action. ...
Page 32: I/O Box Input And Responding Action Setup
while N/C means normal close. 5. Click the Add button to set up the responding actions of this event. Output: When an event occurs, the system will send an output signal to  other connected devices. Email: When an event occurs, the system will send Email notifications. ...
Page 33 2. Click Recording & Event / Event & Action Management. 3. Click the Event & Action tab. 4. Select an input of I/O Box from list. 5. Click the Add button to set up the responding actions of this event. 6.
Page 34: System Events And Responding Actions Setup
7. Click the Save button. 2.2.5 System Events and Responding Actions Setup 1. Open Internet Explorer and log in to the unit. 2. Click Recording & Event / Event & Action Management. 3. Click the Event & Action tab. 4. Click System to unfold the list of system events, and then select one of the five events.
Page 35: Push Notification
Power-on notification: Record the time as power was turning on.  Auto power-off notification: If overheat was happened, users will be  notified that power is auto off via Email. 5. Click the Add button to set up the responding actions of this event. Follow the steps in the previous section.
Page 36 List: All user accounts in this unit.  5. Click the Save button. 6. Sign in the unit on NUUO mobile client with the user account assigned with push notification service. 7. When an event occurs, the user will get the push notification instantly. The...
Page 37: Smtp Server Setup
If users don’t want to receive notifications anymore, users can turn off this feature on NUUO mobile client. There is one possibility of de-registering failed, that is, users have ever logged in to the mobile client by typing both LAN IP and WAN IP of the NVR, but only do de-registering on one side.
Page 38: Add Event Contacts
Server Address: SMTP (Simple Mail Transport Protocol) server IP  address. Port: SMTP port.  Sender: Sender information.  Subject: The subject of the mail.  Body: Email content.  SMTP Authentication: Before sending out an Email, enter the  username and password for SMTP authentication.
Page 39: Raid & File Settings
Contact: Add this new contact into the contact list.  Reset: Return to the latest saved settings of the contact list.  Save: Save this time modification of the contact list.  4. Insert the name of a new contact. 5.
Page 40 4. Choose the RAID level you prefer for your disk array. 5. Check boxes of disks and click the >> button to assign disk drives for this volume. 6. Click the Create button. A confirmation dialog pops up. Check the Yes, I want to create volume with those disk(s) box, and click the Yes, create it button.
Page 41: View Raid Volume Status
To reduce the possibility of having problems to access public folder via My Network Places, before creating new disk volume or modifying volume, please delete the invalid volume if any. If you choose Express Mode when using the Installation Wizard, the disk(s) will be set to RAID 1 (2 bay) or RAID 5 (4 bay) automatically unless the number of disks is not enough for this RAID level.
Page 42: View Disk Drive Information
Update Time: The time of volume created/updated.  Devices: Total number of disks and the number of active, failed, spare  disks. Format Progress: The status of RAID format  Recovery Progress: The status of RAID recovery  2.3.3 View Disk Drive Information 1.
Page 43 2. Click RAID & File System / RAID Management. 3. Click the Modify tab. 4. Click on the volume you want to modify. The information of this volume will be displayed under the Modify Volume section. 5. After removing the damaged disk. Add a free disk to replace the damaged, and click the Modify button.
Page 44: Delete A Raid Volume
7. Modifying RAID volume takes a while, depending on the size of disks you choose. Recording won’t be stopped during the modification, and the data of this RAID volume is fully accessible. 2.3.5 Delete a RAID Volume Open Internet Explorer and log in to the unit. Click RAID &...
Page 45: Format
Click the option button beside the RAID Volume you want to delete. Click the Delete button. A confirmation dialog pops up. Check the Yes, I want to delete this volume box, and click the Yes, delete it button. 7. System will restart automatically after RAID volume is deleted When you delete a RAID Volume, all the folders in the RAID volume and all the data saved in the folders will be deleted.
Page 46: Modify The "My Network Places" Protocol Settings
4. Click the option button beside the RAID Volume you want to format. 5. Click the Format button. 6. A confirmation dialog pops up. Check the Yes, I want to format this volume box, and click the Yes, format it button. 7.
Page 47: Modify The Ftp Protocol Settings
Services: Enable to let users access this unit through Windows Explorer.  (default: disable) Server Name: The name of this unit, which is set in the Setup tab of the  Network Setup function. Server Description: The name which will be displayed in Windows ...
Page 48: Set Up Backup Server
Auto Backup: Check the Enable option to enable this function.  Daily Backup Time: The daily scheduled time to start backup process.  Video Start Time: The start time of recorded video of the previous date.  Video End Time: The end time of recorded video of the previous date. ...
Page 49: Network Setup
FTP. Check it after testing. In this case, the route of the tested file will be: ftp://nuuo.dnsalias.com/AutoBackup/NVR/NVRmini2_ComputerNa 6. Click the Save button. Make sure the FTP account with privileges of administrator who is able to upload, rewrite, delete files, and create new folder.
Page 50: Network Settings
2. Click Network Setup / Network Setup. 3. Click the Information tab to view the unit’s network information. 2.5.2 Network Settings 1. Open Internet Explorer and log in to the unit. 2. Click Network Setup / Network Setup. 3. Click the Setup tab to set up the network settings of your unit. Server Name: Name your unit.
Page 51: Auto Port-Forwarding
the name of your unit. Log in again after configuration activated. Internet Interface (WAN): The selection is for 4bay unit to choose  which LAN is connected to the internet, which implies that there is no longer to fix the Internet access to LAN 1 for sending mails, activating license online, receiving auto upgrade notification, etc.
Page 52 1. Open Internet Explorer and log in to the unit. 2. Click Network Setup / Network Setup. 3. Click the UPnP Port Forwarding tab. 4. Click the Search button, and the searched routers will be listed. 5. Select the searched router, and all UPnP ports configured on this router will show under the UPnP Port Forwarding List.
Page 53: Network Service Setup
For security reason, the privilege of UPnP port-forwarding is LOWER than port-forwarding configured on router. Therefore, if the ports have been used on router, we are unable to know before finding out access failure. UPnP port-forwarding is for temporarily use only. Most of UPnP router will clean up all UPnP ports after router reboots.
Page 54: Cms Service Setup
Live Streaming Server  Port: Live streaming transmission port.  Maximum Connections: Maximum connections from remote access.  (Max: 64) Playback Server  Port: Playback transmission port.  Maximum Users: The number of users who can access playback  functions at the same time. (Max: 8) Access: Check to record playback access information on NVR Log ...
Page 55: Management
1. Open Internet Explorer and log in to the unit. 2. Click Network Setup / Network Service. 3. Click the CMS Service tab. Server: Check the Enable option to enable CMS service.  Port: the port number through which the CMS connects to this unit. ...
Page 56: Modify User Information
4. Insert the username of this new user. 5. Insert the password of this new user. 6. Choose the group of this user. Power user: Power user can do all the settings except the Network  Settings, RAID Settings, and Management function. User: User just can change his/her password and do the live view and ...
Page 57: Change A User's Password
5. Change the group of this user. 6. Select the live view cameras which this user can access. 7. Select the playback channels which this user can access. 8. Manage the privileges for each user to decide whether this user can control PTZ, backup, delete recorded data, etc.
Page 58: Delete Users
2.6.5 Delete Users Except for the administrator, you can delete any users with the following steps. 1. Open Internet Explorer and log in to the unit. 2. Click Management / User Management. 3. Click the Modify Users tab. 4. Click the Delete icon of the user you want to delete. 5.
Page 59: Offline License Activation
3. Input serial number under the section of Online Activation, and click the Activate button. 4. The license will be updated in License List if activated successfully. 2.6.7 Offline License Activation If the device is set up in Intranet (Local LAN) without Internet connection, there is another way to activate license.
Page 60 4. Download dialog pops up. Save the request file and take it to other PC which is connected to the Internet. Furthermore, the PC should be installed OffLineTool.exe which can be found from NVRmini 2 toolkit. 5. Execute the OffLineTool.exe in that PC with Internet connection, and select...
Page 61: Online License Transfer
6. Input the serial number, click the Activate button, and save the .dll file offline_license.dll. 7. Import the license file to the unit. 8. The license will be updated in License List if activated successfully. 2.6.8 Online License Transfer There are two ways to transfer license, online and offline. 1.
Page 62: Offline License Transfer
3. Select the license you want to transfer from the License List below, and click the Transfer button. 4. The license will be removed from License List if transferred successfully. 2.6.9 Offline License Transfer If the device is set up in Intranet (Local LAN) without Internet connection, there is another way to transfer license.
Page 63: View The Event Log
OffLineTool.exe which can be found from NVRmini 2 toolkit. 6. Execute the OffLineTool.exe in that PC with Internet connection, and select the request file offline.req. 7. The license you are going to transfer is listed. Click the Transfer button to finish the transfer process.
Page 64: Save Unit Configuration
There are four kinds of event which will be listed on this page. Hardware Log: The log information of the operations to your unit, such  as reboot or shut down. Log: The log information of the NVR system, such as system, ...
Page 65: Load Unit Configuration / Default Settings
4. Check the box of E-Map Settings or POS Settings if you want to keep the configuration. 5. Click the OK button. 6. The configuration file will be generated into the chosen folder. User account won’t be exported as saving configuration, which implies the user list of push notification won’t be saved as well.
Page 66: System
address; for the latter, check the box of E-Map Settings or POS Settings if you want to restore the configuration. 4. Click the Load button. 5. A confirmation dialog pops up. Click the OK button to begin to load the settings into your unit.
Page 67: Smart Fan Control
Operating System: Embedded Linux  Version: NVR system version  Device Pack Version: Camera package version  CPU: CPU model number  Loading: The approx. CPU loading of this unit  Address: MAC address of this unit  CPU Temperature ...
Page 68: Ups Setup
4. Check the Enable or Disable option. 5. Click the OK button. 2.7.4 UPS Setup This feature enables you to tell your unit how long to run on APC Uninterruptable Power Supply (UPS) battery power and when to shut down, after power failure.
Page 69: Upgrade The System
2.7.5 Upgrade the System 1. Open Internet Explorer and log in to the unit. 2. Click System / Upgrade. 3. Click the Firmware Upgrade tab. 4. Browse the FW for upgrading and click the OK button. 5. A confirmation dialog pops up. Click the OK button to start upgrade process.
Page 70: System Date And Time Setup
4. Check the option if you agree to be bound by the agreement. 5. Click the OK button. 2.7.7 System Date and Time Setup 1. Open Internet Explorer and log in to the unit. 2. Click System / Date/Time.
Page 71: Restart The Unit
3. Choose the time zone. 4. Configure the year, month, day and time manually, or enable NTP server to synchronize time automatically. When NTP server enabled, the date/time settings will be grayed out. 5. Check the Adjust clock for daylight saving changes option and select the time change of daylight saving time in your location.
Page 72: Shut Down The Unit
3. Check the Reboot option. 4. Click the OK button. 5. A confirmation dialog pops up. Click the OK button to reboot the unit. The restart procedure runs automatically. When the unit is fully online: The System Status LED turns blue. ...
Page 73 If the system is crashed and stocked, you can press the power button and hold it for 10 seconds to force to cut off the power directly. We don’t recommend to do it if the system work properly.
Page 74: Pos
NVR/DVR/NVDR/NVRmini/NVRmini 2, provides financial transaction’s surveillance solution in one central system. The architecture is as below; POS transaction data flows to NVRmini/NVRmini 2 by Ethernet. Each Cash Register with an external receipt printer is connected by DB9 cable. The transaction information delivered in R232 format can be converted to Ethernet through SCB-C31A POS data capture converter.
Page 75: Hardware Installation - Scb-C31A
Operating Humidity 0-90 % Non-Condensing Baud Rate 110 bps to 230.4 kbps Data Bits 5, 6, 7 or 8 Stop Bits 1, 1.5 or 2 Parity None, Even, Odd, Mark, Space Flow Control None, RTX/CTS, XON/XOFF, DTR/DSR 3.1.2 Hardware Installation – SCB-C31A To connect Cash Register, Printer, and SCB-C31A POS data capture converter together, please follow below steps: Step 1: Please refer the user manual to setup Cash Register and printer.
Page 76: Software Installation - Scb-C31A
The LED Indicators: LINK LED: Ethernet cable connection and data active. RUN LED: System is ready (Blinking). Serial 1: Transiting/Receiving Indicator. 3.1.3 Software Installation – SCB-C31A Step 1: Use IE-browser to setup SCB-C31A, the default IP address is 192.168.1.1 Step 2: Setup IP address and password in Server page, and click the Save button.
Page 77: Connection Via Tcp Client
Step 3: Setup Password if needed. Password is only using to activate a security feature on the serial server. Once a password is entered it will be required to access the menu and make change of configuration when access. Please write down the Serial number and MAC address, these two parameters are necessary when user forget your password.
Page 78: Software Setup
NVRmini 2 3.2 Software Setup 3.2.1 Activate POS License If you are not the SCB-C31 user, you need to activate POS license before starting the following settings, please refer to License Activation for details. 3.2.2 NVR POS Setting 1. Open Internet Explorer and log in to the unit.
Page 79: Insert Pos Setting
Data Source: List of all the data sources.  Insert: Click to insert POS and do the POS settings. See Insert  POS Setting for details. Delete: Click to remove the selected POS from the list. See Delete  POS Device for details. Configure: Click to configure the selected POS and modify the POS ...
Page 80 SCB-C31: The device possesses one POS license, and should be  equipped with the cash register not working as TCP server. SCB-C31A: The difference from SCB-C31 is not possessing one POS  license, so user should activate POS license. Client: Cash register possesses with network, so no need to have ...
Page 81: Delete Pos Device
5. Select Tag Filter. See Tag Filter for details. 6. Select the camera of Associated Cameras to display POS transaction data overlay on live video. 7. Set up display area for each camera video in Display Region Definition. Default: The default display area is in the upper left corner of video ...
Page 82 original and filtered data. Filter Tools: Upper/down buttons to arrange the priority of each filter;  remove button to remove the filter from list. 3. Enter name of this tag filter. 4. Click Connect button to capture POS transaction data from POS device. The original transaction data will be shown on the left window.
Page 83 Omit: Neglect the selected text which is meaningless or not important. The  text will disappear on the right window. Substitute: Use another word(s) to replace the selected text. The system  will pop up a substitution panel for replacing word(s) users want. The replaced text will be shown on the right window.
Page 84: Edit Tag Filter
End: Define the selected text as the symbol for transaction ending. The  filtered data will be separated line as below. 7. Filter Tools Up: Move a tag filter up; the upper filter will be operated earlier.  Down: Move a tag filter down; the lower filter will be operated later. ...
Page 85: Import/Export Tag Filter
2. Click Delete button to delete it. 3.3.4 Import/Export Tag Filter 1. Click Import/Export button and select Import/Export URL. 2. Click Open/Save to Import/Export Tag Filter. 3. After importing tag filters, users can simply select tag filter from drop-down menu without editing new tag filter. 3.4 POS Display Font The system allows users to set up the fonts of POS transaction data on live view video and playback video.
Page 86: Remote Live Viewer
5. Click the OK button to save. 3.4.2 Remote Live Viewer 1. Startup > NUUO NVRmini 2 > Remote Live Viewer 2. Click the General Setting button to open Live View Setting window. 3. Select the font, font size, font color and background for the POS transaction...
Page 87: Playback
4. Click the OK button to save. 3.4.3 Playback 1. Open Internet Explorer and log in to the unit. 2. Click the Playback button. 3. Click the Setting button to open Setting window. 4. Select the font, font size, font color and background for the POS transaction data overlaid the video.
Page 88: Playback System
3.4.4 Playback System 1. Startup > NUUO NVRmini 2 > Playback System 2. Click the Setting button to open Setting window. 3. Select the font, font size, font color and background for the POS transaction data overlaid the video. Also, select the type of transaction data display...
Page 89: Pos Transaction Data Search
3.5 POS Transaction Data Search POS Search tool is used to search key word of all transaction data. 3.5.1 Search POS Transaction Data through Playback 1. Open Internet Explorer and log in to the unit. 2. Click the Playback button. 3.
Page 90: Search Pos Transaction Data Through Playback System
10. Select the checkbox of Search within result, and enter a keyword, you can search the data within the results. 3.5.2 Search POS Transaction Data through Playback System 1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the Open Record button to open Data Time Search Dialog window.
Page 91: Select Period By Pos Search
Time Period section after choosing cameras. 5. Click OK to playback videos. 3.6.3 Select Period by Data & Time through Playback System 1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the Open Record button to open Data Time Search Dialog...
Page 92: Backup Video With Pos Data
window. 3. Click the Remote Server Site icon on the top of the window to select the server users want to access. 4. Highlight the video clip you want to review by left-clicking and dragging the time period. You may also utilize the Start Time and End Time in Date Time Period section after choosing cameras.
Page 93: Backup Through Playback System
8. Click the Backup button. 9. The system will then begin backup process automatically. 3.7.2 Backup through Playback System 1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the Open Record button to select data. 3. Click the Backup button.
Page 94: Introduction
I/O device is connected directly with I/O Box, and input/output signal delivered in RS485 format are converted to Ethernet through SCB-C31. NVRmini/NVRmini 2 can use the signals to do more sophisticated setup, such as starting recording when input triggered, triggering output as an event happened, and much more.
Page 95: Software Installation - Scb-C31
RS485 RJ-45 RS485 Reset Switch Power Multiple I/O Boxes can be connected to a single SCB-C31. However, series connection of I/O boxes is forbidden. Furthermore, the default ID for each I/O Box is the same. Please follow the direction to setup I/O Box one by one. 4.1.3 Software Installation –...
Page 96: Software Installation - Scb-C24/26/28
2. Server Listening Port: The default port is 4000, which is not the port for setting page, but for signal transmission. Step 3: Click the Apply button to activate configuration. Due to the stability of data transmission, one SCB-C31 can be paired with one NVR unit only.
Page 97 IOConfig.exe starts scanning the ID from 0 to 255, and it may take around a minute to finish scan. 2. When the I/O Box is discovered, click on the item and change the ID from the New Address field. Click the Update device button to activate the settings.
Page 98: Software Setup
4. Refer to the HW Installation section to connect other I/O Box and repeat the steps 1 through 3 above to configure more I/O Boxes. 4.2 Software Setup 4.2.1 Add I/O Box 1. Open Internet Explorer and log in to the unit. 2.
Page 99: Modify I/O Box Information
ID: The ID of the I/O box.  4. Click the Create button, and the information will be updated in I/O Box List. 5. Repeat steps 3 and 4 to add more I/O boxes in the list. 6. Click the Save button to activate the settings. Meanwhile, system will distribute an unique ID to each device.
Page 100: Relative Configuration And Application
triggered and pushed a notification to mobile, users can playback the videos of its associated camera.) 5. For output pin, you can configure its duration time to control how long output acts after it’s triggered. The duration range is 3 sec~60 sec. N/A stands for unlimited.
Page 101: Live View
5. Live view There are two ways to execute the live view function: with Internet Explorer or with the Remote Live Viewer application. 5.1 Internet Explorer 5.1.1 Live View Control Panel Log In/ Log Out (Live view service) Camera List Set Preset Point / Go to Preset Point Zoom out / Zoom in...
Page 102 server name, video current status, and bit rate for a selected channel. Start Menu > E-Map: Upload map and drag camera or I/O on it to track  device location and alarm status with instant response when an event occurred. See details in the chapter of E-Map.
Page 103 Enable Move: Adjust the current view of camera which supports PT  function by dragging the button on the display screen. Enable Digital PTZ: Click the + or – button to zoom in or zoom out the  view. The lower right square flashing on the video grid indicates the correspondent view of the camera.
Page 104: Live View Setting
Connect All / Disconnect All: Click to connect or disconnect all  cameras. 5.1.2 Live View Setting 1. Open Internet Explorer and log in to the unit. 2. Set the cameras. 3. Click the Live View button on the top of the page. 4.
Page 105: Stream Profile Setting
5. Check the Enable audio on active channel option to enable audio streaming on active channel. This function synchronizes with right click on camera to enable audio. 6. Check Synchronize video frames to avoid the tearing problem occurring in video display while increasing the CPU loading. 7.
Page 106: Osd (On-Screen Display) Setting
5. Adjust the stream profile of every camera with stream profile enabled in setting page. 6. Click a camera and select its stream profile, and click the Copy to… button to apply this profile to other channels. 7. Click the OK button. 5.1.5 OSD (On-screen display) Setting 1.
Page 107: Notification
Auto Scan Layout 5. Select Primary channel which will always be on the screen when activating auto scan; while select Secondary channel which has second priority when activating auto scan. Enter the time interval for auto scan. 6. Select the screen division of NxN type. 7.
Page 108: Set Up Joystick Control
5. Check Show recording status to show the crystal ball with recording status on monitor display. 6. Check Show camera event to display the words of detected camera event on the correspondent screen. 7. Check the Enable playing sound on event option. Select sound file, default sound or user defined sound (.wav), and define the cycle.
Page 109 Parameter: Choose the preset point from the drop-down menu.  Default: Click to back to default setting.  Import: Click to import the settings.  Export: Click to export the settings.  5. Click the OK button.
Page 110: Remote Live Viewer Application
5.2 Remote Live Viewer Application 5.2.1 Remote Live Viewer Application Control Panel Log In/ Log Out (Server / Group) Server and Camera List Set Preset Point / Go to Preset Point Zoom out / Zoom in PTZ Camera Control Exit Focus Far / Auto Focus / Focus Near Minimize...
Page 111 Start Monitor > E-Map: Upload map and drag camera or I/O on it to  track device location and alarm status with instant response when an event occurred. See details in the chapter of E-Map. Start Monitor > I/O Control Panel: Utilize I/O device function ...
Page 112 Enable Move: Adjust the current view of camera which supports PT  function by dragging the button on the display screen. Enable Digital PTZ: Click the + or – button to zoom in or zoom out the  view. The lower right square flashing on the video grid indicates the correspondent view of the camera.
Page 113: Unit Connection Setting
5.2.2 Unit Connection Setting 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Server tab. 4. Insert the unit name. 5. Insert the IP address. 6. Modify the port if necessary.
Page 114: General Setting
11. Click the Add button to add this unit into your remote server list. 12. Click the OK button. 5.2.3 General Setting 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the General Setting button. 3. Click the General tab.
Page 115: Camera Group Setting
6. Select monitor(s) to run LiveView. 7. Click the OK button. 5.2.4 Camera Group Setting You can put different cameras into the same group. 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Group tab.
Page 116: Delete/ Rename Camera Groups
9. Repeat steps 3 through 7 to establish other groups. 10. Click the OK button. 5.2.5 Delete/ Rename Camera Groups 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Group tab.
Page 117: Osd (On-Screen Display) Setting
6. Click the OK button. 5.2.7 OSD (On-screen display) Setting 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the General Setting button. 3. Click the OSD tab. 4. Check the Enable camera OSD option.
Page 118: Notification
Enter the time interval for auto scan. 6. Select the screen division of NxN type. 7. Click the OK button. 5.2.9 Notification 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Notification tab.
Page 119: Set Up Joystick Control
Management to do the setting. 5.2.10 Set up Joystick Control 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Joystick tab. Function: You can choose the function from the drop-down menu for the ...
Page 120: Set Up Remote Live Viewer
4. Click the OK button. 5.2.11 Set up Remote Live Viewer 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the unit you wish to access in your remote server list. 3. Click the LOG IN button to access your unit.
Page 121: E-Map
6. E-Map There are two ways to execute the live view function: by Internet Explorer or by Remote Live Viewer application. With E-map, user can easily track the device location and alarm status with instant response when an event occurs. The arrows and lightening icon on E-map represent cameras and I/O devices.
Page 122: Add Map
E-map. Digital Input: Select it to highlight the device with green ring on map  and show status on Information Window. If the Digital Input is from IP camera, the preview window will display live video of the camera. Digital Output: Select it to highlight the device with green ring on ...
Page 123: Edit Map
5. Repeat steps 2 through 4 to add more maps. 6. Click the Upload button to activate all the settings. The maximum file size of each map is 500KB. There are 10 layers of map, and the map capacity of each layer is 10. 6.1.3 Edit Map 1.
Page 124: Layout Adjustment
Adjust the Layout 6.1.7 Layout Adjustment Adjust the Layout: Click the triangular indicator to hide the Device  and Map Tree List / Preview and Information Window on right and left side of the window. Click the indicator again to back to the default. Maximize the Map: Click the icon on the upper right to get the full ...
Page 125: Remote Live Viewer Application
6.2 Remote Live Viewer Application 1. Startup > NUUO NVRmini 2 > Remote Live Viewer. 2. Click the Start Monitor button and select Open E-Map. 6.2.1 E-Map Control Panel Server List Edit Mode / Browse Mode Switch Button E-Map Picture...
Page 126: Playback
7. Playback There are two ways to execute the playback function: with Internet Explorer or with the Playback System application. 7.1 Internet Explorer 7.1.1 Playback Control Panel Browse Mode Search Mode Screen Division Open Record General Setting Enhancement / Backup Post Processing Tool Export Video /...
Page 127 Open Record: Click the Open Record button to access the Date-Time  Panel and select the video records which you want to review. General Setting  Record Display  Calendar View: view the Record Display Window as a calendar.  List Control: view the Record Display Window as a list control.
Page 128: Search The Recorded Video
mode, Full-view panorama mode, Dual-view panorama mode. Type of modes depends on lens location. 7.1.2 Search the Recorded Video Refresh POS Search Previous/ Next Video Preview Recording Date Record Display Window Date Time Period Time Table Recording Types : refresh the Record Display Window. ...
Page 129 Show Event Log: Show the time of event detection in the time table.  Color of event type can be defined by preference. 1. From the Record Display Window at the top left of the Date Time Panel, select the date you want to search the record from.
Page 130: Play The Recorded Video
7.1.3 Play the Recorded Video 1. Be sure that you have set the schedule / recording event first. 2. Open Internet Explorer and log in to the unit. 3. Click the Playback button on the top of the page. 4. Click the Open Record button. 5.
Page 131: Recorded Video Enhancement
Define detection zone by dragging to draw a detection zone. Modify the sensitivity setting. Set the Interval. Check the Stop when found option. If unchecked, the search tool will list all the events it found, instead of stopping at the moment the event found. Click the Search button.
Page 132: Save A Video
it cleaner. Sharpen: Check the option to activate the function. Move the slider  control to the right to sharpen the image, to the left to soften it. Brightness: Check the option to activate the function. Move the slider  control to the right to make the image brighter.
Page 133: Save An Image
9. Choose the folder where you want to save the file. 10. Insert the file name and click the Save button. 11. Choose the export format. 12. Choose the use profile. 13. Check to export the recorded video with Audio, OSD and POS Transaction. 14.
Page 134: Print An Image
You may skip step 3 by presetting the folder where you want to save the images and the format you want to save them in. 7.1.8 Print an Image Print the current image of the video you choose. 1. Open Internet Explorer and log in to the unit. 2.
Page 135: Backup The Recorded Video
7.1.9 Backup the Recorded Video Different from Save Video, the Backup function will save all the recorded videos which belong to the time slot you set, instead of the clips. 1. Open Internet Explorer and log in to the unit. 2.
Page 137: Remote Playback System Application
7.2.2 Set up Unit Connections Before using the Playback System application, you need to set a connection to your unit first. 1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the General Setting button. 3. Click the Server tab.
Page 138: Search The Recorded Video
4. Insert the name of your unit. 5. Insert the IP address of that unit. 6. Modify the port if necessary. 7. Insert the user name. 8. Insert the password. 9. Check the Save Password option. 10. Click the Test Server button to test the connection between the local application and the remote unit.
Page 139: Play The Recorded Video
1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the Open Record button. 3. Click the icon on the top of the Date-Time Panel to obtain the Remote Playback Site Management dialog, and then select the server you want to access.
Page 140: Recorded Video Enhancement
The intelligent search in the Playback System application is similar to that of Internet Explorer. 7.2.6 Recorded Video Enhancement 1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the Open Record button. 3. The Record Display Window will show the information of the available video clips.
Page 141: Save A Video
OK: Apply the modifications of the settings.  7.2.7 Save a Video 1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the Open Record button. 3. The Record Display Window will show the information of the available video clips. Select the date from which you want to search the record.
Page 142: Save An Image
7.2.8 Save an Image 1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the Open Record button. 3. The Record Display Window will show the information of the available video clips. Select the date from which you want to search the record.
Page 143: Backup The Recorded Video
Different from Save Video, the Backup function will save all the recorded videos which belong to the time slot you set, instead of the clips. 1. Startup > NUUO NVRmini 2 > Playback System. 2. Click the Open Record button to select data.
Page 144: Backup And Delete Records
In addition to the ways mentioned in the previous chapters, you can apply the application to backup your files. 1. Startup > NUUO NVRmini 2 > Backup System. 2. Click the Remote Server Site button to set up remote server.
Page 145 6. Insert the user name. 7. Insert the password. 8. Check the Save Password option. 9. Click the Test Server button to test the connection between the local application and the remote unit. 10. Click the Add button to add this unit into the remote server list. 11.
Page 146: Backup The Recorded Video Through Windows Explorer
18. Click the Backup button. 19. Select the way and directory you want to save the backup data. 20. Check the Include Playback application option, which will add Playback application into the backup folder. 21. Click the OK button. 8.2 Backup the Recorded Video through Windows Explorer 1.
Page 147: Backup The Recorded Video Through Ftp
5. Select the recorded data to play back. 8.4.2 Without Playback Application 1. Use the Playback function to backup your records. 2. Put your backup folder into the program folder of NVRmini 2. (Default directory is “C:\Program Files\NUUO\NVRmini2”.) 3. Startup > NUUO NVRmini 2 > Playback System.
Page 148 2. Click the Remote Server Site button to set up remote server. 3. Insert the name of your unit. 4. Insert the IP address of that unit. 5. Modify the port if necessary. 6. Insert the user name. 7. Insert the password. 8.
Page 149 13. Click the New Period button to select the record date. 14. Set the Start Time and End Time. (or highlight the video records which you want to delete) 15. Select the cameras you want to delete the records. 16. Click the OK button. 17.
Page 150: Without Backup Application
18. Click the Delete button. 19. Confirm the check dialog. 8.5.2 Without Backup Application 1. Find your unit through Windows Explorer (insert “\\” plus the IP address of your unit). 2. Open the “public” folder. 3. Insert the name and password of the administrator. 4.
Page 151: Verification Tool
2. File in (.avi) (.asf) format will be displayed as 3. File in (.bmp) (.jpg) format will be displayed as 9.1 Execute Verification Tool 1. Startup > NUUO NVRmini 2 > Verification Tool. 2. Verification Tool Overview Add File Add Folder...
Page 152: Verify Image / Video
Video Preview: Preview designate file in verification list. Select the  buttons below to play , pause , and stop the video file. 9.2 Verify Image / Video 1. Select single or multiple files for verification. 2. Click the Verify button to start verification.
Page 153: External Storage
10. External Storage Total recording space of 4 bay unit can be expanded largely by connecting DAS through eSATA port. Follow the directions to enlarge your recording space. 10.1 Create a Volume on DAS The current compatible DAS is AXUS FiT Series. We don’t guarantee the quality of other DAS models.
Page 154 Refer to the section of Create a RAID Volume to create a volume for it.
Page 155: Log Out
11. Log out Click the Logout button on the top of the page to log out of the system. If there is no action in 10 minutes, the system will log out automatically to avoid unauthorized access.
Page 156: Remote Pc System Requirements
Model 2/4 bay Windows XP 32 bit, Windows 7 32/64 bit, Supported Windows 8 32/64 bit Intel Core 2 Duo, 2.6GHz User 1. HTTP Web browser - Internet Explorer 8, 9, Interface 10 (32 bit) 2. NUUO client application program...
Page 157: Troubleshooting
13. Troubleshooting 13.1 Replace a Failed Disk Drive If a disk drive fails, the Disk Status LED becomes orange. If the disk drive belongs to a RAID Volume, the Volume goes Critical or Offline, depending on RAID level. See Check RAID Volume Status for details.
Page 158: Restore All Default Configuration
3. Press and hold the reset button for 8 seconds, release your hands until the buzzer beeps one time and the System Status LED flashes in blue. 4. System will restart and the Administrator’s password is now reset to admin. 13.5 Restore All Default Configuration If you want to restore all configurations to default setting, follow the following steps.
Page 159: Cannot Log In To The Unit With Internet Explorer
5. Click the Install button to complete the process. 13.7 Cannot Log in to the Unit with Internet Explorer 1. Check the settings of your antivirus software. 2. Change to appropriate settings or turn off this antivirus software. Please visit NUUO wiki for more information. http://support.nuuo.com/mediawiki/index.php/Main_Page...
Page 160: Appendix - Raid System
Appendix – RAID System Introduction to RAID RAID (Redundant Array of Independent Disks) allows multiple disk drives to be combined together into a RAID Volume. You will create a RAID Volume on your unit when you perform the setup procedure. The benefits of a RAID can include: Higher data transfer rates for increased server performance ...
Page 161: Raid 1 - Mirror
If disk drives of different capacities are used, there will also be unused capacity on the larger drives. Because RAID 0 does not offer Fault Tolerance, meaning that you cannot recover your data after a disk drive failure, we do not recommend a RAID 0 Volume for your unit.
Page 162: Raid 5 - Block Striping With Distributed Parity
RAID 1 Volumes on this unit consist of two disk drives. If you want a mirrored RAID Volume with more than two disk drives, see RAID 10 – Mirror / Stripe for details. RAID 5 – Block Striping with Distributed Parity RAID 5 organizes block data and parity data across the disk drives.
Page 163: Choosing A Raid Level
The data capacity RAID 10 Volume equals the capacity of the smallest disk drive times the number of disk drives, divided by two. In some cases, RAID 10 offers double fault tolerance, depending on which disk drives fail. RAID 10 Volumes on this unit consist of four disk drives. Because all of the available disk drives are used for the RAID Volume, you cannot set up a spare drive with RAID 10.
Page 164 improved by spreading the I/O being lost load across many channels and Should not be used in mission  drives critical environments No parity calculation overhead is  involved RAID 1  Advantage Disadvantage Simplest RAID storage subsystem Very high disk overhead - uses ...
Page 165: Appendix - Camera Integration
Appendix – Camera Integration Camera Support List Any information about camera integration, including camera model and its spec, please refer to NUUO website: http://www.nuuo.com/product.php?id=13...
Page 166 Add: C Block, 18 Sihyuan St. Jhongjheng District, Taiwan (ROC) TEL: +886-2-2362-2260 http://www.nuuo.com/eHelpdesk.php...
