NUUO DigiPlayer LDP1601 Instruction Manual

16-channel intelligent surveillance solution
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL:
LDP1601
©
Copyright
2009 Lorex Technology Inc.
NOTE: This software is a basic version of a professional application by
Nuuo™. Some elements of this manual may not be applicable.

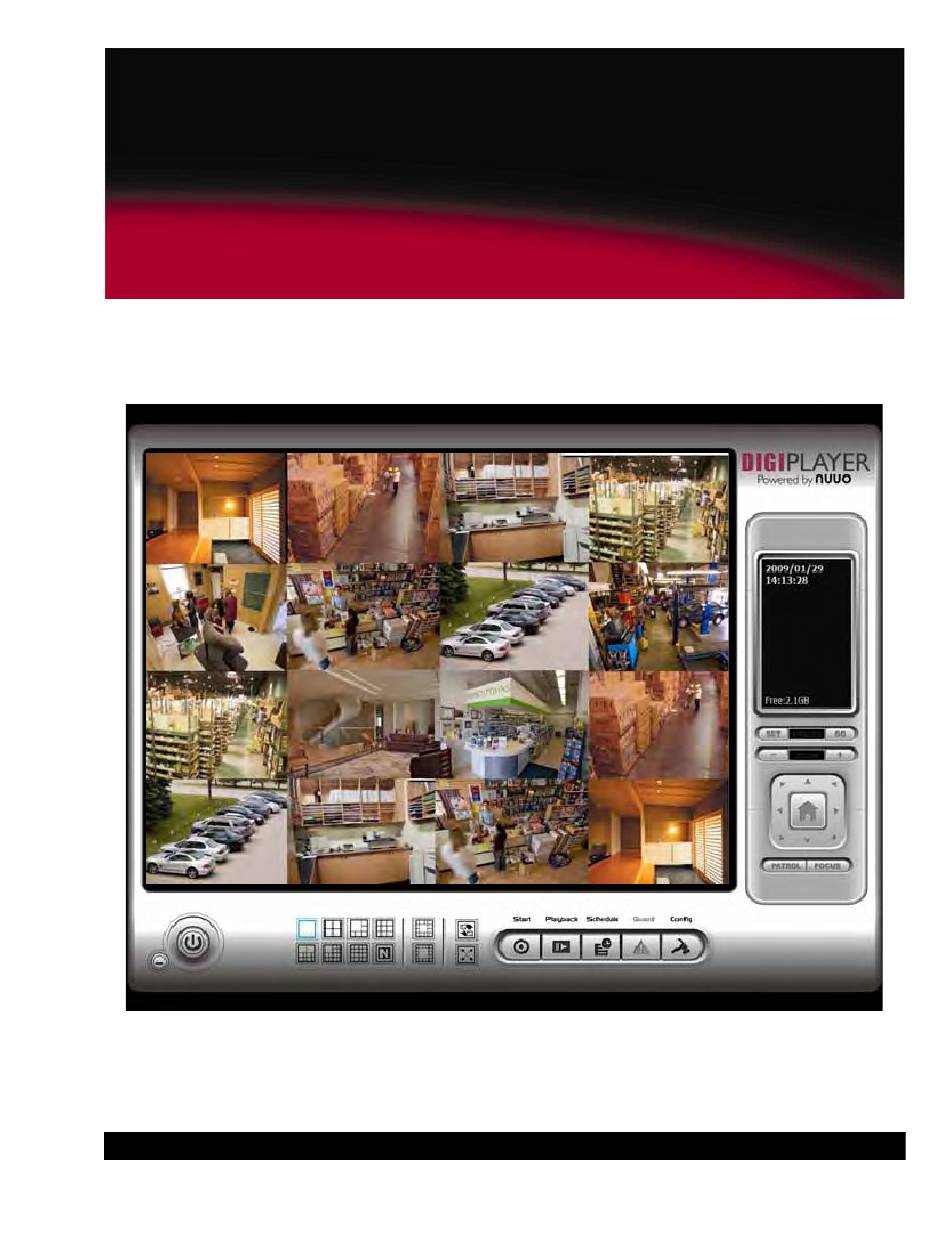

DIGIPLAYER
16-CHANNEL INTELLIGENT
SURVEILLANCE SOLUTION
INSTRUCTION MANUAL
www.lorexcctv.com
English Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigiPlayer LDP1601 and is the answer not in the manual?

Questions and answers

Related Manuals for NUUO DigiPlayer LDP1601

Summary of Contents for NUUO DigiPlayer LDP1601

  • Page 1 16-CHANNEL INTELLIGENT SURVEILLANCE SOLUTION INSTRUCTION MANUAL English Version 1.0 MODEL: LDP1601 © Copyright 2009 Lorex Technology Inc. www.lorexcctv.com NOTE: This software is a basic version of a professional application by Nuuo™. Some elements of this manual may not be applicable.

  • Page 2: Table Of Contents

    Intelligent Surveillance Solution Table of Contents TABLE OF CONTENTS ....................1 HARDWARE REQUIREMENTS ..................5 SOFTWARE REQUIREMENTS..................5 INSTALLATION ......................6 QUICK START......................10 1. MAIN CONSOLE....................14 1.1 Start ......................16 1.2 Information Window ..................18 1.3 PTZ Camera Control...................18 1.3.1 Preset/ Go.....................18 1.3.2 Zoom......................19 1.3.3 Focus .....................19 1.3.4 Patrol .....................19 1.4 On Screen Menu ..................20 1.4.1 Enable Move..................20...
  • Page 3 Intelligent Surveillance Solution Table of Contents 2.5.3 Date Time Period .................24 2.5.4 Video Preview ..................25 2.5.5 Event Type ....................25 2.5.6 Time Table.....................25 2.5.7 To Withdraw the Record ..............26 2.6 Search Mode ....................27 2.6.1 Unusual Event-General Motion ............27 2.6.2 Unusual Event-Foreign Object............28 2.6.3 Unusual Event-Missing Object ............28 2.6.4 Unusual Event-Lose Focus/ Camera Occlusion......29 2.7 Enhancement .....................29...
  • Page 4 Intelligent Surveillance Solution Table of Contents 3.5.2 Holiday ....................44 3.5.3 Custom....................44 3.6 Adjust the Scheduled Setting..............44 3.7 Encoding Option Panel................45 3.7.1 Always Record ..................47 3.7.2 Record on Event..................47 3.7.3 Record on Motion ................47 3.7.4 Pre-record/ Post-record Time ............47 4. CONFIGURATION....................48 4.1 Setting –...
  • Page 5 Intelligent Surveillance Solution Table of Contents 4.15 Network Service..................75 4.15.1 Live Streaming Server................75 4.15.2 Remote Playback Server..............79 4.15.3 3GPP Service ..................83 4.15.4 Remote Desktop................84 4.15.5 Central Management Service ............85 4.16 About Main Console ................86 4.17 Video Source ....................86 5. REMOTE LIVE VIEWER ..................87 5.1 Setup Panel ....................88 5.1.1 Setup Panel—Server................88 5.1.2 Setup Panel—Group ................89...

  • Page 6: Hardware Requirements

    Intelligent Surveillance Solution System Requirements System 16-channel 8-channel 4-channel Intel Pentium D 930 Intel P4 2.8 GHz Intel P4 2.8 GHz 1 GB 512 MB 512 MB Intel 945, 965 chip or above, Intel Chipset and ASUS Vender Motherboard recommended ATI Radeon 9200, nVIDIA GeForce FX-5200, Intel 945 / 965, or Display above (ATI recommended)

  • Page 7: Installation

    Intelligent Surveillance Solution Installation Note: The following describes an installation on Windows Vista. If you are using a different operating system, certain steps and images may not apply. Insert the Software CD into your computer’s CD/DVD-R drive. Open the Step 1: folder DIGIPLAYER.
  • Page 8 Intelligent Surveillance Solution Installation Click Install to begin the installation. As installation finishes, you will Step 7: prompted to install additional components. ATTENTION: When installation finishes, you will be prompted with the following: Click OK to close the window. You will then be prompted to install the MB5 monitoring system.
  • Page 9 Intelligent Surveillance Solution Installation Install the system to a preferred directory. Select whichever features you wish to install. Check the option “Custom”. Select which program features you want to install. This is recommended for advanced users. Select folder where setup will install files. Select the features setup will install.
  • Page 10 Intelligent Surveillance Solution Installation Step 8: Click Finish to restart your computer and complete the installation. page-9...

  • Page 11: Quick Start

    Intelligent Surveillance Solution Quick Start Launching DigiPlayer With DigiPlayer installed, open DigiPlayer from the desktop icon or the Start menu. Note : You should run the discovery tool/application included with your IP cameras to make sure your IP cameras are properly connected to your network and fully functioning.
  • Page 12 Intelligent Surveillance Solution Quick Start Step 1: Setup the IP camera(s) following by the instruction manual provided by the manufacturer. Step 2: Check the network between the IP camera(s) and the system. Step 3: Add the IP camera(s) to the system following below steps. Note: You must have the IP address or DDNS URL of the camera before you can add a camera to DigiPlayer.
  • Page 13 Intelligent Surveillance Solution Quick Start Step 12: Click OK to exit the Setting panel. Step 9 Step 10 Step 11 "Fortress" will be detected Note for the following models: DNP5220E, DNP5320E, DNB6300V, DND7220V. Step 1: Go to Start > All Programs > SYSTEM > Main Console.
  • Page 14 Intelligent Surveillance Solution Quick Start Step 1: Go to Start > All Programs > SYSTEM > Main Console. Step 2: Type in user name and password and log on to the system. Step 3: In the Main Console, go to Playback. Step 4: In the Playback window, click on the Open Record Icon.

  • Page 15: Main Console

    This is the main operation system - to activate, schedule recording, setup smart guard and configure system setting. NOTE: This software is a basic version of a professional application by Nuuo. Some elements of this manual may not be applicable. page-14...
  • Page 16 Intelligent Surveillance Solution 1. Main Console Exit Minimize Screen Division Shut down the Surveillance System or log out current user. Minimize the Main Console window. Allocate the sub-screen display by clicking on the desired layout icon. To switch to single camera display, double click on a particular sub-screen.

  • Page 17: Start

    Intelligent Surveillance Solution 1. Main Console Start Click on the Start icon and select from the drop down menu to activate/ deactivate: (a) Recording Schedule System, (b) Smart Guard System, or (c) Counting Application. Select Start/Stop Monitor All to activate/ deactivate all the functions at once. You may also enable secondary display, open event report, open E-map window and lock the system here.
  • Page 18 See Schedule on page 4140 for details. Add/edit type(s) of events that you want to detect; setup reaction(s) responding to events. Not available on DigiPlayer by Nuuo. Select from the drop down menu to modify general setting, save/ load configuration settings, start counting application, access log viewer, start POS application, and backup files, or setup network services.

  • Page 19: Information Window

    Intelligent Surveillance Solution 1. Main Console Information Window PTZ Camera Control Display date, time, free HD space, CPU temperature, fan speed, and customized text. To customize Information about window’s setting, go to Config > General Setting > General Control the movement of PTZ cameras. With cameras that support PTZ control, you can move, zoom, patrol, adjust the focus, and set preset points of the cameras.

  • Page 20: Zoom

    Intelligent Surveillance Solution 1. Main Console 1.3.2 Zoom: Click on the + and – signs to zoom in and zoom out the view. 1.3.3 Focus: You can select to have the camera focused near or far. To focus near means objects that are closer will be clearer than the objects that are further away.

  • Page 21: On Screen Menu

    Intelligent Surveillance Solution 1. Main Console Right click on the camera screen and get the On Screen Menu, from which you can enable move, enable digital PTZ, and connect/ disconnect camera. 1.4.1 Enable Move: With cameras that support PT function, by selecting the enable move function, you may adjust the camera’s view by clicking on the display screen.

  • Page 22: Playback

    2. Playback 2. Playback Watch the recorded video, view and/or search for unusual events and recorded system information. NOTE: This software is a basic version of a professional application by Nuuo. Some elements of this manual may not be applicable. page-21...
  • Page 23 Intelligent Surveillance Solution 2. Playback Scroll Bar Exit Minimize Control Speed Zoom Minimize the Playback console. Shut down the Playback console. Indicate the status of the playing video; drag it to where you want to review. Play, pause and stop the video. When playing video, click on the Cue In/ Cue Out icon at where you want to set as the starting/ ending point of a saved video clip.

  • Page 24: Information Window

    Intelligent Surveillance Solution 2. Playback Browse Mode Search Mode Screen Division Open Record Audio Volume Control Information Window FWD/REV: Customize the speed on Setting panel. Step FWD/REV: Forward/reverse frame by frame. Display video date and time, current video status, cue in/ out points’...

  • Page 25: Date Time Panel

    Intelligent Surveillance Solution 2. Playback 2.5.1 Date Time Panel 2.5.2 Record Display Window: The record display window shows the information of the available video clips. It may show in calendar or list control view. For further details about how to modify the record display window view, see page 39.

  • Page 26: Video Preview

    Intelligent Surveillance Solution 2. Playback 2.5.4 Video Preview: Check the enable preview option to view the selected video. 2.5.5 Event Type: There are 6 event types; see Chapter 4 Guard for details. You may set up different colors for different event types to help you select events.

  • Page 27: To Withdraw The Record

    Intelligent Surveillance Solution 2. Playback Show Event Log 2.5.7 To Withdraw the Record: Step 1: From the record display window at the top left of the Date Time Panel, select the date you want to withdraw the record from. The red/green/blue lines shown on the time table indicate available recorded video records.

  • Page 28: Search Mode

    Intelligent Surveillance Solution 2. Playback of the time table with the + and – signs on the bottom left. Step 4: Check the Enable Preview option to get the preview of the video you select. Step 5: Click the camera name to increase or decrease cameras you want to playback.

  • Page 29: Unusual Event-Foreign Object

    Intelligent Surveillance Solution 2. Playback Interval: Move the slider control to the right to increase time interval so that the alarm will only be triggered when the movement lasts longer. Move to the left to reduce the time interval. Stop When Found: Check the option to have the video stopped when detecting motion in the detection zone.

  • Page 30: Unusual Event-Lose Focus/ Camera Occlusion

    Intelligent Surveillance Solution 2. Playback Missing Object: Alarm is set off when the selected object is removed from the defined area on the screen. Define detection zone: Before detecting missing object, it is required to define a detection zone. Left click and drag to draw a detection zone.

  • Page 31: Save Video

    Intelligent Surveillance Solution 2. Playback to soften it. Brightness: Check the option to activate the function. Move the slider control to the right to make the image brighter. Contrast: Check the option to activate the function. Move the slider control to the right to increase contrast. Grey Scale: Check the option to show the record in grey scale mode so the image displays in black and white.

  • Page 32: Save Image

    Intelligent Surveillance Solution 2. Playback Step 1: Click on the display screen to choose the camera display from which you want to save pictures. Step 2: Click Save Image button when the image you want is shown on the screen. You may click Pause to freeze the video, use Step Forward/ Step Backward function to find the picture(s) that you want to save.

  • Page 33: Backup

    Intelligent Surveillance Solution 2. Playback Different from Save Video, the Backup function saves everything from the Playback panel, including log information. You can start a full function Playback Console and load the backup files into it on any PC with Windows operating system. This means you may monitor the real time video and work on the backup files on separate computers simultaneously.

  • Page 34: Log Viewer

    Intelligent Surveillance Solution 2. Playback 2.12.1 Unusual Event: View the unusual event history that had been detected by the Smart Guard System. Step 4 Step 1 Step 2 Step 3 Step1: Choose the type of events you wish to view or select “All” from the drop-down menu to view all types of events.

  • Page 35: System Log

    Intelligent Surveillance Solution 2. Playback 2. A link ( ) will appear right next to each event time. By clicking on the link, the video will jump to the point where the unusual event takes place. 2.12.2 System Log: Select Log Type form the drop-down menu.

  • Page 36: Counting Application

    Intelligent Surveillance Solution 2. Playback You may also point out two different time points and search for unusual event happened during the period. Check the options in the Date &Time columns and enter the date and time. Step 3: Click Search. 2.12.3 Counting Application You can see the results of Counting Application during the time period you set.

  • Page 37: Pos Log

    Intelligent Surveillance Solution 2. Playback 2.12.5 POS Log View the POS Log history that had been detected by the Smart Guard System, include Transaction Start, Transaction End, Open Cash Register, Connection Lost, and special User defined event. Please refer the User manual of POS for detail.

  • Page 38: Setting

    Intelligent Surveillance Solution 2. Playback 2.13.1 Record Display Calendar View: Make the record display windows as calendar view. List Control: Make the record display windows as list control. 2.13.2 Play Play when open: Check the option and set the system to start playing the video clip every time when a record is withdrew.

  • Page 39: Osd Setting

    Intelligent Surveillance Solution 2. Playback Manually save the image file: You can manually select where you want to save the image, name the saved file, and choose the format you want to save the image. Automatically save the image file: By pre-setting a path/URL and the image format, the system will automatically save the image accordingly when you click the Save button in the control panel.

  • Page 40: Remote Server

    Intelligent Surveillance Solution 2. Playback 2.14.1 Add Remote Playback Site Pressing the “Remote Sever” can go to remote playback site management to add and setup the remote playback site. Step 1: Enter the IP address or DNS, Port, Username, and Password. Step 2: Click “Add”...

  • Page 41: Schedule

    Click on the Schedule icon on the Main Console and set up the time duration for video recording on the schedule configuration panel. NOTE: This software is a basic version of a professional application by Nuuo. Some elements of this manual may not be applicable. page-40...

  • Page 42: Day Mode

    Intelligent Surveillance Solution 3. Schedule Load Camera / Channel Day Mode Schedule the cameras to turn the recorder on and off at the same time every day according to your setting. To setup the time schedule for each camera, you may Load the preset modes or Insert...

  • Page 43: Insert A New Schedule Manually

    Intelligent Surveillance Solution 3. Schedule Minor Mode: The system will start recording only when a motion is detected on the screen, 24 hours a day (shown on the green bar in the Schedule Configuration panel), with the setting of 15 FPS, Low quality, and Low resolution.

  • Page 44: Copy Schedule

    Intelligent Surveillance Solution 3. Schedule Step 4: Click OK. You may set up the schedule for each channel/camera by repeating the process above, or simply apply the setting of a single camera to all the others. Copy To Schedule the cameras for each day of the week differently. In addition, you may assign extra holidays under the Week Mode.

  • Page 45: Default

    Intelligent Surveillance Solution 3. Schedule 3.5.1 Default: Follow the same process to setup the schedule for every day in a week. 3.5.2 Holiday: You may assign holidays where the system will work according to the setting of Sunday. 3.5.3 Custom: You can assign a particular date(s) on which the system will work according to a special schedule(s) different from the others.

  • Page 46: Encoding Option Panel

    Intelligent Surveillance Solution 3. Schedule Select Event Panel Always Record Record on Event Record on Motion Pre-record/ Post-record page-45...
  • Page 47 Intelligent Surveillance Solution 3. Schedule For Analog camera (Capture devices required) Original Video In this window, the video is digital signal converted from analog camera without encoded. Encoded Video In this window, the video is digital signal decoded from the encoded video from analog camera.

  • Page 48: Always Record

    Intelligent Surveillance Solution 3. Schedule 3.7.1 Always Record: Select this option to record the video at all time. 3.7.2 Record on Event: Select this option to obtain the Select Event panel. From the Smart Guard list, check the box of the camera(s) that you want to trigger the recording action.

  • Page 49: Configuration

    Configuration panel. * Video Source function available only with MPEG-4 software compression captures devices. NOTE: This software is a basic version of a professional application by Nuuo. Some elements of this manual may not be applicable. page-48...

  • Page 50: Setting - General

    Intelligent Surveillance Solution 4. Configuration – – Startup DDNS Service Automatically Popup Event Report 4.1.1 Startup Check the box and activate the functions as the system starts. You may start/stop the function in Monitor panel on the Main Console. DDNS Service: Dynamic Domain Name Server (DDNS) function allows you to use Live View or Web View to connect to...
  • Page 51 Intelligent Surveillance Solution 4. Configuration 4.1.3 Storage Location: Assign the default folder for the system to store all data files. By default, video files are saved to C:\Program Files\DIGIPLAYER. Automatic Recycle: The system will automatically delete out-dated data to save storage space. The maximum recycle range is 1 day.

  • Page 52: Audio Preview

    Intelligent Surveillance Solution 4. Configuration 4.1.4 Audio Preview System plays the audio of System plays the audio of left-top default channel selected channel Default Channel: Select the audio channel that you wish to hear from in “Default Channel. Preview Active Channel: Check the “Preview Active Channel”...

  • Page 53: Status Display

    Intelligent Surveillance Solution 4. Configuration 4.1.5 Status Display Check the boxes of the information that you wish to see in the information display window in the Main Console. 4.1.6 Auto Reboot Check the option of “Enable Auto Reboot” that you can reboot the system on the time you select.

  • Page 54: Setting - Camera

    Intelligent Surveillance Solution 4. Configuration Config Config Search Insert Delete Config 4.2.1 Add Camera Four function buttons will be included in the Setting/Camera panel if you have our Hybrid Surveillance System license for IP camera. Search: Click on the Search icon to obtain the Search IP Camera panel.

  • Page 55: Camera Parameter

    Intelligent Surveillance Solution 4. Configuration Camera List Camera Name Go to Web Interface Camera Settings Video Parameter 4.2.2 Camera Parameter OSD Setting Camera List: The camera(s) connected to the system will show on the panel, click the name of the camera to adjust the setting. Camera Name: Name the camera for your convenience.

  • Page 56: Ip Camera / Video Server Setting Panel

    Intelligent Surveillance Solution 4. Configuration 4.2.4 IP Camera / Video Server Setting panel Network Device Description Network: Fill up the Network field (including Name, IP Address, Http Port, User Name, Password and Protocol) referring to the instruction provided by the camera manufacturer. Check “Use DNS” to use domain name instead of IP address.

  • Page 57: Setting - I/O Device

    Intelligent Surveillance Solution 4. Configuration Device Setting Module Setting List of devices Input Monitor Output Monitor Module Setting: Name the module device and ID that has been connecting the digital input/output device(s) to your system. Device: This column displays the device(s) already installed to the system. Select the number of the I/O port to which you plug the ribbon cable.

  • Page 58: Setting - Ptz Config

    Intelligent Surveillance Solution 4. Configuration Basic Setting Advanced Setting Miscellaneous Install PTZ cameras following the instruction of the camera manufacturers. A PTZ camera is usually connected to the PC with RS-485/RS-422. Check the box on the camera list to activate the PTZ control function of a PTZ camera.

  • Page 59: Setting - Hotline

    Intelligent Surveillance Solution 4. Configuration Step 1: Type the Preset Name. Step 2: Type the Preset Number. Step 3: Pressure the buttons to Add, Delete, or Update preset setup. – – Configure the settings of hotlines, including E-mail and telephone calls, once an unusual event is detected.

  • Page 60: Setting - User Account

    Intelligent Surveillance Solution 4. Configuration FTP: Input the following information: server, Port, Login ID, Password, and Upload directory. According your FTP type to enable/disable Passive mode. You may click on the Upload Test File button to test the settings. Note: * indicates mandatory areas Telephone: Select the modem that the system is going to dial the info call...

  • Page 61: Setting - Address Book

    Intelligent Surveillance Solution 4. Configuration Address Book: Manage the address book from which you may send out a phone call or an E-mail when an unusual event is detected. page-60...

  • Page 62: Setting - Monitor Display

    Intelligent Surveillance Solution 4. Configuration – – Playback Option Cameras List Auto Scan Layout Playback Option: Execute Playback on the secondary monitor by checking the box. Make sure to adjust the display setting of your computer in advance to avoid system error. Cameras List: The left side displays a list of all cameras;...

  • Page 63: Setting - Joystick

    Intelligent Surveillance Solution 4. Configuration – – Parameter Function Default Export Import Function: You can choose the function from the drop-down menu for the button of joystick. page-62...
  • Page 64 Intelligent Surveillance Solution 4. Configuration Following is a complete list of all log types: 1. N/A 9. Start/Stop Auto Scan 2. Go to Preset Point 10. PTZ Speed Up 3. Go to Camera 11. PTZ Speed Down 4. Go to Previous Camera 12.

  • Page 65: Save/ Load Configuration

    Intelligent Surveillance Solution 4. Configuration The Save/ Load Configuration function allows system users to save any specific setting as a cfg (config) file. You may save up several different cfg files at any time. Save Configuration: To save a specific setting, go to Config > Save/ Load Configuration >...

  • Page 66: Counting Application

    Intelligent Surveillance Solution 4. Configuration Step 1 Step 2 Step 3 Start Simulation Options Runtime Step 1: Check the box of the camera to apply the Counting Application to it. Step 2: In Operation section, check the option “Define detection zones” and drag the cursor to draw Region 1 and Region 2 on the Video Preview.

  • Page 67: Pos Application

    Intelligent Surveillance Solution 4. Configuration Each Main Console system can manage up to 64 POS cash register devices. The POS Application tool is help to configuration POS devices; please refer the User manual of POS for detail. 4.13.1 Log Viewer – Unusual Event Step 4 Step1 Step 2...

  • Page 68: Log Viewer - System Log

    Intelligent Surveillance Solution 4. Configuration 4.13.2 Log Viewer – System Log Step 1 Step 2 Step 3 System Log: You can choose the log type from the drop-down menu, following is a complete list of all log types: 1. Main Console Startup 16.

  • Page 69: Log Viewer - Counting Application

    Intelligent Surveillance Solution 4. Configuration 4.13.3 Log Viewer - Counting Application Counting Application: Display the history of Counting Application during a given time period. Step1: Select the channel you want to check or select “All” from the drop-down menu for all channels. Step 2: Select search period.

  • Page 70: Log Viewer - Counting Application (Diagram)

    Intelligent Surveillance Solution 4. Configuration 4.13.4 Log Viewer - Counting Application (Diagram) Counting Application (Diagram): Display the Counting Application data in diagram format. Step1: Select the channel you want to check or select “All” from the drop-down menu for all channels. Step 2: From the drop-down menu, set up how you would like the diagram to be displayed.

  • Page 71: Log Viewer - Export

    Intelligent Surveillance Solution 4. Configuration 4.13.6 Log Viewer - Export After search the log you want, you can export to .xls or .txt file. Step 1 Step1: Press the button “Export to”. Step2: Type the file name and choose the file format (.xls or .txt). .xls .txt page-70...

  • Page 72: Backup

    Intelligent Surveillance Solution 4. Configuration 4.14.1 Backup The backup function saves video record and other log information. User may open backup files on any PC with Windows Operation System and operate the full function Playback panel on it. Follow the instructions below to obtain backup files.
  • Page 73 Intelligent Surveillance Solution 4. Configuration Step 3: Select the data you want to backup by highlighting the time period. Besides the time-table, you may also set up start time and end time in the Date Time Period section. Step 4: Click on the camera number icon to add camera(s) or click Select All to add all the cameras.
  • Page 74 Intelligent Surveillance Solution 4. Configuration Step 7 Step 7: Click the Backup icon to see the size of the file. Step 8: Choose the path you want to save the file or burn the file into a CD (direct CD burning for Windows XP only). Step 9: Select the log information you would like to backup (Event Log, System Log and/or Counter Log) and then click OK.

  • Page 75: Delete Recorded Information From The System

    Intelligent Surveillance Solution 4. Configuration 4.14.2 Delete Recorded Information from the System Step 1: Click on “New Period” to obtain the Select Date Time Period panel. Step 1 Step 2: Follow above step 2-6 to select data period which you want to delete.

  • Page 76: Network Service

    Intelligent Surveillance Solution 4. Configuration There are 5 types of network services: live streaming server, remote playback server, 3GPP service, Remote Desktop, and Central Management Service. From the Main Console, go to Config > Network Service to obtain the Network Service panel. 4.15.1 Live Streaming Server When starting the live streaming function of your computer, you allow remote users to log on to the specific computer and view cameras that...
  • Page 77 Intelligent Surveillance Solution 4. Configuration Start: By starting the system, you turn the computer into a live streaming server; thus allow remote users to log on to the system. Kill Client: Highlight an IP address and click on the “Kill Client” button to block a client from your system.
  • Page 78 Intelligent Surveillance Solution 4. Configuration Black/ White List White List Black List IP Address Add/Delete Apply to All Playback Servers White List: Check the “Enable White List” box to activate the white list filter. Only IP from the white list is allowed to log in. Black List: Check the “Enable Black List”...
  • Page 79 Intelligent Surveillance Solution 4. Configuration Performance Total bit rate Individual Camera bit rate Live Streaming Server log information page-78...

  • Page 80: Remote Playback Server

    Intelligent Surveillance Solution 4. Configuration 4.15.2 Remote Playback Server When starting the remote playback function of your computer, you allow remote users to log on to the specific computer and withdraw data files that are stored on it. As system administrator, you are able to monitor the accounts that log on in order to maintain the system efficiency.
  • Page 81 Intelligent Surveillance Solution 4. Configuration Stop: Stop broadcasting playback video. Port Maximum Users Save Log Options: You may only adjust the setting when the server is stopped. Port: Assign a port for the remote playback server to connect to your system to the network.
  • Page 82 Intelligent Surveillance Solution 4. Configuration Black/ White List White List Black List IP Address Add/Delete Apply to All Playback Servers White List: Check the “Enable White List” box to activate the white list filter. Only IP from the white list is allowed to log in. Black List: Check the “Enable Black List”...
  • Page 83 Intelligent Surveillance Solution 4. Configuration Performance Total bit rate Individual Camera bit rate Live Streaming Server log information page-82...

  • Page 84: 3Gpp Service

    Intelligent Surveillance Solution 4. Configuration 4.15.3 3GPP Service When starting the 3GPP service function of your computer, you allow remote users to log on the 3GPP supported mobile phone and view cameras that are connected to it. Start Port Start: By starting the system, you turn the computer into a remote playback server;...

  • Page 85: Remote Desktop

    Intelligent Surveillance Solution 4. Configuration 4.15.4 Remote Desktop When starting the Remote Desktop option of your computer, you allow remote users to use Remote Desktop Tool to login and configuration system. See Appendix B to install and use this tool. Option Authentication Server Status...

  • Page 86: Central Management Service

    Intelligent Surveillance Solution 4. Configuration 4.15.5 Central Management Service This service only supports Central Management System (NCS). When starting the Central Management Service option of your computer, the Main Console would send event which set action send to central management to NCS Server and allow NCS system to remote control IO device.

  • Page 87: About Main Console

    Intelligent Surveillance Solution 4. Configuration Go to About Main Console to view the version of your surveillance system and the hardware information. (For system with MP4 capture device only) 1. Go to Video Source to adjust the Video Standard to NTSC or PAL and adjust the maximum Video Resolution for all analog cameras.

  • Page 88: Remote Live Viewer

    NOTE: This software is a basic version of a professional application by Nuuo. Some elements of this manual may not be applicable. NOTE: This Basic Version only supports one-channel remote live viewing. To view other cameras, you must disconnect/log out of the active camera.

  • Page 89: Setup Panel

    Intelligent Surveillance Solution 5. Remote Live Viewer Click on the setup icon to obtain the setup panel 5.1.1 Setup Panel—Server Server Setting Server List Server List The Server Setting: Step 1: Enter the Server Name which you want to use. Step 2: enter the Address, Port, User Name, Password which you want to use to log in server.

  • Page 90: Setup Panel-Group

    Intelligent Surveillance Solution 5. Remote Live Viewer Step 6: Select a server from right server list, change the setting on light panel and click update to modify setting. Or click Delete to remove the server form server list after selecting one server. Note: If you want to Re-open the Remote Live Viewer on the secondary monitor, please enable the Re-open Remote Live Viewer on 2...

  • Page 91: Setup Cameras Osd

    Intelligent Surveillance Solution 5. Remote Live Viewer 5.1.3 Setup Cameras OSD You may adjust font style on this panel, Step 1: Enable camera OSD option. Step 2: Select the font, font size, font color and any font effects desired. Step 3: Select the information that you wish to see in the sub-screen of the camera.
  • Page 92 Intelligent Surveillance Solution 5. Remote Live Viewer Log In/ Log Out (Server/ Group) Server and Camera List PTZ Camera Control Play/ Stop / Drop Exit Information Display Window Minimize Digital Minimize: Minimize the Remote Live View Console window. Exit: Shut down the system or log out current user. Digital Zoom: Click on the + and –...

  • Page 93: Web View

    192.168.1.16 is the IP address of the server. 8080 is the port specified in “Use Default Web Server” in Network Service. NOTE: This software is a basic version of a professional application by Nuuo. Some elements of this manual may not be applicable.

  • Page 94: Remote Live Viewer

    Intelligent Surveillance Solution 6. Web View Press this icon to use Remote Live Viewer which functions are the same as Remote Live Viewer. See page 108. Press this icon to use Remote Playback which functions are the same as Playback but remote server and backup functions.

  • Page 95: Db Tool

    Execute DB Tool from program files. Step 1 Step 2: Enter the password of administrator to login. Step 2 NOTE: This software is a basic version of a professional application by Nuuo. Some elements of this manual may not be applicable. page-94...

  • Page 96: Repair Database

    Intelligent Surveillance Solution 7. DB Tool This page has three repair method, Modify Location, Verify Only, and Repair. For modify location propose: Playback system can recognize all recording video in the folders which list on MainConsole > Config > Setting > General page. For some reason, user need use Playback system to open recording video beyond storage location setting.
  • Page 97 Intelligent Surveillance Solution 7. DB Tool Step 4: Click on Modify button to modify location. After modification, the Modify Result will show on the panel. Example of modify database: In certain case that when video data needs to be transfer from old PC to another new PC, user will need to perform the following procedure.
  • Page 98 Intelligent Surveillance Solution 7. DB Tool Step 1: Switch to Repair database windows. Step 2: Select the repair Method as Modify Location. Step 3: Check the video location windows. The system will list all video locations in table, but if there are any omit, please use to insert.
  • Page 99 Intelligent Surveillance Solution 7. DB Tool Note: Open Log is a tool to record repair database recode. It will recode repair method, file operation, start time and end time. page-98...

  • Page 100: Export Configurations

    Intelligent Surveillance Solution 7. DB Tool This tool is using when user want to export all configuration to backup, take to another PC for technical trouble shooting. Step 1: Press “Export”. Step 2: Select the location you want to Export and type the name of the configurations.
  • Page 101 Intelligent Surveillance Solution Appendix A Appendix A How to install Remote Desktop Tool Step 1: Insert the Installation CD. Step 2: Please go to RemoteDesktopViewer directly and Run Setup.exe file. How to Start Remote Desktop Tool Step 1: Please point to Start > All Programs > Remote Desktop Viewer > Remote Desktop Viewer.
  • Page 102 Intelligent Surveillance Solution Appendix B Appendix B Automatic Recycle and Keep Video are options to help you save storage space on your hard drive. Automatic Recycle Automatic Recycle will delete old video data to save storage space on the hard drive. You can select 1 hour, 2 hours, 3 hours, 6 hours, 12 hours, and 1 day.
