Summary of Contents for NUUO G3 Card

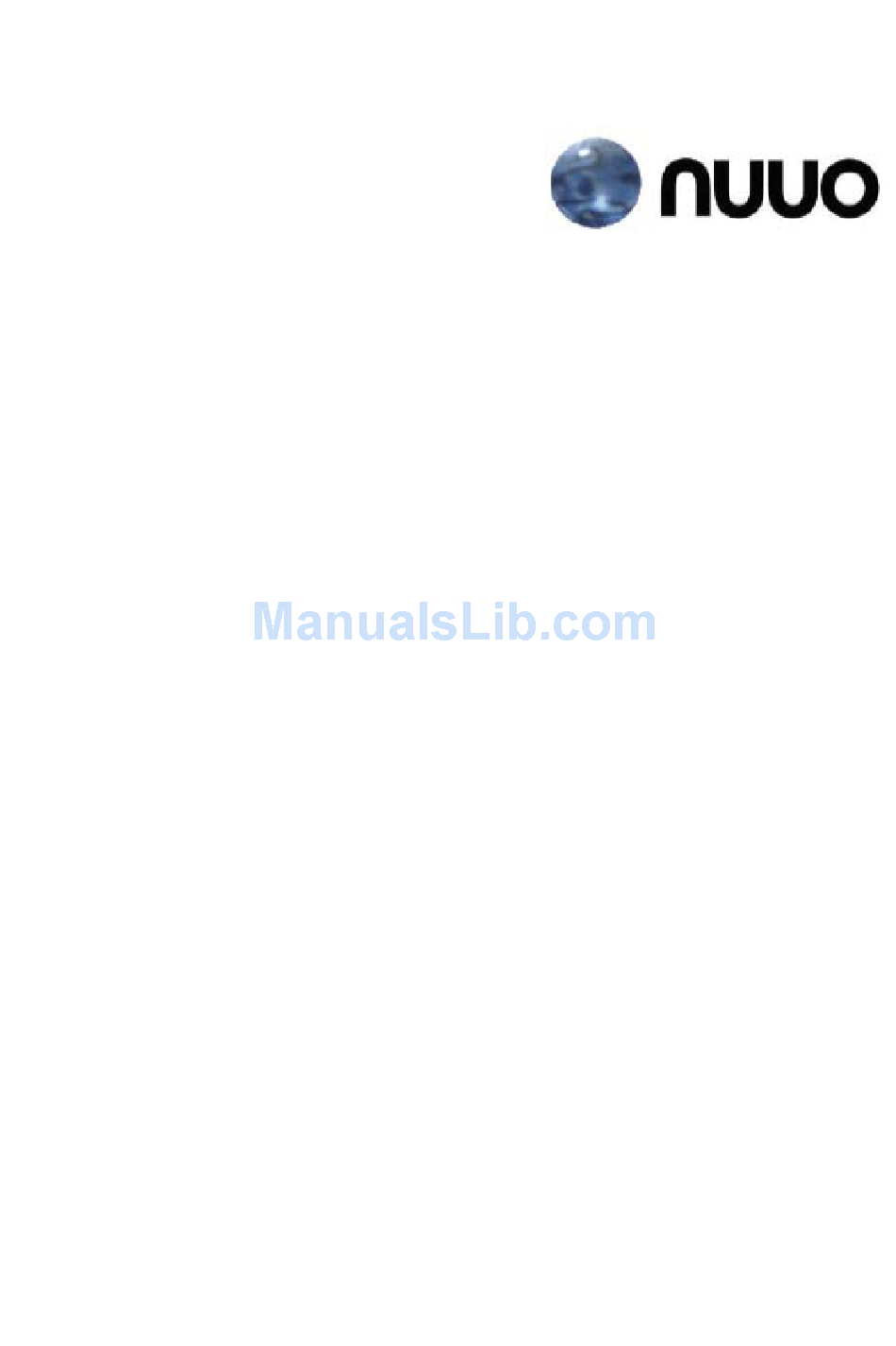

- Page 1 The Intelligent Surveillance Solution Hardware & Software Installation user’s manual Ver. 99.320.0129.001...
-
Page 2: Table Of Contents
Intelligent Surveillance Solution Table of Contents TABLE OF CONTENTS ....................1 1000 SERIES; 2000 SERIES; 3000 SERIES ..............2 Product Specification ..................2 Hardware Installation..................3 System Requirement ..................9 4000 SERIES ......................10 Product Specification ..................10 Hardware Installation..................11 System Requirement ..................12 5000 SERIES ......................13 Product Specification ..................13 Hardware Installation..................14 System Requirement ..................16 6000 SERIES ......................17... -
Page 3: Product Specification
Intelligent Surveillance Solution Product Specification Product Specification G3 Card 3000 Series 2000 Series 1000 Series 120fps(NTSC); 60fps(NTSC); 30fps(NTSC); Display Rate 100fps (PAL) 50fps (PAL) 25fps (PAL) 120fps(NTSC); 60fps(NTSC); 30fps(NTSC); Recording Rate 100fps (PAL) 50fps (PAL) 25fps (PAL) Maximum Card Video Input 4;... -
Page 4: Hardware Installation
Intelligent Surveillance Solution Hardware Installation Hardware Installation For G3-card and R-card, the hardware installation steps are all the same except the connection of Audio/Video Cable. The following figure shows the detail. Step1: Insert the card onto an empty PCI slot. Connect the Audio/Video Cable to the connector in the same color. - Page 5 Intelligent Surveillance Solution Hardware Installation Connect the Audio/Video Cable 1. G3-card Note: for G3-3000 series, audio channels are located at 1, 2, 3, 4. 2. R-card Note: for R- 3000 series, audio channels are located at 1,5,9,13. Optional I/O Card referring to the figures on the following pages.
- Page 6 Intelligent Surveillance Solution Hardware Installation G3-3000 Series Capture Card I/O Card RS-232 to RS-485 Alarm Input 1-4 Ground RS-485 Relay Out 1-4 page-5...
- Page 7 Intelligent Surveillance Solution Hardware Installation G3-2000 Series Capture Card I/O Card RS-232 to RS-485 Alarm Input 1-4 Ground RS-485 Relay Out 1-4 page-6...
- Page 8 Intelligent Surveillance Solution Hardware Installation G3-1000 Series Capture Card I/O Card RS-232 to RS-485 Alarm Input 1-4 Ground RS-485 Relay Out 1-4 page-7...
- Page 9 Intelligent Surveillance Solution Hardware Installation G3-card Watchdog Installation page-8...
-
Page 10: System Requirement
Intelligent Surveillance Solution System Requirement System Requirement SCB-3000 x2 SCB-3000 SCB-2000 SCB-1000 (240fps) (120fps) (60fps) (30fps) Intel Core 2 Intel Pentium Intel P4 2.8 Intel P4 2.8 D 930 E6400 2 GB 1 GB 1 GB 1 GB Mother- Intel 945 or 965 chip, Intel Chipset recommended board ATI Radeon 9200, nVIDIA GeForce FX-5200, Intel 945 / 965, or above (ATI Display... -
Page 11: 4000 Series
Intelligent Surveillance Solution Product Specification Product Specification 4000 Series Display Rate 480fps(NTSC); 400fps (PAL) Recording Rate 480fps(NTSC); 400fps (PAL) Maximum Card Video Input Audio Input NTSC: 352x240; 704x480 Video Resolution PAL: 352x288; 704x576 Compression Format Software Compression MPEG 4 page-10... - Page 12 Intelligent Surveillance Solution Hardware Installation Hardware Installation Step1: Insert the card onto an empty PCI slot. Connect the Audio/Video Cable to the connector in the same color. Step 2: Turn on your PC and start Windows. Step 3: Insert the included Software CD into CD-ROM. Step 4: After driver being installed, restart your PC.
-
Page 13: System Requirement
Intelligent Surveillance Solution System Requirement System Requirement SCB-4000 (480fps) Intel Core 2 Duo E6400 2 GB Intel 945 or 965 chip, Intel Chipset recommended Mother- board ATI Radeon 9200, nVIDIA GeForce FX-5200, Intel 945 / 965, or Display above (ATI recommended) 100 BaseT or Above, Gigabit LAN Recommended Ethernet 80 GB or above... -
Page 14: Product Specification
Intelligent Surveillance Solution Product Specification Product Specification 5016 5008 5004 480fps(NTSC); 240fps(NTSC); 120fps(NTSC); Display Rate 400fps (PAL) 200fps (PAL) 100fps (PAL) 480fps(NTSC); 240fps(NTSC); 120fps(NTSC); Recording Rate 400fps (PAL) 200fps (PAL) 100fps (PAL) Maximum Card Video Input Audio Input NTSC: 176x120; 352x240; 528x320; 704x480 Video Resolution PAL: 176x144;... -
Page 15: Hardware Installation
Connecting the Audio/Video Cable - referring to the figure on next page. The audio input connectors are with white wires and marks of “AID” on them; the video input connectors are with red wires and the marks of “VID”. Note: It is known that NUUO 5004 card has compatibility problem with PPCI slot. SPCI slots. Normally, those 3 PCI slots NUUO 5004 cards can only be installed in nearest to CPU are PPCI slots. Avoid install 5004 card in these 3 slots. If driver was ... - Page 16 Intelligent Surveillance Solution Hardware Installation 5000 Series Capture Card page-15...
-
Page 17: System Requirement
Intelligent Surveillance Solution System Requirement System Requirement Total FPS 8 channels 4 channels at CIF channels channels channels Intel Core Intel Intel Intel P4 2.8 Intel P4 2.8 2 Duo Pentium D Pentium D E6400 3 GB 2 GB 1 GB 1 GB 1 GB Mother-... -
Page 18: Series
Intelligent Surveillance Solution Product Specification Product Specification 6016 6008 6004 480fps(NTSC); 240fps(NTSC); 120fps(NTSC); Display Rate 400fps (PAL) 200fps (PAL) 100fps (PAL) Recording Rate 480fps(NTSC); 240fps(NTSC); 120fps(NTSC); (CIF) 400fps (PAL) 200fps (PAL) 100fps (PAL) Maximum Card Video Input Audio Input NTSC: 176x120; 352x240; 704x480 Video Resolution PAL: 176x144;... -
Page 19: Hardware Installation
Intelligent Surveillance Solution System Requirement Hardware Installation Connecting the Audio/Video Cable - referring to the figure on next page. The audio input connectors are with yellow wires and marks of “A” on them (such as “A1/9”); the video input connectors are with black wires and the marks of “V”... - Page 20 Intelligent Surveillance Solution Hardware Installation 6000 Series Capture Card page-19...
- Page 21 Intelligent Surveillance Solution System Requirement System Requirement SCB-6016 x2 SCB-6016 SCB-6008 SCB-6004 (960fps*) (480fps*) (240fps*) (120fps*) Intel Core 2 Intel Core 2 Intel Core 2 Intel Core 2 Quad Duo E5200 Duo E5200 Duo E5200 Q9550 2 GB 1 GB 1 GB 1 GB Mother-...
- Page 22 Intelligent Surveillance Solution Product Specification Product Specification 7016 7008 7004 480fps(NTSC); 240fps(NTSC); 120fps(NTSC); Display Rate 400fps (PAL) 200fps (PAL) 100fps (PAL) 480fps(NTSC); 240fps(NTSC); 120fps(NTSC); Recording Rate (D1) 400fps (PAL) 200fps (PAL) 100fps (PAL) Maximum Card Video Input Audio Input NTSC: 176x120; 352x240; 704x480 Video Resolution PAL: 176x144;...
- Page 23 Intelligent Surveillance Solution System Requirement Hardware Installation Connecting the Audio/Video Cable - referring to the figure on next page. The audio input connectors are with yellow wires and marks of “A” on them (such as “A1/9”); the video input connectors are with black wires and the marks of “V”...
- Page 24 Intelligent Surveillance Solution Hardware Installation 7000 Series Capture Card page-23...
-
Page 25: System Requirement
* FPS is based on D1 resolution. ** For more information about the system requirements of different channels, please refer to the document “System Requirements of NUUO SCB-7000 series”. *** When setting up a system which is more than 16 channels, the throughput of the hard disk will not be enough. -
Page 26: Driver Installation
Intelligent Surveillance Solution Driver Installation Step 1: Insert the Installation CD. Run autostartup.exe from the CD-ROM directly to start the installation. Step 2: Select “DVR Driver Installation” then click on it. Step 3: In the NUUODriver Setup Wizard dialog box, click Next to continuous. - Page 27 Intelligent Surveillance Solution Driver Installation Step 5: Installing NUUODriver. Step 6: Click “Finish” after installing the system completely, and then choose to reboot now or later. page-26...
-
Page 28: Software Installation
There are 4 system types of options in “System Setup Tool” window, select one and click Next to start the installshield of Server package. NUUO IP Surveillance System/Trial System NUUO MPEG-4 Hybrid System NUUO H.264 Hybrid System NUUO Full D1H.264 Hybrid System... - Page 29 Intelligent Surveillance Solution Software Installation Step 4: In the InstallShield Wizard dialog box, click Next to continuous. Step 5: Check the option “I accept the terms of the license agreement”. Click Next to continuous. Step 6: Please enter your name and the company name for which you work.
- Page 30 Intelligent Surveillance Solution Software Installation Step 7: Select “Complete Setup Type” or “Custom Setup Type” to install the System. COMPLETE SETUP TYPE Install all program features into the default directory. Check the option “Complete”, and then click “Next”. All program features will be installed. [Require the most disk space.] CUSTOM SETUP TYPE Install the system to a preferred directory.
- Page 31 Intelligent Surveillance Solution Software Installation Step 8: Click install to start the installation. Step 9: Click Finish after installing the system completely. page-30...
- Page 32 Intelligent Surveillance Solution Software Installation Execute the Main Console Enter the password you like into the edit box and enter again at the edit of Password Confirm. And then press “OK”. Now enjoy our Intelligent Surveillance Solution. page-31...
