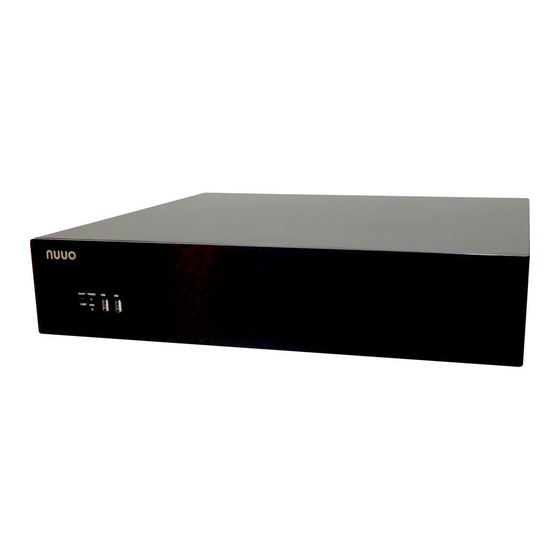

Page 1 The Intelligent Surveillance Solution NVRsolo User Manual (Remote) Ver. 2.1.0.140925.00...
Page 2: Table Of Contents
Table of Contents Installation ....................8 Installation Process ................8 Settings ..................... 26 Camera Setup ..................26 2.1.1 Add Cameras by Camera Search ........26 2.1.2 Add Cameras Manually ............28 2.1.3 Modify Camera Information ..........29 2.1.4 Modify Camera Parameters ..........29 2.1.5 Set up Lens Settings ............
Page 3 2.5.6 ezNUUO ..................66 Management ..................67 2.6.1 View the List of Users ............67 2.6.2 Create New Users ..............68 2.6.3 Modify User Information ............ 69 2.6.4 Change a User’s Password ..........69 2.6.5 Delete Users ................70 2.6.6 Online License Activation ..........
Page 4 3.3.2 Edit Tag Filter ................. 96 3.3.3 Delete Tag Filter ..............96 3.3.4 Import/Export Tag Filter ............ 97 POS Display Font ................97 3.4.1 Live View .................. 97 3.4.2 Remote Live Viewer ............. 98 3.4.3 Playback ................... 99 3.4.4 Playback System ..............100 POS Transaction Data Search ............
Page 5 5.1.2 Live View Setting ..............116 5.1.3 General Setting ..............116 5.1.4 Stream Profile Setting ............117 5.1.5 OSD (On-screen display) Setting ......... 118 5.1.6 Monitor Display Setting ............ 118 5.1.7 Notification ................119 5.1.8 Set up Joystick Control ............ 120 Remote Live Viewer Application ..........
Page 6 7.1.7 Save an Image ..............146 7.1.8 Print an Image ..............147 7.1.9 Backup the Recorded Video ........... 148 Remote Playback System Application ........150 7.2.1 Playback System Application Control Panel ..... 150 7.2.2 Set up Unit Connections ..........150 7.2.3 Search the Recorded Video ..........
Page 7 13.7 Cannot Log in to the Unit with Internet Explorer ... 172 Appendix – RAID System ................. 173 Introduction to RAID .................. 173 RAID 0 – Stripe .................... 173 RAID 1 – Mirror .................... 174 RAID 5 – Block Striping with Distributed Parity ......175 RAID 10 –...
Page 8: Gnu General Public License
General Public License. Please see the GNU General Public License (GPL) for the exact terms and conditions of this license at www.gnu.org. The GPL source code incorporated into the product is available for free download at our web site http://www.nuuo.com/. Subject to GPL, you may re-use, re-distribute and modify the GPL source code.
Page 9: Installation
1. Installation 1.1 Installation Process Step 1: Unpack the Unit This package contains the following items: 1bay Package 2bay Package 8bay Package The unit Remote control, 1.5M IR extender cable Disk screws V (for 2.5” and 3.5” V (for 2.5” and 3.5” V (for 3.5”...
Page 10 Power-on: blue  Power Status LED Power-off: dark  Orange: System or RAID is abnormal Healthy: blue Orange with  Unhealthy: orange blinking: CPU  System Status LED Abnormal temperature temperature/fan  status: orange with blinking rpm is beyond the Off: dark normal range ...
Page 11 Status LED: Description Status Notice Remark Linking: green Ethernet  Accessing: green with port  Ethernet Activity LED blinking Blinking (200 ms No linking: dark On/ 200 ms Off)  External Control and I/O Ports: Description DC-in power connector 3.5 mm mic-in (reserved) 3.5 mm audio out (headphone jack) VGA connector RJ-45 LAN ports 1 / 2...
Page 12 Vertical Vertical stand Screw*4 Foot pad*4 (vertical used) Front View (8 Bay Unit) Status LED: Description Status Notice Remark The lid is locked when first  Lock unpacked.
Page 13 Power-on: blue  Power Status LED Power-off: dark  Orange: System is abnormal (including Healthy: blue  RAID) Unhealthy: orange  Orange with blinking: Abnormal temperature  System Status LED CPU temperature/fan status: orange with rpm is beyond the blinking normal range Off: dark ...
Page 14  These keys can be hit to move up and down between the submenus of a Up/Down arrow menu and the highlighted items on all setting pages. keys Numeric keypad Enters numeric characters, or selects a video channel. Examples: Press key 1 to select video channel 1. Press keys 10+ and 0 to select video channel 10.
Page 15 Switches the screen to Playback and opens the Search dialog. Playback Switches between different layouts of video channels on the Video Areas. Layout See also Video Area Video Area. Switches the screen to the next camera group. Group This key is only applicable to the Live View screen. ...
Page 16 Description Power cord connector Cooling fan COM port (RS-232 reserved) Reset toggle Relay output*4, support N.O. / N.C. 3A, 24 VDC/ 120 VAC max Digital input*16, dry contact 3.5 mm audio out (headphone jack) 3.5 mm line-in (reserved) 3.5 mm mic-in (reserved) HDMI connector VGA connector RJ-45 LAN ports 1 / 2...
Page 17 Step 2: Install Hard Drives Refer to compatibility list and install HDDs. For optimal performance consideration, install disks with the same model and storage capacity. The available RAID level depends on the amount of disks installed. 1. Open the lid of the unit. 2.
Page 18 When installing HDDs on HDD bracket, please mind your hands from scratching. 2 bay unit: Install 3.5” HDD Screw*8 (3.5” HDD used) HDD bracket 3.5” HDD For 2-bay installation, it is recommended to connect the SATA cable to HDDs  before securing the HDDs to the bracket.
Page 19 Step 3: Connect the Unit and Devices within the Network 1. Connect the unit, cameras, and router/switch. 2. If you need to make the video visible over the Internet, please connect to a “router” with Internet connection, and the unit will retrieve an IP address through DHCP by default.
Page 20 The software Installation Wizard performs the setup procedures on the unit. After the procedure, you can begin using it. 1. Go to Start > NUUO NVRsolo > NUUO Installation Wizard. 2. This program will show the default language setting and initiation mode.
Page 21 5. Type in the password, and then click the OK button. The default Administrator password is “admin”. 6. Name this server and select the network type, and then click the button.
Page 22 Obtain network settings automatically from external DHCP server:  apply all settings which are automatically generated by the DHCP server, such as IP, subnet mask, gateway, and DNS. Configure network settings manually: configure the preferred settings  one by one. 7.
Page 24 9. Set up the time zone, date, and time, and adjust daylight saving changes if needed. Once daylight saving function is enabled, the time change will activate automatically every year based on the recurrence you set. Click button. 10. Check “Enable Upgrade Notification” box if you want to receive notification when there is a newer FW version.
Page 25 11. Follow the following instruction and select the RAID type you want to create. Click the button. The available RAID level depends on the amount of disks installed. 12. Review your settings. If the settings are correct, click the Finish button to exit the settings procedure and activate the system.
Page 26 Once the “FINISH” button is clicked, the unit will start working. In order to ensure the stability of the unit, never pull any disks out when the system is running.
Page 27: Settings
2. Settings After setting up the unit, log in to the system by entering its IP address in the browser (Internet Explorer 8, 9, 10, Mac Safari 7.0, Windows Chrome). When connecting, choose your language, enter the username and password, and then begin using this system.
Page 28 4. Click the Search button. 5. The system will list all the currently available cameras. The inserted cameras are shown in blue. Click the icon to add a camera into your camera list. 6. After clicking the icon, the camera setting page will pop up. Click the item to which you want to add a camera.
Page 29: Add Cameras Manually
9. After clicking the Add button, the updated camera list will be displayed in the Camera Setting tab. 2.1.2 Add Cameras Manually 1. Open Internet Explorer and log in to the unit. 2. Click IP Camera / Camera Settings. 3. Click the Camera Settings tab, and the camera list will be displayed on the bottom of the page.
Page 30: Modify Camera Information
lens/channels. Protocol: Data transmission protocol.  Vendor: Camera vendor name.  Model: Camera model name.  To have better compatibility between camera and system, please make sure the privilege of camera credential is admin-level. 5. Click the Save button. Save: Save the information of this camera. ...
Page 31: Set Up Lens Settings
6. Click the Save button. Camera Name: The name of the camera.  Multi-stream Settings: Enable/Disable camera multi-stream.  Stream: Support up to three streams.  Video Format: Choose the type of format which this camera supports.  Frame rate: Select the frame rate of the camera. ...
Page 32: View Camera Status
Camera Name: The name of the camera.  Lens Type: There are two types of lens currently, ImmerVision and  Vivotek (FE8171V). You are not allowed to select type so far, type depends on camera model. Lens: Enable or disable lens function. ...
Page 33 Connection Status: The status of the connection. Click the Connect or  Disconnect button to change the connection status. Status Icon Connection Status Connected Connection Status Disconnected Connection Status Connecting Connection Button Connected: Normal Connected: Over Connection Button Disconnected: Normal Disconnected: Over Rec.
Page 34: View Camera Status Details
2.1.7 View Camera Status Details 1. Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit. 2. Click IP Camera / Details Stream 1: The bit rate of stream 2  Stream 2: The bit rate of stream 3 ...
Page 35: Recording Schedule / Event Setup
Recording: Turn off the recording.  Record by Schedule: Recording by schedule.  Always Record: Permanently turn on the chosen cameras.  Automatic Recycle: Check the Enable option and select the timing of  automatic recycle works. We strongly suggest recycling the disk(s) when the storage space is less than 10%.
Page 36 Insert: Insert new schedules.  Delete: Delete the selected schedule.  Configure: Modify the schedule and recording mode settings.  Copy: Copy current Day Schedule to other channel(s); copy current  Week Schedule to other day(s) of a week or to other channel(s). 7.
Page 37 8. Choose the recording mode. Always Record: Always record.  Motion: Record when camera motion is detected. Go to the “Motion” tab  to define which camera’s motion detection to associate with this channel of camera to start recording. Digital Input: Record when digital input is triggered.
Page 38 When setting the event Motion, please first ensure that the motion detection function of the camera has been enabled. 9. If you want to add another new schedule, click the Insert button to add a new one. 10. Click the Save button. When changing the motion detection settings of a camera, make sure to disconnect your unit and that camera first.
Page 39: Camera Events And Responding Actions Setup
2.2.3 Camera Events and Responding Actions Setup 1. Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit. 2. Click Recording & Event / Event & Action Management. 3. Choose the camera, and then select one of the events. The event list depends on camera its own ability.
Page 40 Always Active: The selected event is always active.  Active only in the following period: The selected event is only active  in the designated time, which able to cover two days e.g. from 18:00 to 09:00. Type: Check one of the options of I/O type. N/O means normal open, ...
Page 41: I/O Box Input And Responding Action Setup
happened. Refer to Push Notification. E-map popup: When an event occurs, the system will pop up E-map  with an event indicator to show users the location of the scene clearly. Snapshot to FTP: When an event occurs, the system will upload ...
Page 42: System Events And Responding Actions Setup
Email: When an event occurs, the system will send Email notifications.  Make sure to add an Email address first. CMS: When an event occurs, the system will send out a signal to CMS.  CMS will highlight this event. Push Notification: When an event occurs, the system will send instant ...
Page 43 Abnormal disk status: When there is no enough disk space for  recording or when disk is abnormal for accessing, the system will trigger an action. Daily system report: Enable users to know the system information,  HDD usage, and Disk status everyday through Email without accessing to the unit to check.
Page 44: Push Notification
2.2.6 Push Notification 1. Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit. 2. Click Recording & Event / Event & Action Management. 3. Add Push Notification as a responding action for an event. Configure the rearm interval and assign user(s).
Page 45 5. Sign in the unit on NUUO mobile client with the user account assigned with push notification service. 6. When an event occurs, the user will get the push notification instantly. The user can click the “View” icon to watch the recording videos.
Page 46: Smtp Server Setup
If users don’t want to receive notifications anymore, users can turn off this feature on NUUO mobile client. There is one possibility of de-registering failed, that is, users have ever logged in to the mobile client by typing both LAN IP and WAN IP of the NVR, but only do de-registering on one side.
Page 47: Add Event Contacts
Server Address: SMTP (Simple Mail Transport Protocol) server IP  address. Port: SMTP port.  Sender: Sender information.  Subject: The subject of the mail.  Body: Email content.  SMTP Authentication: Before sending out an Email, enter the  username and password for SMTP authentication.
Page 48: Set Up Ftp Server
For example: NVR 4. After setting up all the information, click the Test FTP button and the system will create a folder to FTP. Check it after testing. In this case, the route of the tested file will be: ftp://nuuo.dnsalias.com/...
Page 49: Raid & File Settings
NVR/NVRsolo_ComputerName 5. Click the Save button. Make sure the FTP account with privileges of administrator who is able to upload, rewrite, delete files, and create new folder. Besides, make sure the FTP server has enough space for auto backup. To avoid the failure of auto backup, please check the normality of FTP server regularly (e.g., enough space for video, system conditions.) 2.3 RAID &...
Page 50 4. Choose the RAID level you prefer for your disk array. 5. Check boxes of disks and click the >> button to assign disk drives for this volume. 6. Click the Create button. A confirmation dialog pops up. Check the Yes, I want to create volume with those disk(s) box, and click the Yes, create it button.
Page 51: View Raid Volume Status
The RAID Volume will be functional on another unit if all disks of this volume are moved to the unit. After setting RAID level, you are not allowed to change neither the RAID level nor the number of disks containing in this volume. Separate embedded disk(s) and external disk (DAS) from two groups, which implies there is no way to create a single volume with both embedded and external disks inside.
Page 52: View Disk Drive Information
RAID Name: Name of your RAID, automatically assigned when it was  created. RAID Level: RAID 0, 1, 5, or 10, specified when it was created.  RAID Status: Functional is normal. Critical means there are some  problems on RAID volume, but the recording status is normal. Offline means that no volume is found, so recording is stopped and you cannot access your data either.
Page 53 Vendor: Delivers the manufacturer of the disk.  Model: Delivers the model number of the disk.  Capacity: Total, free, used data capacity of the disk.  Firmware: Delivers the firmware version of the disk.  Serial No.: Delivers the serial number of the disk. ...
Page 54: Modify Raid Volume
SMART test may affect the recording performance. You may need to stop recording to run the test. Click on Stop Test to terminate SMART test. 6. Click on Drive Health (SMART) to view the details. 7. Click on OK button to exit. To make sure all the information of hard disk and RAID volume are correct, 8bay RAID model are not allowed to query status, create, modify, delete, format RAID volume when the front panel is opened.
Page 55 This function is designed for replacing a broken hard drive with a new one, instead of modifying RAID level. In the condition of critical RAID status, it’s a warning to show that one of disks of this RAID volume may be damaged. Even though it’s no impact on the recording function, you’d better to replace a new disk to make sure the volume with data protection mechanism.
Page 56 5. After removing the damaged disk. Add a free disk to replace the damaged, and click the Modify button. 6. A confirmation dialog pops up. Check the Yes, I want to modify this volume box, and click the Yes, modify it button. 7.
Page 57: Delete A Raid Volume
To make sure all the information of hard disk and RAID volume are correct, 8bay RAID model are not allowed to query status, create, modify, delete, format RAID volume when the front panel is opened. 2.3.5 Delete a RAID Volume Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit.
Page 58: Format
7. System will restart automatically after RAID volume is deleted When you delete a RAID Volume, all the folders in the RAID volume and all the data saved in the folders will be deleted. Backup any important data before deleting a RAID Volume.
Page 59: Modify The Ftp Protocol Settings
7. System will restart automatically after volume format is complete. To make sure all the information of hard disk and RAID volume are correct, 8bay RAID model are not allowed to query status, create, modify, delete, format RAID volume when the front panel is opened. 2.3.7 Modify the FTP Protocol Settings 1.
Page 60: Set Up Backup Schedule
2.4.1 Set up Backup Schedule 1. Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit. 2. Click RAID & File System / Auto Backup Management. 3. Click the Backup Schedule tab. 4. Set up backup schedule, select the backup channels, and check the Enable option to enable Auto Backup.
Page 61: Network Setup
2.5 Network Setup 2.5.1 View Network Status 1. Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit. 2. Click Network Setup / Network Setup. 3. Click the Information tab to view the unit’s network information. 2.5.2 Network Settings 1.
Page 62 Server Name: Name your unit.  Because of the internal data modifications required, it takes a few seconds to change the name of your unit. Log in again after configuration activated. Internet Interface (WAN): The selection is for choosing which LAN is ...
Page 63 The unit specifies two Giga LANs. We recommend using them under the scenario of two subnets, one is for cameras/devices, and the other is for remote access. If you deploy two LANs on the same subnet, it’s likely to make parts of camera disconnected as either one of LAN is disconnected.
Page 64: Auto Port-Forwarding
2.5.3 Auto Port-Forwarding If you are using ezNUUO service. You can skip this section. For more information, please refer to ezNUUO. This function is designed for saving time in port configuration on router if users want to access the unit (in LAN) from WAN. Once enabling UPnP Service on router, users can do port-forwarding for setting page (default: 80), liveview (default: 5150), playback (default: 5160), and CMS (default: 5170) automatically.
Page 65: Network Service Setup
6. After selecting one of searched routers, click the icon to set up port-forwarding to this router automatically. You will find ports of setting, liveview, playback and CMS are listed. For security reason, the privilege of UPnP port-forwarding is LOWER than port-forwarding configured on router.
Page 66 unit. 2. Click Network Setup / Network Service. 3. Click the Web Service tab 4. Set up a port for this unit and click the Save button. 5. Click the Live View & Playback Service tab. Live Streaming Server  Port: Live streaming transmission port.
Page 67: Cms Service Setup
NUUO systems. It eliminates the need for setting up port forwarding and configuring DDNS. Simply register a server ID on the setting page, then go to ezNUUO website or sign in NUUO iViewer App to watch live videos and playback from wherever you are.
Page 68: Management
DDNS setup. All you need to know is the server ID, username and password. What’s more, you can also sign in to NUUO mobile app iViewer to watch live videos and playback from everywhere you are.
Page 69: Create New Users
1. Open Internet Explorer, Windows Chrome or Mac Safari and login the unit. 2. Click Management/ User Management. 3. Click the Create New Users tab. 4. The list will be displayed on the bottom of the page. 2.6.2 Create New Users 1.
Page 70: Modify User Information
10. Check whether this user can browse log or not. 11. Click the Create New User button to finish it. The Administrator will be the only user who can use all of the functions. There is a default administrator account in the system, and you cannot create neither another “Administrator”...
Page 71: Delete Users
2. Click Management / User Management. 3. Click the Change Password tab. 4. Choose the user. 5. Enter a new password. 6. Enter this new password again. 7. Click the OK button. 2.6.5 Delete Users Except for the administrator, you can delete any users with the following steps.
Page 72: Offline License Activation
users can use POS function. There are two ways to activate license, online and offline. 1. Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit. 2. Click Management / License Management. 3. Input serial number under the section of Online Activation, and click the Activate button.
Page 73 4. Download dialog pops up. Save the request file and take it to other PC which is connected to the Internet. Furthermore, the PC should be installed OffLineTool.exe which can be found from NVRsolo toolkit. 5. Execute the OffLineTool.exe in that PC with Internet connection, and select...
Page 74: Online License Transfer
6. Input the serial number, click the Activate button, and save the .dll file offline_license.dll. 7. Import the license file to the unit. 8. The license will be updated in License List if activated successfully. 2.6.8 Online License Transfer There are two ways to transfer license, online and offline. 1.
Page 75: Offline License Transfer
3. Select the license you want to transfer from the License List below, and click the Transfer button. 4. The license will be removed from License List if transferred successfully. 2.6.9 Offline License Transfer If the device is set up in Intranet (Local LAN) without Internet connection, there is another way to transfer license.
Page 76: View The Event Log
5. Take it to other PC which is connected to the Internet. Furthermore, the PC should be installed OffLineTool.exe which can be found from NVRsolo toolkit. 6. Execute the OffLineTool.exe in that PC with Internet connection, and select the request file offline.req.
Page 77: Save Unit Configuration
There are four kinds of event which will be listed on this page. System Log: The log information of the operations to your unit, such  user access information, as reboot or shut down. NVR Event Log: The log information of the “Event & Action ...
Page 78: Load Unit Configuration / Default Settings
4. Check the box of E-Map Settings or POS Settings if you want to keep the configuration. 5. Click the OK button. 6. The configuration file will be generated into the chosen folder. 2.6.12 Load Unit Configuration / Default Settings Load configuration can let you apply another unit’s settings to the current unit;...
Page 79: System
5. A confirmation dialog pops up. Click the OK button to begin to load the settings into your unit. If there is POS database existed in the unit, loading configuration with different POS application config is likely to make the original POS data unsearchable. If the saved configuration is without E-map or POS settings, selecting loading configuration with E-map/POS settings will lead you get the default.
Page 80: Smart Fan Control
CPU Temperature  System Fan Speed  Locate: Click to trigger the buzzer to let you know where the unit is  2.7.2 Smart Fan Control 1. Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit.
Page 81: Ups Setup
5. Click the OK button. 2.7.4 UPS Setup This feature enables you to tell your unit how long to run on APC Uninterruptable Power Supply (UPS) battery power and when to shut down, after power failure. 1. Attach the APC UPS to one of the unit’s USB ports. 2.
Page 82: Upgrade Notification
2. Click System / Upgrade. 3. Click the Firmware Upgrade tab. 4. Browse the FW for upgrading and click the OK button. 5. A confirmation dialog pops up. Click the OK button to start upgrade process. 6. After upgrade, the system will restart. You need to re-access the unit again after this.
Page 83: System Date And Time Setup
4. Check the option if you agree to be bound by the agreement. 5. Click the OK button. 2.7.7 System Date and Time Setup 1. Open Internet Explorer, Windows Chrome or Mac Safari and log in to the unit. 2. Click System / Date/Time.
Page 84: Restart The Unit
3. Choose the time zone. 4. Configure the year, month, day and time manually, or enable NTP server to synchronize time automatically. When NTP server enabled, the date/time settings will be grayed out. 5. Check the Adjust clock for daylight saving changes option and select the time change of daylight saving time in your location.
Page 85: Shut Down The Unit
3. Check the Reboot option. 4. Click the OK button. 5. A confirmation dialog pops up. Click the OK button to reboot the unit. The restart procedure runs automatically. When the unit is fully online: The System Status LED turns blue. ...
Page 86 1. Press and hold the power button for 2 seconds and release your hands when the buzzer is beeping once. 2. System will begin the shutdown process, which takes about 30 seconds to few minutes depends on number of recording channels and other factors. If the system is crashed and stocked, you can press the power button and hold it for 10 seconds to force to cut off the power directly.
Page 87: Pos
NVR/DVR/NVDR/NVRmini 2/NVRsolo, provides financial transaction’s surveillance solution in one central system. The architecture is as below; POS transaction data flows to NVRmini 2/NVRsolo by Ethernet. Each Cash Register with an external receipt printer is connected by DB9 cable. The transaction information delivered in R232 format can be converted to Ethernet through SCB-C31A POS data capture converter.
Page 88: Hardware Installation - Scb-C31A
Operating Humidity 0-90 % Non-Condensing Baud Rate 110 bps to 230.4 kbps Data Bits 5, 6, 7 or 8 Stop Bits 1, 1.5 or 2 Parity None, Even, Odd, Mark, Space Flow Control None, RTX/CTS, XON/XOFF, DTR/DSR 3.1.2 Hardware Installation – SCB-C31A To connect Cash Register, Printer, and SCB-C31A POS data capture converter together, please follow below steps: Step 1: Please refer the user manual to setup Cash Register and printer.
Page 89: Software Installation - Scb-C31A
The LED Indicators: LINK LED: Ethernet cable connection and data active. RUN LED: System is ready (Blinking). Serial 1: Transiting/Receiving Indicator. 3.1.3 Software Installation – SCB-C31A Step 1: Use IE-browser to setup SCB-C31A, the default IP address is 192.168.1.1 Step 2: Setup IP address and password in Server page, and click the Save button.
Page 90: Connection Via Tcp Client
Step 3: Setup Password if needed. Password is only using to activate a security feature on the serial server. Once a password is entered it will be required to access the menu and make change of configuration when access. Please write down the Serial number and MAC address, these two parameters are necessary when user forget your password.
Page 91: Software Setup
NVRsolo 3.2 Software Setup 3.2.1 Activate POS License If you are not the SCB-C31 user, you need to activate POS license before starting the following settings, please refer to License Activation for details. 3.2.2 NVR POS Setting 1. Open Internet Explorer and log in to the unit.
Page 92: Insert Pos Setting
Data Source: List of all the data sources.  Insert: Click to insert POS and do the POS settings. See Insert  POS Setting for details. Delete: Click to remove the selected POS from the list. See Delete  POS Device for details. Configure: Click to configure the selected POS and modify the POS ...
Page 93 SCB-C31: The device possesses one POS license, and should be  equipped with the cash register not working as TCP server. SCB-C31A: The difference from SCB-C31 is not possessing one POS  license, so user should activate POS license. Client: Cash register possesses with network, so no need to have ...
Page 94: Delete Pos Device
5. Select Tag Filter. See Tag Filter for details. 6. Select the camera of Associated Cameras to display POS transaction data overlay on live video. 7. Set up display area for each camera video in Display Region Definition. Default: The default display area is in the upper left corner of video ...
Page 95 original and filtered data. Filter Tools: Upper/down buttons to arrange the priority of each filter;  remove button to remove the filter from list. 3. Enter name of this tag filter. 4. Click Connect button to capture POS transaction data from POS device. The original transaction data will be shown on the left window.
Page 96 Omit: Neglect the selected text which is meaningless or not important. The  text will disappear on the right window. Substitute: Use another word(s) to replace the selected text. The system  will pop up a substitution panel for replacing word(s) users want. The replaced text will be shown on the right window.
Page 97: Edit Tag Filter
End: Define the selected text as the symbol for transaction ending. The  filtered data will be separated line as below. 7. Filter Tools Up: Move a tag filter up; the upper filter will be operated earlier.  Down: Move a tag filter down; the lower filter will be operated later. ...
Page 98: Import/Export Tag Filter
2. Click Delete button to delete it. 3.3.4 Import/Export Tag Filter 1. Click Import/Export button and select Import/Export URL. 2. Click Open/Save to Import/Export Tag Filter. 3. After importing tag filters, users can simply select tag filter from drop-down menu without editing new tag filter. 3.4 POS Display Font The system allows users to set up the fonts of POS transaction data on live view video and playback video.
Page 99: Remote Live Viewer
5. Click the OK button to save. 3.4.2 Remote Live Viewer 1. Startup > NUUO NVRsolo > Remote Live Viewer 2. Click the General Setting button to open Live View Setting window. 3. Select the font, font size, font color and background for the POS transaction...
Page 100: Playback
4. Click the OK button to save. 3.4.3 Playback 1. Open Internet Explorer and log in to the unit. 2. Click the Playback button. 3. Click the Setting button to open Setting window. 4. Select the font, font size, font color and background for the POS transaction data overlaid the video.
Page 101: Playback System
3.4.4 Playback System 1. Startup > NUUO NVRsolo > Playback System 2. Click the Setting button to open Setting window. 3. Select the font, font size, font color and background for the POS transaction data overlaid the video. Also, select the type of transaction data display...
Page 102: Pos Transaction Data Search
3.5 POS Transaction Data Search POS Search tool is used to search key word of all transaction data. 3.5.1 Search POS Transaction Data through Playback 1. Open Internet Explorer and log in to the unit. 2. Click the Playback button. 3.
Page 103: Search Pos Transaction Data Through Playback System
10. Select the checkbox of Search within result, and enter a keyword, you can search the data within the results. 3.5.2 Search POS Transaction Data through Playback System 1. Startup > NUUO NVRsolo > Playback System. 2. Click the Open Record button to open Data Time Search Dialog window.
Page 104: Select Period By Pos Search
Time Period section after choosing cameras. 5. Click OK to playback videos. 3.6.3 Select Period by Data & Time through Playback System 1. Startup > NUUO NVRsolo > Playback System. 2. Click the Open Record button to open Data Time Search Dialog...
Page 105: Backup Video With Pos Data
window. 3. Click the Remote Server Site icon on the top of the window to select the server users want to access. 4. Highlight the video clip you want to review by left-clicking and dragging the time period. You may also utilize the Start Time and End Time in Date Time Period section after choosing cameras.
Page 106: Backup Through Playback System
8. Click the Backup button. 9. The system will then begin backup process automatically. 3.7.2 Backup through Playback System 1. Startup > NUUO NVRsolo > Playback System. 2. Click the Open Record button to select data. 3. Click the Backup button.
Page 107: Introduction
4. I/O 4.1 Introduction 4.1.1 System Introduction NUUO provides remote I/O solution for NVRsolo by connecting SCB-C31 with NUUO I/O Box SCB-C24/26/28. Refer to the below architecture, I/O device is connected directly with I/O Box, and input/output signal delivered in RS485 format are converted to Ethernet through SCB-C31.
Page 108: Software Installation - Scb-C31
RS485 RJ-45 RS485 Reset Switch Power Multiple I/O Boxes can be connected to a single SCB-C31. However, series connection of I/O boxes is forbidden. Furthermore, the default ID for each I/O Box is the same. Please follow the direction to setup I/O Box one by one. 4.1.3 Software Installation –...
Page 109: Software Installation - Scb-C24/26/28
2. Server Listening Port: The default port is 4000, which is not the port for setting page, but for signal transmission. Step 3: Click the Apply button to activate configuration. Due to the stability of data transmission, one SCB-C31 can be paired with one NVR unit only.
Page 110 IOConfig.exe starts scanning the ID from 0 to 255, and it may take around a minute to finish scan. 2. When the I/O Box is discovered, click on the item and change the ID from the New Address field. Click the Update device button to activate the settings.
Page 111: Software Setup
4. Refer to the HW Installation section to connect other I/O Box and repeat the steps 1 through 3 above to configure more I/O Boxes. 4.2 Software Setup 4.2.1 Add I/O Box 1. Open Internet Explorer and log in to the unit. 2.
Page 112: Modify I/O Box Information
ID: The ID of the I/O box.  4. Click the Create button, and the information will be updated in I/O Box List. 5. Repeat steps 3 and 4 to add more I/O boxes in the list. 6. Click the Save button to activate the settings. Meanwhile, system will distribute an unique ID to each device.
Page 113: Relative Configuration And Application
triggered and pushed a notification to mobile, users can playback the videos of its associated camera.) 5. For output pin, you can configure its duration time to control how long output acts after it’s triggered. The duration range is 3 sec~60 sec. N/A stands for unlimited.
Page 114: Live View
5. Live view There are two ways to execute the live view function: with Internet Explorer or with the Remote Live Viewer application. 5.1 Internet Explorer 5.1.1 Live View Control Panel Log In/ Log Out (Live view service) Camera List Set Preset Point / Go to Preset Point Zoom out / Zoom in...
Page 115 server name, video current status, and bit rate for a selected channel. Start Menu > E-Map: Upload map and drag camera or I/O on it to track  device location and alarm status with instant response when an event occurred. See details in the chapter of E-Map.
Page 116 Enable Move: Adjust the current view of camera which supports PT  function by dragging the button on the display screen. Enable Digital PTZ: Click the + or – button to zoom in or zoom out the  view. The lower right square flashing on the video grid indicates the correspondent view of the camera.
Page 117: Live View Setting
Connect All / Disconnect All: Click to connect or disconnect all  cameras. 5.1.2 Live View Setting 1. Open Internet Explorer and log in to the unit. 2. Set the cameras. 3. Click the Live View button on the top of the page. 4.
Page 118: Stream Profile Setting
5. Check the Enable audio on active channel option to enable audio streaming on active channel. This function synchronizes with right click on camera to enable audio. 6. Check Synchronize video frames to avoid the tearing problem occurring in video display while increasing the CPU loading. 7.
Page 119: Osd (On-Screen Display) Setting
5. Adjust the stream profile of every camera with stream profile enabled in setting page. 6. Click a camera and select its stream profile, and click the Copy to… button to apply this profile to other channels. 7. Click the OK button. 5.1.5 OSD (On-screen display) Setting 1.
Page 120: Notification
Auto Scan Layout 5. Select Primary channel which will always be on the screen when activating auto scan; while select Secondary channel which has second priority when activating auto scan. Enter the time interval for auto scan. 6. Select the screen division of NxN type. 7.
Page 121: Set Up Joystick Control
5. Check Show recording status to show the crystal ball with recording status on monitor display. 6. Check Show camera event to display the words of detected camera event on the correspondent screen. 7. Check the Enable playing sound on event option. Select sound file, default sound or user defined sound (.wav), and define the cycle.
Page 122 Parameter: Choose the preset point from the drop-down menu.  Default: Click to back to default setting.  Import: Click to import the settings.  Export: Click to export the settings.  5. Click the OK button.
Page 123: Remote Live Viewer Application
5.2 Remote Live Viewer Application 5.2.1 Remote Live Viewer Application Control Panel Log In/ Log Out (Server / Group) Server and Camera List Set Preset Point / Go to Preset Point Zoom out / Zoom in PTZ Camera Control Exit Focus Far / Auto Focus / Focus Near Minimize...
Page 124 Start Monitor > E-Map: Upload map and drag camera or I/O on it to  track device location and alarm status with instant response when an event occurred. See details in the chapter of E-Map. Start Monitor > I/O Control Panel: Utilize I/O device function ...
Page 125 Enable Talk: Enable two-way audio. Please insert the microphone  properly and switch to main stream to receive the voice from camera side before talking. However, the operator is able to talk to camera side on every stream. Enable Move: Adjust the current view of camera which supports PT ...
Page 126: Unit Connection Setting
Connect All / Disconnect All: Click to connect or disconnect all  cameras. 5.2.2 Unit Connection Setting 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Server tab. 4. Insert the unit name.
Page 127: General Setting
11. Click the Add button to add this unit into your remote server list. 12. Click the OK button. 5.2.3 General Setting 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the General Setting button.
Page 128 3. Click the General tab. 4. Check the Enable audio on active channel option to enable audio streaming on active channel. This function synchronizes with right click on camera to enable audio. 5. Check Synchronize video frames to avoid the tearing problem occurring in video display while increasing the CPU loading.
Page 129: Camera Group Setting
5.2.4 Camera Group Setting You can put different cameras into the same group. 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Group tab. 4. Log in to all the servers that contain the camera(s) you would like to put into the group(s).
Page 130: Stream Profile Setting
5.2.6 Stream Profile Setting Select the preferred stream type of each camera as default live view profile. 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Camera tab. 4. Adjust the stream profile of every camera with stream profile enabled in setting page.
Page 131: Monitor Display Setting
8. Click the Default button to back to the default settings if necessary. 9. Click the OK button. 5.2.8 Monitor Display Setting 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Monitor Display tab.
Page 132: Notification
6. Select the screen division of NxN type. 7. Click the OK button. 5.2.9 Notification 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Notification tab. 4. Check Show recording status to show the crystal ball with recording status on monitor display.
Page 133: Set Up Joystick Control
Event & Action Management to do the setting. 5.2.10 Set up Joystick Control 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the General Setting button. 3. Click the Joystick tab. Function: You can choose the function from the drop-down menu for the ...
Page 134: Set Up Remote Live Viewer
4. Click the OK button. 5.2.11 Set up Remote Live Viewer 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the unit you wish to access in your remote server list. 3. Click the LOG IN button to access your unit.
Page 135: E-Map
6. E-Map There are two ways to execute the live view function: by Internet Explorer or by Remote Live Viewer application. With E-map, user can easily track the device location and alarm status with instant response when an event occurs. The arrows and lightening icon on E-map represent cameras and I/O devices.
Page 136: Add Map
E-map. Digital Input: Select it to highlight the device with green ring on map  and show status on Information Window. If the Digital Input is from IP camera, the preview window will display live video of the camera. Digital Output: Select it to highlight the device with green ring on ...
Page 137: Edit Map
The map indicator appears on the upper left of map. Drag it to the position you want on appointed map. Repeat steps 2 through 4 to add more maps. Click the Upload button to activate all the settings. The maximum file size of each map is 500KB. There are 10 layers of map, and the map capacity of each layer is 10.
Page 138: Layout Adjustment
Map: Click the icon on the upper right to get the full  screen display of E-map. 6.2 Remote Live Viewer Application 1. Startup > NUUO NVRsolo > Remote Live Viewer. 2. Click the Start Monitor button and select Open E-Map. 6.2.1 E-Map Control Panel Server List...
Page 139 Server List: Select a server to display the E-map of the server.  The E-Map function of Remote Live Viewer is quite similar with the one in Internet Explorer, so you can refer to the section of Internet Explorer for the details.
Page 140: Playback
7. Playback There are two ways to execute the playback function: with Internet Explorer or with the Playback System application. 7.1 Internet Explorer 7.1.1 Playback Control Panel Browse Mode Search Mode Screen Division Open Record General Setting Enhancement / Backup Post Processing Tool Export Video /...
Page 141 Open Record: Click the Open Record button to access the Date-Time  Panel and select the video records which you want to review. General Setting  Record Display  Calendar View: view the Record Display Window as a calendar.  List Control: view the Record Display Window as a list control.
Page 142: Search The Recorded Video
mode, Full-view panorama mode, Dual-view panorama mode. Type of modes depends on lens location. 7.1.2 Search the Recorded Video Refresh POS Search Previous/ Next Video Preview Recording Date Record Display Window Date Time Period Time Table Recording Types : refresh the Record Display Window. ...
Page 143 Show Event Log: Show the time of event detection in the time table.  Color of event type can be defined by preference. 1. From the Record Display Window at the top left of the Date Time Panel, select the date you want to search the record from.
Page 144: Play The Recorded Video
7.1.3 Play the Recorded Video 1. Be sure that you have set the schedule / recording event first. 2. Open Internet Explorer and log in to the unit. 3. Click the Playback button on the top of the page. 4. Click the Open Record button. 5.
Page 145: Recorded Video Enhancement
Define detection zone by dragging to draw a detection zone. Modify the sensitivity setting. Set the Interval. Check the Stop when found option. If unchecked, the search tool will list all the events it found, instead of stopping at the moment the event found. Click the Search button.
Page 146: Save A Video
it cleaner. Sharpen: Check the option to activate the function. Move the slider  control to the right to sharpen the image, to the left to soften it. Brightness: Check the option to activate the function. Move the slider  control to the right to make the image brighter.
Page 147: Save An Image
9. Choose the folder where you want to save the file. 10. Insert the file name and click the Save button. 11. Choose the export format. 12. Choose the use profile. 13. Check to export the recorded video with Audio, OSD and POS Transaction. 14.
Page 148: Print An Image
You may skip step 3 by presetting the folder where you want to save the images and the format you want to save them in. 7.1.8 Print an Image Print the current image of the video you choose. 1. Open Internet Explorer and log in to the unit. 2.
Page 149: Backup The Recorded Video
7.1.9 Backup the Recorded Video Different from Save Video, the Backup function will save all the recorded videos which belong to the time slot you set, instead of the clips. 1. Open Internet Explorer and log in to the unit. 2.
Page 151: Remote Playback System Application
7.2.2 Set up Unit Connections Before using the Playback System application, you need to set a connection to your unit first. 1. Startup > NUUO NVRsolo > Playback System. 2. Click the General Setting button. 3. Click the Server tab.
Page 152: Search The Recorded Video
4. Insert the name of your unit. 5. Insert the IP address of that unit. 6. Modify the port if necessary. 7. Insert the user name. 8. Insert the password. 9. Check the Save Password option. 10. Click the Test Server button to test the connection between the local application and the remote unit.
Page 153: Play The Recorded Video
1. Startup > NUUO NVRsolo > Playback System. 2. Click the Open Record button. 3. Click the icon on the top of the Date-Time Panel to obtain the Remote Playback Site Management dialog, and then select the server you want to access.
Page 154: Recorded Video Enhancement
The intelligent search in the Playback System application is similar to that of Internet Explorer. 7.2.6 Recorded Video Enhancement 1. Startup > NUUO NVRsolo > Playback System. 2. Click the Open Record button. 3. The Record Display Window will show the information of the available video clips.
Page 155: Save A Video
OK: Apply the modifications of the settings.  7.2.7 Save a Video 1. Startup > NUUO NVRsolo > Playback System. 2. Click the Open Record button. 3. The Record Display Window will show the information of the available video clips. Select the date from which you want to search the record.
Page 156: Save An Image
7.2.8 Save an Image 1. Startup > NUUO NVRsolo > Playback System. 2. Click the Open Record button. 3. The Record Display Window will show the information of the available video clips. Select the date from which you want to search the record.
Page 157: Backup The Recorded Video
Different from Save Video, the Backup function will save all the recorded videos which belong to the time slot you set, instead of the clips. 1. Startup > NUUO NVRsolo > Playback System. 2. Click the Open Record button to select data.
Page 158: Backup And Delete Records
8.1 The Backup System Application In addition to the ways mentioned in the previous chapters, you can apply the application to backup your files. 1. Startup > NUUO NVRsolo > Backup System. 2. Click the Remote Server Site button to set up remote server.
Page 159 6. Insert the user name. 7. Insert the password. 8. Check the Save Password option. 9. Click the Test Server button to test the connection between the local application and the remote unit. 10. Click the Add button to add this unit into the remote server list. 11.
Page 160: Backup The Recorded Video Through Windows Explorer
18. Click the Backup button. 19. Select the way and directory you want to save the backup data. 20. Check the Include Playback application option, which will add Playback application into the backup folder. 21. Click the OK button. 8.2 Backup the Recorded Video through Windows Explorer 1.
Page 161: Backup The Recorded Video Through Ftp
5. Select the recorded data to play back. 8.4.2 Without Playback Application 1. Use the Playback function to backup your records. 2. Put your backup folder into the program folder of NVRsolo. (Default directory is “C:\Program Files\NUUO\NVRsolo”.) 3. Startup > NUUO NVRsolo > Playback System.
Page 162 2. Click the Remote Server Site button to set up remote server. 3. Insert the name of your unit. 4. Insert the IP address of that unit. 5. Modify the port if necessary. 6. Insert the user name. 7. Insert the password. 8.
Page 163 13. Click the New Period button to select the record date. 14. Set the Start Time and End Time. (or highlight the video records which you want to delete) 15. Select the cameras you want to delete the records. 16. Click the OK button. 17.
Page 164 18. Click the Delete button. 19. Confirm the check dialog.
Page 165: Verification Tool
2. File in (.avi) (.asf) format will be displayed as 3. File in (.bmp) (.jpg) format will be displayed as 9.1 Execute Verification Tool 1. Startup > NUUO NVRsolo > Verification Tool. 2. Verification Tool Overview Add File Add Folder...
Page 166: Verify Image / Video
Video Preview: Preview designate file in verification list. Select the  buttons below to play , pause , and stop the video file. 9.2 Verify Image / Video 1. Select single or multiple files for verification. 2. Click the Verify button to start verification.
Page 167: External Storage
10. External Storage Total recording space can be expanded largely by connecting DAS through eSATA port. Follow the directions to enlarge your recording space. 10.1 Create a Volume on DAS The current compatible DAS is AXUS FiT Series. We don’t guarantee the quality of other DAS models.
Page 168 Refer to the section of Create a RAID Volume to create a volume for it.
Page 169: Log Out
11. Log out Click the Logout button on the top of the page to log out of the system. If there is no action in 10 minutes, the system will log out automatically to avoid unauthorized access.
Page 170: Remote Pc System Requirements
Model 1/8 bay Windows XP 32 bit, Windows 7 32/64 bit, Supported Windows 8 32/64 bit Intel Core 2 Duo, 2.6GHz User 1. HTTP Web browser - Internet Explorer 8, 9, Interface 10 (32 bit) 2. NUUO client application program...
Page 171: Troubleshooting
13. Troubleshooting 13.1 Replace a Failed Disk Drive If a disk drive fails, the Disk Status LED becomes orange. If the disk drive belongs to a RAID Volume, the Volume goes Critical or Offline, depending on RAID level. See Check RAID Volume Status for details.
Page 172: Restore All Default Configuration
3. Press and hold the reset button for 8 seconds, release your hands until the buzzer beeps one time and the System Status LED flashes in blue. 4. System will restart and the Administrator’s password is now reset to admin. 13.5 Restore All Default Configuration If you want to restore all configurations to default setting, follow the following steps.
Page 173: Cannot Log In To The Unit With Internet Explorer
5. Click the Install button to complete the process. 13.7 Cannot Log in to the Unit with Internet Explorer 1. Check the settings of your antivirus software. 2. Change to appropriate settings or turn off this antivirus software. Please visit NUUO wiki for more information. http://support.nuuo.com/mediawiki/index.php/Main_Page...
Page 174: Appendix - Raid System
Appendix – RAID System Introduction to RAID RAID (Redundant Array of Independent Disks) allows multiple disk drives to be combined together into a RAID Volume. You will create a RAID Volume on your unit when you perform the setup procedure. The benefits of a RAID can include: Higher data transfer rates for increased server performance ...
Page 175: Raid 1 - Mirror
If disk drives of different capacities are used, there will also be unused capacity on the larger drives. Because RAID 0 does not offer Fault Tolerance, meaning that you cannot recover your data after a disk drive failure, we do not recommend a RAID 0 Volume for your unit.
Page 176: Raid 5 - Block Striping With Distributed Parity
RAID 1 Volumes on this unit consist of two disk drives. If you want a mirrored RAID Volume with more than two disk drives, see RAID 10 – Mirror / Stripe for details. RAID 5 – Block Striping with Distributed Parity RAID 5 organizes block data and parity data across the disk drives.
Page 177: Choosing A Raid Level
The data capacity RAID 10 Volume equals the capacity of the smallest disk drive times the number of disk drives, divided by two. In some cases, RAID 10 offers double fault tolerance, depending on which disk drives fail. RAID 10 Volumes on this unit consist of four disk drives. Because all of the available disk drives are used for the RAID Volume, you cannot set up a spare drive with RAID 10.
Page 178 improved by spreading the I/O being lost load across many channels and Should not be used in mission  drives critical environments No parity calculation overhead is  involved RAID 1  Advantage Disadvantage Simplest RAID storage subsystem Very high disk overhead - uses ...
Page 179: Appendix - Camera Integration
Appendix – Camera Integration Camera Support List Any information about camera integration, including camera model and its spec, please refer to NUUO website at www.nuuo.com...
Page 180 Address: B1, No.207-1, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-7739-2260 http://www.nuuo.com/eHelpdesk.php...
