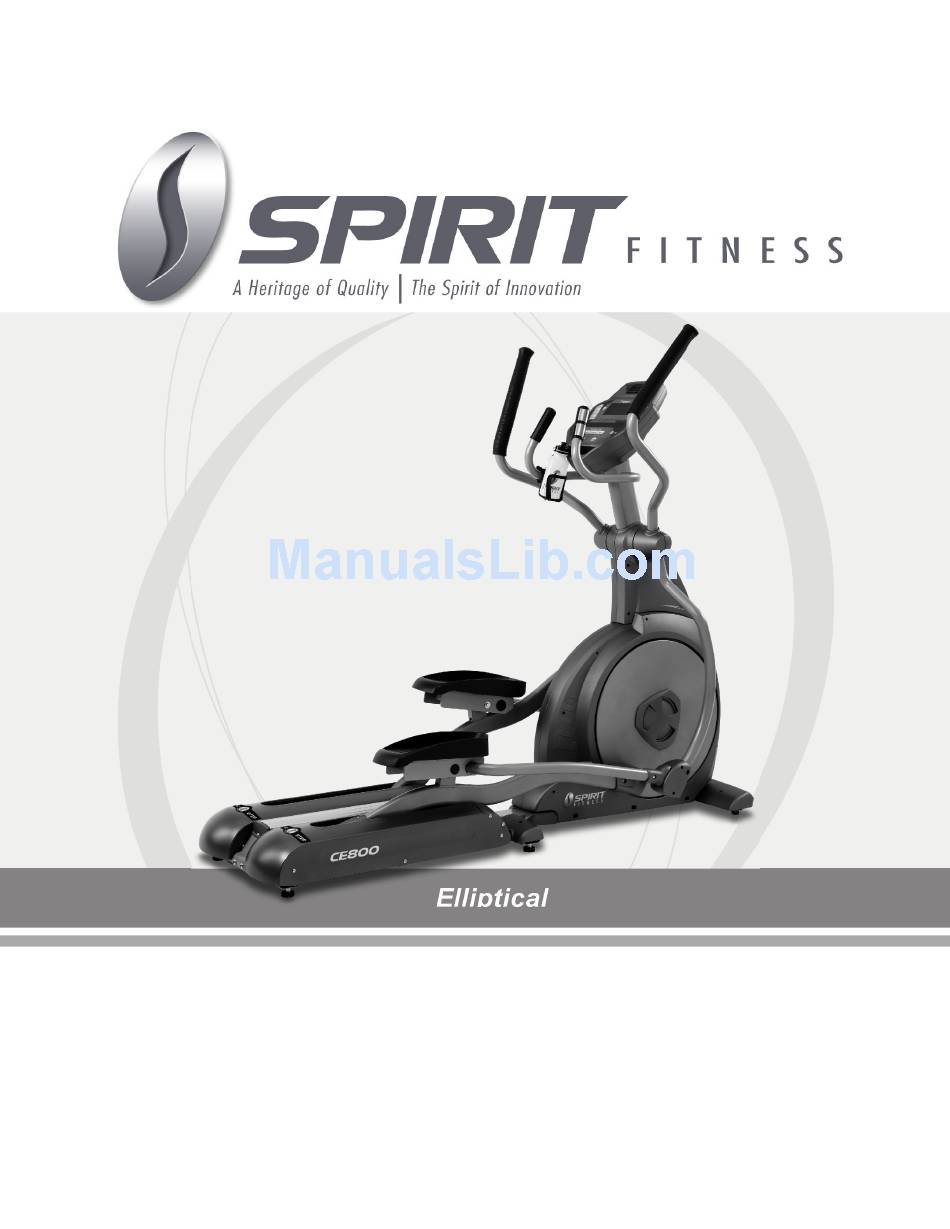

SPT0026 – CE800
Z500
Z100 / Z300
Z700
Elliptical
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATING YOUR NEW ELLIPTICAL!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spirit CE800

Summary of Contents for Spirit CE800

  • Page 1 SPT0026 – CE800 Z500 Z100 / Z300 Z700 Elliptical OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL!

  • Page 2: Table Of Contents

    Exploded View Diagram and Parts List………………………………………………..……..25 Manufacturer’s Limited Warranty………………………………………………..…………… 29 Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual. CE800 Elliptical...
  • Page 3 Through your dealer, Spirit will do all we can to make your ownership experience as pleasant as possible for many years to come. If not purchased direct from Spirit, the local dealership where you purchased this elliptical is your administrator for all Spirit warranty and service needs.

  • Page 4: Important Safety Instructions

    Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your elliptical. Quality athletic shoes are recommended to avoid leg fatigue. Max. user’s weight.: 150 kg SAVE THESE INSTRUCTIONS - THINK SAFETY! CE800 Elliptical...

  • Page 5: Important Operation Instructions

    • Place the elliptical on a firm, level surface. Place the elliptical on a protective surface to avoid damaging the floor beneath the equipment. • If the wattage reading on the console seems incorrect, see your local dealer for recalibration. • The workload of this elliptical provides a speed-dependent type of exercise. CE800 Elliptical...

  • Page 6: Assembly Pack Check List

    Bolt W / Loctite (2 pcs) Flat Washer (2 pcs) #78 - M5 x 12mm #110 - M5 x 10mm #76 - 5/16” x 3/4” Phillips Head Screw (14 pcs) Phillips Head Screw Hex head bolt (4 pcs) W / Loctite (8 pcs) CE800 Elliptical...
  • Page 7 Sheet Metal Screw (4 pcs) Flat Washer (2 pcs) Shoulder Bolt (2 pcs) #90 - 25mm Wave Washer (2 pcs) Step3 #78 - M5 x 12mm #113 - 3.5 x 12mm Phillips Head Screw (14 pcs) Sheet Metal Screw (14 pcs) CE800 Elliptical...

  • Page 8: Assembly Instructions

    • washers (108) at the rear and two 3/8” x 2-1/4” bolts (106) and flat washers (109) at the front. Install the two stabilizer tube covers (64 left & 65 right) with two M5 x 12mm screws (78). CE800 Elliptical...
  • Page 9 CE800 Elliptical...
  • Page 10 Secure the arms with two 3/8” x 3/4” bolts (117) and 3/8” flat washers (120). Attach the bottom of the swing arms to the rod ends of the pedal arms using two M10 x 38mm shoulder bolts (119) and M10 nylon nuts (118). CE800 Elliptical...
  • Page 11 • Install the four covers (55 & 56, 2 pcs each) at the connection point at the bottom of the swing arms using four 3.5mm x 12mm screws (113) and four M5 x 12mm screws (78). Install the front stabilizer cover (47) with two M5 x 12mm screws (78). CE800 Elliptical...

  • Page 12: Features

    This eases the over stressing of the ankles, knees and hips and allows the user to exercise longer without discomfort. Transportation elliptical is equipped with two transport wheels, which are engaged when rear of XE Series Elliptical is lifted. CE800 Elliptical...

  • Page 13: Operation Of Your Elliptical

    The odometer will remain displayed for only a few seconds then the console will go to the start up display. The dot matrix display will be scrolling through the different profiles, showing the programs, and the message window will be scrolling the start up message. You may now begin your workout program. CE800 Elliptical...

  • Page 14: Console Operation

    The Stop/Reset button actually has several functions. Pressing the Stop/Reset key once during a program will Pause the program for 5 minutes (when you stop pedaling the display will turn off but the memory will be saved for 5 minutes just like the pause mode). If the Stop/Reset button is CE800 Elliptical...
  • Page 15 If you want to change the personal settings then just follow the instructions in the message window. If you start a program without changing the settings the default - or pre-saved – settings will be used. CE800 Elliptical...

  • Page 16: Preset Programs

    (Max level) for each program before beginning by following the instructions in the message window after selecting your program. HILL The Hill program simulates going up and down a hill. The resistance in the pedals will steadily increase and then decrease during the program. Work Profile CE800 Elliptical...
  • Page 17 The Strength program is designed to increase muscular strength in your lower body. This program will steadily increase in resistance to a high level and then keeps you there. This is designed to strengthen and tone your legs and glutes. Work Profile CE800 Elliptical...
  • Page 18 Display key next to the message window. 9. When the program ends the message window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. CE800 Elliptical...
  • Page 19 11. During the User 1 or User 2 program you will be able to scroll through the data in the message window by pressing the adjacent Display key, switch between the profile display and a quarter mile track by pressing the Display key adjacent to the matrix CE800 Elliptical...
  • Page 20 Time is the total elapsed time of the test. After the test: • Cool down for about one to three minutes. • Take note of your score because the console will automatically return to the start-up mode after a few minutes. CE800 Elliptical...

  • Page 21: Heart Rate Training

    Heart Rate Control program. This function can be used during manual mode or during any of the nine different programs. The Heart Rate Control program automatically controls resistance at the pedals. ”WARNING” Heart rate monitoring system may be inaccurate. Over exercise may result in injury or death. If you feel faint stop exercising immediately. CE800 Elliptical...

  • Page 22: Rate Of Perceived Exertion

    In this condition, your pace will feel harder. Again, this will show up in your RPE and you will train at the proper level for that day. CE800 Elliptical...
  • Page 23 (6) The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the whole machine 90 degrees may de-tune the interference. (7) If you continue to experience problems contact your dealer. CE800 Elliptical...
  • Page 24 Down key. This will allow you to change your target Watts at any time during the program. 8. During the Watts program you will be able to scroll through the data in the message window by pressing the adjacent Display key. CE800 Elliptical...

  • Page 25: Maintenance

    Beep (Turn on or off the beep when a key is pressed) vi. D/A test (tests the brake resistance) vii. Elliptical or Bike (sets the console software calculations) d. Security (Allows you to lock the keypad so no unauthorized use is allowed) CE800 Elliptical...

  • Page 26: Exploded View Diagram And Parts List

    EXPLODED VIEW DIAGRAM CE800 Elliptical...
  • Page 27 Sensor Rack 850m/m_Handpulse W/Cable Assembly 35~1 850m/m_Handpulse W/Cable Assembly(Red) Sliding Wheel , Urethane Rubber Foot Side case (L) Side case (R) Round Disk Round Disk Cover Handle Bar Axle Inner Cover Incline Bottom Cover Pedal Arm Cover (L) CE800 Elliptical...
  • Page 28 5/16" × 35 × 1.5T_Flat Washer 5/16" × 23 × 1.5T_Flat Washer M8 × 170m/m_J Bolt Ø25_Wave Washer Ø17_Wave Washer 5 × 16m/m_Tapping Screw 4 × 15m/m_Sheet Metal Screw 4 × 19m/m_Sheet Metal Screw 5 × 16m/m_Tapping Screw CE800 Elliptical...
  • Page 29 Ø36 × Ø22 × 2T_Stable Wheel Spacer 3/8" × 16UNC-2_Flat Head Socket Bolt 5/16" × 18UNC × 12m/m_Nylock Screw 4 × 12m/m_Sheet Metal Screw 3 × 10m/m_Sheet Metal Screw M14 × 2.0 × 7m/m_Nut 19 × 32 × 3T_Nylon Washer 6005_Bearing CE800 Elliptical...

  • Page 30: Manufacturer's Limited Warranty

    BOYLES FITNESS warrants their elliptical to be free from defects in material and workmanship under normal use and service conditions. The various components of the elliptical are warranted against defects and workmanship for the time periods specified as follows: SPT0026 – CE800 Commercial Warranty parts 2 Years...

  • Page 31: Warranty Information

    If the warranty periods offered in the two documents are different then the greater of the two shall be honoured. This CE800 Elliptical is warranted to be free from defects in material and workmanship under normal use and service conditions for a period of 6 months from the date of purchase of this article.
  • Page 32 SERVICE CENTRE Contact details and hours of operation. Phone 07 3272 7010 8:00am – 4:00pm Monday to Friday (excluding Public Holidays) This product is warranted by Boyles Fitness Equipment Pty Ltd 130 Carrolls Road, Menangle NSW 2568 CE800 Elliptical...
