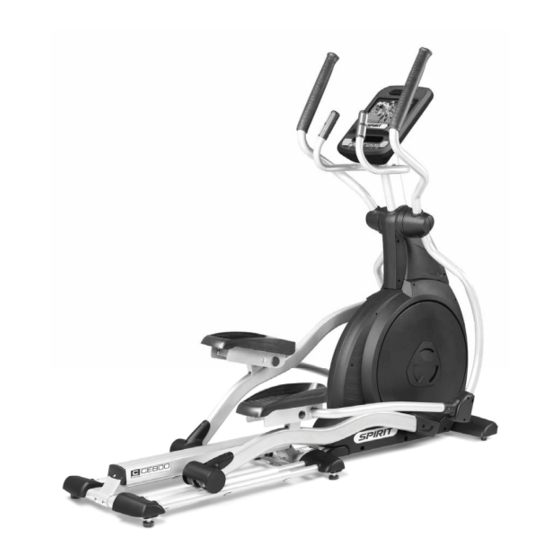

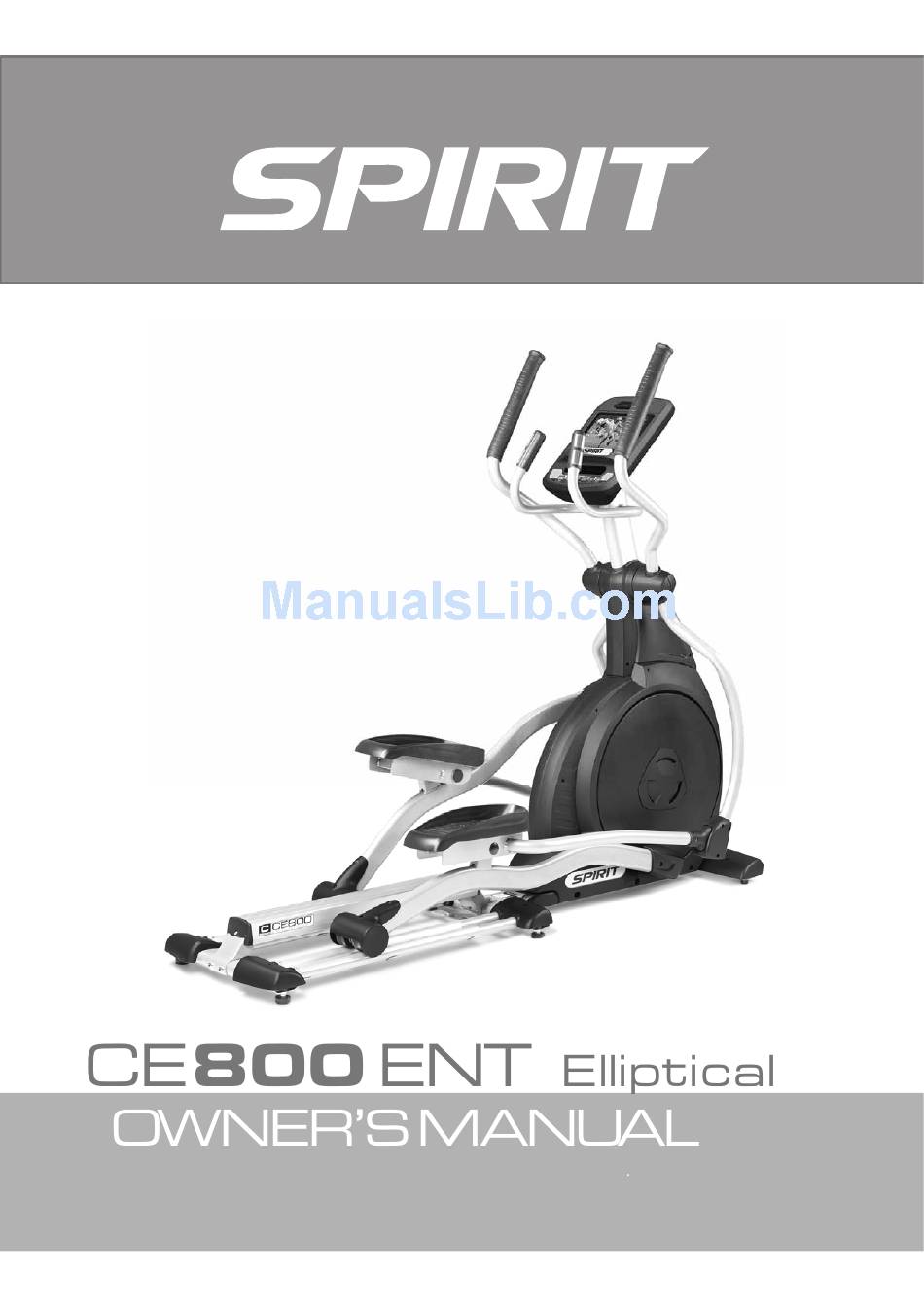

  • Page 1 Please carefully read this entire manual before operating your new elliptical...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions………………………………………………………….….……2 Important Operation Instructions……………………………………………………….….…..3 Assembly Instructions………………………………………………………………….….……6 Features…………………………………………………………………………………………10 Operation of Your Elliptical…………………………………………………………………….11 Exploded View Diagram and Parts List………………………………………………..……..31 Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual.
  • Page 3 Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any customizing, adjustments, repair or maintenance that is not described in this manual, if you experience any difficulty, please contact our website. NOTE: Article number: CE800 ENT Use: Studio use Max. user’s weight.:150 kg WARNING : The equipment shell be installed on a stable base and properly leveled.

  • Page 4: Important Safety Instructions

    Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your elliptical from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the elliptical on a flat level surface with access to a 120-volt,15-amp grounded outlet with only the elliptical plugged into the circuit.
  • Page 5 MODEL: WB001 This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

  • Page 6: Important Operation Instructions

    IMPORTANT ELECTRICAL INSTRUCTIONS WARNING NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the performance of your elliptical may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.

  • Page 7: Grounding Instructions

    Grounding Instructions This product must be grounded. If the elliptical’s electrical system should malfunction or breakdown grounding provides a path of least resistance for electric current, reducing the risk of electric shock. This product is equipped with a cord having an equipment-grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

  • Page 8: Assembly Pack Check List

    Assembly Pack Check List Step1 #97 - M5 x 12mm #130- 3/8” X19 #129 - 3/8” X23 Phillips Head Screw (4 pcs) Flat Washer (4 pcs) Curved Washer (6 pcs) #128 - 3/8” x 3-3/4” #127 - 3/8” x 2-1/4” Button Head Socket Bolt (6 pcs) Button Head Socket Bolt (4 pcs) Step2...
  • Page 9 Step3 #136 - M10 #135 - 3/8” x 3/4” #132 - M8 x 25mm Nylon Nut (2 pcs Hex Head Bolt Socket Cap Bolt (4 pcs) W / Loctite (2 pcs) #134 - 3.5mm x 12mm #138 - 3/8” #137 - M10 x 12mm Sheet Metal Screw (4 pcs) Flat Washer (2 pcs) Shoulder Bolt (2 pcs)

  • Page 10: Assembly Instructions

    Assembly Instructions STEP 1 : RAIL ASSEMBLY 1. Gather HARDWARE FOR STEP 1. 2. Slide the RAIL ASSEMBLY (2) under the rear oval stabilizer tube of the main frame. Secure together with 2 BOLTS (127) and 2 WASHERS (130) from the top of the tube and 4 BOLTS (128) and 4 CURVED WASHERS (129) from the front of the tube.
  • Page 11 STEP2 : PEDAL ARM ASSEMBLY 1. Gather HARDWARE FOR STEP 2. 2. Attach FOOTPLATES (L 49)to the pedal mounting plate with 4 SCREWS (131). 3. Slide the PEDAL ARM assembly (5) onto the crank axle of the main body. Be careful not to force it because damage to the bearings can occur.
  • Page 12 STEP 3: CONSOLE MAST AND SWING ARMS 1. Gather HARDWARE FOR STEP 3. 2. Unravel the COMPUTER CABLE (35), CSAFE CABLE(32),TV CABLE(33),NET CABLE (34), CONSOLE POWER CABLE(36) ,HDMI (46)and snake it through the bottom of the CONSOLE MAST (12) and out the top. To install mast tube (12), first insert three M8x25mm screws (132) onto the mainframe then locate the mast tube (12) on its position and tighten three screws.
  • Page 13 STEP 4: CONSOLE AND BEAUTY COVERS 1. Gather HARDWARE FOR STEP 4. 2. Plug the COMPUTER CABLE (35), CSAFE CABLE(32),TV CABLE(33),NET CABLE (34), CONSOLE POWER CABLE(36) ,HDMI (46) and HEART RATE CABLES (40/41) into the corresponding connectors on the back of the console (31). Mount the CONSOLE (31) to the MAST with 4 SCREWS (97).

  • Page 14: Features

    Features Footpads Through research performed with a leading sports scientist and physical rehabilitation expert, the engineering has developed a breakthrough in pedal design. The history of elliptical use over the past few years tells us that many users suffer from ankle, Achilles tendon, knee and/or hip pain. While researching a solution to these common problems the engineers consulted Richard DeKok, P.T., M.T.C., of St.
  • Page 15 Getting on / off your elliptical IMPORTANT The elliptical comes with two Dual Action Handles and a Stationary Handlebar. Always hold the Stationary Handlebar when getting on and off the elliptical. First time users should familiarize themselves with using the elliptical by using the Stationary Handlebar first and then progressing to the Dual Action Handles.
  • Page 16 Correct Position Your body should be in an upright position so that your back is straight. Keep your head up to minimize neck and upper back strain. Always try and use the elliptical in a rhythmical and smooth motion. If you find yourself feeling uncomfortable, or experience a surging type feeling, there is probably too much tension.

  • Page 17: Operation Of Your Elliptical

    Operation of Your Elliptical Console ( WB001 ) Starting the operation • Plug in the power cord and switch on the main power switch located at the front, below the console. • When the power is turned on, the screen will show the initial image and then enter the ready mode which is the beginning of the elliptical operation.
  • Page 18 Quick-start operation: • Press “START” button and the console start performing the program. Press “LEVEL” up/down buttons further to change the resistance level you desire. • Press first page “HOME” button or “STOP” button to stop the belt. Featuring functions of this elliptical: Touch-control screen is installed for the operation.
  • Page 19 Below is the instruction for touch screen operation: • First page HOME There are four selections. Usually the “Language” is the first selection. •When you press “Language” button on the first page HOME, it enters the menu with all languages selection. There are 12 languages to choose.
  • Page 20 • When TV button on the first page HOME is pressed, it enters TV interface. Now you can enjoy TV programs. If you want to workout and enjoy TV program simultaneously, press “START” button to start the elliptical. You can change the TV channel by using up/down buttons on the TV channel or channel remote control at bottom right to change the channel.
  • Page 21 • When you touch “Internet” button on HOME first page, it rapidly enters internet interface. There are 6 internet connections to choose for you to go internet while you are exercising. (internet cable connection or WIFI connection is required) Press “START” button of the elliptical to start it. Use “level up/down buttons to control the resistance level during the exercise.
  • Page 22 • When you touch “Exercise Program” button on HOME first page, it enters “Menu“ interface. There are 10 program modes in Menu interface. If you want to choose Manual Program, just touch Manual button on the screen to enter the program for Manual.
  • Page 23 The image entering the “Profile” interface is as below. After entering the profile image which is the program you want to perform, press “ENTER” button to enter next image. If not, touch “HOME” icon at left top corner to return to the first page or press “Return”...
  • Page 24 The “SIMPLE” image after start is as below. The image after start is “SIMPLE” which is with all values on the bottom concerning your workout. The resistance level is at the right side and is adjustable with “UP” or “DOWN” button. The bar chart for the resistance level is in the middle.
  • Page 25 Touch “DASHBOARD” button on the bottom to enter the dashboard interface. The operating is similar with different interface only. You can choose one of three interfaces on the bottom with your own preference. When using the first page button or “STOP” button to end the program, it enters the summary image.

  • Page 26: Programmable Features

    Programmable Features The New SPORTS offers ten preset programs, HILL, FAT BURN, CARDIO, TRENGTH, INTERVAL, HR, CUSTOM, Fitness Test and one Manual program. Preset Features: To choose and start preset program: • Select a program then press the ENTER key to begin customizing the program with your personal data, or just press the start key to begin the program with the default settings.

  • Page 27: Preset Program

    Preset program The elliptical has five different programs that have been designed for a variety of workout goals. These five programs have factory preset profiles for achieving these different goals. The initial built-in level of difficulty for each program is set to a relatively easy level. You may adjust the level of difficulty (Max level) for each program before beginning by following the instructions in the touch Mix Level window after selecting your program.
  • Page 28 Cardio program: The Cardio program is designed to increase your Cardio vascular function. This is exercise for your heart and lungs. It will build up your heart muscle and increase blood flow and lung capacity. This is achieved by incorporating a higher level of exertion with slight fluctuations in work. Work Profile Strength program: The Strength program is designed to increase muscular strength in your lower body.

  • Page 29: Custom Program

    Custom Program: • Select a Custom program then press the ENTER key to begin customizing the program with your personal data, or just press the start key to begin the program with the default settings. • The window will show the corresponding level profile, user can choose rename program by touching rename icon and entering profile.
  • Page 30 Workload chart for male or very fit female: 50 watts - Stage 300 kgm/min < 90 90 - 105 > 105 150 watts - 125 watts - 100 watts - Stage 900 kgm/min 750 kgm/min 600 kgm/min HR <120 120-135 HR >135 HR <120 120-135...
  • Page 31 Fitness test programming: Press the Fitness-test button and press enter. 1. The message window will ask you to enter your gender. You may adjust the Age and Weight setting by using numeric keypads. 2. Now press START to begin the test. During the test: •...
  • Page 32 What your score means: VO2max Chart for males and very fit females 18-25 26-35 36-45 46-55 56-65 years years years years years years excellent >60 >56 >51 >45 >41 >37 good 52-60 49-56 43-51 39-45 36-41 33-37 above average 47-51 43-48 39-42 35-38...

  • Page 33: Heart Rate Training

    Heart Rate Training A word about Heart Rate: The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.

  • Page 34: Rate Of Perceived Exertion

    Rate of Perceived Exertion Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout.

  • Page 35: Using A Heart Rate Transmitter

    Using a Heart Rate Transmitter How to wear your wireless chest strap transmitter: 1. Attach the transmitter to the elastic strap using the locking parts. 2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable. 3.
  • Page 36 Heart Rate Control (HR) Program operation: To start the HR program follow the instructions below or just press the HR key then the Enter button and follow the directions in the message window. 1. Press the HR key then press the Enter key. 2.

  • Page 37: Exploded View Diagram

    EXPLODED VIEW DIAGRAM Elliptical...

  • Page 38: Parts List

    PARTS LIST Dwg # Part description Main Frame Rear Rail Assembly Rail Support Assembly Cross Bar Pedal Arm(L) Pedal Arm(R) Connecting Arm (L) Connecting Arm (R) Swing Arm (L) Swing Arm (R) Console Mast Crank Axle Idler Wheel Plate 6005_Bearing(NTN) 6203_Bearing 6003_Bearing Rod End Bearing...
  • Page 39 Dwg # Part description Attaching Plate Ø72_Slide Wheel , Urethane Ø35 × 10_Rubber Foot Side Case (L) Side Case (R) Round Disk Round Disk Cover Handle Bar Axle Inner Cover Incline Bottom Cover Pedal Arm Cover (L) Pedal Arm Cover (R) Front Stabilizer Cover Pedal (L) Pedal (R)
  • Page 40 Dwg # Part description 1/4" × 8T_Nyloc Nut 5/16" × 7T_Nyloc Nut 3/8" × 7T_Luck Nut Ø3/8" × Ø19 × 1.5T_Flat Washer Ø5/16" × Ø35 × 1.5T_Flat Washer Ø5/16" × Ø23 × 1.5T_Flat Washer M8 × 170L_J Bolt Ø17_Wave Washer Ø5 ×...
