Before Setting Surface Controls

About the Ceramic Glass Cooktop

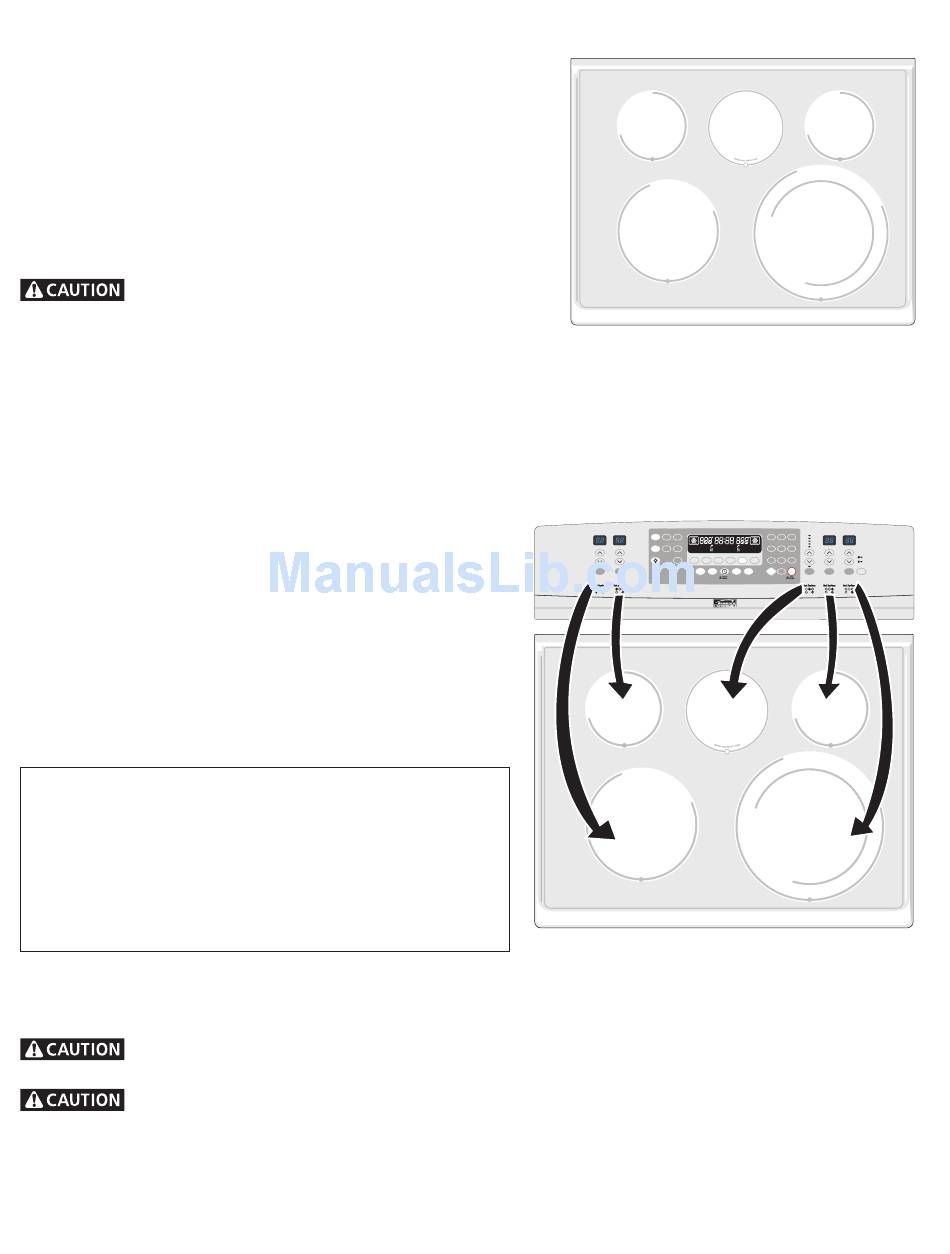

The ceramic cooktop has radiant surface elements located below the
surface of the glass. The design of the ceramic cooktop outlines the
area of the surface element underneath. Make sure the diameter of
the pan matches the diameter of the element outline on the cooktop
(See Figure 1).
Heat is transferred up through the surface of the cooktop to the
cookware. Only flat-bottom cookware should be used. The type and
size of cookware, the number of surface elements in use and their
settings, are all factors that will affect the amount of heat that will
spread to areas beyond the surface elements.
The areas surrounding the elements may become hot
enough to cause burns.
About the Radiant Surface Elements
The element temperature rises gradually and evenly. As the temperature rises, the element will glow red. To maintain the
selected setting, the element will cycle on and off. The heating element retains enough heat to provide a uniform and
consistent heat during the off cycle. For efficient cooking, turn off the element several minutes before cooking is
complete. This will allow residual heat to complete the cooking process.
Locations of the Radiant Surface Elements and Controls
Your range is equipped with radiant surface burners with different
wattage ratings. The ability to heat food quicker and in larger
volumes increases as the element wattage increases.
The radiant surface elements are located on the cooktop as
follows:
- two 6 inch single radiant elements located at the right and left
rear positions;
- one 9 / 12 inch Double element located at the right front
positions;
- one 9" single Turbo boil radiant element located at the left front
position;
- a Warmer Zone located at the center rear position.
Note: Please read detailed instructions for ceramic glass
cooktop cleaning in the General Care & Cleaning section and
Before You Call checklist section of this Use and Care Guide.
Note: Radiant elements have a limiter that allows the element
to cycle on and off, even at the HI setting. This helps to prevent
damage to the ceramic glass cooktop. Cycling at the HI setting
is normal and can also occur if the cookware is too small for
the radiant element or if the cookware bottom is not flat (Refer
to page 12 for correct cookware instructions).
Note: (White glass cooktops only) Due to the high intensity of heat generated by the surface elements, the glass surface
will turn to a pale green when the element is first turned off. This phenomenon is normal and the glass will come back to
its original white color after it has completely cooled down.
Radiant surface elements may appear to have cooled after they have been turned off. The glass surface
may still be hot and burns may occur if the glass surface is touched before it has cooled sufficiently.
Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on
top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch
fire if placed too close to the surface elements.
Turbo Boil
Hi
Hi
Lo
Lo
On/Off
On/Off
Left
Left
Front
Rear
6
Figure 1
Hi
Upper
Slow
Flex
1
2
3
Oven
Cook
Clean
Med
Lo
Lower
Conv
UPPER
WARM
CONV
UPPER
LOWER
CONV
WARM
LOWER
4
5
6
Warm
ROAST
BAKE
BROIL
TIMER
DOOR
CLEAN
BROIL
BAKE
ROAST
Oven
& Hold
Convert
LOCKED
DELAY
TIMED
REMOVE
RACKS
TIMED
DELAY
LOCKED
Hi
Conv
Conv
7
8
9
Pizza
Bake
Broil
Cakes
Breads
Bake
Roast
Lo
Cook
Delay
Add 1
0
Timer
START
STOP
On/Off
On/Off
Time
Start
Set/Off
Minute
Timed Oven
Warmer
Right
Zone
Rear
Figure 2
Hi
Outer
Lo
Inner
Element
On/Off
Size
Right
Front
