Supero SUPER SERVER 5013C-MT User Manual

Hide thumbs Also See for SUPER SERVER 5013C-MT:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
S
®
UPER
S
S
5013C-MT
UPER
ERVER
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading

Related Manuals for Supero SUPER SERVER 5013C-MT

Summary of Contents for Supero SUPER SERVER 5013C-MT

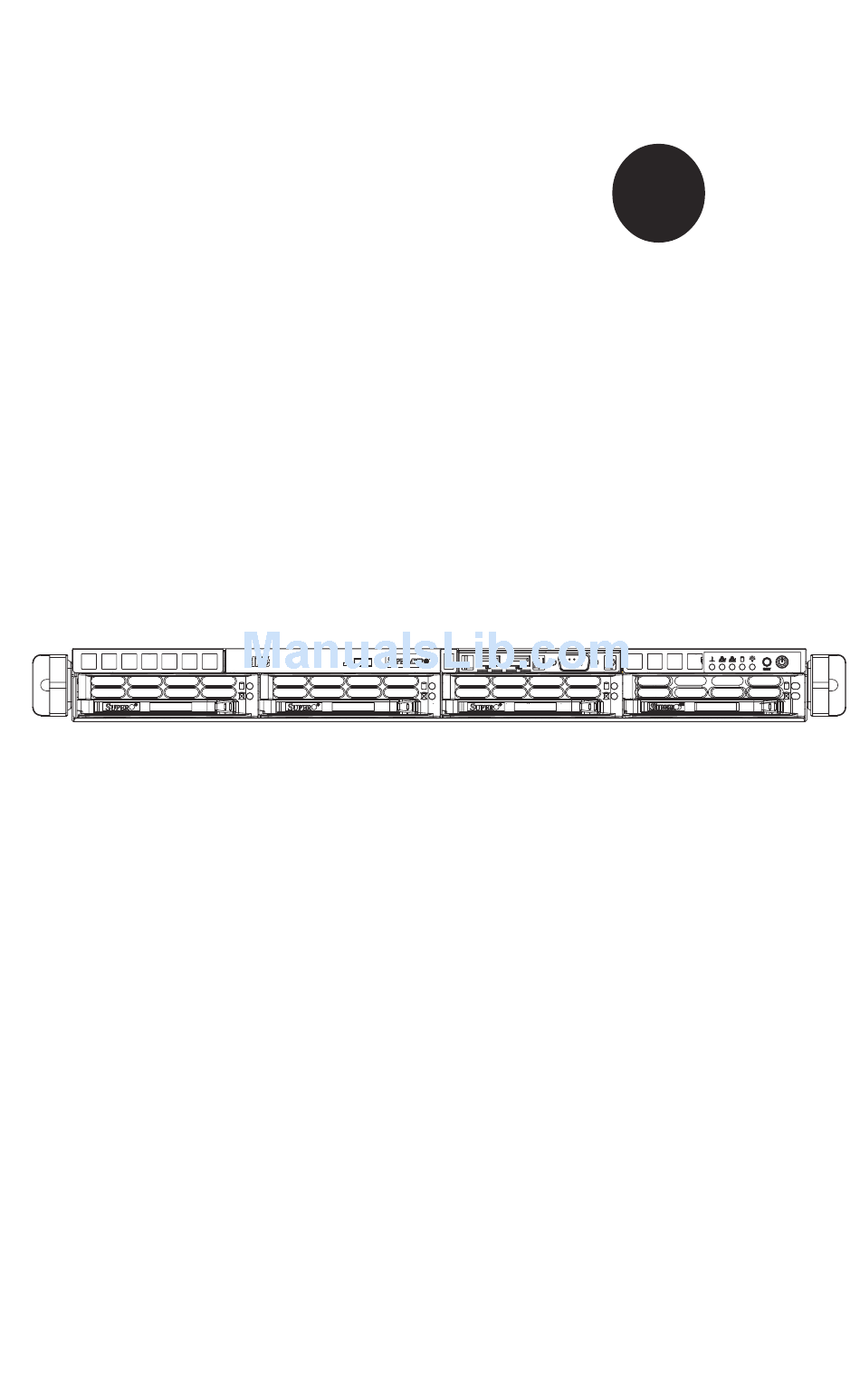

  • Page 1 ® UPER 5013C-MT UPER ERVER USER’S MANUAL Revision 1.0...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the Please information in this manual, or to notify any person or organization of the updates.

  • Page 3: Preface

    Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 5013C-MT. Installation and maintainance should be performed by experienced technicians only. The SuperServer 5013C-MT is a high-end single processor 1U rackmount server based on the SC813MT-300C 1U rackmount server chassis and the Super ®...
  • Page 4 UPER ERVER 5013C-MT User's Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 5013C-MT. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the P4SCT+ motherboard, including the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 5013C-MT User's Manual Table of Contents Preface About This Manual ....................... iii Manual Organization ....................iii Chapter 1: Introduction Overview ......................1-1 Motherboard Features ..................1-2 Server Chassis Features ................1-5 Contacting Supermicro ................... 1-7 Chapter 2: Server Installation Overview ......................
  • Page 7 Table of Contents Serial ATA Drive Carrier LEDs ............... 3-3 Chapter 4: System Safety Electrical Safety Precautions ................. 4-1 General Safety Precautions ................4-2 ESD Precautions ..................... 4-3 Operating Precautions ..................4-4 Chapter 5: Advanced Motherboard Setup Handling the P4SCT+ Motherboard ............... 5-1 Motherboard Installation ..................
  • Page 8 UPER ERVER 5013C-MT User's Manual ATX PS/2 Keyboard and PS/2 Mouse Ports ........5-15 Universal Serial Bus ................5-16 GLAN1/2 (Ethernet) Ports ..............5-16 SATA LED (Marvell) ................5-16 SATA LED (Intel) ..................5-16 5-10 Jumper Settings ..................... 5-17 Explanation of Jumpers ................5-17 CMOS Clear ....................
  • Page 9 Table of Contents Chapter 7: BIOS Introduction ....................... 7-1 Running Setup ....................7-2 Main BIOS Setup .................... 7-2 Advanced BIOS Setup ..................7-4 7-4.1 Advanced BIOS Features ............. 7-4 7-4.2 Advanced Chipset Control ............7-5 7-4.3 I/O Device Configuration ............... 7-7 7-4.4 PnP Configuration ................
  • Page 10 UPER ERVER 5013C-MT User's Manual Notes...

  • Page 11: Chapter 1: Introduction

    Chapter 1: Introduction Chapter 1 Introduction Overview The Supermicro SuperServer 5013C-MT is a high-end single processor, 1U rackmount server. The 5013C-MT is comprised of two main subsystems: the SC813MT-300C chassis and the P4SCT+ motherboard. The P4SCT+ supports a single 478-pin Intel Pentium 4 microPGA processor at up to 3.40 GHz with HT (hyper-threading) technology (or single a Intel Celeron processor of up to 2.80 GHz) and up to 4 GB of ECC or non-ECC unbuffered DDR400/333/266 SDRAM memory.

  • Page 12: Motherboard Features

    UPER ERVER 5013C-MT User's Manual Motherboard Features At the heart of the SuperServer 5013C-MT lies the P4SCT+, a single processor motherboard designed to provide maximum performance. Below are the main features of the P4SCT+. Chipset Overview The P4SCT+ is based on Intel’s E7210 chipset (see Figure 1-1 for a block diagram).
  • Page 13 Chapter 1: Introduction Processors ® ® The P4SCT+ supports a single Intel Pentium 4 processor of up to 3.40 GHz with hyper-threading technology in a 478-pin microPGA socket (must be 0.13 ® ® micron technology) or single a Intel Celeron processor of up to 2.80 GHz.

  • Page 14: Other Features

    UPER ERVER 5013C-MT User's Manual Onboard Controllers/Ports An onboard IDE controller supports one floppy drive and up to four Ultra ATA 100 hard drives or ATAPI devices. Onboard I/O backpanel ports include one serial COM port, one parallel port, four USB ports, PS/2 mouse and keyboard ports and two GLAN (RJ45) ports.

  • Page 15: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features The SuperServer 5013C-MT is a 1U rackmount server platform configuration. The following is a general outline of the main features of the SC813MT-300C chassis. System Power When configured as a SuperServer 5013C-MT, the SC813MT-300C chassis in- cludes a single 300W power supply.
  • Page 16 UPER ERVER 5013C-MT User's Manual Cooling System The SC813MT-300C chassis has an innovative cooling design that features three 4-cm high performance cooling fans. The fans plug into headers on the motherboard and operates at full rpm continuously. Figure 1-2. Rear I/O Panel...

  • Page 17: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 18 UPER ERVER 5013C-MT User's Manual Notes...

  • Page 19: Chapter 2: Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation 2-1 Overview This chapter provides a quick setup checklist to get your SuperServer 5013C-MT up and running. Following the steps in the order given should enable you to have the system operational within a minimal amount of time. This quick setup assumes that your 5013C-MT system has come to you with the processor and memory preinstalled.

  • Page 20: Choosing A Setup Location

    UPER ERVER 5013C-MT User's Manual Choosing a Setup Location - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

  • Page 21: Installing The Superserver 5013C-Mt Into A Rack

    Chapter 2: Server Installation Installing the 5013C-MT into a Rack This section provides information on installing the SuperServer 5013C-MT into a rack unit. If the system has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 22: Installing The Rack Rails

    UPER ERVER 5013C-MT User's Manual Figure 2-1. Installing Rear Inner Chassis Rails Installing the Rack Rails Determine where you want to place the SuperServer 5013C-MT in the rack (see Rack and Server Precautions in Section 2-3). Position the chassis rail guides at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack.

  • Page 23: Installing The Server Into The Rack

    Chapter 2: Server Installation Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting).

  • Page 24: Installing The Server Into A Telco Rack

    UPER ERVER 5013C-MT User's Manual Installing the Server into a Telco Rack If you are installing the SuperServer 5013C-MT into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 25: Checking The Motherboard Setup

    Chapter 2: Server Installation Checking the Motherboard Setup After you install the 5013C-MT in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the connections have been made. 1. Accessing the inside of the 5013C-MT (Figure 2-4) First, release the retention screws that secure the unit to the rack.
  • Page 26 UPER ERVER 5013C-MT User's Manual Figure 2-4. Accessing the Inside of the SuperServer 5013C-MT...

  • Page 27: Checking The Drive Bay Setup

    Chapter 2: Server Installation Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the Serial ATA drive and Serial ATA backplane have been properly installed and all essen- tial connections have been made. 1.
  • Page 28 UPER ERVER 5013C-MT User's Manual Notes 2-10...

  • Page 29: Chapter 3: System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel and one on the Serial ATA drive carrier to keep you constantly informed of the overall status of the system as well as the activity and health of specific components. There are also two buttons on the chassis control panel.

  • Page 30: Control Panel Leds

    UPER ERVER 5013C-MT User's Manual Control Panel LEDs The control panel located on the front of the SC813MT-300C chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 31: Power

    Chapter 3: System Interface Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Serial ATA Drive Carrier LEDs On the front of each Serial ATA drive carrier is a green LED. When illuminated, it indicates drive activity.
  • Page 32 UPER ERVER 5013C-MT User's Manual Notes...

  • Page 33: Chapter 4: System Safety

    Chapter 4: System Safety Chapter 4 System Safety Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 5013C-MT from damage: ! Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 34: General Safety Precautions

    UPER ERVER 5013C-MT User's Manual ! Motherboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites. This battery must be replaced only with the same or an equivalent type recommended by the manufacturer.

  • Page 35: Esd Precautions

    Chapter 4: System Safety ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic components and printed circuit boards. The following measures are generally sufficient to neutralize this difference before contact is made to protect your equipment from ESD:...

  • Page 36: Operating Precautions

    UPER ERVER 5013C-MT User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 5013C-MT is operating to assure proper cooling. Out of warranty damage to the 5013C-MT system can occur if this practice is not strictly followed.

  • Page 37: Chapter 5: Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install the P4SCT+ motherboard into the SC813MT-300C chassis, connect the data and power cables and install add- on cards. All motherboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 38: Motherboard Installation

    UPER ERVER 5013C-MT User's Manual Unpacking The motherboard is shipped in antistatic packaging to avoid electrical static discharge. When unpacking the board, make sure the person handling it is static protected. Motherboard Installation This section explains the first step of physically mounting the P4SCT+ into the SC813MT-300C chassis.

  • Page 39: Connecting Cables

    Chapter 5: Advanced Motherboard Setup Connecting Cables Now that the motherboard is installed, the next step is to connect the cables to the board. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the flow of cooling air...

  • Page 40: I/O Ports

    UPER ERVER 5013C-MT User's Manual Figure 5-1. Control Panel Header Pins Ground Power LED IDE LED LAN1 LED LAN2 LED Overheat LED Reset Button Reset Ground Power Button Ground I/O Ports The I/O ports are color coded in conformance with the PC 99 specification. See Figure 5-2 below for the colors and locations of the various I/O ports.

  • Page 41: Installing Processors

    Chapter 5: Advanced Motherboard Setup Installing Processors Avoid placing direct pressure to the top of the processor package. Always remove the power cord first before adding, removing or changing any hardware components. Processor Support The P4SCT+ has a single 478-pin microPGA socket, which supports Intel Pentium 4 processors on .013 micron process.
  • Page 42 UPER ERVER 5013C-MT User's Manual Figure 5-3. 478-pin Socket: Empty and with Processor Installed Figure 5-4. Heatsink (SNK-P0002) Installation...

  • Page 43: Installing Memory

    Chapter 5: Advanced Motherboard Setup Installing Memory CAUTION! Exercise extreme care when installing or remov- ing DIMM modules to prevent any possible damage. Memory support The P4SCT+ supports 4 GB of dual-channel, ECC or non-ECC unbuffered DDR-400/333/266 SDRAM. You must populate both DIMM0A and DIMM1A and/or DIMM0B and DIMM1B with the same size and type of memory modules.

  • Page 44: Adding Pci Cards

    UPER ERVER 5013C-MT User's Manual Figure 5-6. Top View of DIMM Slot Adding PCI Cards 64-bit PCI-X slot The 5013C-MT comes with a riser card that supports one standard size 64-bit, 66 MHz PCI-X (3.3V) card. This riser card allows a single PCI-X card to sit at a 90 degree angle so it can fit inside the chassis.

  • Page 45: Motherboard Details

    Chapter 5: Advanced Motherboard Setup Motherboard Details Figure 5-7. P4SCT+ Layout (not drawn to scale) JPWAKE J17 (PWR LED) Keyboard/ COM2 ATX Power Connector JPUSB Mouse +12V Power Connector JP20 GLAN Controller USB1/2 JP8 (WD) 82547 COM1 478 mPGA M C H OH/CH FAN5 DIMM0A GLAN1...

  • Page 46: P4Sct+ Quick Reference

    UPER ERVER 5013C-MT User's Manual P4SCT+ Quick Reference Jumpers Description Default Setting Speaker Pins 3-4 (Int. Buzzer) VGA Enable/Disable Pins 1-2 (Enabled) Keylock Header Open (Disabled) JBT1 CMOS Clear See Section 5-10 JP1/JP2 CPU Clock Speed Pins 1-2 (Auto) Watch Dog Reset Pins 1-2 (WD Reset) JP20 Power Force On...

  • Page 47: Connector Definitions

    Chapter 5: Advanced Motherboard Setup Connector Definitions ATX Power Supply 24-pin Connector Pin Definitions Pin Number Definition Pin Number Definition Power Supply Connectors +3.3V +3.3V +3.3V -12V The primary power supply connector PS_ON# on the P4SCT+ meets the SSI (Superset ATX) 24-pin specifica- tion.

  • Page 48: Reset Connector

    UPER ERVER 5013C-MT User's Manual Reset Connector Reset Pin Definitions (JF1) The reset connector is located on pins 3 and 4 of JF1 and attaches Number Definition Reset to the reset switch on the com- Ground puter chassis. See the table on the right for pin definitions.

  • Page 49: Ide Led

    Chapter 5: Advanced Motherboard Setup IDE LED IDE Activity LED Pin Definitions (JF1) The IDE LED is located on pins 13 Number Definition and 14 of JF1. This LED is used to display all IDE and SATA activity HD Activity on all drives.

  • Page 50: Ir Connector

    UPER ERVER 5013C-MT User's Manual IR Connector Infrared Pin Definitions (J16) The infrared connector is located on Number Definition J16. See the table on the right for pin definitions. See the Technical CIRRX IRRX Support section of our web page for Ground IRTX information on the infrared devices...

  • Page 51: Chassis Intrusion

    Chapter 5: Advanced Motherboard Setup Chassis Intrusion Chassis Intrusion Pin Definitions (JL1) The Chassis Intrusion header is des- Number Definition ignated JL1. See the board layout in Intrusion Input Chapter 1 for the location of JL1 and Ground the table on the right for pin defini- tions.

  • Page 52: Universal Serial Bus

    UPER ERVER 5013C-MT User's Manual Universal Serial Bus (USB) USB1/2 Pin Definitions Pin# Definition There are two Universal Serial Bus ports located on the I/O panel and an Ground additional two USB headers located on the motherboard. These head- USB3/4 Pin Definitions ers, labeled USB3/4, can be used to Number Definition...

  • Page 53: 5-10 Jumper Settings

    Chapter 5: Advanced Motherboard Setup 5-10 Jumper Settings Explanation of Jumpers To modify the operation of the motherboard, jumpers can be used Connector Pins to choose between optional set- tings. Jumpers create shorts be- tween two pins to change the Jumper function of the connector.

  • Page 54: Usb Wake-Up

    UPER ERVER 5013C-MT User's Manual USB Wake-Up USB Wake-Up Jumper Settings (JPUSB1) Use JPUSB1 to enable or disable Jumper USB Wake-Up, which allows you Position Definition Disabled to wakeup the system by de- Enabled pressing a key on the keyboard or by clicking the mouse when either is connected to the USB1 or USB2 port.

  • Page 55: Keyboard Wake-Up

    Chapter 5: Advanced Motherboard Setup Keyboard Wake-Up Keyboard Wake-Up Jumper Settings The JPWAKE jumper is used to al- (JPWAKE) low the system to be woken up by Jumper Position Definition depressing a key on the keyboard Disabled Enabled from an S1 or S3 state in Win- dows OS.

  • Page 56: 5-11 Onboard Indicators

    UPER ERVER 5013C-MT User's Manual SATA Enable SATA Enable/Disable Jumper Settings (JPS1) JSP1 is used to enable or disable Jumper Marvell's Serial ATA Controller. See Position Definition Disabled the table on right for pin definitions. Enabled 5-11 Onboard Indicators Standby Power LED The Standby Power LED indicator is designated LE2.

  • Page 57: 5-12 Parallel Port, Floppy And Hard Drive Connections

    Chapter 5: Advanced Motherboard Setup 5-12 Parallel Port, Floppy and Hard Drive Connections Use the following information to connect the floppy and hard disk drive cables. • The floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1. •...

  • Page 58: Floppy Connector

    UPER ERVER 5013C-MT User's Manual Floppy Connector The floppy connector is located on J7. See the table on the right for pin definitions. Floppy Connector Pin Definitions (J7) Pin Number Function Pin Number Function FDHDIN Reserved FDEDIN Index- Motor Enable Drive Select B- Drive Select A- Motor Enable...

  • Page 59: Chapter 6: Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC813MT-300C chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 60: Control Panel

    UPER ERVER 5013C-MT User's Manual Figure 6-1. Chassis Front View Figure 6-2. Chassis Rear View Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the motherboard to provide you with system control buttons and status indicators.

  • Page 61: System Fans

    Chapter 6: Advanced Chassis Setup System Fans Three 4-cm high-performance fans provide the cooling for the SuperServer 5013C- MT. The chassis includes air seals under the fans and at the chassis cross section, which separates the drive bay area from the motherboard area of the chassis to promote better airflow.

  • Page 62: Accessing The Drive Bays

    UPER ERVER 5013C-MT User's Manual Accessing the Drive Bays Serial ATA Drives: Because of their hotswap capability, you do not need to access the inside of the chassis or power down the system to install or replace Serial ATA drives. Proceed to the next step for instructions. CD-ROM Drive: For installing/removing a CD-ROM drive, you will need to gain access to the inside of the 5013C-MT by removing the top cover of the chassis.
  • Page 63 Chapter 6: Advanced Chassis Setup Use caution when working around the Serial ATA backplane. Do not touch the backplane with any metal objects and make sure no ribbon cables touch the backplane or obstruct the holes, which aid in proper airflow.

  • Page 64: Cd-Rom Drive Installation

    UPER ERVER 5013C-MT User's Manual CD-ROM Drive Installation The top cover of the chassis must be opened to gain full access to the CD-ROM drive bay. The 5013C-MT accomodates only slim CD-ROM drives. Side mount- ing brackets are needed to mount a slim CD-ROM drive in the 5013C-MT server. You must power down the system before installing or removing a CD-ROM drive.

  • Page 65: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The SuperServer 5013C-MT has a single 300 watt power supply. This power supply has the capability of operating at 100 or 240 input volts. Depress the main power button on the front of the chassis and then unplug the AC power cord to completely remove power from the system before removing the power supply.
  • Page 66 UPER ERVER 5013C-MT User's Manual Notes...

  • Page 67: Chapter 7: Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AwardBIOS for the P4SCT+. The Award ROM BIOS is stored in a Flash chip and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 68: Running Setup

    UPER ERVER 5013C-MT User's Manual Running Setup *Optimal default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choosing the appropriate text from the Main BIOS Setup screen. All displayed text is de- scribed in this section, although the screen display is often all you need to understand how to set the options (see on next page).
  • Page 69 Chapter 7: BIOS Date/Time Set the system date and time. Key in the correct information in the "mm", "dd" and "yy" fields. Press the "Enter" key to save the data. Legacy Diskette A This setting allows the user to set the type of floppy disk drive installed as diskette A.

  • Page 70: 7-4 Advanced Bios Setup

    UPER ERVER 5013C-MT User's Manual 7-4 Advanced BIOS Setup Choose Advanced BIOS Setup from the Award BIOS main menu with the Left/ Right arrow keys. You should see the following display. Select one of the items in the left frame of the screen to go to the sub screen for that item. Advanced BIOS Setup options are displayed by highlighting the option using the arrow keys.

  • Page 71: 7-4.2 Advanced Chipset Control

    Chapter 7: BIOS ACPI Function Select "Enabled" to activate the function of BIOS Support for Advanced Configuration and Power Interface features. The settings are "Enabled" or "Disabled". ACPI Suspend Type If enabled, the option allows the user to determine the ACPI Suspend type. The options are "S1(POS)", "S3(STR)", and S1&S3.
  • Page 72 UPER ERVER 5013C-MT User's Manual ECC Configuration This setting allows you to enable or disable ECC (Error Correction and Checking). The options are "ECC" and "Non-ECC". CSA LAN (Giga-LAN) Select "Enabled" to activate the function of CSA LAN. The options are "Enabled"...

  • Page 73: 7-4.3 I/O Device Configuration

    Chapter 7: BIOS USB Legacy Support This setting allows you to enable or disable the functions of USB, Keyboard/ Mouse under POST and DOS. The options are Disabled, and Enabled. CPU THRM-Throttling THRM throttling is used to lower power consumption and reduce the heat generated by the CPU.
  • Page 74 UPER ERVER 5013C-MT User's Manual UART Mode Select This setting allows the user to select the UART mode for the BIOS. The options are "IrDA", "ASKIR" and "Normal". RxD, TxD Active This allows the user to change the settings for the "RxD, TxD Active" function.

  • Page 75: 7-4.4 Pnp Configuration

    Chapter 7: BIOS Power On Function This setting allows the user to decide which method to use to power on the system. The options are "Password", "Hot Key", "Mouse Left", "Mouse Right", "Any Key", and "Button Only". KB Power On Password This setting allows the user to enter the Password when the system is powered on via keyboard.

  • Page 76: 7-4.5 Console Redirection

    UPER ERVER 5013C-MT User's Manual Resources Controlled By This setting allows BIOS to automatically configure all boot and Plug and Play compatible devices. If you choose Auto, you cannot select the IRQ, DMA and memory base address fields because BIOS automatically assigns them.

  • Page 77: 7-4.6 Hardware Monitor

    Chapter 7: BIOS Agent after Boot Select "Disabled" to allows the Agent of Console Redirection to continue running after OS bootup. The Options are "Enabled", and "Disabled". 7-4.6 Hardware Monitor Choose Hardware Monitor from the Award BIOS main menu with the Left/Right arrow keys.

  • Page 78: 7-4.7 Processor And Clock Options

    UPER ERVER 5013C-MT User's Manual 7-4.7 Processor & Clock Options Limit CPUID MaxVal This feature allows the user to set the limit for the CPUID Maximum Value. The value can be set from 1 to 3. The options are "Enabled" and "Disabled".

  • Page 79: Security

    Chapter 7: BIOS Security Choose Security from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: Set Supervisor Password When the item "Set Supervisor Password" is highlighted on the above screen, press the <Enter> key. When prompted, type the Supervisor Password in the dialogue box to set or to change the Supervisor Password.

  • Page 80: Boot

    UPER ERVER 5013C-MT User's Manual Boot Choose Boot from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: ! ! ! ! ! Removable Device Priority This setting allows you to set the priority of removable devices. The options are "Floppy Disks", "LS120", "Zip 100", "USB-FDD0", "USB-FDD1", "USB- ZIP0", and "USB-ZIP1".

  • Page 81: Exit

    Chapter 7: BIOS Second Boot Device This item allows the user to set the second boot-up device. The options are "Removable", "Hard Disks", "CDROM", "Legacy LAN", and "Disabled". Third Boot Device This item allows the user to set the Third boot-up device. The options are "Removable", "Hard Disks", "CDROM", "Legacy LAN", and "Disabled".
  • Page 82 UPER ERVER 5013C-MT User's Manual Load Fail-Safe Defaults Highlight this item and hit <Enter> to load the default settings for all items in the BIOS Setup. These are the safest settings to use. Load Optimized Defaults Highlight this item and hit <Enter> to load the optimized settings for all items in the BIOS Setup.

  • Page 83: Appendix A: Bios Post Messages

    Appendix A: BIOS POST Messages Appendix A BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.
  • Page 84 UPER ERVER 5013C-MT User's Manual Notes...

  • Page 85: Appendix Bbios Post Codes

    Appendix B: BIOS POST Codes Appendix B BIOS POST Codes This section lists the POST (Power On Self Testing) Codes for the Award BIOS. POST (hex) Description Test CMOS R/W functionality. Early chipset initialization: -Disable shadow RAM -Disable L2 cache (socket 7 or below) -Program basic chipset registers Detect memory -Auto-detection of DRAM size, type and ECC.
  • Page 86 UPER ERVER 5013C-MT User's Manual POST (hex) Description Reserved Auto detect flash type to load appropriate flash R/W codes into the run time area in F000 for ESCD & DMI support. Reserved Use walking 1’s algorithm to check out interface in CMOS circuitry.
  • Page 87 Appendix B: BIOS POST Codes POST (hex) Description 1. Initialize multi-language 2. Put information on screen display, including Award title, CPU type, CPU speed …. Reserved Reserved Reserved Reserved Reserved Reset keyboard except Winbond 977 series Super I/O chips. Reserved Reserved Reserved Reserved...
  • Page 88 UPER ERVER 5013C-MT User's Manual POST (hex) Description Reserved Initialize the combined Trend Anti-Virus code. Reserved (Optional Feature) Show message for entering AWDFLASH.EXE from FDD (optional) Reserved 1. Initialize Init_Onboard_Super_IO switch. 2. Initialize Init_Onboard_AUDIO switch. Reserved Reserved Okay to enter Setup utility; i.e. not until this POST stage can users enter the CMOS setup utility.
  • Page 89 Appendix B: BIOS POST Codes POST (hex) Description Reserved Reserved 1. Call chipset power management hook. 2. Recover the text font used by EPA logo (not for full screen logo) 3. If password is set, ask for password. Save all data in stack back to CMOS Initialize ISA PnP boot devices 1.
  • Page 90 UPER ERVER 5013C-MT User's Manual Notes...

  • Page 91: Appendix C: Software Installation

    Appendix C: Software Installation Appendix C Software Installation After all the hardware has been installed, you must first configure the Adaptec Embedded Serial ATA RAID driver before you install the operating system. The necessary drivers are all included on the Supermicro bootable CDs that came packaged with your motherboard.
  • Page 92 UPER ERVER 5013C-MT User's Manual Non-Combined Mode: SATA only, with a maximum of two devices supported. Combined Mode: SATA and PATA devices, with support for two devices of each for a total of four devices maximum. For IDE(PATA)/SATA configurations, please refer to the table below.
  • Page 93 Appendix C: Software Installation C-2 Intel Hance Rapids Driver Installation a. Insert Supermicro's bootable CD that came with the server into the CD drive and restart the system. Upon reboot, a screen entitled "Super Micro Driver Diskette Maker" will appear. b.
  • Page 94 UPER ERVER 5013C-MT User's Manual C-3 Other Software Programs and Drivers After you've installed Windows Operating System, the screen shown below will appear. You are now ready to install the additional software programs and drivers included on the CD. To install these software programs and drivers, click the icons to the right of these items.
  • Page 95 Supero Doctor III displays crucial system information such as CPU temperature, system voltages and fan status. See the Figure below for a display of the Supero Doctor III interface. Figure C-2. Supero Doctor III Interface Display (Health Information)
  • Page 96 UPER ERVER 5013C-MT User's Manual Notes...

  • Page 97: Appendix D System Specifications

    Appendix D: System Specifications Appendix D System Specifications Processors Single Intel® Pentium® 4 processor of up to 3.40 GHz with HT technology (processors must be 0.13 micron technology) (or Intel® Celeron® processors of up to 2.80 GHz) at a 800/533/400 MHz front side bus speed Chipset Intel E7210 Memory Capacity...
  • Page 98 UPER ERVER 5013C-MT User's Manual Chassis Model: SC813MT-300C (1U Rackmount) Dimensions: (WxHxD) 17.2 x 1.7 x 19.85 in. (437 x 43 x 504 mm) Weight Gross Weight: 38 lbs. (17.3 kg.) System Cooling Three (3) 4-cm high performance fans (FAN-0061) System Input Requirements AC Input Voltage: 100-240 VAC Rated Input Current: 5A (115V) to 2A (230V)
