Supero SUPERSERVER 5017C-LF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
UPER
®
S
S
5017C-LF
UPER
ERVER
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading

Related Manuals for Supero SUPERSERVER 5017C-LF

Summary of Contents for Supero SUPERSERVER 5017C-LF

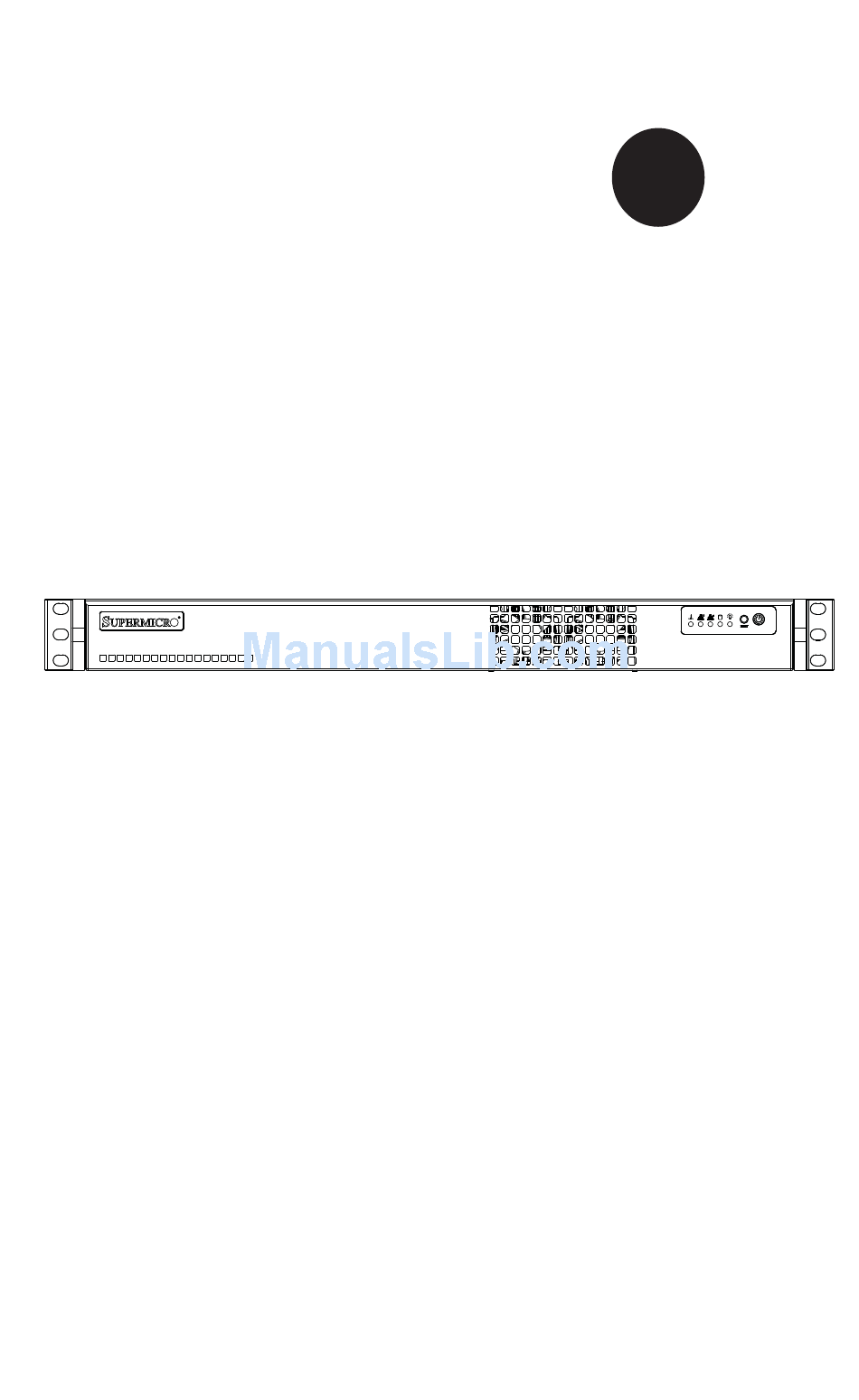

  • Page 1 UPER ® 5017C-LF UPER ERVER USER’S MANUAL...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 5017C-LF. In- stallation and maintenance should be performed by experienced technicians only. The SuperServer 5017C-LF is a high-end server based on the SC510L-200B 1U rackmount chassis and the Super X9SCL-F single processor serverboard.
  • Page 4 You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 5017C-LF. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9SCL-F serverboard, including the locations and functions of connections, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 5017C-LF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Motherboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ......................1-2 I/O Ports ......................1-2 Graphics Controller ..................1-2 Server Chassis Features ................1-3 Drive Bays .......................
  • Page 7 Onboard Indicators ..................5-21 5-11 SATA Drive Connections ................5-22 5-12 Installing Drivers .................... 5-23 Supero Doctor III ................... 5-24 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices .................. 6-1 Precautions ..................... 6-1 Control Panel ....................6-2 System Fans ....................6-3...
  • Page 8 UPER ERVER 5017C-LF User's Manual System Fan Failure ..................6-3 Drive Bay Installation/Removal ............... 6-4 Air Shroud ....................... 6-6 Power Supply ....................6-7 Chapter 7 BIOS Introduction ...................... 7-1 Main Setup ...................... 7-2 Advanced Setup Confi gurations..............7-4 Event Logs ....................7-15 IPMI Confi...

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 5017C-LF is a high-end server comprised of two main subsystems: the SC510L-200B 1U server chassis and the X9SCL-F single processor mother- board. Please refer to our web site for information on operating systems that have been certifi...

  • Page 10: Motherboard Features

    ERVER 5017C-LF User's Manual Motherboard Features At the heart of the SuperServer 5017C-LF lies the X9SCL-F, a single processor motherboard based on Intel's C202 chipset. Below are the main features of the X9SCL-F (see Figure 1-1 for a block diagram of the chipset).

  • Page 11: Server Chassis Features

    Chapter 1: Introduction Server Chassis Features The SuperServer 5017C-LF is built on the SC510L-200B, a small forn factor 1U rackmount server chassis. The following is a general outline of the main features of the SC510L-200B chassis. System Power When confi gured as the SuperServer 5017C-LF, the SC510L-200B chassis features a single 200W power supply.

  • Page 12: System Block Diagram

    UPER ERVER 5017C-LF User's Manual Figure 1-1. Intel C202 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. DIMM1 DDR3 (CHA) DIMM2(Far) 1333/1066MHz PCIe2.0_x8 PCIe x8 Slot (Slot 7) 4 UDIMM 5.0Gb LGA 1155 Socket DIMM1 PCIe2.0_x8...

  • Page 13: Contacting Supermicro

    Chapter 1: Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...
  • Page 14 UPER ERVER 5017C-LF User's Manual Notes...

  • Page 15: Chapter 2 Server Installation

    Preparing for Setup The SuperServer 5017C-LF does not ship with a rack rail hardware package as the system can be rack mounted without the use of rails. An optional rack rail package is available if you wish to order from Supermicro. Follow the steps in the order given to complete the installation process in a minimal amount of time.

  • Page 16: Choosing A Setup Location

    UPER ERVER 5017C-LF User's Manual Choosing a Setup Location • Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for suffi cient airfl ow and ease in servicing.This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like).

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation • Allow the hot plug SATA drives and power supply modules to cool before touch- ing them. • Always keep the rack's front door and all panels and components on the servers closed when not servicing to maintain proper cooling. Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera-...

  • Page 18: Installing The System Into A Rack

    UPER ERVER 5017C-LF User's Manual Installing the System into a Rack This section provides information on installing the SC510 chassis into a rack unit There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using.
  • Page 19 Chapter 2: Server Installation Figure 2-1. Installing the Chassis into a Rack...

  • Page 20: Checking The Serverboard Setup

    UPER ERVER 5017C-LF User's Manual Checking the Serverboard Setup After you install the server in the rack, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. Removing the Chassis Cover Remove the fi...

  • Page 21: Checking The Drive Bay Setup

    Chapter 2: Server Installation Checking the Drive Bay Setup Checking the Drives For servicing the hard drive, you will need to remove the top chassis cover. The SATA disk drive is located at the front of the chassis' interior. If you need to install a SATA hard drive, please refer to the appropriate sec- tion in Chapter 6.
  • Page 22 UPER ERVER 5017C-LF User's Manual Figure 2-1. Removing the Chassis Cover...

  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the activity and health of specifi c com- ponents.

  • Page 24: Control Panel Leds

    UPER ERVER 5017C-LF User's Manual Control Panel LEDs The control panel located on the front of the SC512F-520B chassis has fi ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 25: Hdd

    Chapter 3: System Interface Channel activity for HDDs. This light indicates IDE drive activity when fl ashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 26 UPER ERVER 5017C-LF User's Manual Notes...

  • Page 27: Chapter 4 System Safety

    System Safety Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 5017C-LF from damage: • Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 28: General Safety Precautions

    UPER ERVER 5017C-LF User's Manual • This product may be connected to an IT power system. In all cases, make sure that the unit is also reliably connected to Earth (ground). • Serverboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 4-1).

  • Page 29: Esd Precautions

    Chapter 4: System Safety • Remove any jewelry or metal objects from your body, which are excellent metal conductors that can create short circuits and harm you if they come into contact with printed circuit boards or areas where power is present. •...

  • Page 30: Operating Precautions

    UPER ERVER 5017C-LF User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 5017C-LF is operating to assure proper cooling. Out of warranty damage to the system can occur if this practice is not strictly followed. Figure 4-1.

  • Page 31: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install processors and heatsinks to the X9SCL-F motherboard, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 32: Processor And Heatsink Installation

    UPER ERVER 5017C-LF User's Manual Processor and Heatsink Installation Notes: • Always connect the power cord last and always remove it before adding, re- moving or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink. •...
  • Page 33 Chapter 5: Advanced Motherboard Setup Use your thumb and your index fi nger to hold the CPU at the top center edge and the bottom center edge of the CPU. Align the CPU key (the semi-circle cutouts) against the socket keys. Once aligned, carefully lower the CPU straight down to the socket.

  • Page 34: Installing A Passive Cpu Heatsink

    UPER ERVER 5017C-LF User's Manual CPU properly installed Load lever locked into place. Warning: The CPU will only seat inside the socket in one direction. Make sure it is properly inserted before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU.
  • Page 35 Chapter 5: Advanced Motherboard Setup Figure 5-3. Installing the Heatsink Once the CPU is loose, remove the it from the CPU socket. Clean the surface of the CPU and the heatsink, removing the used thermal grease. Reapply the proper amount of thermal grease on the surface before re-installing the CPU and the heatsink.

  • Page 36: Connecting Cables

    UPER ERVER 5017C-LF User's Manual Connecting Cables Now that the processors are installed, the next step is to connect the cables to the motherboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfi...

  • Page 37: I/O Ports

    Chapter 5: Advanced Motherboard Setup All JF1 wires have been bundled into single keyed ribbon cable to simplify their con- nection. Connect one end of this cable to JF1 and the other end to the Control Panel printed circuit board, located just behind the system status LEDs in the chassis. See the Connector Defi...

  • Page 38: Installing Memory

    UPER ERVER 5017C-LF User's Manual Installing Memory Note: Check the Supermicro web site for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing DIMMs Insert the desired number of DIMMs into the memory slots, starting with slots DIMM1A.
  • Page 39 Chapter 5: Advanced Motherboard Setup Figure 5-3. Installing DIMM into Slot Notch Notch To Install: Insert module vertically and press down until it snaps into place. Pay attention to the alignment notch at Front View the bottom. To Remove: Note: Notch should align Use your thumbs to with the receptive key gently push the release...

  • Page 40: Adding Pci Cards

    UPER ERVER 5017C-LF User's Manual Adding PCI Cards The 5017C-LF includes a CSE-RR1U-E8 riser card. This riser fi ts into a PCI slot to support a full-height, half-length PCI Express expansion card. (The riser card provides a PCI-E x8 signal.) PCI Card Installation When installing a PCI add-on card, make sure you install it into a slot that supports the speed of the card.

  • Page 41: Motherboard Details

    Chapter 5: Advanced Motherboard Setup Motherboard Details Figure 5-4. SUPER X9SCL-F Layout KB/MOUSE JPI2C FP CTRL JPW2 JPW1 JPUSB1 DIMM2B FAN1 DIMM1B DDR3 1066/1333 UDIMM required DIMM2A JSPK JTPM DIMM1A SPKR1 S I/O FAN2 Fan4 Socket H2 82574L LGA 1155 X9SCM/X9SCL(-F) 82579 Rev.1.0...
  • Page 42 UPER ERVER 5017C-LF User's Manual Headers/Connectors Number Connector Description Onboard Battery 4,16 COM1/COM2 COM1/2 Serial Port/Header BIOS SPI BIOS 42,38,37,7,30 Fans 1~4, Fan A System/CPU Fan Headers SPI Programming (internal use) Front Panel Control Header Chassis Intrusion Header JLED1 Power LED Indicator Header JPW1 24-pin ATX Main Power Connector JPW2...

  • Page 43: Connector Defi Nitions

    Chapter 5: Advanced Motherboard Setup Connector Defi nitions ATX Power 24-pin Connector Pin Defi nitions (JPW1) Pin# Defi nition Pin # Defi nition ATX Power Connector +3.3V +3.3V A 24-pin main power connector is located -12V +3.3V at JPW1. This power connector meet the SSI EPS 12V specifi...
  • Page 44 UPER ERVER 5017C-LF User's Manual NIC1/NIC2 (LAN1/LAN2) The NIC (Network Interface Controller) LED connection for LAN port 1 is located LAN1/LAN2 LED on pins 11 and 12 of JF1, and the LED Pin Defi nitions (JF1) connection for LAN Port 2 is on Pins 9 Pin# Defi...
  • Page 45 Chapter 5: Advanced Motherboard Setup Back Panel USB0/1 Pin Defi nitions Universal Serial Bus (USB) Pin# Defi nition Pin# Defi nition Two Universal Serial Bus ports (USB 0/1) are located on the I/O backpanel and an USB_PN1 USB_PN0 additional six USB ports in three head- USB_PP1 USB_PP0 ers, USB2/3, 4/5, 12/13 provide front/...
  • Page 46 UPER ERVER 5017C-LF User's Manual Fan Headers The X9SCL-F has fi ve fan headers (Fan1 ~ Fan4 and FanA). These are all 4-pin fan headers, however pins 1-3 are backward compatible with traditional 3-pin fans. Fan Header Pin Defi nitions A fan speed control setting in the BIOS Pin# Defi...
  • Page 47 Chapter 5: Advanced Motherboard Setup Trusted Platform Module Header Trusted Platform Module Header Pin Defi nitions This header is used to connect a Trusted Pin # Defi nition Pin # Defi nition Platform Module (TPM), available sepa- LCLK rately from a third-party vendor. A TPM is LFRAME No Pin a security device that allows encryption...
  • Page 48 UPER ERVER 5017C-LF User's Manual T-SGPIO 0/1 Headers Serial_Link-SGPIO Pin Defi nitions Two T-SGPIO (Serial-Link General Pur- Pin# Defi nition Defi nition pose Input/Output) headers are located near the SATA connectors on the moth- Ground DATA Out erboard. These headers are used to com- Load Ground municate with the enclosure management...

  • Page 49: Jumper Settings

    Chapter 5: Advanced Motherboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose Connector between optional settings. Jumpers cre- Pins ate shorts between two pins to change the function of the connector. Pin 1 is Jumper identifi...
  • Page 50 UPER ERVER 5017C-LF User's Manual PCI Slot SMB Enable PCI Slot SMB Enable/Disable Jumper Settings Use Jumpers JI C1/JI C2 to enable PCI Jumper Setting Defi nition SMB (System Management Bus) support Closed Enabled to improve system management for the Open (Default) Disabled PCI slots.

  • Page 51: 5-10 Onboard Indicators

    Chapter 5: Advanced Motherboard Setup 5-10 Onboard Indicators LAN1/LAN2 LEDs LAN LED The Ethernet ports (located beside the Connection Speed Indicator VGA port) have two LEDs. On each Giga- LED State Defi nition bit LAN port, the yellow LED indicates No connection or 10 Mb/s activity when blinking while the other LED Green...

  • Page 52: 5-11 Sata Drive Connections

    UPER ERVER 5017C-LF User's Manual 5-11 SATA Drive Connections SATA Port Pin Defi nitions (SATA0 ~ SATA5) Pin # Defi nition SATA Ports Ground Six Serial ATA (SATA) ports (I-SATA 0~5) are located on the motherboard. See the table on the right for pin defi nitions for the Ground onboard SATA ports.

  • Page 53: 5-12 Installing Drivers

    Chapter 5: Advanced Motherboard Setup 5-12 Installing Drivers After all the hardware and operating system have been installed, you need to install certain drivers. The necessary drivers are all included on the Supermicro CD that came packaged with your motherboard. After inserting this CD into your CD-ROM drive, the display shown in Figure 5-4 should appear.

  • Page 54: Supero Doctor Iii

    ERVER 5017C-LF User's Manual Supero Doctor III The Supero Doctor III program is a Web base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The Supero Doctor III program included on the CDROM that came with your serverboard allows you to monitor the environment and operations of your system.
  • Page 55 Chapter 5: Advanced Motherboard Setup Supero Doctor III Interface Display Screen (Remote Control) Note: SD III Software Revision 1.0 can be downloaded from our Web Site at: ftp:// ftp.supermicro.com/utility/Supero_Doctor_III/. You can also download SDIII User's Guide at: http://www.supermicro.com/manuals/other/SDIII_User_Guide.pdf. For Linux, we will still recommend Supero Doctor II.
  • Page 56 UPER ERVER 5017C-LF User's Manual Notes 5-26...

  • Page 57: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC510L-200B chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 58: Control Panel

    UPER ERVER 5017C-LF User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid static damage. When unpacking the board, make sure the person handling it is static protected. Figure 6-1. Chassis Views Control Panel Dedicated IPMI LAN USB Ports VGA Port PCI Slot Power Supply...

  • Page 59: System Fans

    Chapter 6: Advanced Chassis Setup System Fans The 5017C-LF employs two 4-cm fans to provide cooling. The fans can adjust their speed according to the heat level sensed in the system, which results in more ef- fi cient and quieter fan operation. Fan speed is controlled by a setting in BIOS (see Chapter 7).

  • Page 60: Drive Bay Installation/Removal

    UPER ERVER 5017C-LF User's Manual Figure 6-2. System Cooling Fans Drive Bay Installation/Removal Installing a Hard Drive The hard drive is internal and not hot-swappable, meaning system power must be turned off before installing or removing. First power down the system and then remove the top cover of the chassis as previously described.
  • Page 61 Chapter 6: Advanced Chassis Setup Figure 6-3. Installing Internal Hard Drives The 3.5" hard drive screws directly into the chassis The 2.5" hard drives (1) must be installed in their brackets (2) before they are screwed into the chassis...

  • Page 62: Air Shroud

    UPER ERVER 5017C-LF User's Manual Air Shroud Installing the Air Shroud Air shrouds concentrate airfl ow to maximize fan effi ciency. The SC510L-200B chas- sis air shroud does not require screws to set up. Place the air shroud in the chassis. The air shroud fi ts behind the fan closest to the power supply.

  • Page 63: Power Supply

    Chapter 6: Advanced Chassis Setup Power Supply The 5017C-LF has a single 200 watt power supply. This power supply has the capability of operating at a 100 or 240 input voltage. If the power supply unit fails, the system will shut down and you will need to replace the power supply unit. Replacing the Power Supply Unplug all power leading to the chassis.
  • Page 64 UPER ERVER 5017C-LF User's Manual Front Mounting Screws Power Supply Mounting Holes Rear Mounting Screws Figure 6-5: Installing the Power Supply...

  • Page 65: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup Utility for the X9SCL-F. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter de- scribes the basic navigation of the AMI BIOS Setup Utility setup screens. Note: For instructions on BIOS recovery, please refer to the instruction guide posted at http://www.supermicro.com/support/manuals/.

  • Page 66: Main Setup

    UPER ERVER 5017C-LF User's Manual How to Start the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS Setup Utility. From the main menu, you can access the other setup screens.
  • Page 67 Chapter 7: BIOS System Overview: The following BIOS information will be displayed: System Time/System Date Use this option to change the system time and date. Highlight System Time or Sys- tem Date using the arrow keys. Enter new values through the keyboard. Press the <Tab>...

  • Page 68: Advanced Setup Confi Gurations

    UPER ERVER 5017C-LF User's Manual Advanced Setup Confi gurations Use the arrow keys to select Boot Setup and hit <Enter> to access the submenu items: BIOS SETUP UTILTY Main Advanced Event Logs IPMI Boot Security Exit System Boot Feature Boot Feature Setting.
  • Page 69 Chapter 7: BIOS 19 at boot and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap- tors will not capture Interrupt 19, and the drives attached to these adaptors will not function as bootable devices.
  • Page 70 UPER ERVER 5017C-LF User's Manual Adjacent Cache Line Prefetch (Available when supported by the CPU) The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The CPU fetches both cache lines for 128 bytes as comprised if Enabled. Intel®...
  • Page 71 Chapter 7: BIOS P-STATE Coordination This feature selects the type of coordination for the P-State of the processor. P-State is a processor operational state that reduces the processor's voltage and frequency. This makes the processor more energy effi icient, resulting in further gains.
  • Page 72 UPER ERVER 5017C-LF User's Manual North Bridge Confi guration This item displays the current North Bridge Revision. VT-d Select Enabled to enable Intel's Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature offers fully-protected I/O resource- sharing across the Intel platforms, providing the user with greater reliabil- ity, security and availability in networking and data-sharing.
  • Page 73 Chapter 7: BIOS Wake on LAN from S5 Select Enabled to enable the capabiltiy to 'wake-up' the system from the S5 power state (Soft Off State) through the Ethernet controller. The set- tings are Enabled and Disabled. Legacy USB Support This feature enables support for legacy USB devices.
  • Page 74 UPER ERVER 5017C-LF User's Manual Aggressive Link Power Management This feature Enables or Disables Agressive Link Power Management support for Cougar Point B0 stepping and later. The options are Enabled and Disabled. SATA Port0~Port5 This item displays the information detected on the installed SATA drives on the particular SATA port.
  • Page 75 Chapter 7: BIOS PCI Latency Timer This feature sets the latency Timer of each PCI device installed on a PCI bus. Select 64 to set the PCI latency to 64 PCI clock cycles. The options are 32, 64, 96, 128, 160, 192, 224 and 248.
  • Page 76 UPER ERVER 5017C-LF User's Manual Serial Port 2 Mode Use this feature to confi gure Serial Port 2 mode. The options are Normal, IrDA and ASK IR. IrDA (Infrared Data) is an industry standard for remote control devices. ASK IR (Amplitude Shifted Keying Infrared) is a protocol compatible with Sharp® branded PDAs and other infrared devices.
  • Page 77 Chapter 7: BIOS Parity: None, Even, Odd, Mark, or Space Stop Bits: 1 or 2 Hardware Health Confi guration Fan Speed Control Mode This feature allows the user to decide how the system controls the speeds of the onboard fans. The CPU temperature and the fan speed are correlative. When the CPU on-die temperature increases, the fan speed will also increase for effective system cooling.
  • Page 78 UPER ERVER 5017C-LF User's Manual High – The processor is running hot. This is a ‘caution’ level since the CPU’s ‘Temperature Tolerance’ has been reached (or has been exceeded) and may activate an overheat alarm: The information provided above is for your reference only. For more information on thermal management, please refer to Intel’s Web site at www.Intel.com.

  • Page 79: Event Logs

    Chapter 7: BIOS Event Logs BIOS SETUP UTILTY Main Advanced Event Logs IPMI Boot Security Exit Change Smbios Event Log Settings Press <Enter> to change the Smbios Event Log View Smbios Event Log configuration. View System Event Log Select Screen Select Item Enter: Select...

  • Page 80: Ipmi Confi Guration (X9Scl-F/X9Scm-F Only)

    UPER ERVER 5017C-LF User's Manual IPMI Confi guration (X9SCL-F/X9SCM-F Only) Intelligent Platform Management Interface (IPMI) is a set of common interfaces that IT administrators can use to monitor system health and to manage the system as a whole. For more information on the IPMI specifi cations, please visit Intel's website at www.intel.com.
  • Page 81 Chapter 7: BIOS SEL Components - Change this item to enable or disable all features of System Event Logging. The options are Enabled and Disabled. When Enabled, the following can be confi gured: Erase SEL - This option erases all logged SEL events. The options are No, Yes, On Next reset and Yes, On Every reset.

  • Page 82: Boot Settings

    UPER ERVER 5017C-LF User's Manual Boot Settings BIOS SETUP UTILTY Main Advanced Event Logs IPMI Boot Security Exit Setup Prompt Timeout Number of seconds to wait for setup Boot Options Priority activation key. 65535 (0xFFFF) means indefinite waiting. Select Screen Select Item Enter: Select...

  • Page 83: Security Settings

    Chapter 7: BIOS Security Settings BIOS SETUP UTILTY Main Advanced Event Logs IPMI Boot Security Exit Password Description Set Setup Administrator Pasword. If ONLY the administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup.

  • Page 84: Exit Options

    UPER ERVER 5017C-LF User's Manual Exit Options BIOS SETUP UTILTY Main Advanced Event Logs IPMI Boot Security Exit Save Changes and Exit Exit system setup after Discard Changes and Exit saving the changes. Discard Changes Restore Defaults Save as User Defaults Restore User Defaults Boot Override Built-in EFI Shell...
  • Page 85 Chapter 7: BIOS Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>. This enables the user to save any changes to the BIOS setup for future use Restore User Defaults To set this feature, select Restore User Defaults from the Exit menu and press <En- ter>.
  • Page 86 UPER ERVER 5017C-LF User's Manual Notes 7-22...

  • Page 87: Appendix A Bios Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 88 UPER ERVER 5017C-LF User's Manual Notes...

  • Page 89: Appendix B System Specifi Cations

    Appendix B: System Specifi cations Appendix B System Specifi cations Processors ® ® Single Intel Xeon E3-1200 Series processor or a Core i3-2100 Series processor in an LGA1155 socket Note1: The 5017C-LF only supports processors up to 45W TDP. Note2: Please refer to our web site for a complete listing of supported processors. Chipset Intel C202 BIOS...
  • Page 90 UPER ERVER 5017C-LF User's Manual Weight Gross Weight: 11 lbs. (5.5 kg.) System Cooling Two 4-cm fans System Input Requirements AC Input Voltage: 100-240 VAC (auto-range) Rated Input Current: 3A max. Rated Input Frequency: 50 to 60 Hz Power Supply Rated Output Power: 200W (Part# PWS-202-1H) Rated Output Voltages: +3.3V (8A), +5V (8A), +12V (16A), -12V (0.5A), +5Vsb (2A)
  • Page 91 Appendix B: System Specifi cations Notes...
  • Page 92 UPER ERVER 5017C-LF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
