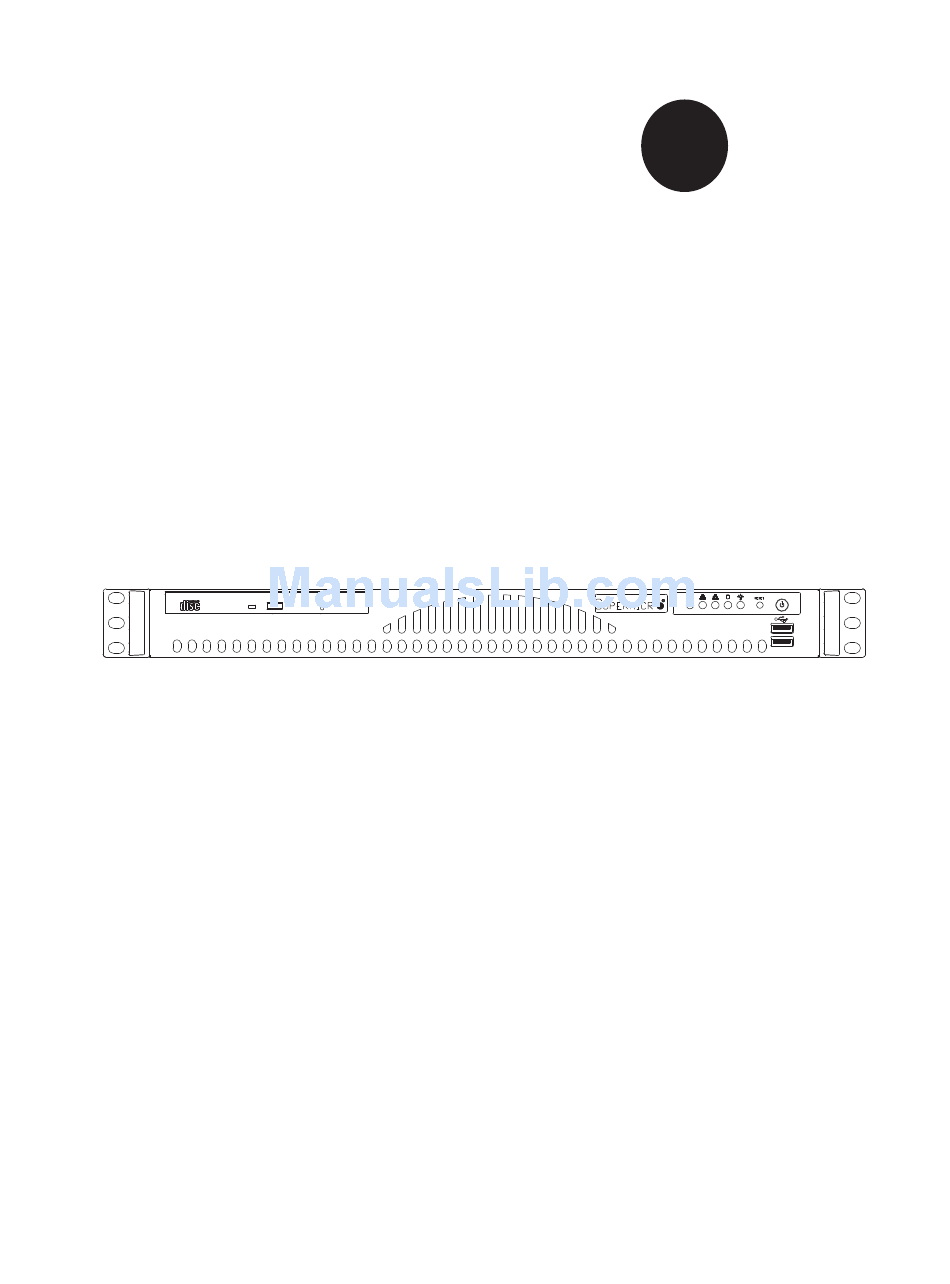

  • Page 1 UPER ® 5016I-MR uper erver 5016I-MRF uper erver USER’S MANUAL Revision 1.0b...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 5016I-MR/5016I- MRF. Installation and maintenance shall be performed by experienced technicians only. The SuperServer 5016I-MR/5016I-MRF is a single processor system based on the SC512-200mini-tower chassis and the Super X8SIL/X8SIL-F motherboard.
  • Page 4 UPER ERVER 5016I-MR/5016I-MRF User's Manual Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the X8SIL/X8SIL-F motherboard, in- cluding the locations and functions of connectors, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfi...
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Motherboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 Serial ATA ....................... 1-2 PCI Expansion Slots ..................1-2 I/O Ports ......................1-2 Other Features ....................1-2 Server Chassis Features ................
  • Page 7 Table of Contents Installing the Server into a Telco Rack ............2-7 Checking the Motherboard Setup ..............2-8 Checking the Drive Bay Setup ..............2-10 Chapter 3 System Interface Overview ......................3-1 Control Panel Buttons ..................3-1 Reset ....................... 3-1 Power ......................
  • Page 8 UPER ERVER 5016I-MR/5016I-MRF User's Manual I/O Ports ......................5-4 Processor and Heatsink Installation..............5-4 Installing the LGA1156 Processor ..............5-5 Installing a Passive CPU Heatsink ..............5-7 Installing Memory .................... 5-9 DIMM Installation .................... 5-9 Memory Support ....................5-9 Memory Population Guidelines ..............5-10 Installing PCI Add-On Cards .................
  • Page 9 Table of Contents BMC Jumper .................... 5-21 5-11 Onboard Indicators ..................5-22 LAN1/2 LEDs .................... 5-22 IPMI Dedicated LAN LEDs ..............5-22 Onboard Power LED ......................5-22 IPMI Heartbeat LED ................. 5-22 5-12 SATA and Floppy Drive Connections ............5-23 SATA Ports ....................
  • Page 10 UPER ERVER 5016I-MR/5016I-MRF User's Manual Notes...

  • Page 11: Chapter 1 Introduction

    Please refer to our web site for information on operating systems that have been certifi ed for use with the SuperServer 5016I-MR/5016I-MRF (www.supermicro.com). Note: a complete list of safety warnings is provided on the Supermicro web site at http://www.supermicro.com/about/policies/safety_information.cfm In addition to the motherboard and chassis, various hardware components have been included with the SuperServer 5016I-MR/5016I-MRF, as listed below: •...

  • Page 12: Motherboard Features

    ERVER 5016I-MR/5016I-MRF User's Manual Motherboard Features At the heart of the SuperServer 5016I-MR/5016I-MRF lies the X8SIL/X8SIL-F, a single processor motherboard based on the Intel® 3400 chipset. Below are the main features of the X8SIL/X8SIL-F. (See Figure 1-1 for a block diagram of the chipset).

  • Page 13: Server Chassis Features

    The SC512-200 is a mini 1U rackmount server platform confi guration. The following is a general outline of the main features of the SC512-200 chassis. System Power When confi gured as a SuperServer 5016I-MR/5016I-MRF, the SC512-200 chassis includes a single 200W power supply. Serial ATA Subsystem The SC512-200 chassis was designed to support one internal 3.5"...
  • Page 14 UPER ERVER 5016I-MR/5016I-MRF User's Manual Figure 1-1. Intel 3400 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. DDR3 (CHA) DIMM1(Far) PCIe2.0_x8 Xeon 3400 PCIe x8 SLOT DIMM2 5.0Gb 1333/1066MHz 4 UDIMM PCIe2.0_x8...

  • Page 15: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 16 UPER ERVER 5016I-MR/5016I-MRF User's Manual Notes...

  • Page 17: Chapter 2 Server Installation

    An optional rack rail package is available if you wish to order from Supermicro. Follow the steps in the order given to complete the installation process in a minimal amount of time.

  • Page 18: Warnings And Precautions

    UPER ERVER 5016I-MR/5016I-MRF User's Manual installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units.

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation • Always keep the rack's front door and all panels and components on the servers closed when not servicing to maintain proper cooling. Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room.

  • Page 20: Installing The System Into A Rack

    Sections 2-5 and 2-6. Basic Installation Procedure The 5016I-MR/5016I-MRF server comes with two rack mounting brackets, which are located on each side at the front of the chassis. To mount the system into a rack, simply screw these brackets directly to the front of the rack (two screws for each bracket).

  • Page 21: Installing The Chassis Rails

    Chapter 2: Server Installation Installing the Chassis Rails The two rail sections must be detached from each other prior to installation: depress the locking tab on the inner rail to release it from its locked position then pull the two rails completely apart.

  • Page 22: Installing The Server Into The Rack

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails.

  • Page 23: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Figure 2-4. Installing the Server into a Rack: w/ Rackmount Kit Installing the Server into a Telco Rack To install the server into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far the server will extend out the front of the rack.

  • Page 24: Checking The Motherboard Setup

    Figure 2-5. Installing the Server into a Telco Rack: Basic Checking the Motherboard Setup After you install the 5016I-MR/5016I-MRF in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the connections have been made.
  • Page 25 Chapter 2: Server Installation Figure 2-6. Installing the Server into a Telco Rack: w/ Rackmount Kit 3. Next, depress the two buttons on the top of the chassis to release the top cover while pushing the cover away from you until it stops. You can then lift the top cover from the chassis to gain full access to the inside of the server.

  • Page 26: Checking The Drive Bay Setup

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Figure 2-7. Accessing the Inside of the System 4. Make sure all power and data cables are properly connected and not block- ing the airfl ow. See Chapter 5 for details on cable connections. Also, check the air seals for damage.
  • Page 27 Chapter 2: Server Installation Checking the Airfl ow 1. Airfl ow is provided by one 10-cm input fan. The system component layout was carefully designed to promote suffi cient airfl ow through the small 1U rackmount space. 2. Note that all power and data cables have been routed in such a way that they do not block the airfl...
  • Page 28 UPER ERVER 5016I-MR/5016I-MRF User's Manual Notes 2-12...

  • Page 29: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel to keep you constantly informed of the overall status of the system as well as the activity and health of specifi c com- ponents.

  • Page 30: Control Panel Leds

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Control Panel LEDs The control panel located on the front of the SC512-200 chassis has fi ve LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 31: Power

    Chapter 3: System Interface Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 32 UPER ERVER 5016I-MR/5016I-MRF User's Manual Notes...

  • Page 33: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certifi ed technicians should attempt to install or confi gure components. Read this appendix in its entirety before installing or confi guring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Defi nition Warning! This warning symbol means danger.
  • Page 34 UPER ERVER 5016I-MR/5016I-MRF User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befi nden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 35 Warning Statements for AC Systems ‫ﺟﺴﺪﻳﺔ‬ ‫ﺍﺻﺎﺑﺔ‬ ‫ﺗﺘﺴﺒﺐ ﻓﻲ‬ ‫ﺣﺎﻟﺔ ﻳﻤﻜﻦ ﺃﻥ‬ ‫ﺍﻧﻚ ﻓﻲ‬ ‫ﺧﻄﺮ‬ ‫ﻳﻌﻨﻲ‬ ‫ﻫﺬﺍ ﺍﻟﺮﻣﺰ‬ !‫ﺗﺤﺬﻳﺮ‬ ‫ﺍﻟﺪﻭﺍﺋﺮ‬ ‫ﺑﺎﻟﻤﺨﺎﻁﺮ ﺍﻟﻨﺎﺟﻤﺔ ﻋﻦ‬ ‫ﻦ ﻋﻠﻰ ﻋﻠﻢ‬ ، ‫ﻛ‬ ‫ﻣﻌﺪﺍﺕ‬ ‫ﺗﻌﻤﻞ ﻋﻠﻰ ﺃﻱ‬ ‫ﻗﺒﻞ ﺃﻥ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬ ‫ﺣﻮﺍﺩﺙ‬ ‫ﺃﻱ‬ ‫ﻭﻗﻮﻉ‬ ‫ﻤﻨﻊ‬ ‫ﻟ‬ ‫ﺍﻟﻮﻗﺎﺋﻴﺔ‬...

  • Page 36: Installation Instructions

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 37: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电 流不大于250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電 流不大於250V,20A。...

  • Page 38: Power Disconnection Warning

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A. Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.
  • Page 39 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 40: Equipment Installation

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Equipment Installation Warning! Only trained and qualifi ed personnel should be allowed to install, replace, or service this equipment. 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifi ziertem Personal gestattet werden.

  • Page 41: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalifi ceerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 42: Battery Handling

    UPER ERVER 5016I-MR/5016I-MRF User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .('‫כלי אבטחה בלבד )מפתח, מנעול וכד‬ ‫ﻣﺤﻈﻮﺭﺓ‬ ‫ﻣﻨﺎﻁﻖ‬ ‫ﻟﺘﺮﻛﻴﺒﻬﺎ ﻓﻲ‬ ‫ﻫﺬﻩ ﺍﻟﻮﺣﺪﺓ‬ ‫ﺗﺨﺼﻴﺺ‬ ‫ﺗﻢ‬ ،‫ﺃﺩﺍﺓ ﺧﺎﺻﺔ‬ ‫ﻣﻦ ﺧﻼﻝ ﺍﺳﺘﺨﺪﺍﻡ‬...
  • Page 43 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 44: Redundant Power Supplies

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 45: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫ﺍﻣﺪﺍﺩ ﺍﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪﺍﺕ‬ ‫ﻋﺪﺓ ﺍﺗﺼﺎﻻﺕ‬ ‫ﺠﻬﺎﺯ‬ ‫ﺍﻟ‬ ‫ﻳﻜﻮﻥ ﻟﻬﺬﺍ‬ ‫ﻗﺪ‬ ‫ﺍﻟﻜﻬﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪﺓ‬ ‫ﺍﻟ‬ ‫ﻟﻌﺰﻝ‬ ‫ﻛﺎﻓﺔ ﺍﻻﺗﺼﺎﻻﺕ‬ ‫ﻳﺠﺐ ﺇﺯﺍﻟﺔ‬ Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken. Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is...

  • Page 46: Comply With Local And National Electrical Codes

    UPER ERVER 5016I-MR/5016I-MRF User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫ﺍﻟﻠﻮﺣﺔ‬ ‫ﺃﻭﺍﻟﻄﺎﻗﺔ ﺍﻟﻤﻮﺟﻮﺩﺓ ﻋﻠﻰ‬ ‫ﺍﻟﺘﻴﺎﺭ ﺍﻟﻜﻬﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ﻫﻨﺎﻙ‬ ‫ﻫﺬﺍ ﺍﻟﺠﻬﺎﺯ‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬﺭﺍ ﻋﻨﺪ‬ ‫ﻳﻌﻤﻞ‬ ‫ﺍﻟﻨﻈﺎﻡ‬ ‫ﻋﻨﺪﻣﺎ ﻳﻜﻮﻥ‬...

  • Page 47: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫ﺍﻟﻤﺘﻌﻠﻘﺔ‬ ‫ﺍﻟﻤﺤﻠﻴﺔ ﻭﺍﻟﻮﻁﻨﻴﺔ‬ ‫ﻘﻮﺍﻧﻴﻦ‬ ‫ﻳﺠﺐ ﺃﻥ ﻳﻤﺘﺜﻞ ﻟﻠ‬ ‫ﺍﻟﻜﻬﺮﺑﺎﺋﻴﺔ‬...

  • Page 48: Hot Swap Fan Warning

    UPER ERVER 5016I-MR/5016I-MRF User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 49 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 50: Power Cable And Ac Adapter

    fi re. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certifi ed cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 警告...
  • Page 51 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifi és qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 52 UPER ERVER 5016I-MR/5016I-MRF User's Manual Notes 4-20...

  • Page 53: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install the X8SIL/X8SIL-F motherboard into the chassis, connect the data and power cables and install add-on cards. All jumpers and connections are described and a layout and quick reference chart are included for your reference.

  • Page 54: Motherboard Installation

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Motherboard Installation This section explains the fi rst step of physically mounting the X8SIL/X8SIL-F into the SC512-200B chassis. Following the steps in the order given will eliminate the most common problems encountered in such an installation. To remove the serverboard, follow the procedure in reverse order.

  • Page 55: Connecting Power Cables

    Chapter 5: Advanced Motherboard Setup cables (with their locations noted) should be connected. (See the layout on page 5-9 for connector locations.) • SATA drive data cable (I-SATA0 ~ I-SATA3) • Control Panel cable (JF1) Important! Make sure the the cables do not come into contact with the fans. Connecting Power Cables The X8SIL/X8SIL-F has a 24-pin primary power supply connector (JPW1) for con- nection to the ATX power supply.

  • Page 56: I/O Ports

    When receiving a serverboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support.

  • Page 57: Installing The Lga1156 Processor

    Chapter 5: Advanced Motherboard Setup Installing the LGA1156 Processor 1. Press the load lever to release the load plate, which covers the CPU socket, from its locked position. 2. Gently lift the load lever to open the load plate. Remove the plate cap. 3.
  • Page 58 UPER ERVER 5016I-MR/5016I-MRF User's Manual 4. Align the CPU key that is the semi-circle cutouts against the socket keys. Once aligned, carefully lower the CPU straight down to the socket. (Do not drop the CPU on the socket. Do not move the CPU horizontally or vertically.

  • Page 59: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Motherboard Setup Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the motherboard and the heatsink bracket underneath.
  • Page 60 UPER ERVER 5016I-MR/5016I-MRF User's Manual Removing the Heatsink Warning: We do not recommend removing the CPU or the heatsink. However, if you do need to remove the heatsink, please follow the instructions below to prevent dam- age to the CPU or other components.

  • Page 61: Installing Memory

    Chapter 5: Advanced Motherboard Setup Installing Memory Note: Check the Supermicro web site for recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. DIMM Installation 1. Insert the desired number of DIMMs into the memory slots, starting with DIMM1A.

  • Page 62: Memory Population Guidelines

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Table 2 - DDR3 ECC Registered (RDIMM) Memory Support RDIMM 1Gb (x8 DRAM) 2Gb (x8 DRAM) Single Rank Up to 4GB Up to 8GB (4 x 1GB DIMM Modules) (4 x 2GB DIMM Modules) Dual Rank...
  • Page 63 Chapter 5: Advanced Motherboard Setup Figure 5-5. DIMM Installation Notch Notch To Install: Insert module vertically and press down until it snaps into place. Pay attention to the alignment notch at Front View the bottom. To Remove: Note: Notch should align Use your thumbs to with the receptive key gently push the release...

  • Page 64: Installing Pci Add-On Cards

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Installing PCI Add-On Cards The SC512-200 chassis uses a riser card to accommodate one add-on card (CSE- RR1U-E16 for a PCI-E x16 card. Installing a PCI Expansion Card 1. After powering down the system, remove the PCI slot shield.

  • Page 65: Motherboard Details

    Chapter 5: Advanced Motherboard Setup Motherboard Details Figure 5-6. X8SIL/X8SIL-F Layout JPUSB1:B/P USB WAKE UP KB/MOUSE JPI2C:PWR I2C 1-2:ENABLE 2-3:DISABLE FLOPPY JPW1 JPUSB1 JI2C1 JI2C2 SLOT7 PCI-E X8 GEN2 JI2C1/JI2C2 ON:Enable OFF:Disable SLOT6 PCI-E X8 GEN2 SLOT5 PCI-E X4 on X8 JBT1 MAC CODE SLOT4 PCI 33MHZ...
  • Page 66 UPER ERVER 5016I-MR/5016I-MRF User's Manual X8SIL/X8SIL-F Jumpers Number Jumper Description Default JPUSB1 BP USB0/1 Wake-up Pins 1-2 (Enabled) JBT1 CMOS Clear (See Section 5-9) 13,14 C1/JI SMB to PCI Slots (See Section 5-9) JPG1 Onboard VGA Enable Pins 1-2 (Enabled)

  • Page 67: Connector Defi Nitions

    Chapter 5: Advanced Motherboard Setup Connector Defi nitions ATX Power 24-pin Connector Pin Defi nitions (JPW1) Pin# Defi nition Pin # Defi nition Main ATX Power Supply +3.3V +3.3V Connector -12V +3.3V The primary power supply connec- tor (JPW1) meets the SSI EPS 12V PS_ON specifi...

  • Page 68: Overheat (Oh)/Fan Fail

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Overheat (OH)/Fan Fail OH/Fan Fail LED OH/Fan Fail Indicator Pin Defi nitions (JF1) Status Connect an LED cable to pins 7 and 8 Pin# Defi nition State Defi nition of JF1 to provide warnings for chassis...

  • Page 69: Chassis Intrusion

    Chapter 5: Advanced Motherboard Setup Chassis Intrusion Chassis Intrusion Pin Defi nitions (JL1) The Chassis Intrusion header is des- Pin# Defi nition ignated JL1. Attach an appropriate Intrusion Input cable from the chassis to inform you Ground of a chassis intrusion when the chas- sis is opened PS/2 Keyboard and ATX PS/2 Keyboard and PS/2...

  • Page 70: Speaker

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Speaker Speaker Connector Pin Defi nitions On the JD1 header, pins 3~4 are used Pin Setting Defi nition for internal speaker. Close pins 3~4 Pins 3~4 Internal Speaker with a cap to use the onboard speaker.

  • Page 71: Onboard Power Led

    Chapter 5: Advanced Motherboard Setup Onboard Power LED Onboard PWR LED Pin Defi nitions An onboard Power LED header is Pin# Defi nition located at JLED. This Power LED header is connected to Control Panel No Connection header located at JF1 to indicate the Connection to PWR status of system power.

  • Page 72: 5-10 Jumper Settings

    UPER ERVER 5016I-MR/5016I-MRF User's Manual 5-10 Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose Connector between optional settings. Jumpers Pins create shorts between two pins to change the function of the connector.

  • Page 73: Lan1/Lan2 Enable/Disable

    Chapter 5: Advanced Motherboard Setup LAN1/LAN2 Enable/Disable LAN1/LAN2 Enable/Disable Change the setting of jumper JPL1 or Jumper Settings (JPL1/JPL2) JPL2 to enable or disable the LAN1 and Jumper Setting Defi nition LAN2 Ethernet ports, respectively. See Pins 1-2 Enabled the table on the right for jumper set- Pins 2-3 Disabled tings.

  • Page 74: 5-11 Onboard Indicators

    UPER ERVER 5016I-MR/5016I-MRF User's Manual 5-11 Onboard Indicators LAN1/LAN2 Activity LED LAN1/2 LEDs Color Status Defi nition The Ethernet ports (located on the I/O Yellow Blinking Active backplane) have two LEDs. On each LAN1/2 LED port, one LED indicates activity while...

  • Page 75: 5-12 Sata And Floppy Drive Connections

    Chapter 5: Advanced Motherboard Setup 5-12 SATA and Floppy Drive Connections SATA Port Pin Defi nitions SATA Ports (I-SATA0 ~ I-SATA3 Pin # Defi nition Four Serial ATA (SATA) ports (I-SATA Ground 0~3) are located on the motherboard. These Serial Link connections provide faster data transmission than tradi- tional Parallel ATA.

  • Page 76: 5-13 Installing Software

    5-13 Installing Software After the hardware has been installed, you should fi rst install the operating system and then the drivers. The necessary drivers are all included on the Supermicro CDs that came packaged with your motherboard. Figure 5-7. Driver/Tool Installation Display Screen Note: Click the icons showing a hand writing on paper to view the readme fi...

  • Page 77: Super Doctor Iii

    Chapter 5: Advanced Motherboard Setup Super Doctor III The Super Doctor III program is a Web-based management tool that supports re- mote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The Super Doctor III program included on the CD-ROM that came with your motherboard allows you to monitor the envi- ronment and operations of your system.
  • Page 78 Figure 5-9. Super Doctor III Interface Display Screen (Remote Control) Note: SD III Software Revision 1.0 can be downloaded from our Web Site at: ftp://ftp. supermicro.com/utility/Supero_Doctor_III/. You can also download the SDIII User's Guide at: <http://www.supermicro.com/PRODUCT/Manuals/SDIII/UserGuide.pdf>. For Linux, we will recommend using Supero Doctor II.

  • Page 79: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC512C-260 chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 80: Control Panel

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Figure 6-1. Chassis Front View Figure 6-2. Chassis Rear View Dedicated IPMI LAN Port* Keyboard/ Mouse Ports USB Ports COM1 Port VGA Port Ethernet Ports *Note: the dedicated IPMI LAN port is included on the 5016I-MRF only.

  • Page 81: System Fans

    System Fan Failure If the fan fails, you will need to have it replaced with the same type. Contact your vendor or Supermicro for information on replacement fans. The fan sits on two mounting posts secured with screws. See Figure 6-3.

  • Page 82: Drive Bay Installation/Removal

    For installing or removing a DVD-ROM or Serial ATA drive, you will need to gain access to the inside of the 5016I-MR/5016I-MRF by removing the top cover of the chassis. The DVD-ROM drive is an optional component in the 5016I-MR/5016I- MRF.
  • Page 83 Chapter 6: Advanced Chassis Setup 5. Attach the side rails and backplane PCB to the DVD-ROM drive (see Figure 6-5.) 6. Install the DVD-ROM into the module and secure it back into the chassis with the screw you removed. 7. Replace the DVD-ROM drive and the top cover when fi nished. Figure 6-4.

  • Page 84: Power Supply

    ERVER 5016I-MR/5016I-MRF User's Manual Power Supply The SuperServer 5016I-MR/5016I-MRF has a single 200 watt power supply. This power supply has the capability of operating at 100 - 240 input volts. Power down the system and then unplug the AC power cord to completely remove power from the system before removing the power supply.

  • Page 85: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.) The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

  • Page 86: How To Start The Setup Utility

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 87 <Tab> key or the arrow keys to move between fi elds. The date must be entered in Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.) Supermicro X8SIL/X8SIL-F Version Build Date...

  • Page 88: Advanced Setup Confi Gurations

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Advanced Setup Confi gurations Use the arrow keys to select Boot Setup and hit <Enter> to access the submenu items: BOOT Feature Quick Boot If Enabled, this option will skip certain tests during POST to reduce the time needed for system boot.
  • Page 89 Chapter 7: BIOS Wait For 'F1' If Error This forces the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. Hit 'Del' Message Display This feature displays "Press DEL to run Setup" during POST. The options are Enabled and Disabled.
  • Page 90 UPER ERVER 5016I-MR/5016I-MRF User's Manual the components whenever needed. Select Disabled to enhance system stability. The options are Disabled and Enabled. Hardware Prefetcher (Available when supported by the CPU) If set to Enabled, the hardware pre fetcher will pre fetch streams of data and instruc- tions from the main memory to the L2 cache in the forward or backward manner to improve CPU performance.

  • Page 91: Advanced Chipset Control

    Chapter 7: BIOS Intel® Turbo Boost Technology (Available if Intel® EIST technology is Enabled) This feature allows processor cores to run faster than marked frequency in specifi c conditions. The options are Disabled and Enabled. C1E Support Select Enabled to use the "Enhanced Halt State" feature. C1E signifi cantly reduces the CPU's power consumption by reducing the CPU's clock cycle and voltage during a "Halt State."...
  • Page 92 UPER ERVER 5016I-MR/5016I-MRF User's Manual Active State Power Management Select Enabled to start Active-State Power Management for signal transactions between L0 and L1 Links on the PCI Express Bus. This maximizes power-saving and transaction speed. The options are Enabled and Disabled.
  • Page 93 Chapter 7: BIOS SATA#2 Confi guration (Available if IDE is enabled under "Confi gure SATA#1 as" above) Selecting Enhanced will set SATA#2 to native SATA mode. The options are Compatible and Enhanced IDE Detect Timeout (sec) Use this feature to set the time-out value for the BIOS to detect the ATA, ATAPI devices installed in the system.
  • Page 94 UPER ERVER 5016I-MR/5016I-MRF User's Manual Select Auto to allow the AMI BIOS to automatically detect the PIO mode. Use this value if the IDE disk drive support cannot be determined. Select 0 to allow the AMI BIOS to use PIO mode 0. It has a data transfer rate of 3.3 MBs.
  • Page 95 Chapter 7: BIOS Select UDMA4 to allow the BIOS to use Ultra DMA mode 4 . It has a data transfer rate of 100 MBs. The options are Auto, SWDMAn, MWDMAn, and UDMAn. S.M.A.R.T. For Hard disk drives Self-Monitoring Analysis and Reporting Technology (SMART) can help predict impending drive failures.
  • Page 96 UPER ERVER 5016I-MR/5016I-MRF User's Manual PCI Slots 5, 6, 7 & PCI Slot 4 OPROM Use this feature to enable or disable PCI slot Option ROMs. The options are Dis- abled and Enabled. Onboard LAN Option ROM Select This feature selects whether to load the iSCSI or PXE onboard LAN option ROM.
  • Page 97 Chapter 7: BIOS Remote Access Confi guration Remote Access This allows the user to enable the Remote Access feature. The options are Dis- abled and Enabled. If Remote Access is set to Enabled, the following items will display: Serial Port Number This feature allows the user decide which serial port to be used for Console Redirection.
  • Page 98 UPER ERVER 5016I-MR/5016I-MRF User's Manual  Hardware Health Confi guration This feature allows the user to monitor Hardware Health of the system and review the status of each item when displayed. CPU Overheat Alarm This option allows the user to select the CPU Overheat Alarm setting which de- termines when the CPU OH alarm will be activated to provide warning of possible CPU overheat.
  • Page 99 Tolerances’, the installed CPU can now send its ‘Temperature Toler- ance’ to the motherboard resulting in better CPU thermal management. Supermicro has leveraged this feature by assigning a temperature status to certain thermal conditions in the processor (Low, Medium and High). This makes it easier for the user to understand the CPU’s temperature status,...
  • Page 100 UPER ERVER 5016I-MR/5016I-MRF User's Manual CPU on-die temperature increases, the fan speed will also increase, and vice versa. Select Workstation if your system is used as a Workstation. Select Server if your system is used as a Server. Select “Disabled, (Full Speed @12V)” to disable the fan speed control function and allow the onboard fans to constantly run at the full speed (12V).
  • Page 101 Chapter 7: BIOS ACPI Version Features The options are ACPI v1.0, ACPI v2.0 and ACPI v3.0. Please refer to ACPI's website for further explanation: http://www.acpi.info/ IPMI Confi guration (X8SIL-F Only) Intelligent Platform Management Interface (IPMI) is a set of common interfaces that IT administrators can use to monitor system health and to manage the system as a whole.
  • Page 102 UPER ERVER 5016I-MR/5016I-MRF User's Manual IP Address - Enter the IP address for this machine. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). The value of each three-digit number separated by dots should not exceed 255.

  • Page 103: Security Settings

    Chapter 7: BIOS Security Settings The AMI BIOS provides a Supervisor and a User password. If you use both pass- words, the Supervisor password must be set fi rst. Supervisor Password This item indicates if a supervisor password has been entered for the system. Clear means such a password has not been used and Set means a supervisor password has been entered for the system.

  • Page 104: Boot Settings

    UPER ERVER 5016I-MR/5016I-MRF User's Manual Clear User Password (Available only if User Password has been set) Password Check Available options are Setup and Always. Boot Sector Virus Protection When Enabled, the AMI BOIS displays a warning when any program (or virus) is- sues a Disk Format command or attempts to write to the boot sector of the hard disk drive.

  • Page 105: Exit Options

    Chapter 7: BIOS Removable Drives This feature allows the user to specify the boot sequence from available Removable Drives. The settings are 1st boot device, 2nd boot device, and Disabled. • 1st Drive • 2nd Drive - [USB: XXXXXXXXX] Retry Boot Devices Select this option to retry booting from the confi...
  • Page 106 UPER ERVER 5016I-MR/5016I-MRF User's Manual Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system confi guration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.

  • Page 107: Appendix A Post Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A POST Error Beep Codes This section lists POST (Power On Self Test) error beep codes for the AMI BIOS. POST error beep codes are divided into two categories: recoverable and terminal. This section lists Beep Codes for recoverable POST errors. Recoverable POST Error Beep Codes When a recoverable type of error occurs during POST, BIOS will display a POST code that describes the problem.
  • Page 108 UPER ERVER 5016I-MR/5016I-MRF User's Manual Notes...

  • Page 109: Appendix B Installing Windows

    South Bridge RAID Settings before you install the Windows OS and other software drivers. To confi gure RAID settings, please refer to RAID Confi guration User Guides posted on our web site at www.supermicro.com/support/manuals. Note: The following OS installation instructions are written for the Windows XP/2003 OS only.
  • Page 110 fi les and then continue with the Windows installation. 4. After the installation has completed, the system will automatically reboot. 5. Insert the Supermicro Setup CD that came with your system into the CD- ROM drive during system boot and the main screen will display.

  • Page 111: Appendix C System Specifi Cations

    One 3.5" fi xed hard drive or up to three 2.5" fi xed hard drives Expansion Slots Supports the use of one PCI-Express 2.0 x8 slot Serverboard 5016I-MR: X8SIL (microATX form factor) Dimensions: 9.6" x 9.6" (244 x 244 mm) 5016I-MRF: X8SIL-F (microATX form factor) Dimensions: 9.6" x 9.6" (244 x 244 mm)
  • Page 112 UPER ERVER 5016I-MR/5016I-MRF User's Manual Weight Net (Gross): 17 lbs. (7.7 kg.) System Cooling One (1) 10-cm ball bearing blower fan System Input Requirements AC Input Voltage: 100-240 VAC (auto-range) Rated Input Current: 3A max. Rated Input Frequency: 50 to 60 Hz...
  • Page 113 Appendix C: System Specifi cations Notes...
  • Page 114 ERVER 5016I-MR/5016I-MRF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in signifi...
