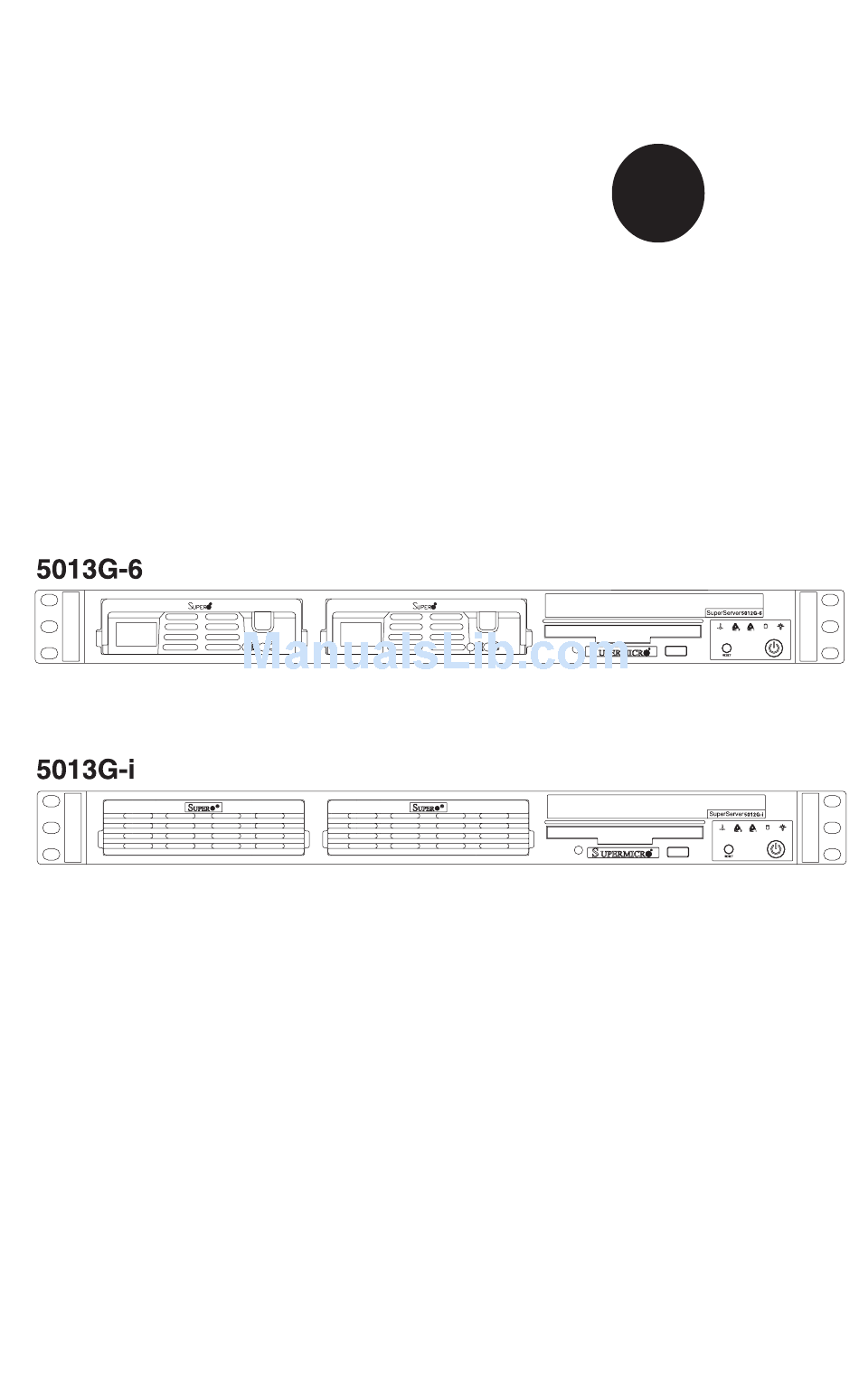

  • Page 1 ® UPER 5013G-6/5013G-i UPER ERVER USER’S MANUAL Revision 1.0b...
  • Page 2 The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product. Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document.

  • Page 3: About This Manual

    The SuperServer 5013G-6/5013G-i is an economic single processor 1U rackmount server based on the SC810 1U rackmount server chassis and either the Super P4SGR (for the 5013G-6) or the P4SGE (for the 5013G-i) mainboard. The P4SGR/P4SGE mainboard supports single Intel processors of up to 3.06 GHz in 478-pin microPGA sockets.
  • Page 4 You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 5013G-6/5013G-i. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the P4SGR and P4SGE motherboards, including the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Rack Precautions ... 2-2 Server Precautions ... 2-2 Rack Mounting Considerations ... 2-3 Installing the SuperServer 5013G-6/5013G-i into a Rack ... 2-4 Identifying the Sections of the Rack Rails ... 2-4 Installing the Chassis Rails ... 2-5 Installing the Rack Rails ... 2-5 Installing the Server into the Rack ...
  • Page 7 SCSI Drive Carrier LEDs (5013G-6) ... 3-3 Motherboard LEDs ... 3-3 Chapter 4: System Safety Electrical Safety Precautions ... 4-1 General Safety Precautions ... 4-2 ESD Precautions ... 4-3 Operating Precautions ... 4-4 Chapter 5: Advanced Motherboard Setup Handling the P4SGR/P4SGE Motherboard ... 5-1 Motherboard Installation ...
  • Page 8 UPER ERVER 5013G-6/5013G-i Manual ATX PS/2 Keyboard and Mouse Ports ... 5-15 Universal Serial Bus ... 5-15 Wake-On-LAN ... 5-15 Wake-On-Ring ... 5-16 Jumper Settings ... 5-16 Explanation of Jumpers ... 5-16 CMOS Clear ... 5-16 USB Wake-Up ... 5-17 Watch Dog Enable/Disable ...
  • Page 9 Chapter 7: AwardBIOS Introduction ... 7-1 Running Setup ... 7-2 Main BIOS Setup ... 7-2 The Main BIOS Setup Menu ... 7-3 Advanced BIOS Setup ... 7-6 7-4.1 Advanced BIOS Features ... 7-6 7-4.2 Advanced Chipset Features ... 7-9 7-4.3 Integrated Peripherals ... 7-13 7-4.4 Hardware Monitors ...
  • Page 10 UPER ERVER 5013G-6/5013G-i User's Manual Notes...

  • Page 11: Chapter 1 Introduction

    1U rackmount server with state-of-the-art features. 5013G-i is comprised of two main subsystems: the SC810 1U rackmount chassis and the P4SGR (5013G-6) or P4SGE (5013G-i) single 478-pin Pentium 4 microPGA processor mainboard. Please refer to our web site for information on operating systems that have been certified for use with the 5013G-6/5013G-i (www.supermicro.com).

  • Page 12: Mainboard Chassis Features

    UPER ERVER 5013G-6/5013G-i Manual Mainboard Features At the heart of the SuperServer 5013G-6/5013G-i lies the P4SGR/P4SGE, a single processor motherboard designed to provide maximum performance. Below are the main features of the P4SGR/P4SGE. See Figure 1-1 for a block diagram of the 845GE chipset.
  • Page 13 SDRAM modules. Module sizes of 128 MB, 256 MB, 512 MB and 1 GB may be used to populate the DIMM slots. Onboard SCSI (5013G-6 only) Onboard SCSI is provided with an Adaptec AIC-7899 SCSI controller chip, which supports dual channel, Ultra160 SCSI at a burst throughput rate of 160 MB/sec for each channel.

  • Page 14: Other Features

    UPER ERVER 5013G-6/5013G-i Manual Other Features Other onboard features that promote system health include eight voltage monitors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU overheat sensors, virus protection and BIOS rescue. Figure 1-1. Note: This is a general block diagram. See Chapter 5 for details.

  • Page 15: Server Chassis Features

    The SC810 is a 1U rackmount chassis. Its I/O panel provides one mother- board expansion slot, one COM port (another is internal), two USB ports (5013G-6 only), PS/2 mouse and keyboard ports, a graphics port and two Ethernet ports. (See Figure 1-2.)

  • Page 16: Cooling System

    UPER ERVER 5013G-6/5013G-i Manual Figure 1-2. Rear I/O Panel Cooling System The SC810 chassis has an innovative cooling design that includes a 10-cm blower system cooling (intake) fan and one optional 4-cm fan that can be installed in the midsection of the chassis.

  • Page 17: Contacting Supermicro

    Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 18 UPER ERVER 5013G-6/5013G-i Manual Notes...

  • Page 19: Chapter 2 Server Installation

    Decide on a suitable location for the rack unit that will hold the SuperServer 5013G-6/5013G-i. It should be situated in a clean, dust-free area that is well ventilated.

  • Page 20: Choosing A Setup Location

    Allow the power supply units and hot plug SCSI drives (5013G-6) to cool before touching them. Always keep the rack's front door and all panels and components on...

  • Page 21: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient tem- perature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maxi- mum rated ambient temperature (Tmra).

  • Page 22: Installing The Superserver 5013G-6/5013G-I Into A Rack

    5013G-6/5013G-i. Each of these assemblies consist of two sections: an inner fixed chassis rail that secures to the 5013G-6/5013G-i (A) and an outer fixed rack rail that secures directly to the rack itself (B). A sliding rail guide sandwiched between the two should remain attached to the fixed rack rail (see Figure 2-1).

  • Page 23: Installing The Chassis Rails

    Installing the Chassis Rails Position the fixed chassis rail sections you just removed along the side of the 5013G-6/5013G-i chassis making sure the five screw holes line up. Note that these two rails are left/right specific. Screw the rail securely to the side of the chassis (see Figure 2-2).

  • Page 24: Installing The Server Into The Rack

    UPER ERVER 5013G-6/5013G-i Manual assembly securely to the rack using the brackets provided. Attach the other assembly to the other side of the rack, making sure that both are at the exact same height and with the rail guides facing inward.

  • Page 25: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack If you are installing the SuperServer 5013G-6/5013G-i into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 26: Checking The Motherboard Setup

    UPER ERVER 5013G-6/5013G-i Manual Checking the Motherboard Setup After you install the 5013G-6/5013G-i in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the connec- tions have been made. 1. Accessing the inside of the 5013G-6/5013G-i (Figures 2-5a/2-5b) First, release the retention screws that secure the unit to the rack.
  • Page 27 Chapter 2: Server Installation Figure 2-5a. Accessing the Inside of the SuperServer 5013G-6 (with SCSI drive removed)
  • Page 28 UPER ERVER 5013G-6/5013G-i Manual Figure 2-5b. Accessing the Inside of the SuperServer 5013G-i (with IDE drive removed) 2-10...

  • Page 29: Checking The Drive Bay Setup

    Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the SCSI drives and SCA backplane (5013G-6 only) or IDE drives (5013G-i only) have been properly installed and all connections have been made. 1. Accessing the drive bays All drives can be accessed from the front of the server.
  • Page 30 UPER ERVER 5013G-6/5013G-i Manual Notes 2-12...

  • Page 31: Chapter 3 System Interface

    Overview There are several LEDs on the control panel as well as others on the SCSI drive carriers and the motherboard to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 32: Control Panel Leds

    Indicates network activity on LAN2 when flashing. NIC1 NIC1: Indicates network activity on LAN1 when flashing. HDD: Indicates IDE channel activity. On the SuperServer 5013G-6/ 5013G-i, this light indicates CD-ROM drive activity when flashing. You should also check to make sure The air seals are...

  • Page 33: Power

    Red: A SAF-TE compliant backplane is needed to activate the red LED to indicate a drive failure. (A SAF-TE compliant SCSI backplane is optional on the 5013G-6.) If one of the SCSI drives fail, you should be notified by your system management software. Please refer to Chapter 6 for instruc- tions on replacing failed SCSI drives.
  • Page 34 UPER ERVER 5012G-6/5012G-E Manual Notes...

  • Page 35: Chapter 4 System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 5013G-6/5013G-i from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 36: General Safety Precautions

    General Safety Precautions Follow these rules to ensure general safety: Keep the area around the SuperServer 5013G-6/5013G-i clean and free of clutter. The SuperServer 5013G-6/5013G-i weighs approximately 26 lbs (11.8 kg) when fully loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight.

  • Page 37: Esd Precautions

    ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic components and printed circuit boards. measures are generally sufficient to neutralize this difference before contact is made to protect your equipment from ESD: Use a grounded wrist strap designed to prevent static discharge.

  • Page 38: Operating Precautions

    Operating Precautions Care must be taken to assure that the chassis cover is in place when the 5013G-6/5013G-i is operating to assure proper cooling. Out of warranty damage to the 5013G-6/5013G-i system can occur if this practice is not strictly followed.

  • Page 39: Chapter 5 Advanced Motherboard Setup

    Advanced Motherboard Setup This chapter covers the steps required to install the P4SGR/P4SGE mother- board into the SC810 chassis, connect the data and power cables and install add-on cards. described. A layout and quick reference chart are included in this chaptor for your reference.

  • Page 40: Motherboard Installation

    Motherboard Installation This section explains the first step of physically mounting the P4SGR (5013G-6) or P4SGE (5013G-i) into the SC810 chassis. Following the steps in the order given will eliminate the most common problems encountered in such an installation.

  • Page 41: Connecting Cables

    (See the layout on page 5-10 for connector locations.) IDE Device Cables (J6 and J7) Floppy Drive Cable (J5) SCSI Device Cables (JA1, JA2 and JA3) (5013G-6 only) Control Panel Cable (JF1) Connecting Power Cables The P4SGR/P4SGE has a 20-pin primary power supply connector ("ATX Power") at J21 for connection to the ATX power supply.

  • Page 42: I/O Ports

    UPER ERVER 5013G-6/5013G-i Manual Figure 5-1. Control Panel Header Pins Power LED Overheat LED Power Fail LED I/O Ports The I/O ports are color coded in conformance with the PC 99 specification. See Figure 5-2 below for the colors and locations of the various I/O ports.

  • Page 43: Installing Processors

    Installing Processors Avoid placing direct pressure to the top of the processor package. Always remove the power cord first before adding, removing or changing any hardware components. Processor Support The P4SGR/P4SGE has one 478-pin microPGA socket, which supports Intel Pentium 4 processors of up to 3.06 GHz. 1.
  • Page 44 UPER ERVER 5013G-6/5013G-i Manual 6. Connect the CPU fan cable to the CPU Fan header on the motherboard. Figure 5-3. 478-pin Socket: Empty and with Processor Installed Figure 5-4. Heatsink Installation...

  • Page 45: Installing Memory

    Installing Memory CAUTION! Exercise extreme care when install- ing or removing DIMM modules to prevent any possible damage. Memory support The P4SGR/P4SGE has three DIMM slots that support both double-sided and single-sided non-ECC unbuffered PC2700/2100 (DDR-333/266) low- profile SDRAM for a maximum of 2 GB main memory. Installing memory modules Insert each memory module vertically into a DIMM slot.

  • Page 46: Adding Pci Cards

    UPER ERVER 5013G-6/5013G-i Manual Adding PCI Cards 1. 32-bit PCI slot The P4SGR/P4SGE has six 32-bit, 33 MHz 5V PCI slots. A riser card de- signed specifically for use in the 810 1U rackmount chassis is included with your system.

  • Page 47: P4Sgr/P4Sge Layout

    Figure 5-7. Super P4SGR/P4SGE Layout* JPWAKE Keyboard/ J12 (IR) JPUSB Mouse USB0/1 COM1 LAN1 LAN2 PCI 1 PCI 2 PCI 3 PCI 4 PCI 5 SCSI Channel B *The P4SGE has the same layout as the P4SGR but with no onboard SCSI.

  • Page 48: P4Sgr/P4Sge Quick Reference

    UPER ERVER 5013G-6/5013G-i Manual P4SGR/P4SGE Quick Reference Jumpers JBT1 JPA1* JPA2* JPA3* JPL1 JPL2 JPUSB JPWAKE Connectors Chassis Fan1/2 COM1/COM2 CPU Fan DIMM1/2 J6/J7 J24** JA1/JA2/JA3* JOH 1 JWOR1 LAN1/LAN2 Overheat Fan USB0/1 USB2/3/4/5 * P4SGR only ** The 4-pin connector at J24 must be connected to meet the safety requirements of the ATX 12V specifications.

  • Page 49: Connector Definitions

    Connector Definitions Power Supply Connectors The primary power supply connec- tor on the P4SGR/P4SGE meets the SSI (Superset ATX) 20-pin speci- fication. Refer to the table on the right for the pin definitions of the ATX 20-pin power connector. You must also connect the 4-pin J24 power connector to your power supply.

  • Page 50: Reset Connector

    UPER ERVER 5013G-6/5013G-i Manual Reset Connector The reset connector is located on pins 3 and 4 of JF1. This connec- tor attaches to the reset switch on the computer chassis. table on the right for pin defini- tions. Power Fail LED The Power Fail LED connection is located on pins 5 and 6 of JF1.

  • Page 51: Hdd Led

    HDD LED An HDD LED connection is located on pins 13 and 14 of JF1. Attach the hard drive LED cable to display disk activity (including SCSI and IDE drives). See the table on the right for pin definitions. Power LED The Power LED connection is lo- cated on pins 15 and 16 of JF1.

  • Page 52: Cd Header

    UPER ERVER 5013G-6/5013G-i Manual CD Header There are two 4-pin CD headers different sizes motherboard. These allow you to use the onboard sound for audio CD playback. Connect the audio cable from your CD drive to the header that fits your cable's con- nector.

  • Page 53: Atx Ps/2 Keyboard And Mouse Ports

    ATX PS/2 Keyboard and PS/2 Mouse Ports The ATX PS/2 keyboard and the PS/2 mouse are located on J17. See the table on the right for pin definitions. (The mouse port is above the keyboard port. See the table on the right for pin defini- tions.

  • Page 54: Wake-On-Ring

    UPER ERVER 5013G-6/5013G-i Manual Wake-On-Ring The Wake-On-Ring header is desig- nated JWOR. This function allows your computer to receive and be "awakened" by an incoming call when in the suspend state. See the table on the right for pin definitions. You must also have a WOR card and cable to use WOR.

  • Page 55: Usb Wake-Up

    USB Wake-Up Use JPUSB to enable or disable USB Wake-Up, which allows you to wakeup the system by de- pressing a key on the keyboard or by clicking the mouse when either is connected to the USB0 or USB1 port. This jumper is used together with the USB Wake-Up function in BIOS.

  • Page 56: Keyboard Wake-Up

    UPER ERVER 5013G-6/5013G-i Manual Keyboard Wake-Up The JPWAKE jumper is used to- gether with the Keyboard Wake- Up function in BIOS. Enable both the jumper and the BIOS setting to allow the system to be woken up by depressing a key on the key- board.

  • Page 57: Scsi Enable/Disable

    The default position is open to select the Overheat fan. The CPU Chassis fan is intended for use with Supermicro chassis. closed jumper setting forces the chassis fan to always be on. the table on the right for jumper set- tings.

  • Page 58: Parallel Port

    UPER ERVER 5013G-6/5013G-i Manual 5-10 Parallel Port, Floppy Drive, Hard Drive, SCSI Drive and AGP Connections Use the following information to connect the floppy and hard disk drive cables. • The floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1.

  • Page 59: Floppy Connector

    Floppy Connector The floppy connector is located on JP5. See the table on the right for pin definitions. IDE Connectors There are no jumpers to config- ure the onboard IDE interfaces J6 and J7. See the table on the right for pin definitions. must use the ATA100/66 cable included with your system to benefit from the ATA100/66...

  • Page 60: Ultra160 Scsi Connectors

    UPER ERVER 5013G-6/5013G-i Manual Ultra160 SCSI Connectors (5013G-6/ P4SGR) Refer to the table below for the pin definitions of the Ul- tra160 SCSI connectors lo- cated at JA1, JA2 and JA3. 68-pin Ultra160 SCSI Co nnectors (JA1, JA2, JA3) Connector...

  • Page 61: 1.5V 4Xagp Slot

    Chapter 5: Advanced Motherboard Setup 1.5V 4xAGP Slot The 4xAGP slot is included on the P4SGR/P4SGE. You should first disable the integrated video in BIOS before adding a VGA card to this slot. (See the "On-Chip VGA" setting in the Advanced Chipset Features section in BIOS.) The 4xAGP slot is backward compatible with 2xAGP graphics cards.
  • Page 62 UPER ERVER 5013G-6/5013G-i Manual Notes 5-24...

  • Page 63: Chapter 6 Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC810 chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows. Tools Required The only tool you will need to install components and perform maintainance is a Philips screwdriver.

  • Page 64: Control Panel

    UPER ERVER 5013G-6/5013G-i Manual Figure 6-1. Figure 6-2. Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the motherboard to provide you with system control buttons and status indicators. These wires have been bundled together in a ribbon cable to simplify the connection.

  • Page 65: System Fans

    Replace the failed fan with an identical 10-cm, 12 volt fan (available from Supermicro). Position the new fan in its proper place in the chassis by fitting the fan onto the fan mounting posts in the chassis. After the new fan has been installed, plug the fan cable back into the same chassis fan header on the motherboard you removed it from.

  • Page 66: Drive Bay Installation/Removal

    6/5013G-i by removing the top cover of the chassis. Proceed to the "CD- ROM and Floppy Drive Installation" section later in this chapter for instruc- tions. Note: Only a "slim" CD-ROM drive will fit in the 5013G-6/5013G-i. IDE hard drives are for the 5013G-E only. Chassis Cross Section...

  • Page 67: Scsi Drive Installation

    Secure the drive to the carrier with four screws, as shown in Figure 6-4. Figure 6-4. Mounting a SCSI Drive in a Carrier (5013G-6 only) Use caution when working around the SCSI backplane. Do not touch the backplane with any metal objects and make sure no ribbon cables touch the backplane or obstruct the holes, which aid in proper airflow.
  • Page 68 (see Figure 6-5). Handle Release Button Figure 6-5. Important: are installed, both SCSI drive carriers must remain in the drive bays to maintain proper airflow. Removing SCSI Drives (5013G-6) Regardless of how many SCSI hard drives...

  • Page 69: Ide Drive Installation

    SCSI Power Cables SCSI power cables should be routed so that they do not block the airflow through the chassis. There is a 4-pin connector for the power cables. SCA Backplane The SCSI drives plug into an SCA backplane that provides power, SCSI ID and bus termination.

  • Page 70: Cd-Rom And Floppy Drive Installation

    The top cover of the chassis must be opened to gain full access to the CD- ROM and floppy drive bays. The CD-ROM drive must have a "slim" profile to fit into the 5013G-6/5013G-i. First, release the retention screws that secure the unit to the rack. Grasp the two handles on either side and pull the unit straight out until it locks (you will hear a "click").

  • Page 71: Power Supply

    Power Supply The SuperServer 5013G-6/5013G-i has a single 250 watt power supply. This power supply has an auto-switching capability, which enables it to automatically sense and operate anywhere between 100v and 240v. press the main power button on the front of the chassis and then unplug the AC power cord to completely remove power from the system before removing the power supply.
  • Page 72 UPER ERVER 5013G-6/5013G-i Manual Notes 6-10...

  • Page 73: Introduction

    Introduction This chapter describes the AwardBIOS for the P4SGR/P4SGE. The Award ROM BIOS is stored in a Flash chip and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 74: Running Setup

    UPER ERVER 5013G-6/5013G-i Manual Running Setup *Optimal default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choosing the appropriate text from the Main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see on next page).

  • Page 75: The Main Bios Setup Menu

    Chapter 7: BIOS Main BIOS Setup Menu Date/Time Set the system date and time. Key in the correct information in the "mm", "dd" and "yy" fields. Press the "Enter" key to save the data. Drive A/Drive B These settings allow the user to set the type of floppy disk drive installed in the system.
  • Page 76 UPER ERVER 5013G-6/5013G-i Manual IDE HDD Auto-Detection Press the <Enter> key to activate the "IDE HDD Auto-Detection" function, which will allow BIOS to automatically detect the status of the IDE HDD installed in the system, such as the size and number of cylinders.
  • Page 77 IDE Primary Master UDMA This is available only when your IDE drive supports UDMA and the operating environment also includes a UDMA drive. If your IDE hard drive and your system software both support UDMA, select Auto to enabled BIOS support. The options for this setting are "Auto" and "Disabled".

  • Page 78: Advanced Bios Setup

    UPER ERVER 5013G-6/5013G-i Manual Advanced BIOS Setup Choose Advanced BIOS Setup from the Award BIOS main menu with the Left/ Right arrow keys. You should see the following display. Select one of the items in the left frame of the screen to go to the sub screen for that item.
  • Page 79 Init Display First This setting allows the user to determine which device will be first displayed when the sytem boots up - a device installed in the PCI slot or a device intalled in the AGP slot. The options are "PCI slot" and "Onboard/AGP". Quick Power-On Self Test If enabled, this feature will speed up the POST (Power On Self Test) routine after the computer is switched on.
  • Page 80 UPER ERVER 5013G-6/5013G-i Manual it begins to repeat the keystroke. The settings are: "250", "500", "750" and "1000." APIC Mode This setting allows you to Enable or Disable APIC. APIC is used to assign interrupt signals to a specific processor on multi-processor system and provides IRQs beyond the conventional 16 under Windows 2000 or XP.

  • Page 81: 7-4.2 Advanced Chipset Features

    Chapter 7: BIOS 7-4.2 Advanced Chipset Features This section covers the functions used for configuring the system based upon the special features offered by the Plumas chipset. The chipset manages the operations of major components of the board. Normally, the default settings for the Advanced Chipset Features listed in the section are pre-configured by the manufacturer for the optimal performance of the system.
  • Page 82 UPER ERVER 5013G-6/5013G-i Manual Active to Precharge Delay This item regulates the number of memory clock cycles allowed for memory refresh charging. The options are "7", "6" and "5". Shorter timings increase system memory throughput at the risk of lacking sufficient refresh charge.
  • Page 83 Chapter 7: BIOS Delayed Transaction This setting compensates for the slower speed of ISA cards on a PCI interface and so is only relevant if ISA cards are present on the motherboard. The options are "Enabled" and "Disabled". Delay Prior to Thermal The options for this setting are "4 Min", "8 Min", "16 Min"...
  • Page 84 UPER ERVER 5013G-6/5013G-i Manual USB Controller You should Enable this setting if your system contains a Universal Serial Bus (USB) controller (it does) and you have USB peripherals. The options for this setting are "Enabled" and "Disabled". USB Keyboard Support If enabled, this setting allows the user to activate the BIOS support of the On-Chip USB Keyboard Controller.

  • Page 85: 7-4.3 Integrated Peripherals

    Chapter 7: BIOS 7-4.3 Integrated Peripherals When the item "Integrated Peripherals" is highlighted, press the <Enter> key to activate the following sub-menu screen. Onboard FDC Controller Select "Enabled", if your system has a floppy disk controller (FDC) installed on the main board and you wish to use it. The settings are "Enabled" and "Disabled".
  • Page 86 UPER ERVER 5013G-6/5013G-i Manual RxD, TxD Active This allows the user to change the settings for the "RxD, TxD Active" function. The options are "Hi, Hi", "Hi, Lo", "Lo, Hi", and "Lo, Lo". IR Transmission Delay If "Enabled", the transmssion of IR (infrared) signals will be delayed. The options are "Enabled"...
  • Page 87 Chapter 7: BIOS ECP Mode Use DMA This setting allows the user to select the DMA channel for the ECP mode (port) to use. The options are "1" and "3". Game Port Address This setting allows the user to set the Game Port address. The options are "Disabled", "201"...

  • Page 88: 7-4.4 Hardware Monitors

    UPER ERVER 5013G-6/5013G-i Manual 7-4.4 Hardware Monitors When the item "Hardware Monitors" is highlighted, press the <Enter> key to activate the following sub-menu screen. There are only three settings on this menu (below). The rest of this menu shows various temperatures and voltage levels as indicated.

  • Page 89: Processor Features

    If you overclock your CPU, it may be necessary to increase the voltage supplied to the CPU. This setting allows you to do this. The options are "- 0.050V", "-0.025V", "Default", "+0.025V", "+0.050V" "+0.100V", "+0.150V" and "0.200V". Supermicro does not recommend or make any guarantees with CPU overclocking. 7-17...

  • Page 90: Pci/Pnp Configurations

    ERVER 5013G-6/5013G-i Manual CPU Clock Key in a number between 100 and 165 to set the CPU clock (MHz). Supermicro does not recommend or make any guarantees with CPU overclocking. Spread Spectrum Spread Spectrum is a technique used to stabilize operation when a system is being affected by electromagnetic interference.
  • Page 91 Chapter 7: BIOS Resources Controlled By This setting allows BIOS to automatically configure all boot and Plug and Play compatible devices. If you choose Auto, you cannot select the IRQ, DMA and memory base address fields, because BIOS automatically assigns them.

  • Page 92: Power

    UPER ERVER 5013G-6/5013G-i Manual Power Choose Power from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: ACPI Function This item allows you to enable and disable the ACPI (Advanced Configuration and Power Management) program.
  • Page 93 Chapter 7: BIOS Suspend Type This item sets the period of time that passes before the system goes into suspend mode. The options are "Disabled", "1min", "2min", "4min", "8min", "12min", "20min", "30min", "40min" and "1hr". HDD Power Down This item sets the period of time that passes before the hard drive(s) is powered down.
  • Page 94 UPER ERVER 5013G-6/5013G-i Manual USB KB Wake Up From S3 This item is only changeable if the ACPI Suspend Type (above) is set to S3. Enabling this will allow you to wake-up the system by depressing a button on a USB-connected keyboard. Options are "Enabled" and "Disabled".

  • Page 95: Boot

    Chapter 7: BIOS Boot Choose Boot from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: Award BIOS attempts to load the operating system from devices specified by the users in a user-specified sequence. First Boot Device This item allows the user to set the first boot-up device.
  • Page 96 UPER ERVER 5013G-6/5013G-i Manual Boot Other Device If enabled, this option enables the BIOS to load the OS from another device rather than the ones that have been specified as the first, second and third boot up devices. The settings are "Enabled" and "Disabled".

  • Page 97: Security

    Chapter 7: BIOS Security Choose Security from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: Set Supervisor Password When the item "Set Supervisor Password" is highlighted on the above screen, press the <Enter> key. When prompted, type the Supervisor Password in the dialogue box to set or to change the Supervisor Password.

  • Page 98: Exit

    UPER ERVER 5013G-6/5013G-i Manual Exit Choose Exit from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: Save & Exit Setup When the item "Save & Exit Setup" is highlighted, press <Enter> to save the changes you've made in the BIOS program (CMOS) and exit.

  • Page 99: Appendix Abios Post Messages

    BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for errors. If an error is found and a correction is needed, the BIOS will activate an alarm or display a message. If a message is displayed, it will be accompanied by the following: PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP POST Beep Codes Currently, there are two kinds of beep codes used in AwardBIOS.
  • Page 100 UPER ERVER 5013G-6/5013G-i Manual DISKETTE DRIVES OR TYPES MISMATCH ERROR - RUN SETUP The type of diskette drive installed in the system is different from the CMOS definition. Run Setup to reconfigure the drive type correctly. DISPLAY SWITCH IS SET INCORRECTLY The display switch on the motherboard can be set to either monochrome or color.
  • Page 101 Appendix A: BIOS POST Messages Memory Address Error at ... Indicates a memory address error at a specific location. You can use this location along with the memory map for your system to find and replace the bad memory chips. Memory parity Error at ...

  • Page 102: Memory Test Fail

    UPER ERVER 5013G-6/5013G-i Manual FLOPPY DISK(S) fail (80) FLOPPY DISK(S) fail (40) Hard Disk(s) fail (80) Hard Disk(s) fail (40) Hard Disk(s) fail (20) Hard Disk(s) fail (10) Hard Disk(s) fail (08) Keyboard is locked out - Unlock the key.

  • Page 103: Appendix Bbios Post Codes

    This section lists the POST (Power On Self Testing) Codes for the Award BIOS. POST (hex) Test CMOS R/W functionality. Early chipset initialization: -Disable shadow RAM -Disable L2 cache (socket 7 or below) -Program basic chipset registers Detect memory -Auto-detection of DRAM size, type and ECC. -Auto-detection of L2 cache (socket 7 or below) Expand compressed BIOS code to DRAM Call chipset hook to copy BIOS back to E000 &...
  • Page 104 UPER ERVER 5013G-6/5013G-i Manual POST (hex) Description Reserved Auto detect flash type to load appropriate flash R/W codes into the run time area in F000 for ESCD & DMI support. Reserved Use walking 1’s algorithm to check out interface in CMOS circuitry.
  • Page 105 POST (hex) Description 1. Initialize multi-language 2. Put information on screen display, including Award title, CPU type, CPU speed …. Reserved Reserved Reserved Reserved Reserved Reset keyboard except Winbond 977 series Super I/O chips. Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Test 8254...
  • Page 106 UPER ERVER 5013G-6/5013G-i Manual POST (hex) Description Reserved Initialize the combined Trend Anti-Virus code. Reserved (Optional Feature) Show message for entering AWDFLASH.EXE from FDD (optional) Reserved 1. Initialize Init_Onboard_Super_IO switch. 2. Initialize Init_Onboard_AUDIO switch. Reserved Reserved Okay to enter Setup utility; i.e. not until this POST stage can users enter the CMOS setup utility.
  • Page 107 POST (hex) Description Reserved Reserved 1. Call chipset power management hook. 2. Recover the text font used by EPA logo (not for full screen logo) 3. If password is set, ask for password. Save all data in stack back to CMOS Initialize ISA PnP boot devices 1.
  • Page 108 UPER ERVER 5013G-6/5013G-i Manual Notes...

  • Page 109: Appendix C System Specifications

    SCA backplane for two (2) SCA hot-swap SCSI drives Main Drive Bays 5013G-6: Two (2) drive bays to house two (2) standard 1" 80-pin SCA SCSI drives 5013G-i: Two (2) drive bays to house two (2) 3.5 x 1" IDE disk drives Peripheral Bays One (1) 3.5"...
  • Page 110 UPER ERVER 5013G-6/5013G-i Manual System Operating Environment Operating Temperature Range: 10 - 35 degrees C / 50 - 90 degrees F Operating Humidity Range: 8 - 80% (non-condensing) Cooling Fans System: One (1) 10-cm ball bearing blower fan Form Factor...
