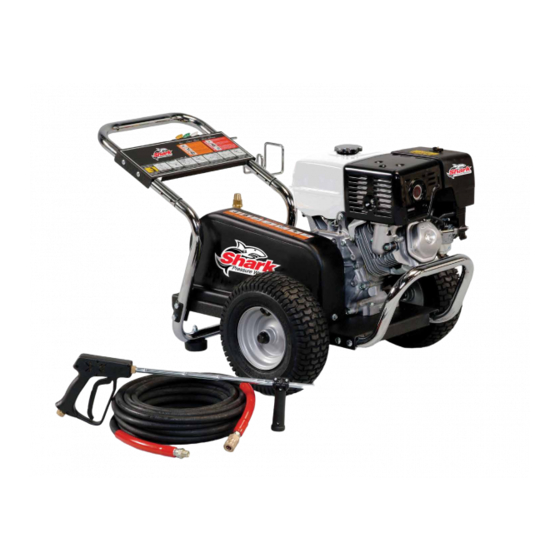

- Page 1 OPERATOR’S MAN U AL MODEL ORDER # BG-282037 1.107-142.0 BG-252737 1.107-143.0 BG-303037 1.107-144.0 BG-373537 1.107-145.0 BG-304037 1.107-146.0 BG-353237 1.107-159.0 To locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.shark-pw.com 8.919-012.0...
-
Page 3: Table Of Contents
CONTENTS Introduction & Important Safety Information .........4-5 Component Identifi cation ................. 6 Assembly Instructions ................7 Operating Instructions................8-9 Detergents & Cleaning Techniques ............10 Shut Down and Clean-Up ..............11 Storage ....................11 Troubleshooting ..................12 Adjusting Unloader Valves ..............12 Preventative Maintenance .............. -
Page 4: Introduction & Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. WARNING: Risk of asphyxiation. WARNING Use this product only in a well We reserve the right to make changes at any time ventilated area. without incurring any obligation. 5. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING: Keep wand, hose, and WARNING: High pressure devel- WARNING WARNING water spray away from electric oped by these machines will wiring or fatal electric shock may cause personal injury or equip- result. ment damage. Keep clear of nozzle. -
Page 6: Component Identifi Cation
COMPONENT IDENTIFICATION Unloader Pump Protector Pump Straight Through Wand Detergent Injector Inlet Screen Pressure Nozzle Garden Hose (not included) Starter Grip High Pressure Hose Detergent Bucket (not included) Pump — Develops high pressure. Wand — Must be connected to the spray gun. Starter Grip—... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Carriage Bolts Hose/Spray Gun Handle Bolt Storage Bracket Alignment Holes Washer Frame Assy. Studs STEP 1: Attach the handle to the STEP 2: Insert the carriage bolt STEP 3: Attach the spray gun/hose frame of the pressure washer. Note: through the holes from the outside storage handle, and bracket to It may be necessary to move the... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Pump Oil Dipstick Engine Oil Dipstick Oil Window STEP 1: Check engine oil level. Oil level should be level with the bottom STEP 2: Remove shipping cap and of the oil fi ller neck. Be sure the machine is level when checking the oil install oil dipstick. - Page 9 OPERATING INSTRUCTIONS (CONT.) On-Off Switch STEP 7: Turn the engine switch to "On" position. STEP 8: Pull the starter grip. If the engine fails to start after 2 pulls, squeeze the trigger gun to release pressure On Briggs engines, move the throttle lever to "Fast" and repeat step.
-
Page 10: Detergents & Cleaning Techniques
DETERGENTS & GENERAL CLEANING TECHNIQUES THERMAL PUMP PROTECTION WARNING: Some detergents WARNING may be harmful if inhaled or If you run the engine on your pressure washer for 1-2 ingested, causing severe nau- minutes without pressing the trigger on the spray gun, sea, fainting or poisoning. -
Page 11: Shut Down And Clean-Up
SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suc- STEP 2: Turn off the engine. STEP 3: Turn off wa- tion tube from container and insert ter supply. into one gallon of fresh water. Slide nozzle forward for low pressure or to connect black detergent nozzle into wand quick coupler. -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Faulty pressure gauge Install new gauge. PRESSURE Use larger supply hose; clean fi lter at Insuffi cient water supply water inlet. Match nozzle number to machine and/or Old, worn or incorrect spray nozzle replace with new nozzle. -
Page 13: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 14: Models 142.0, 143.0 Exploded View
EXPLODED VIEW - 1.107-142.0, 1.107-143.0 “Th lifo a to A Sp e ha s Th . Op d bir n Sta y be n of n to e Pre e Ag rt Fir s for n Re e Op d Dry s or .”... -
Page 15: Models 142.0, 143.0 Exploded View Parts List
Label, Cold Water Handle 9.803-126.0 Plate, Warning/Instructions, Black 9.803-098.0 Hanger, Hose/Wand 9.802-706.0 Bolt, Carriage, 1/4"-20 x 1-3/4", Zinc 8.900-870.0 Label, Shark Logo 9.802-741.0 Bolt, 8mm x 16mm Hex 9.802-778.0 Nut, 5/16" Whiz Loc Flange 8.920-261.0 Handle, Lower Grab, Chrome 9.197-003.0 Nut, 3/8", ESNA, NC... -
Page 16: Exploded View Parts List
EXPLODED VIEW PARTS LIST - 1.107-142.0, 1.107-143.0 ITEM PART NO. DESCRIPTION Unloader, See Specifi cations Pages 9.802-171.0 Nipple, 3/8" x 3/8" NPT ST Male 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF w/Strainer 9.802-163.0 Strainer, 1/2" PA, Inline Plastic 9.800-008.0 Label, Danger Cool Engine Engine, See Specifi... -
Page 17: Models 144.0, 145.0, 146.0, 159.0 Exploded View
EXPLODED VIEW - 1.107-144.0, 145.0, 146.0, 159.0 Pump 146.0 Pump 144.0 “Th ifor t con tain A Spa s che t Can atin g to tion Fire Fire y be rt Fire uire s Equ s Aro s or tion uire s or tion... -
Page 18: Models 144.0, 145.0, 146.0, 159.0 Exploded View Parts List
Label, Cold Water Handle 9.803-126.0 Plate, Warning/Instruction, Black 9.803-098.0 Hanger, Hose/Wand 9.802-706.0 Bolt, Carriage, 1/4"-20 x 1-3/4", Zinc 8.900-870.0 Label, Shark Logo 9.802-778.0 Nut, 5/16" Whiz Loc Flange 8.920-261.0 Handle, Lower Grab, Chrome 9.197-003.0 Nut, 3/8" ESNA, NC 9.802-807.0 Washer, 3/8" SAE, Flat 9.803-114.0... - Page 19 EXPLODED VIEW PARTS LIST - 1.107-144.0, 145.0, 146.0, 159.0 ITEM PART NO. DESCRIPTION 9.802-190.0 Valve, E-Z Start, 3/8" MPT x 1/8" FPT (145.0, 159.0) 9.804-065.0 Valve, E-Z Start, 1/4" MPT x 1/8" FPT (144.0) 8.706-207.0 Elbow, 3/8", Street 8.706-200.0 Elbow, 1/4", Street (144.0) 9.804-025.0 Pump Protector, 1/4"...
- Page 20 EXPLODED VIEW PARTS LIST - 1.107-144.0, 145.0, 146.0, 159.0 ITEM PART NO. DESCRIPTION 8.718-980.0 Washer, 5/16" Flat (144.0) 9.802-807.0 Washer, 3/8" Flat (146.0) 8.750-300.0 Unloader, VRT3 Ez Start (146.0) 9.802-870.0 Block, Unloader, 3/8" x 3/8" 1.25 Stee (146.0) 9.802-728.0 Bolt, 3/8" x 2", NC HH (146.0) 9.802-807.0 Washer, 3/8"...
-
Page 21: Hose And Spray Gun Assembly
HOSE & SPRAY GUN ASSEMBLY HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION 9.802-219.0 Wand Assy., Side Grip w/1/4" Coupler, 35-1/2" 8.710-384.0 Gun, St-1500, 5000 PSI, 10.4 Gpm 9.802-164.0 Coupler, 1/4” Female, Brass Nozzle, See Breakdown for Part Numbers 8.739-125.0 Hose, 3/8"... -
Page 22: Specifi Cations
SPECIFICATIONS Pressure Nozzle Pump Unloader Engine Pump Pump Pulley Model (PSI) Size Pump Part No. Part No. Engine Part No. Pulley Part No. 1.107-142.0 2000 KD3030 9.804-006.0 9.175-018.0 GX160 (163cc) 9.802-316.0 AK74H 9.802-369.0 1.107-143.0 2700 KD3030 9.804-006.0 9.175-018.0 GX200 (196cc) 9.802-317.0 BK80H 9.802-380.0... - Page 23 SPECIFICATIONS Pump Bushing Part Engine Pulley Engine Bushing Belt Belt Model Bushing Pulley Part No. Bushing Part No. Size Part No. 1.107-142.0 24MM 9.802-402.0 AK39H 9.803-898.0 HX3/4" 9.803-897.0 AX33 (1) 9.803-896.0 1.107-143.0 24MM 9.802-402.0 BK36H 9.802-379.0 HX3/4" 9.803-897.0 BX32 (1) 9.802-413.0 1.107-144.0 24MM...
-
Page 24: Km.3 Pump Exploded View And Parts List
KM.3 SERIES PUMP EXPLODED VIEW 8.751-189.0 KM4035R.3 8.751-186.0 KM3540R.3 TORQUE SPECS Item # Ft.-lbs KM.3 SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.751-216.0 Crankcase 9.802-944.0 Hexagonal Screw See Kits Below Plunger Oil seal 8.717-210.0 Closed Bearing Housing... - Page 25 KM.3 SERIES PUMP EXPLODED VIEW PARTS LIST (CONT.) ITEM PART NO. DESCRIPTION 9.803-158.0 Connecting Rod 8.751-228.0 Connecting Rod Pin 9.803-218.0 Spring Washer 9.803-238.0 Connecting Rod Screw 70-060009 O-Ring, Ø2.62 x 126.67 8.751-229.0 Crankcase Cover 9.803-197.0 O-Ring, Ø1.78 x 14 9.803-202.0 Sight Glass 3/4 9.802-939.0 Cover Screw...
-
Page 26: Kd.1 Pump Exploded View And Parts List
KD.1 SERIES PUMP EXPLODED VIEW 9.803-417.0 KD 3025.1 9.804-006.0 KD 3030.1 9.804-019.0 KD 4020.1 TORQUE SPECS Item # Ft.-lbs KD.1 SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-938.0 Crankcase 9.803-947.0 O-Ring Ø1.78 x 15.54 See Kits Below Plunger Oil Seal See Kits Below... - Page 27 KD.1 SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 8.933-010.0 Crankshaft Seal See Kits Below Plunger Nut See Kit Below Copper Spacer See Kits Below Plunger, 15mm (3030) See Kits Below Plunger, 18mm (4020, 3025) See Kits Below Copper Spacer See Kits Below O-Ring Ø1.78 x 5.28...
-
Page 28: Vrt3 Unloader Exploded View & Parts List
VTR3 UNLOADER EXPLODED VIEW AND PARTS LIST 8.750-300.0, 8 GPM, 4500 PSI EZ Start ITEM PART NO. DESCRIPTION 8.750-712.0 Outlet Fitting 8.750-713.0 Knob, Unloader 8.750-710.0 Repair Kit, VRT3, 4500 PSI (Kit Items: 1, 4, 8-12, 16, 21-22) Unloader Adjustment Procedures Remove lock nut (Item 19). -
Page 29: Uu1 Unloader Exploded View & Parts List
UU1 UNLOADER EXPLODED VIEW 9.175-018.0 UU1 3500PSI, UNIVERSAL UNLOADER (SPARE) UU1 UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 8.751-394.0 Piston Housing 9.149-006.0 Sliding Connector Guide Piston C, D O-Ring Backup A, D 6 x 1.45 x 1.68 Piston O-Ring Back Up... -
Page 30: Vba 35 Unloader Exploded View & Parts List
VBA 35 UNLOADER EXPLODED VIEW 9.803-900.0 VBA35 UNLOADER EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-902.0 Body Valve (KG) 9.803-917.0 Poppet 9.803-901.0 Body Valve (KS) 9.802-893.0 Seal Washer 3/8 9.803-903.0 O-Ring A, C 9.803-920.0 Banjo Bolt, 3/8 w/ 1/8 Pilot 9.803-904.0 Seat 9.803-915.0... -
Page 31: Warranty
Dealer or other sales or service outlet to another purchaser. Shark products that are sold by any distributor or retailer that is not an official authorized dealer or retailer of Shark products. Defects caused by acts of nature and disaster including, but not limited to, floods, fires, wind, freezing, earthquakes, tor- nadoes, hurricanes and lightning strikes. - Page 33 Form # 8.919-012.0 • Revised 08/12 • Printed in U.S.A. or Mexico...
