 BR-442537
 BR-404027
For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881
or visit our website at www.shark-pw.com

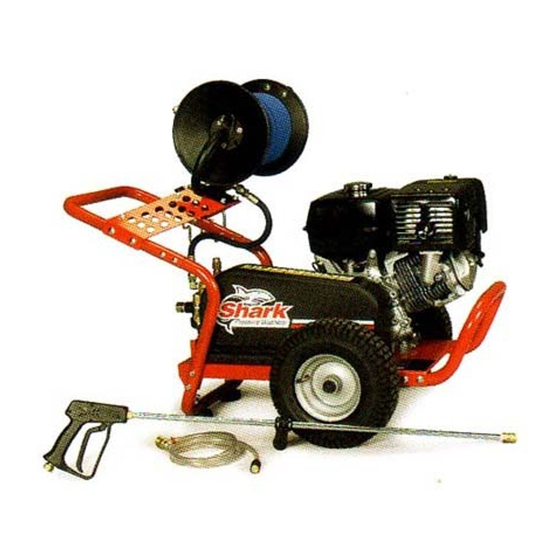

MODEL: BR
OPERATING INSTRUCTION
AND PARTS MANUAL
 BR-353237
 BR-455037E
 BR-373537
 BR-343087E
97-723

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shark BR Series

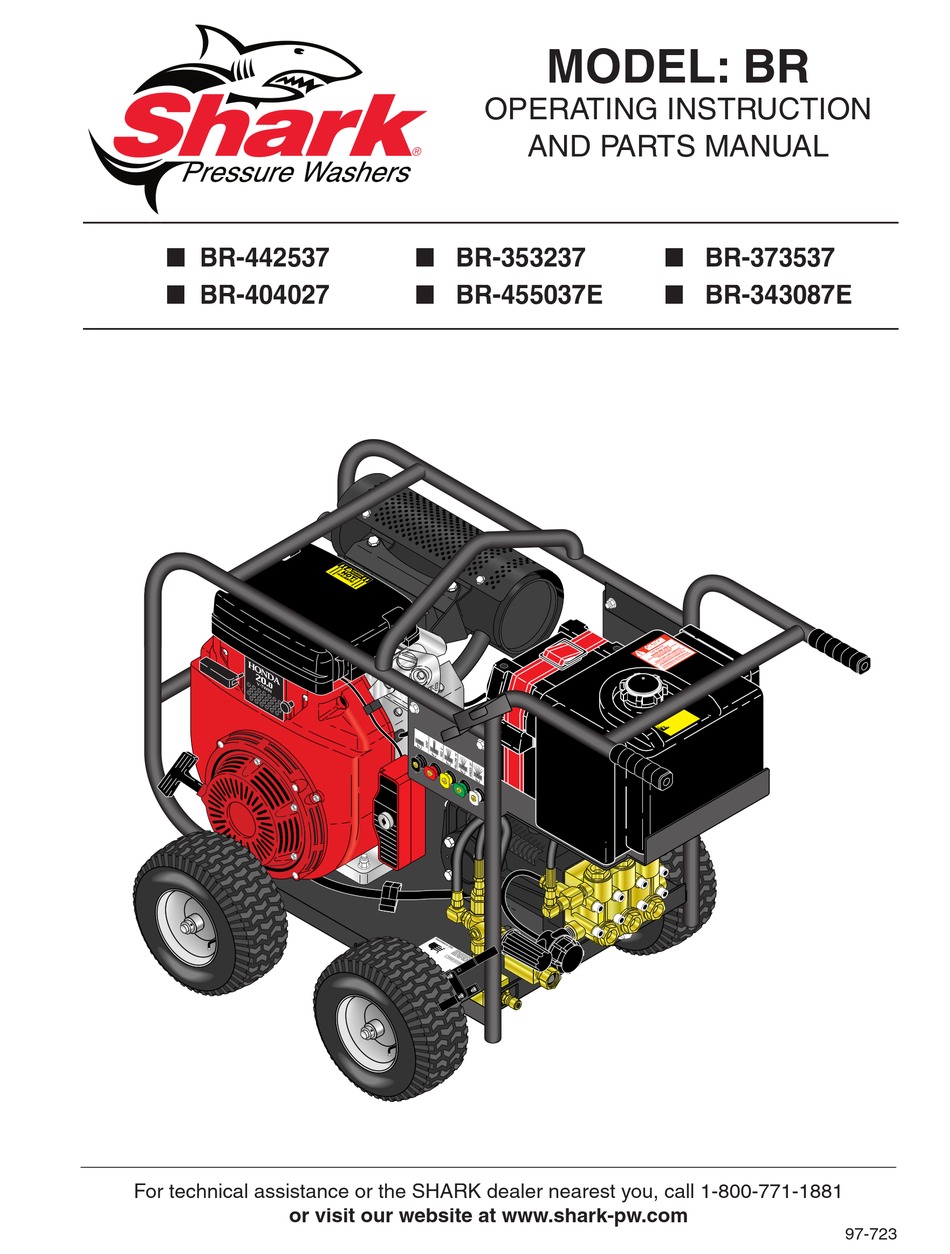

  • Page 1 MODEL: BR OPERATING INSTRUCTION AND PARTS MANUAL  BR-442537  BR-353237  BR-373537  BR-404027  BR-455037E  BR-343087E For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881 or visit our website at www.shark-pw.com 97-723...
  • Page 3: Table Of Contents

    CONTENTS Important Safety Information ..............4-5 Component Identification Small ............... 6 Component Identification Large............... 7 Assembly Instructions................8 Operating Instructions ................9-10 Applying Detergent and General Operating Techniques......11 Shut Down and Clean-Up ..............12 Storage ....................12 Troubleshooting ................13-14 Preventative Maintenance ..............15 Oil Change Record ................
  • Page 4: Important Safety Information

    CAUTION: Risk of asphyxiation INTRODUCTION CAUTION — Use this product only in a well ventilated area. Thank you for purchasing a this pressure washer. 4. Avoid installing machines in All information in this manual is based on the latest small areas or near exhaust product information available at the time of printing.
  • Page 5 WARNING: High pressure spray 14. Cleaning area should be provided with adequate WARNING can cause paint chips or other slopes and drainage.This will reduce the possibility of a fall due to slippery surface. particles to become airborne and fly at high speeds. To avoid per- 15.
  • Page 6: Component Identification Small

    COMPONENT IDENTIFICATION — SMALL MODELS Nozzle Wand Spray Gun Starter Grip Pump High Pressure Discharge Water Inlet High Pressure Hose Pump — Develops high pressure. Wand — Must be connected to the spray gun. Starter Grip— Used for starting the engine manually. High Pressure Hose —...
  • Page 7: Component Identification Large

    COMPONENT IDENTIFICATION — LARGE MODELS Nozzle Wand Spray Gun Starter Grip Pump Water Inlet High Pressure Discharge High Pressure Hose 96-718, 97-721, 97-722, 97-723 • REV. 1/05...
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Pressure Pressure Nozzle Spray Nozzle Wand Wand Coupler Safety Coupler Latch High Pressure Wand Hose Collar STEP 1: Attach the high pressure STEP 2: Pull the spring-loaded col- STEP 3: Release the coupler collar hose to the spray gun using teflon lar of the wand coupler back to insert and push the nozzle until the collar tape on hose threads.
  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Engine Dipstick Tank STEP 1: Check engine oil level. Oil level should be level with the bottom STEP 2: Fill gas tank with un- of the oil filler neck. Be sure the machine is level when checking the oil leaded gasoline.
  • Page 10 OPERATING INSTRUCTIONS (CON'T) On-Off Switch STEP 7: Turn the engine switch to "ON" position. STEP 8: Pull the starter grip. If the engine fails to start after 2 pulls, squeeze the trigger gun to release pressure and repeat step. Return starter gently. After the engine warms up enough to run smoothly, move choke to run position and throttle to fast position.
  • Page 11: Applying Detergent And General Operating Techniques

    THERMAL PUMP APPLYING DETERGENT PROTECTION AND GENERAL CLEANING TECHNIQUES If you run the engine on your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, WARNING: Some detergents circulating water in the pump can reach high tempera- WARNING may be harmful if inhaled or tures.
  • Page 12: Shut Down And Clean-Up

    SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Remove detergent suction STEP 2: Turn engine switch to "OFF" STEP 3: Turn off water tube from container and insert into position. supply. one gallon of fresh water. Slide nozzle forward for low pressure or to connect black detergent nozzle.
  • Page 13: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Insufficient water supply. Closed Use larger garden hose; clean inlet water PRESSURE faucet. Inlet hose kinked screen. Open faucet. Clogged inlet hose strainer Check plumbing system for leaks. Retape leaks with teflon tape. Faulty or misadjusted unloader Adjust unloader for proper pressure.
  • Page 14 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION ENGINE OPERATES Not enough gas or engine oil Fill tank with gas. Check oil level. FOR 15 MIN. THEN Vapor lock developed by heat of Keep gas tank full to avoid vapor locking. STOPS Obstruction in fuel filter Clean or replace fuel filter.
  • Page 15: Preventative Maintenance

    PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance.
  • Page 16: Exploded View - Large

    EXPLODED VIEW - LARGE 38 35 All Models Except 4040 4040 Models Models 8, 9 404027, 404027, 404029 404029 343087E,343089E, 404027, 404029 404027, 404029 404027, 404029 Models 10,41 47,59 59, 60, 61 96-718, 97-721, 97-722, 97-723 • REV. 1/05...
  • Page 17: Exploded View Parts List

    EXPLODED VIEW PARTS LIST- LARGE ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 10-02011 Label, This Tank For Gas Only 2-1062 Elbow, 1/2" JIC x 1/2", 90° (405037E,455037E,405037E, (405037E,405039E,455034E, 455039E,455034E) 455037E,455039E) 10-020090 Label, Diesel (343087E, (343087E,343089E,404027, 343089E) 404029) 2-1060 Elbow, 1/2” JIC x 3/8”, 90° 10-02025A Label, “Hot/Caliente”...
  • Page 18 EXPLODED VIEW PARTS LIST- LARGE ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4-12803500 Nozzle, SACQMEG, 0003.5, Red 90-1020 Bolt, 3/8" x 2", NC, HH (405037E, (405039E,405037E) 405039E,455034E,455037E, 4-12803515 Nozzle, SAQCMEG 1503.5, Yellow 455039E) (405039E,405037E) 2-010066 Elbow, Fuel Tank, Zinc (343087E, 4-12803525 Nozzle, SAQCMEG, 2503.5, 343089E) Green (405039E,405037E)
  • Page 19 EXPLODED VIEW PARTS LIST- LARGE ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 90-4002 Washer, 3/8" (404027,404029) 2 2-00271 Elbow, 3/8" x 1/2" Street, Steel (343087E,343089E,405037E, (405039E,455039E,455034E, 405039E,455034E,455037E, 405037E,455037E) 455039E) 2-0006 Nipple, 3/8" Hex Steel (405037E, 90-2001 Nut, 5/16" ESNA, NC (404027, 405039E,455037E,455039E, 404029) 455034E)
  • Page 20: Exploded View - Small

    EXPLODED VIEW - SMALL Model 442539 96-718, 97-721, 97-722, 97-723 • REV. 1/05...
  • Page 21: Exploded View Parts List

    EXPLODED VIEW PARTS LIST- SMALL ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 10-02025A Label, "Hot/Caliente" w/Arrows 4-12804000 Nozzle, SAQCMEG 0004, Red Warning (353239,373539,353237, 373534,353234,373537) 10-02029 Label, Danger Cool Engine 4-12804015 Nozzle, SAQCMEG 1504, Yellow 10-08017 Label, Intended For Outdoor Use1 (353239,373539,353237, 10-9999 Label, Clear Lexan,...
  • Page 22 EXPLODED VIEW PARTS LIST- SMALL ITEM PART NO. DESCRIPTION 95-07104723 Axle, 5/8" x 27.80 L 95-07162004 Assy, Weld, CW Cage, Small Red (BC, BD, BR) 95-07162005 Assy, Weld, CW Cage, Small Black (MP) 90-2002 Nut, 3/8" ESNA, NC 90-2001 Nut, 5/16" ESNA 90-4001 Washer, 5/16"...
  • Page 23: Hose And Spray Gun Assembly

    HOSE & SPRAY GUN ASSEMBLY 1, 2 1, 2 HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4-0110331 Wand, Side Grip w/Couplers 47.5" 4-020750C Hose, 3/8" x 50 ft., 2 Wire, Pressure (442539, 353239, 373539, 404029, Flex, w/Coupler (353237, 343089E) 373537, 353239, 373539,...
  • Page 24: Specifications

    SPECIFICATIONS Machine Engine Pulley Engine Bushing Pump Pump Pump Bushing Model Pulley Desc. Bushing# Desc. Pulley Desc. Bushing# Desc. 442539 5-40503201 2BK32H 5-511100 Hx1" 5-40508001 2BK80H 5-5120220 22mm 353239 5-40503201 2BK32H 5-511100 Hx1" 5-40509001 2BK90H 5-512024 24mm 373539 5-40503201 2BK32H 5-511100 Hx1"...
  • Page 25 SPECIFICATIONS Machine Belt Belt Pump Unloader Engine Model (QTY) Desc. Part No. Part No. Part No. 442539 5-604037 (2) BX37 5-1807 5-32080 5-0105 353239 5-604039 (2) BX39 5-1220 5-32080 5-0105 373539 5-604039 (2) BX39 5-1220 5-32080 5-010721 404029 5-604042 (2) BX42 5-1808 5-32080...
  • Page 27: Warranty

    PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes.
  • Page 28 Form #97-723 • Revised 1/05 • Printed in U.S.A.
