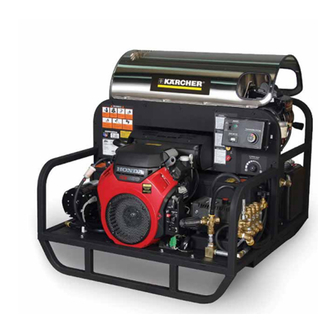

- Page 1 OPERATOR’S MANUAL 98011930-1 ® MODEL # ORDER # MODEL # ORDER # SSG-403037E 1.110-579.0 SSG-503537E/G 1.110-583.0 SSG-603537E 1.110-584.0 SSG-503027E 1.110-580.0 SSG-603537E/G 1.110-585.0 SSG-503027E/G 1.110-581.0 SSG-503537E 1.110-582.0 To locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.sharkpw.com 9.801-193.0...
-
Page 2: Table Of Contents
CONTENTS Introduction & Important Safety Information Component Identification Assembly Instructions Operating Instructions Detergents & Clean Up Tips Shut Down & Clean-Up Storage Maintenance 12-14 Troubleshooting 15-18 Maintenance & Oil Change Charts Exploded Views 20-21 Exploded View, Parts List 22-24 Float Tank Assembly & Parts List Control Panel, Exploded View &... -
Page 3: Introduction & Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing a Shark Pressure Washer. We WARNING: This machine exceeds WARNING reserve the right to make changes at any time without 85 db appropriate ear protection incurring any obligation. must be worn. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION In an overfilling situation, additional precautions are 14. Never make adjustments on machine while in necessary to ensure that the situation is handled operation. in a safe manner. 15. Be certain all quick coupler fittings are secured WARNING: Risk of injury. - Page 5 IMPORTANT SAFETY INFORMATION WARNING: Be extremely careful WARNING when using a ladder, scaffolding or any other relatively unstable location. The cleaning area should have adequate slopes and drainage to reduce the pos- sibility of a fall due to slippery RISK OF INJURY surfaces.
-
Page 6: Component Identification
COMPONENT IDENTIFICATION SMALL Flue Adapter Optional 7-10049 Insulation Gasket Optional 7-01471 Water Supply Hose (not included) Detergent Valve 22mm Coupling Adjustable Thermostat Outlet Burner Switch Hour Meter Power Nozzle Pump Unloader Valve Burner Fuel Tank Wand Trigger Spray Gun High 98011930-2 Pressure Starter Grip... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Spray Wand High Pressure Nozzle High Pressure Hose 98011930-3 98011930-5 98011930-4 STEP 1: Attach the high pressure STEP 2: Remove Wand end and first STEP 3: Remove shipping cap place the o-ring followed by the high hose to the spray gun by threading and install oil dipstick (Depending pressure nozzle as shown. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Dipstick Tank 98011930-10 98011030-9 STEP 1: Check engine oil level. Oil level should be level to the fill mark- S T E P 2 : F i l l g a s t a n k w i t h ings on the dipstick. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS START On-Off Engine Switch Switch 98011930-15 98011930-14 STEP 7: (Electric Start Models) Turn the engine STEP 8: (Electric Start Models) Turn the key to the switch to "Start" position. START position, and hold it there until the engine starts. If the engine fails to start within 5 seconds, release the key, and wait at least 10 seconds before operating the starter again. -
Page 10: Detergents & Clean Up Tips
DETERGENTS & GENERAL CLEANING TECHNIQUES WARNING: Some detergents the pump protector engages and cools the pump by WARNING may be harmful if inhaled or discharging the warm water onto the ground. This ingested, causing severe nau- thermal device prevents internal damage to the pump. sea, fainting or poisoning. -
Page 11: Shut Down & Clean-Up
SHUTTING DOWN AND CLEAN-UP On-Off Switch 98011930-23 98011930-22 98011930-24 STEP 1: Remove detergent suction STEP 2: Turn off the engine. STEP 3: Tur n off water tube from container and insert into supply. one gallon of fresh water. Open de- tergent metering valve. -
Page 12: Maintenance
MAINTENANCE Winterizing Procedure: PREVENTATIVE MAINTENANCE Damage due to freezing is not covered by warranty. 1. Check to see that water pump is properly Adhere to the following cold weather procedures when- lubricated. ever the washer must be stored or operated outdoors 2. -
Page 13: Fuel Pressure Adjustment
MAINTENANCE Deliming Coils: associated with machines incorporating a spray gun. Periodic inspection, to insure that the fuel solenoid Periodic flushing of coils or optional float tank is valve functions properly, is recommended. This can recommended. be done by operating the machine and checking to Step 1 Fill a container with 4 gallons of water, then . - Page 14 8. Remove coil. on the air band setting. 9. Replace or repair any insulation found to be torn Shark Clear Flame Oil Burner or broken. Burner Air Adjustment: The oil burner on this machine 10. Remove insulation retainer plates.
-
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Faulty pressure gauge Install new gauge. OPERATING Insufficient water supply Use larger supply hose; clean filter at water PRESSURE inlet. Old, worn or incorrect spray nozzle Match nozzle number to machine and/or replace with new nozzle. Belt slippage Tighten or replace;... - Page 16 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION BURNER Flex coupling slipping on fuel Replace if needed. WILL pump shaft or burner motor shaft NOT LIGHT On-Off switch defective Check for electrical current reaching burner (continued from assembly with burner switch on. previous page) Heavy sooting on coil and burner Clean as required.
- Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Improper fuel or water in fuel Replace with clean and proper fuel. WATER Low fuel pressure Increase fuel pressure. TEMPERATURE Weak fuel pump Check fuel pump pressure. Replace pump if needed. Fuel filter partially clogged Replace as needed.
-
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Oil seal worn Check and replace if necessary. DRIPPING EXCESSIVE Irregular functioning of the valves Check and replace if necessary. VIBRATION IN DELIVERY LINE DETERGENT Air leak Tighten all clamps. Check detergent lines for holes. DRAWING Restrictor in float tank is missing Replace restrictor. -
Page 19: Maintenance & Oil Change Charts
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 20: Exploded Views
EXPLODED VIEW Battery Installed Option 8.904-051.0 65, 66 Control Panel Illus. For Detail Detail See Float Tank Illus. Line To Pump 98011930-30 SSG 579-585 • 9.801-193.0 • Rev. 1/13a... -
Page 21: Exploded Views
EXPLODED VIEW Vanguard with Heat Shield To Float Tank 98011930-31 To Detergent Valve SSG 579-585 • 9.801-193.0 • Rev. 1/13a... -
Page 22: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-014.0 Coil, Rodless 9.802-099.0 Washer, Snubbing 9.802-720.0 Bolt, 3/8 x 1" NC HH 9.803-005.0 Top Wrap, SS 9.802-814.0 Washer, 3/8" Lock Split Ring 3 9.802-071.0 ... - Page 23 EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-009.0 Bracket, Belt Tension 9.803-000.0 Weldment, Face Plate, Long, Black (w/Generator) (581.0,583.0, 584.0 - w/Gen) 9.802-776.0 Nut, 5/16", ESNA, NC 9.803-002.0 Weldment, Face Plate, Short, (w/Generator) Black (579.0, 580.0, 582.0, 9.802-710.0 ...
-
Page 24: Exploded View, Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 9.802-804.0 Washer, 5/16", Flat, SAE 9.802-779.0 Nut, 3/8" ESNA, NC 8.706-958.0 Hose Barb, 90°, 1/4" Barb x 1/4" Pipe 9.801-252.0 Label, Maintain Engine Speed 1 9.802-512.0 Cable, TY, 48" 9.802-587.0 Insulation, 1/2" Fiber Sleeving 30"... -
Page 25: Float Tank Assembly & Parts List
FLOAT TANK EXPLODED VIEW 8.903-579.0 98011930-33 To Pump FLOAT TANK PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.804-042.0 Tank, Float, 2-1/2 Gallon, 9.802-802.0 Washer, Flat, 1/4" ZC Blank 9.802-753.0 Screw, 1/4" x 3/4" HH NC 8.749-328.0 Valve, Float Plastic 8.930-354.0 Plate, Adaptor Gas, 9.802-162.0... -
Page 26: Control Panel, Exploded View & Parts List
CONTROL PANEL EXPLODED VIEW (Reversed View of Label) Detergent Valve Pump To Detergent Valve 98011930-32 SSG 579-585 • 9.801-193.0 • Rev. 1/13a... - Page 27 8.706-735.0 Bushing, 1" Snap 9.800-042.0 Decal, Operating Instructions 9.802-064.0 Grommet, Rubber, Nozzle Holder 9.800-049.0 Label, Manufacturer's Cleaning Solution 8.704-660.0 Label, Shark 9.800-041.0 Label, Warning 9.800-034.0 Lexan, Cover, Outdoor 8.932-968.0 Label, Outdoor 9.803-250.0 9.802-188.0 Valve, Metering 9.800-039.0 Label, Metering Valve 9.802-252.0...
-
Page 28: Hose & Spray Gun Assembly & Parts List
HOSE & SPRAY GUN ASSEMBLY 98011930-34 HOSE & SPRAY GUN PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8.739-203.0 Hose, 3/8” x 50’, 2 Wire 9.802-299.0 Nozzle, 0005, Red Tuff Flex (582.0, 583.0) 8.710-384.0 Gun, ST-1500, 5000 PSI 9.802-300.0 Nozzle, 1505, Yellow 10.4 GPM... -
Page 29: Burner Specifications
SPECIFICATIONS BECKETT BURNER SPECIFICATIONS Burner Fuel Burner Fuel Model No. Assy No. Nozzle Transformer Motor Fuel/Pump Solenoid Coil Electrode 1.110-579.0 9.802-559.0 8.717-273.0 9.802-663.0 9.802-638.0 9.802-562.0 9.802-639.0 9.802-668.0 1.110-580.0 9.802-559.0 9.802-577.0 9.802-663.0 9.802-638.0 9.802-562.0 9.802-639.0 9.802-668.0 1.110-581.0 w/Gen 8.750-777.0 8.717-366.0 9.803-060.0 9.803-056.0 9.802-645.0 9.802-640.0 9.802-669.0... -
Page 30: Pump Specifications
SPECIFICATIONS PARTS SPECIFICATIONS ENGINE PUMP Machine Pump Part Pulley Bushing Engine Engine Model Model Number Unloader Pulley Part # Bushing Part # Engine Model Part # Pulley 1.110-579.0 KT4035 9.802-345.0 8.715-483.0 2BK100H 9.802-391.0 25MM 9.802-403.0 GX 390 (389CC) 9.802-321.0 2BK34H 1.110-580.0 KT6035 9.802-346.0 8.715-483.0... - Page 31 SPECIFICATIONS GENERATOR ENGINE Pulley Bushing Belt Belt Pulley Belt Model Part # Bushing Part # Size Part # Pulley Part # Belt Part # Bushing Part No. 579.0 9.802-382.0 H x 1 9.802-399.0 BX44(2) 8.715-705.0 580.0 9.802-382.0 H x 1 9.802-399.0 BX42(2) 8.715-703.0...
-
Page 32: Kt.1 Pump Exploded View And Parts List
KT.1 SERIES PUMP EXPLODED VIEW 9.802-345.0 KT4035.1 Right 9.803-410.0 KT4035.1 Left 9.803-411.0 KT4040.1 Right 9.803-412.0 KT4040.1 Left 9.803-413.0 KT5030.1 Right 9.803-414.0 KT5030.1 Left 9.802-346.0 KT6035.1 Right 9.803-416.0 KT6035.1 Left TORQUE SPECS Item # Ft.-Lbs. KT.1 SERIES PUMP EXPLODED VIEW & PARTS LIST ITEM PART NO. - Page 33 KT.1 SERIES PUMP EXPLODED VIEW & PARTS LIST ITEM PART NO. DESCRIPTION See Kit O-Ring Ø1.78 x10.82 See Kit Teflon Ring See Kit Plunger See Kit Copper Spacer 9.803-143.0 Plunger Rod 9.803-157.0 Connecting Rod 9.802-912.0 Snap Ring 9.802-915.0 Connecting Rod Pin 9.802-889.0 Spring Washer 9.802-937.0...
-
Page 34: Kna Burner "S" Replacement & Parts List
CLEAR FLAME BURNER "S" REPLACEMENT PARTS For best performance specify genuine KNA replacement parts 8.918-919.0 SSG 579-585 • 9.801-193.0 • Rev. 1/13a... - Page 35 CLEAR FLAME BURNER "S" REPLACEMENT PARTS For best performance specify genuine KNA replacement parts SSG 579-585 • 9.801-193.0 • Rev. 1/13a...
-
Page 36: Kna Burner "M/L" Replacement & Parts List
CLEAR FLAME BURNER "M/L" REPLACEMENT PARTS For best performance specify genuine KNA replacement parts 8.920-645.0 SSG 579-585 • 9.801-193.0 • Rev. 1/13a... - Page 37 CLEAR FLAME BURNER "M/L" REPLACEMENT PARTS For best performance specify genuine KNA replacement parts SSG 579-585 • 9.801-193.0 • Rev. 1/13a...
-
Page 38: Vrt3 Unloader Exploded View And Parts List
VRT3 UNLOADER EXPLODED VIEW AND PARTS LIST 8.750-297.0, 8 GPM, 2320 PSI 8.750-298.0, 8 GPM, 3630 PSI 8.750-299.0, 8 GPM, 4500 PSI ITEM PART NO. DESCRIPTION 8.750-713.0 Outlet Fitting 8.750-712.0 Knob, Unloader 8.750-709.0 Repair Kit, VRT3, 2320/3630 PSI 8.750-710.0 Repair Kit, VRT3, 4500 PSI (Kit Items: 3, 4, 6, 9-12, 21, 24) Unloader Adjustment Procedures Remove lock nut (Item 19). - Page 39 Dealer or other sales or service outlet to another purchaser. Shark products that are sold by any distributor or retailer that is not an official authorized dealer or retailer of Shark products. Defects caused by acts of nature and disaster including, but not limited to, floods, fires, wind, freezing, earthquakes, tornadoes, hurricanes and lightning strikes.
- Page 40 www.sharkpw.com Form # 9.801-193.0 • Revised 1/13a • Printed in U.S.A. or Mexico...
