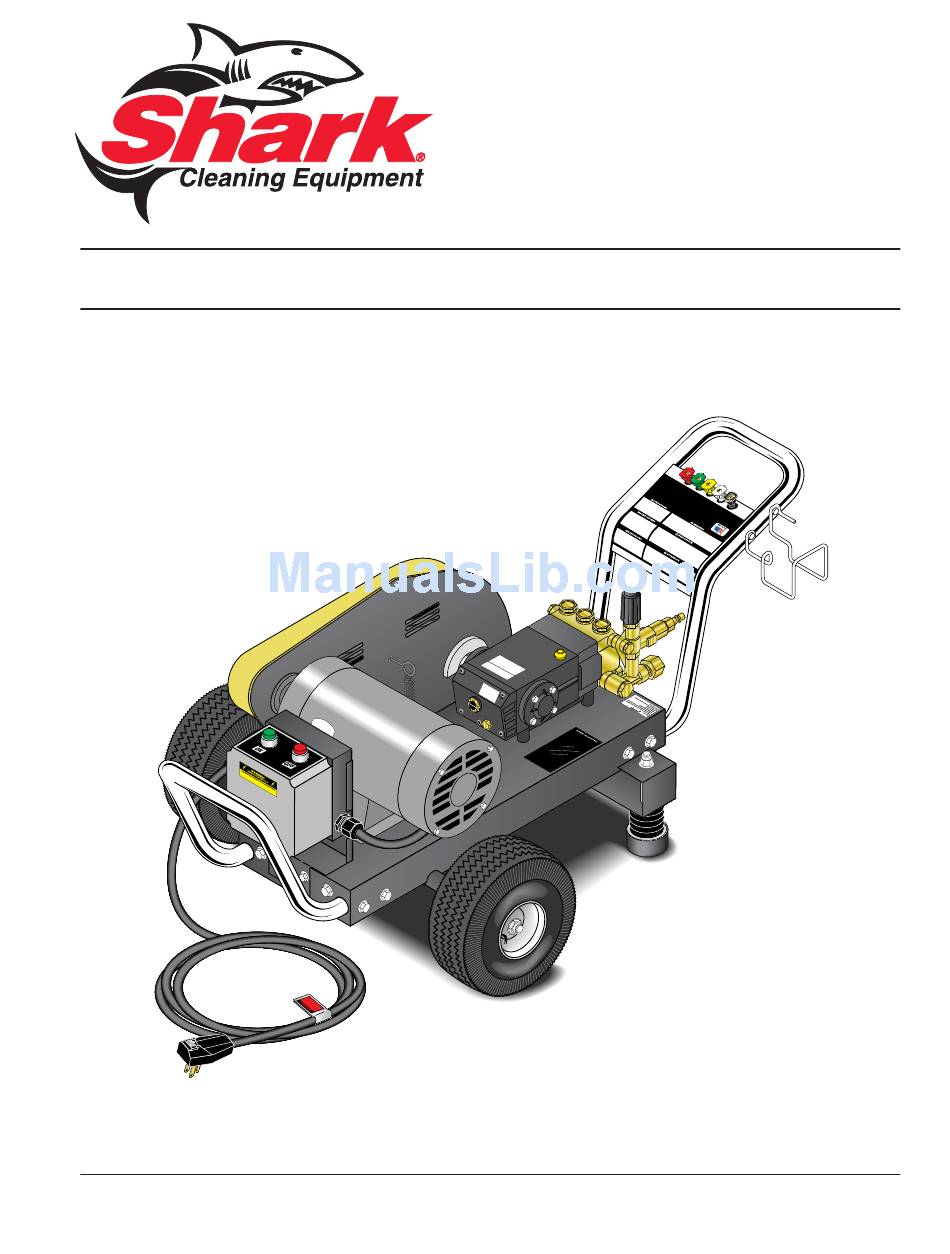

- Page 1 MODEL: BT OPERATING INSTRUCTION AND PARTS MANUAL ■ BT-3530 ■ BT-4020 ■ BT-5030 For technical assistance or the SHARK dealer nearest you visit our website at www.shark-pw.com #97-727...
-
Page 3: Table Of Contents
CONTENTS Introduction ..................... 4 Important Safety Information ..............4-5 Component Identification ................. 6 Assembly Instructions ................7 Operating Instructions ................8 Detergents and General Operating Techniques ........9 Shut Down and Clean-Up ..............10 Storage ....................10 Troubleshooting ................11-12 Preventative Maintenance .............. -
Page 4: Introduction
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. interrupter (GFCI) power cord (120V and 230V 1 ph). All other models must be connected to a All information in this manual is based on the latest GFCI circuit breaker. product information available at the time of printing. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING: High pressure spray 14. Do not allow acids, caustic or abrasive fluids to WARNING can cause paint chips or other pass through the pump. particles to become airborne 15. Inlet water must be cold and clean fresh water. and fly at high speeds. -
Page 6: Component Identification
COMPONENT IDENTIFICATION Water Supply Hose Pump Protector (not included) Detergent Injector Oil Level Sight Glass Dipstick Start/Stop Switches Power Inlet Supply Connector GFCI Detergent Bucket Pump (not included) Detergent Tube Spray Wand Pressure Nozzle Power Nozzle Swivel Cord Trigger Quick Connector Soap Coupler... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Pressure Pressure Spray Nozzle Nozzle Wand Coupler Safety Wand Latch Coupler High Pressure Coupler Hose Collar STEP 1: Attach the high pressure STEP 2: Pull the spring-loaded col- STEP 3: Release the coupler col- hose to the spray gun using teflon lar of the wand coupler back to in- lar and push the nozzle until the tape on hose threads. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Cold Water Source Garden Hose STEP 1: Connect garden hose to the STEP 2: Trigger the spray gun to STEP 3: Connect machine to ad- cold water source and turn water on eliminate trapped air then wait for a equate power source. -
Page 9: Detergents And General Operating Techniques
DETERGENTS AND GENERAL CLEANING TECHNIQUES WARNING: Some detergents may THERMAL PUMP PROTECTION WARNING be harmful if inhaled or ingested, causing severe nausea, fainting If you run the engine on your pressure washer for 3-5 or poisoning. The harmful ele- minutes without pressing the trigger on the spray gun, ments may cause property dam- circulating water in the pump can reach high tempera- age or severe injury. -
Page 10: Shut Down And Clean-Up
SHUTTING DOWN AND CLEAN-UP STEP 1: Remove detergent suction STEP 2: Turn off machine. STEP 3: Turn off water tube from container and insert into supply. one gallon of fresh water. Slide nozzle forward for low pressure or to connect black detergent nozzle. Pull trigger on spray gun and siphon water for one minute. -
Page 11: Troubleshooting
TROUBLESHOOTING l i b y t i i t s . y r y t l . y r y l t . y r . y r . y r . y r o i t . y r c i f t l i f . -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION MOTOR WILL NOT Usually caused by line trouble, such Check source of power. Check overloads, as single phasing at the starter fuses, controls, etc. START Overload. Compare actual amps Locate and remove source of excessive MOTOR OVERHEATING (measured) with nameplate rating... -
Page 13: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 14: Exploded View
EXPLODED VIEW 39,77,106 Model PE3-11024 BT-35007A, 50 49 PE4-3000A 42,95,96,104 39 106 39, 106 38,39 97-727, 96-721 • REV. 4/06... -
Page 15: Exploded View
EXPLODED VIEW BT Models 353007, 402007, 503007 PE3-11024D PE4-20024, 4-30024, 5-30024 97-727, 96-721 • REV. 4/06... -
Page 16: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 6-01060 Cord, w/GFCI, 120V/20 Amp, 90-2004 Nut, Jam, ESNA, NC, 5/8" 36' (3-11024D) 90-4005 Washer, Flat, SAE, 5/8" 6-0105 Cord, Service 12/4 (353007C; 4-0307 Tire & Wheel Cmpl, Steel 6" 4-20024B,C;... - Page 17 EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4-12806000 Nozzle, SAQC MEG 0506 95-07101211 Back Plate, Belt Guard, Red (4-20024, 402007) Large (All Models Except 4-12806015 Nozzle, SAQC MEG 1506 3-11024) Yellow (4-20024, 402007) 95-07101213 Back Plate, Belt Guard, 4-12806025 Nozzle, SAQC, Meg 2506 Small (3-11024)
-
Page 18: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION ▲ Strain Relief, Watertite 90-2007 Nut, 3/8" Hex NC 6-051595 (3-11024D; 353007B,C; 11-1042 Label, Ground 4-20024A,B,C; 4-30024B,C; 2-1042 Tee, 1/2" (4-20024, 402007A,B,C) 4-30024, 5-30024) ▲ Strain Relief, 1" Metal 6-051700 (4-30024A, 5-30024C, 4-02110000... -
Page 19: Hose & Spray Gun Assembly
HOSE & SPRAY GUN ASSEMBLY HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2-2002 Coupler, 3/8" Female 4-16540 Brass Soap Nozzle ▲ Quick Coupler O-Ring 2-0121 Nozzle, See Page 16, Item #31 Large 3-12021 Injector, Chem, Non-Adj, 4-02043450C... -
Page 20: Specifications
SPECIFICATIONS PARTS SPECIFICATIONS PUMP MOTOR P u m p U n l o a d e r P u m p Pump Pulley P u m p B u s h i n g M o t o r M o t o r Model Pump Part No. -
Page 21: Specifications
SPECIFICATIONS MOTOR (CON'T) M o t o r M o t o r Pulley M o t o r B u s h i n g B e l t B e l t C o n t a c t o r O v e r l o a d Model Model Pulley... -
Page 22: D Pump Exploded View And Parts List
PUMP EXPLODED VIEW 5-1709 - . t PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 70-020292 Crankcase 70-160121 Brass Plug G1/4 See Kits Below Plunger Oil Seal 70-180118 Manifold Stud Bolt 70-060181 O-Ring Ø1.78 x 28.30 70-140001 Washer 70-120131... - Page 23 PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 70-120023 Plunger, 15mm 70-140027 Copper Spacer 70-060130 O-Ring Ø1.78 x 5.28 70-000913 Teflon Ring 70-000320 Plunger Rod 70-150204 Connecting Rod Pin 70-010008 Connecting Rod 70-140102 Spring Washer 70-180132 Connecting Rod Screw 70-070005 Sight Glass 70-060302...
- Page 24 PUMP EXPLODED VIEW AND PARTS LIST 5-1728 PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 70-020210 Crankcase 70-140301 Washer 70-060200 Plunger Guide 70-060306 Copper Washer 3/8" See Kit Below Plunger Oil Seal 70-160117 Brass Plug 3/8" 70-060108 O-Ring Ø1.78 x 31, 47 70-140001...
- Page 25 PUMP EXPLODED VIEW PARTS LIST (CONT) ITEM PART NO. DESCRIPTION See Kit Below Plunger (LT 6035) See Kit Below Plunger (LT 5030) 70-140014 Copper Spacer 70-000300 Plunger Rod 70-010000 Connecting Rod 70-150000 Snap Ring 70-150200 Connecting Rod Pin 70-140103 Spring Washer 70-180101 Connecting Rod Screw 70-060185...
- Page 26 PUMP EXPLODED VIEW AND PARTS LIST 5-1410 5-1415 26 27 - . t PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 70-020209 Crankcase 70-160120 Brass Plug 1/2" 70-060201 Plunger Guide 70-060307 Copper Washer 1/2" See Kits Below Plunger Oil Seal 70-160216 Manifold Head 70-060107...
- Page 27 PUMP EXPLODED VIEW PARTS LIST (CONT) ITEM PART NO. DESCRIPTION 70-160006 Oil Dip Stick 70-000102 Crankshaft Seal 70-030102 Shim 70-050050 Bearing Housing 70-180001 Plunger Bolt 70-140012 Copper Spacer 70-060103 O-Ring Ø1.78 x 7.66 70-000904 Teflon Ring See Kits Below Plunger (4035, 4035H) See Kits Below Plunger (4030, 5030) See Kits Below Plunger (3540) 70-140015...
-
Page 28: Ar-Al Unloader Exploded View And Parts List
AR-AL UNLOADER EXPLODED VIEW AND PARTS LIST AR - AL 607 #5-3208 7-8 Gpm, 4200 Psi ITEM PART NO. DESCRIPTION 83-005150010 Check Connector 83-005060108 ‡ O-Ring 2068 83-005100002 Shutter Spring 83-004120000 Shutter 83-004060109 ‡ O-Ring 631290 SH 83-005170102 1/4 G Plug 83-005030101 M8 Lock Nut 83-005100100... -
Page 29: Vba35 Unloader Exploded View And Parts List
VBA35 UNLOADER EXPLODED VIEW #5-3329 VBA35 VBA35 UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 70-020444 Body Valve 70-110207 Poppet 70-020452 Body Valve 70-140802 Seal Washer 3/8 70-060141 O-Ring A, C 70-180004 Hollow Bolt, 3/8 70-150316... -
Page 30: Vb55 Unloader Exploded View And Parts List
VB55 UNLOADER EXPLODED VIEW 5-3029 8 GPM @ 3650 PSI VB55 UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION 1-60005831 Delivery Coupl. 3/8F BSP Brass 1-10401113* Back-up Ring, 11 x13 x 2mm 1-10307002* O-Ring, 1.78 x 18.77 mm Ni 85 1-10306000* O-Ring, 1.78x12.42 mm 1-60005351 Spring, 0.7x9x20 mm Sst 1-10306801* O-Ring, 1.78x17.17 mm Ni85... - Page 32 FITNESS FOR A PARTICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. While SHARK attempts to assure that its products meet national codes, it cannot be responsible for how the customer chooses to use or install the product.
- Page 33 Form #97-727 • Revised 4/06 • Printed in U.S.A.
