Summary of Contents for Shark BG-3020

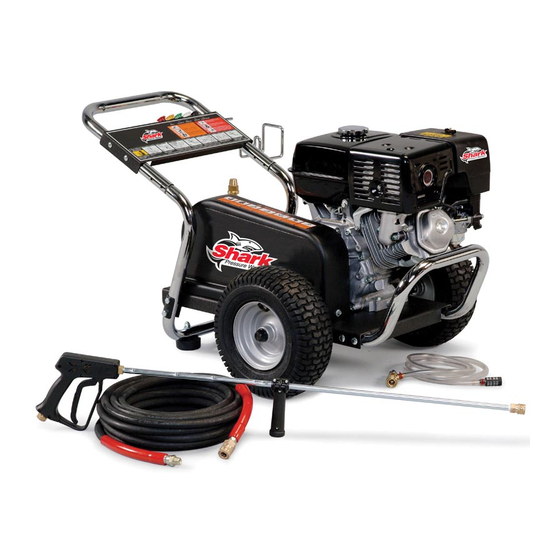

- Page 1 MODEL: BG OPERATING INSTRUCTION AND PARTS MANUAL BG-3020 BG-3025 BG-3030 BG-3525 BG-3530 BG-3535 BG-5030 SHARK PRESSURE WASHERS 4275 N.W. Pacific Rim Blvd. Camas, WA 98607 USA For technical assistance or the Shark Dealer nearest you, call 1-800-771-1881.
- Page 2 Height = 35" BG-3530 Length = 39" Width = 31" Height = 35" BG-3535 Length = 39" Width = 31" Height = 35" BG-5030 Length = 39" Width = 31" Height = 35" Shark BG Manual • Form #97-6125 • Revised 5/03...
-
Page 3: Table Of Contents
General Washing Techniques ......... 7 Oil Change Record ..........18 How To Use the Detergent Injector ......8 Storage ..............19 Warranty SERIAL NUMBER: DATE PURCHASED: FOR SALES AND SERVICE, PLEASE CONTACT: Shark BG Manual • Form #97-6125 • Revised 5/03... -
Page 4: Introduction
It also contains chemicals known, in certain quantities, to cause can- Shark reserves the right to make changes at any time cer, birth defects or other reproductive harm. without incurring any obligation. WARNING: Flammable liquids... -
Page 5: Pre-Operation Check
4. Attach swivel connector on discharge hose to spray 11. Shark will not be liable for any changes made to our gun using teflon tape on threads. standard machines, or any components not pur- 5. -
Page 6: Component Identification
Note: If trigger on spray gun is released for more than 2 minutes, water will leak from valve. Warm water Detergent Injector — Allows you to siphon and mix will discharge from pump onto floor. This system detergents. prevents internal pump damage. Shark BG • 97-6125 • Rev. 5/03... -
Page 7: Operating Instructions
CAUTION: Pull trigger on spray gun to relieve pres- sure if machine does not start after one pull of starter grip. CAUTION: Small engines may kick back. Do not hold starter grip tightly in hand. Shark BG • 97-6125 • Rev. 5/03... -
Page 8: How To Use The Detergent Injector
4. Start machine as outlined in Operating Instructions. SOME DETERGENTS The machine can siphon and mix de- 5. Place detergent pick-up tube into container of deter- MAY BE HARMFUL tergents with the use of Shark's de- gent solution. IF INHALED OR INGESTED tergent injector kit. -
Page 9: Exploded View, Models 3020, 3025
BG SERIES PRESSURE WASHER OPERATOR’S MANUAL EXPLODED VIEW 3020, 3025 MODELS Shark BG • 97-6125 • Rev. 5/03... - Page 10 Wheel & Tire Assy, 4" Steel Rim 90-102751 Bolt, 1/2" x 3-1/2" NC HH Tap, w/Tube All Thread 2-01403 Bushing, Snap, 5/8", 90-3096 Washer, 1/2" Flat P/N 2123 10-02025A Label, "Hot" 10-020209 Label, "Danger" Shark BG • 97-6125 • Rev. 5/03...
- Page 11 Nut, 3/8" (Legacy Pump Only) 2 90-4009 Washer, Lock 90-1007 Bolt, 5/16" x 1" 90-4001 Washer, 5/16" 90-2001 Nut, 5/16" ESNA 90-4005 Washer, 5/18", Flat, SAE 11-01011 Label, Warning, Pictorial, Small 11-32291 Label, Shark, Belt Guard Shark BG • 97-6125 • Rev. 5/03...
-
Page 12: Exploded View All Models Except 3020, 3025
BG SERIES PRESSURE WASHER OPERATOR’S MANUAL EXPLODED VIEW 3030, 3530, 3535, 5030 MODELS 18, 19 25,40,39 19,10 Shark BG • 97-6125 • Rev. 5/03... -
Page 13: Exploded View Parts List
Wheel & Tire, 4" Steel Rim (3525, 3530, 3535) 2-2006 Nipple, 3/8" x 3/8" FNPT ST. (Legacy Pumps) 2-30082 Pump Protector, 1/2" PTP 90-4002 Washer, 3/8", SAE, Flat 90-4001 Washer, 5/16", Flat SAE Shark BG • 97-6125 • Rev. 5/03... - Page 14 Bolt, 1/4" x 3/4", Whiz Loc 5-602036 Belt, BX36 (353531) 90-1016 Bolt, 3/8" x 1" 5-602037 Belt, AX37 (352531) Not Shown 5-602038 Belt AX38 (352537, 353037, 353537, 303077) 5-604037 Belt, BX37 (503027, 503021) Shark BG • 97-6125 • Rev. 5/03...
-
Page 15: Hose & Spray Gun Assembly All Models
Clamp, Hose, 1/4" 4-02080000 Tube, 1/4" x 1/2", Clear Vinyl 4-01246 Spray Gun, AP 1000 4-0110322 Wand, Side Grip, w/Coupler 2-1904 Strainer, Plastic, 1/4" Pressure Nozzle Not Shown (See Exploded View) 4-16540 Brass Soap Nozzle Shark BG • 97-6125 • Rev. 5/03... -
Page 16: Troubleshooting
Check plumbing system for leaks. Retape leaks with teflon tape. Faulty or misadjusted unloader Adjust unloader for proper pressure. Install valve repair kit when needed. Call SHARK technical support. Worn packing in pump Call SHARK technical support. Machine has been stored in... -
Page 17: Troubleshooting
Spray gun closed with machine Open spray gun or turn off machine. WATER LEAKING running 2 minutes or longer FROM PUMP PROTECTOR Excess water supply pressure Place a pressure regulator at end of 50' garden hose. Shark BG • 97-6125 • Rev. 5/03... -
Page 18: Preventative Maintenance
Attention to regular preventative mainte- nance procedures will assist in preserving the performance of your equipment. Contact your Shark dealer for main- tenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform mainte- nance more often under severe conditions. -
Page 19: Storage
This closes both the intake and exhaust valves to prevent the inside of the cylinder from rusting. 4. Cover the pressure washer and store in a clean, dry place that is well ventilated away from open flame or sparks. Shark BG • 97-6125 • Rev. 5/03... -
Page 20: Warranty
TICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. - Page 22 N.W. Pacific Rim Blvd. • Camas, WA 98607 • 1-800-771-1881 Form #97-6125 • Revised 5/03 • Printed in U.S.A.
