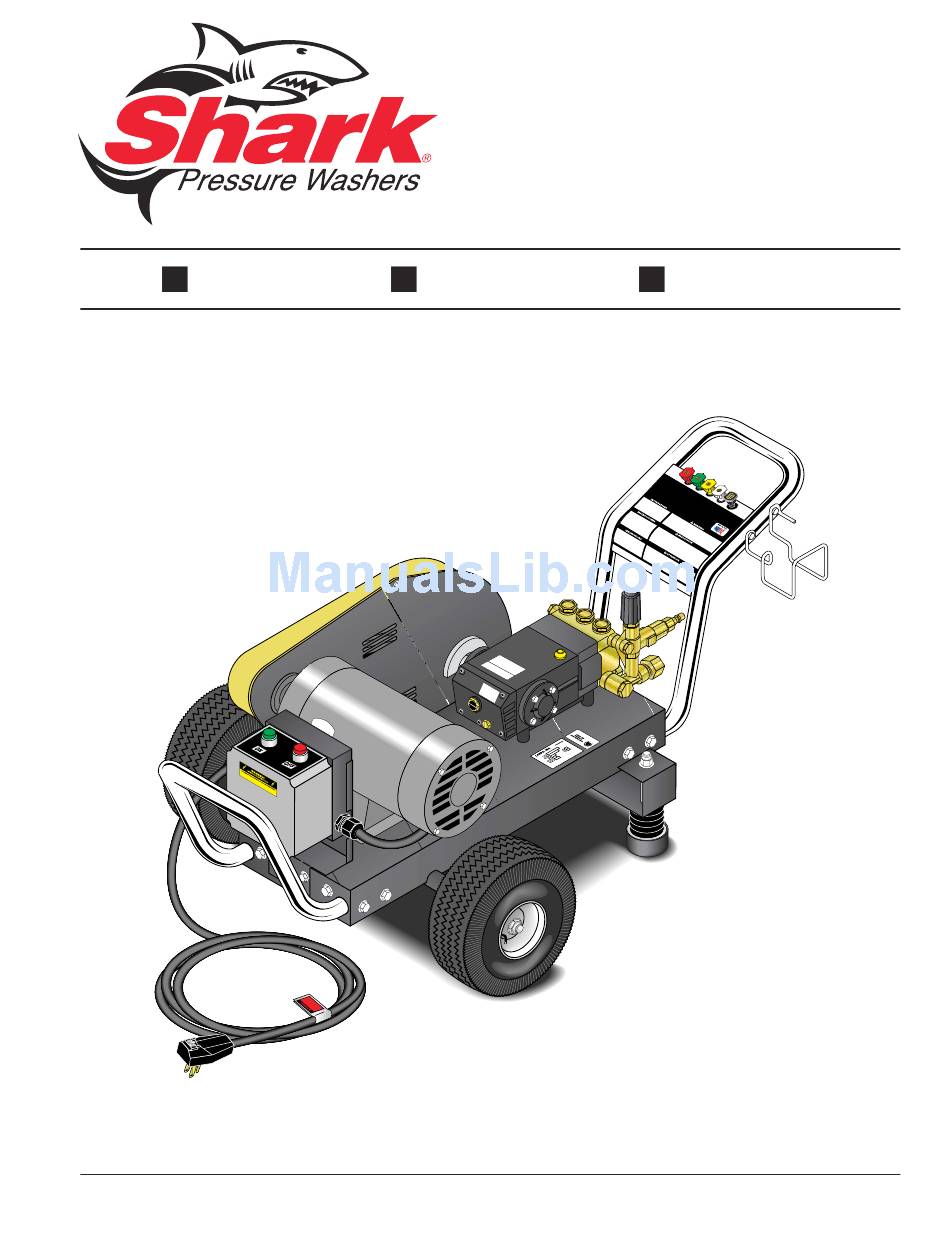

- Page 1 MODEL: BT OPERATING INSTRUCTION AND PARTS MANUAL BT-3530 BT-4020 BT-5030 For technical assistance or the SHARK dealer nearest you, call 1-800-771-1881 or visit our website at www.shark-pw.com #97-727...
-
Page 3: Table Of Contents
CONTENTS Introduction ..................... 4 Important Safety Information ..............4-5 Component Identification ................ 6 Assembly Instructions ................7 Operating Instructions ................8 Detergents and General Operating Techniques ........9 Shut Down and Clean-Up ..............10 Storage ....................10 Troubleshooting ................11-12 Preventative Maintenance .............. -
Page 4: Introduction
To comply with the National Electrical Code (NFPA INTRODUCTION 70) and provide additional protection from risk of electric shock, these pressure washer are equipped Thank you for purchasing this Pressure Washer. with a UL approved ground fault circuit interrupter All information in this manual is based on the latest prod- (GFCI) power cord (120V and 230V 1 Ph). - Page 5 WARNING: High pressure spray 14. Do not allow acids, caustic or abrasive fluids to pass WARNING through the pump. can cause paint chips or other particles to become airborne and 15. Inlet water must be cold and clean fresh water. fly at high speeds.
-
Page 6: Component Identification
COMPONENT IDENTIFICATION Detergent Water Supply Hose Injector (not included) Oil Level Sight Glass Dipstick Start/Stop Switches Power Inlet Supply Connector GFCI Detergent Bucket (not included) Detergent Tube Wand Spray Pressure Nozzle Power Nozzle Swivel Cord Trigger Quick Connector Soap Coupler Nozzle High Pressure Hose Detergent Injector - Allows you to siphon and mix de-... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Pressure Spray Pressure Nozzle Nozzle Wand Coupler Safety Wand Latch Coupler Wand High Pressure Collar Hose STEP 3: Release the coupler col- STEP 1: Attach the high STEP 2: Pull the spring-loaded col- lar and push the nozzle until the pressure hose to the spray lar of the wand coupler back to in- collar clicks. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Cold Water Source Garden Hose STEP 3: Connect machine to ad- STEP 1: Connect garden hose to the STEP 2: Trigger the spray gun to equate power source. Push reset cold water source and turn water on eliminate trapped air then wait for button on GFCI. -
Page 9: Detergents And General Operating Techniques
DETERGENTS AND GENERAL OPERATING TECHNIQUES WARNING: Some detergents pump protector engages and cools the pump by dis- WARNING charging the warm water onto the ground. This thermal may be harmful if inhaled or in- device prevents internal damage to the pump. gested, causing severe nausea, fainting or poisoning. -
Page 10: Shut Down And Clean-Up
SHUTTING DOWN AND CLEAN-UP STEP 1: Remove detergent suction STEP 3: Turn off water tube from container and insert into supply. one gallon of fresh water. Slide nozzle forward for low pressure or STEP 2: Turn off machine. to connect black detergent nozzle. Pull trigger on spray gun and siphon water for one minute. -
Page 11: Troubleshooting
TROUBLESHOOTING l i b y t i i t s . y r y t l . y r y l t . y r . y r . y r . y r o i t . y r c i f t l i f . - Page 12 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION MOTOR WILL NOT Usually caused by line trouble, such Check source of power. Check overloads, START as single phasing at the starter fuses, controls, etc. Overload. Compare actual amps Locate and remove source of excessive MOTOR OVERHEATING (measured) with nameplate rating friction in motor or load.
-
Page 13: Preventative Maintenance
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 14: Exploded View
EXPLODED VIEW Model PE3-1100 97-711, 97-727, 96-721 • REV. 2/04... -
Page 15: Exploded View
EXPLODED VIEW 22 34 Models PE4-2000, PE4-3000 Model PE5-3000 97-711, 97-727, 96-721 • REV. 2/04... -
Page 16: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 90-2004 Nut, Jam, ESNA, NC, 5/8" 2 6-01060 Cord, w/GFCI, 120V/20 Amp, 36' (3-1100) 90-4005 Washer, Flat, SAE, 5/8" 6-0105 Cord, Service 12/4 (4-2000B,C; 4-0307 Tire & Wheel Cmpl, Steel 6" 4-3000C,N;5-3000C) 15 ft. - Page 17 EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4-16540 Nozzle, Brass, Soap See Belt Specifications, Pages 20-21 2-1902 Strainer, Inlet Garden Hose 1 6-03911 Lid, Plastic, Carlon (3-1100)1 2-10942 Swivel, 1/2" MP x 3/4" GHF 1 6-03904 Enclosure, Fiberglass, Nema 4X (except 3-1100, 4-3000A)
- Page 18 EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION 95-07101216/B Block, Unloader, 3/8" x 3/8", Brass 2-1060 Elbow, 1/2" x 3/8", 90° 90-1020 Bolt, 3/8" x 2", NC HH 90-10343 Bolt, 10mm x 20mm, HH 4 90-400910 Washer, 7/16" Lock, Split 4 90-4007 Washer, 3/8"...
-
Page 19: Hose & Spray Gun
HOSE & SPRAY GUN ASSEMBLY HOSE & SPRAY GUN ASSEMBLY PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 2-2002 Coupler, 3/8" Female 4-16540 Brass Soap Nozzle 2-0121 Quick Coupler O-Ring Nozzle, See Page 16, Item #31 Large 4-011183 Detergent Injector (3-1100) 1 4-02043450C Hose 50' x 3/8"... -
Page 20: Specifications
SPECIFICATIONS PARTS SPECIFICATIONS PUMP MOTOR Pump Unloader Pump Pump Pulley Pump Bushing Motor Motor Model Pump Part No. Part No. Pulley Par t No. Bushing Par t No. Size Voltage/ph 3-11021D T991 5-2302 5-3025 2AK84H 5-40208401 24MM 5-512024 120V/1PH 4-20024A LT5030 5-1728 5-3208... - Page 21 SPECIFICATIONS MOTOR (CON'T) Motor Motor Pulley Motor Bushing Belt Belt Contactor Overload Model Pulley Part No. Bushing Par t No. Size Par t No. Par t No. Par t No. 5-1047 AK28x5/8 5-40202858 AX37 (1) 5-602037 5-10401 2AK46H 5-40204601 HX1-1/8" 5-511113 AX42 (2) 5-602042...
- Page 23 TICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes.
- Page 24 Form #97-727 • Revised 2/04 • Printed in U.S.A.
