Table of Contents Introduction and Display Overview....3 Display Diagram ..........4 Pinouts ..............7 External Control Interface ..........8 Operation ............9 Specifications ........... 12 DO-160D Compliance Matrix ........13 Troubleshooting ..........14 Technician Mode ..........15 Disclaimer ............18... - Page 3 1020 Owen Loop South Eugene OR 97402 541-342-3802 www.rosenaviation.com Doc # 9001032 Rev C *9001032*...
-
Page 4: Introduction And Display Overview

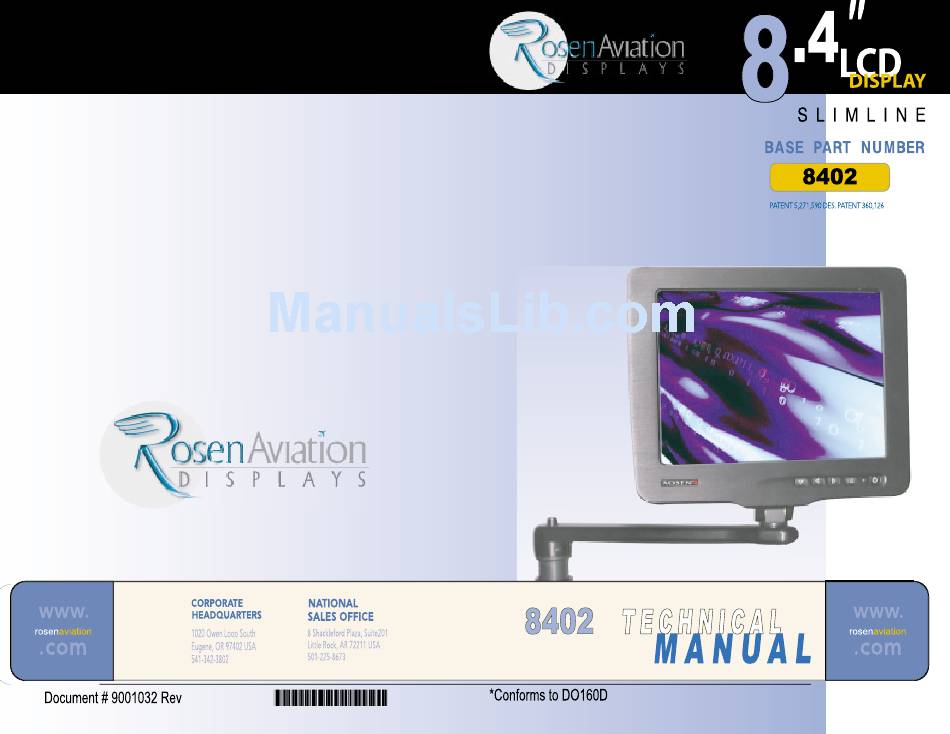

Introduction and Display Overview Introduction and Display Overview Welcome to the 8402 Technical Manual for the 8.4" LCD display. This manual provides an overview of display details including: • Pinouts • Installation • Operation • Troubleshooting • Specifications The 8402 base model includes the following features: •... -
Page 5: Display Diagram
Display diagram Display Diagram Arm Mounts Dimensions (Inches) (8402-010 configuration shown) Contact Rosen Aviation sales for other arm options... - Page 6 Display diagram...
- Page 7 Display diagram Display Diagram Bulkhead Mount Dimensions (Inches)
-
Page 8: Pinouts
Pinouts Pinouts Slimline Base Receptacle Model 0100-002 & 0100-004 Connector: 9 Pin Male D-Subminiature Positronic SDM0000Z Mate: 9 Pin Female D-Subminiature Positronic SD9F0000X Pin # Monitor Signal Chassis Ground +28V DC DC Return *Conn to pin 5/Select Switch *Conn to pin 4/Select Switch Return Reserved Video Signal Input Video Ground... -
Page 9: External Control Interface
Pinouts 8402-001 Main Connector Pinout Connector: 5W1 Combo-D MALE Mate: 5W1 Combo-D FEMALE Pin # Monitor Signal Select Switch Return +28V DC Input Select Switch DC Return A1 Signal Video Signal Input A1 Shield Video Ground Shell Chassis Ground Note: Base Receptacles sold separately. -
Page 10: Operation
Pinouts External Control Dimensions ( Inches) 2X 6-32 UNC X .188 ` .900 .550 3.700 .350 Operation 8.4" Monitor Button functions Hot key buttons Source Select Brightness Down Brightness Up Status LED Scroll Down Scroll Left Scroll Right Menu On/Off Power On/Off Menu Buttons... - Page 11 Operation Operation On Screen Display (OSD) Main Menu The On Screen Display (OSD) provides a set of menus that enable you to adjust or view monitor features. Main menu selections lead to submenus with additional choices. Press the Menu button on the switch panel to see the Main menu. Menu option Description Brightness...
- Page 12 Operation Operation (Cont) Monitor Info Menu Description Menu option Displays monitor’s minute/hour timer Life Timer Displays software revision SW Revision Displays power cycles Power On/Off Displays current video format Source Takes you to Temperature sub menu Temperature Menu Return to Advanced menu Back Temperature Menu Menu option...
-
Page 13: Specifications
Specifications Specifications LCD Performance Screen Resolution (pixels) 640 w x 480 h Display Viewing Area 6.73 x 5.05 in Viewing Angle ( At contrast ratio 10:1 ) Horizontal ±55º Vertical +40º up -70º down Contrast Ratio 200:1 (Min) 500:1 (Typ) Backlight Lamp Life (hours) 50000 hrs Screen Brightness 360 (Min) 450cd/m... -
Page 14: Do-160D Compliance Matrix
Induced Signal Suscept RF Suscept (Cond&Rad) Emission of RF Energy Lightning Induced Trans Lightning Direct Effects Icing Electrostatic Discharge X= Not Tested Technical Support For field support or to order parts, contact Rosen Aviation Displays at: 1-888-668-4955 or visit us at: www.rosenaviation.com... -
Page 15: Troubleshooting
Troubleshooting 8402 Trouble shooting PROBLEM POSSIBLE SOLUTION No power • Verify that the pinout is correct . Push and hold LED does not the power switch for about one second. come on • Verify Monitor is fully inserted into base receptacle. -
Page 16: Technician Mode
Technician Mode Technician mode Technician mode provides the ability to customize the Menu by restricting access to specified options. This section describes how to enter and exit technician mode and how to customize the main menu. Entering technician mode: Apply 28V to the monitor, wait until green light appears ( if monitor is in auto-off, press the power button ). - Page 17 Technician Mode Enabling/Disabling Individual Menu Items: The cursor works via the “scroll” button as in the normal menu mode. To disable a menu item, move the cursor to that line using the “scroll” button, hold the “scroll” button down for at least 5 seconds, then release it.
-
Page 19: Disclaimer
Disclaimer All information, including illustrations, is believed to be reliable. Users and/or installers, however, should independently evaluate the suitability of each product for their application. Rosen makes no warranties as to the accuracy or completeness of the information, and disclaims any liability regarding its use or installation.
