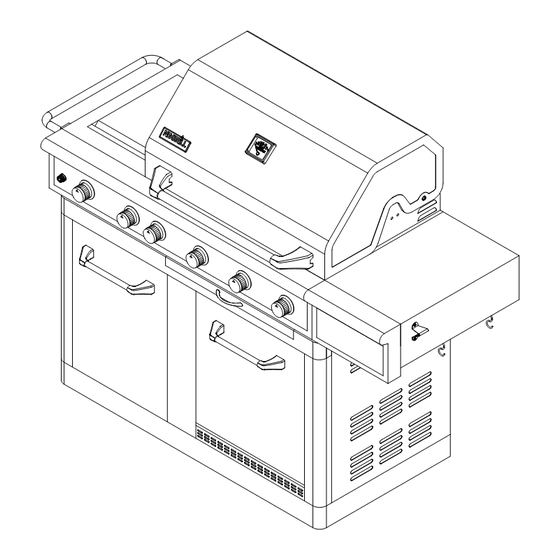

Nexgrill 720-0665 Operating Instructions Manual

Stainless steel gas grill
Hide thumbs Also See for 720-0665:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
WARNING
To reduce the risk of fire, burn hazard or other
injury, read the Manual carefully and completely
before using your grill.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2.
An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
Example only: SERIAL # ________ MFG. DATE ________ PURCHASE DATE: _________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-323-5263, 8 a.m. - 6 p.m., PST, Monday - Friday, 8 a.m. – 12 p.m.
Saturday. Please be sure to have you serial number available. This number can be found on
inside the front door of your grill.
STAINLESS STEEL GAS GRILL
BARBECUE AU PROPANE EN
ACIER INOXYDABLE(page 30)
PARRILLA A GAS DE ACERO
INOXIDABLE(página 61)
WARNING
FOR OUTDOOR USE ONLY.
WARNING
This grill is not intended to be
installed in or on recreational
vehicles and/or boats.
ITEM / ARTICLE / ARTICULO # 0296469
MODEL / MODÈLE / MODELO # 720-0665
J15Y08P-
®

Advertisement

Table of Contents
loading

Related Manuals for Nexgrill 720-0665

Summary of Contents for Nexgrill 720-0665

  • Page 1 STAINLESS STEEL GAS GRILL BARBECUE AU PROPANE EN ACIER INOXYDABLE(page 30) PARRILLA A GAS DE ACERO INOXIDABLE(página 61) MODEL / MODÈLE / MODELO # 720-0665 WARNING WARNING To reduce the risk of fire, burn hazard or other FOR OUTDOOR USE ONLY.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information......................2 Package Contents List.....................6 Preparation ........................6 Assembly Instructions......................7 Installation Instructions ....................11 Operating Instructions....................14 Gas Conversion from LP to NG ..................16 Refrigerator Safety Guide ....................21 Care and Maintenance ....................23 Troubleshooting ......................24 Warranty ........................26 Replacement Parts List....................27 SAFETY INFORMATION DANGER If you smell gas: WARNING...
  • Page 3 WARNING Never attempt to use damaged equipment. See your local liquid propane dealer for repair. WARNING Check all gas supply fittings for leaks before each use. Do not use the grill until all connections have been checked and do not leak. Do not smoke while leak testing. Never leak test with an open flame. WARNING WARNING This grill is not intended to be installed in or on...
  • Page 4 Screw the regulator (type QCC1) onto the cylinder. Leak check the hose and regulator connections with a soap and water solution before operating the grill (See “Leak Testing” instructions on page 12). Do not turn on the gas at the LP gas cylinder unless the quick connect gas hose is properly connected to the side burner gas pipe system and all burner valves are in the “OFF”...
  • Page 5 Do not heat unopened food containers as a build-up of pressure may cause the containers to burst. Use a covered hand when opening the grill lid. Never lean over an open grill. When lighting a burner, always pay close attention to what you are doing. Make certain you are aware of which burner you are lighting so that your body and clothing remain clear of open flames.

  • Page 6: Package Contents List

    When determining a suitable location take into account concerns such as exposure to wind, proximity to traffic paths, and keeping gas supply lines as short as possible. Place the grill in well-ventilated areas. Never place the grill in a building, garage, breezeway, shed or other such enclosed areas. During heavy use, the grill will produce a lot of smoke.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Fig. 1 1． Left Side Shelf Handle Assembly (1) Remove the four 1/4-in. x 12mm truss head screws that have been pre-placed into the left side panel as shown Fig. 1. Fig. 2 (2) Use these four screws to attach the left side shelf handle (C) onto the left side panel as shown Fig.
  • Page 8 Fig. 4 (2) Another 2 screws used to attach the right side shelf (B) are already screwed into the cart right panel. Loosen the 2 screws that are pre-placed onto cart right panel (Hint: Do not remove these 2 screws completely.) Remove one 5/32-in.x 10mm screw which has been pre-placed on the control panel.
  • Page 9 Fig. 7 3. Battery Installation Unscrew the ignition button housing; insert the battery into the housing with the positive terminal (+) facing outward. Replace the ignition button housing after the battery has been installed as shown in Fig.7. Fig. 8 4.

  • Page 10: Attach Hooks (D) To Right Side Shelf, As Shown In Fig

    Fig. 10 5. Hook Installation Attach hooks (D) to right side shelf, as shown in Fig.10. Fig. 11 6. Tank Tray Slide Out Bracket Prior to pulling out sliding tank tray, bracket must be rotated. Turn clockwise for free movement, or counterclockwise to lock in place.

  • Page 11: Installation Instructions

    Fig. 13 8. Liquid Propane Hook-Up Attach the regulator to the propane cylinder by turning the regulator handle clockwise as shown in Fig. 13. If the outdoor cooking appliance is not in use, the gas must be turned “OFF” at the Liquid Propane cylinder.
  • Page 12 CONNECTING THE LIQUID PROPANE CYLINDER To connect the Liquid Propane gas supply cylinder: 1. The cylinder valve should be in the “OFF” position. If not, turn the valve clockwise until it stops. 2. Make sure the cylinder valve has the proper type-1 external male thread connections per ANSI Z21.81. 3.
  • Page 13 INSTALLER FINAL CHECK • Maintain specified clearance of 24 inches from combustible materials and construction. • All internal packaging has been removed. • The hose and regulator are properly connected to the Liquid Propane cylinder. • The unit has been tested and is free of leaks. •...

  • Page 14: Operating Instructions

    OPERATING INSTRUCTIONS General Use of the Grill Each main burner is rated at 11,000 BTU/Hr. The main grill burners encompass the entire cooking area and are side ported to minimize blockage from falling grease and debris. Above the burners are flame tamers. The igniter knobs are located on the center portion of the valve panel.
  • Page 15 TO LIGHT THE MAIN BURNERS 1. Make sure all the knobs are in the “OFF” position, and then turn the Liquid Propane cylinder valve “ON” by slowly turning counterclockwise. 2. Open the lid, push and turn the main burner knob slowly to “IGNITE/HI”, keep pushing until the burner is lit. 3.

  • Page 16: Gas Conversion From Lp To Ng

    Main Burner 1. If you have already attempted to light the main burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. 2. Insert a match into the lighting rod as shown in Fig. 16. Ignite the match and insert through the cooking grids to the burner. 3.
  • Page 17 The process of converting is relatively simple and can be accomplished by any handy homeowner. We suggest, however, that a qualified gas technician do the conversion. Your warranty may be voided if the conversion is improperly completed. Please retain the parts supplied with the grill and these instructions so the technician can do the conversion.
  • Page 18 4. Install the NG regulator hose to the manifold and secure using a wrench. Main Tube Burner Conversion Tools required: Phillips Head Screwdriver (+) 6mm Nut Driver Steps： 1. Remove the main tube burners by removing the screw securing the burners near the back wall of the firebox and the screws near the front of the firebox that secure the igniter brackets to the burners.
  • Page 19 3. Restore the main burners. CAUTION: Make sure the value with orifice is inserted into the burner venturi. Restore the igniter brackets; adjust the distance between the burner and the corresponding igniter for proper ignition. Searing Side Burner Conversion Tools required: Phillips Head Screwdriver (+) 6mm Nut Driver 1.
  • Page 20 Rear Burner Conversion Tools Required: Phillips Head Screwdriver (+) 24 mm wrench 6mm Nut Driver 1. Remove the cover of the rear burner by unfastening the screws in the firebox. Use another hand to hold the orifice cover to keep it from falling when removed. 2.

  • Page 21: Refrigerator Safety Guide

    5 Take out the LP orifice, and replace with the NG orifice accordingly. After the orifice is placed, put the cover of the rear burner back to its original location. REFRIGERATOR SAFETY GUIDE IMPORTANT: READ THE FOLLOWING PRIOR TO CONNECTING POWER AND USE To reduce the risk of fire, electrical shock or injury when using this unit, follow basic precaution, including the following: Remove all packages before using this unit.
  • Page 22 INSTALLATION INSTRUCTIONS Before Using Your Unit • Remove the exterior and interior packing. • Before connecting the unit to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

  • Page 23: Care And Maintenance

    CARE AND MAINTENANCE Stainless Steel There are many stainless steel cleaners available. Always use the mildest cleaning process first, scrubbing in the direction of the grain. Do not use steel wool as it will scratch the surface. To touch up noticeable scratches in the stainless steel, sand very lightly with dry 100 grit sand paper in the direction of the grain.

  • Page 24: Troubleshooting

    Fig. 18 Flame Characteristics Check for proper burner flame characteristics. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting as shown in Fig. 18. The following steps should be followed for correcting the flame characteristics: 1.
  • Page 25 Problems Possible Solutions Burner blows out. 1. Check for any burner defects. 2. Check for proper burner installation. 3. Make certain the fuel mixture is not too lean. 4. Make sure the gas supply is sufficient. 5. See if the LP tank is empty. Low heat, LP gas.

  • Page 26: Warranty

    LIMITED WARRANTY (Model # 720-0665) The manufacturer warrants to the original consumer-purchaser only that this product (Model #720-0665) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and/ or freight pre-paid by the consumer, for review and examination.

  • Page 27: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-877-323-5263, 8 a.m. – 6 p.m., PST, Monday – Friday and 8 a.m. – 12 p.m. PST, Saturday. Warranty Warranty REF# DESCRIPTION REF# DESCRIPTION Coverage Coverage Tank tray slide bracket, Main Lid left Tank tray slide bracket,...
  • Page 28 Main burner igniter wire Swivel Caster With Brake Main burner igniter wire Side panel, left Lighting rod Main burner igniter wire Front trim panel, left Main burner igniter wire Door Magnet Main burner Refrigerator Center panel Flame tamer Bottom panel, LP Cooking grid with hole Swivel Caster Warming rack...
  • Page 29 Printed in China 20002000A0...
