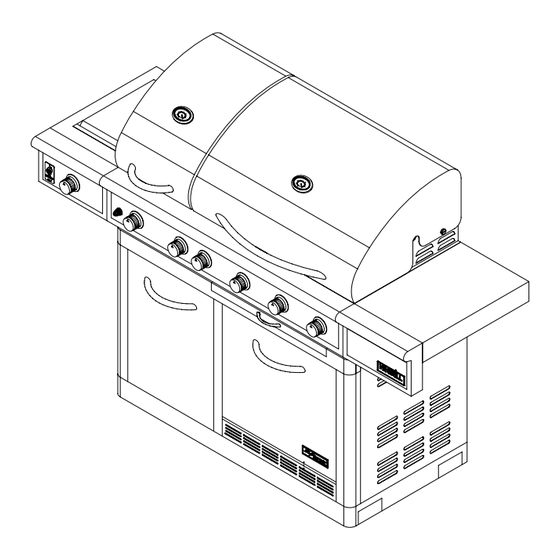

Nexgrill 720-0617 Assembly & Operating Instructions
  1. Manuals
  2. Brands
  3. Nexgrill Manuals
  4. Grill
  5. 720-0617
  6. Assembly & operating instructions

Nexgrill 720-0617 Assembly & Operating Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This Owner's Manual is provided and hosted by Appliance Factory Parts.
Nex - Old 720-0617 - Old
Owner's Manual
Shop genuine replacement parts for Nex - Old 720-0617
- Old
Find Your Nex - Old Grill Parts - Select From 32 Models
-------- Manual continues below --------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 720-0617 and is the answer not in the manual?

Questions and answers

Related Manuals for Nexgrill 720-0617

Summary of Contents for Nexgrill 720-0617

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Nex - Old 720-0617 - Old Owner's Manual Shop genuine replacement parts for Nex - Old 720-0617 - Old Find Your Nex - Old Grill Parts - Select From 32 Models...
  • Page 2 ASSEMBLY & OPERATING INSTRUCTIONS Model: 720-0617 FOR OUTDOOR USE ONLY FOR PROPANE GAS USE ONLY This instructions manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance...

  • Page 3: Table Of Contents

    Table of Contents Safety Instruction ..... Refrigerator Installation Instruction... Assembly Instruction ....8-13 Refrigerator Technical Data .

  • Page 4: Safety Instruction

    Safety Instruction continued IMPORTANT: READ THE FOLLOWING PRIOR TO CONNECTING POWER AND USE To reduce the risk of fire, electrical shock or injury when using this unit, follow basic precaution, including the following. Remove all packages before using this unit. WARNING ELECTRICAL GROUNDING INSTRUCTIONS This appliance (rotisserie motor) is equipped with a plug...
  • Page 5 Safety Instruction continued WARNING CAUTION: Beware of Flashback CAUTION: Spiders and small insects occasionally Do not try lighting this appliance without reading the spin webs or make nest in the grill “LIGHTING INSTRUCTIONS” section of this manual. burner tubes during transit and warehousing.
  • Page 6 Safety Instruction continued LP-Gas Supply System PROPER PLACEMENT AND CLEARANCE OF If the information is not followed exactly, a fire resulting in death or GRILL serious injury could occur. A 20lb tank of approximately 12 inches in diameter by 18-1/4 inches •Never use your gas grill in a garage, porch, shed, high is the maximum size LP gas tank to use.
  • Page 7 Safety Instruction continued SAFETY PRACTICES TO AVOID PERSONAL WARNING INJURY Your grill will get very hot. Never lean over the cooking area while using your grill. Do not touch When properly cared for, your grill will provide safe, cooking surfaces, grill housing, lid or any other grill reliable service for many years.
  • Page 8 Safety Instruction continued Do not heat unopened food containers. A build-up of Do not use the grill to cook excessively fatty meats or pressure may cause the containers to burst. other products which promote flare – ups. Use a covered hand when opening the grill lid. Do not operate the grill under unprotected combustible constructions.

  • Page 9: Assembly Instruction

    Assembly Instruction PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP. TOOLS REQUIRED: (1)PHILIPS HEAD SCREWDRIVER-NOT PROVIDED STEP 1: Assemble the panel of the side burner with four screws, as shown below. Screw size: 1/4 x 10mm Washer size: 1/4 STEP 2: Assemble the side shelf with four screws, as shown below.
  • Page 10 Assembly Instruction continued STEP 3: The screws used to attach the side burner module are already screwed into the left panel (see the figure below). Remove the screws from the left panel, align with the holes on the side burner module, and then re-screw into the holes on the left panel of the grill.
  • Page 11 Assembly Instruction continued STEP 4: Insert valve stem assembly into control panel, align and tighten knob bezel and valve stem with two screws and two washers. Then connect the ignition wire to the valve. STEP 5: Place knob on valve stem and secure with wrench.
  • Page 12 Assembly Instruction continued STEP 6: Insert side burner hose quick connector to the side burner gas valve. STEP 7: Battery is inserted for the rotisserie burner . To install the battery, turn counterclockwise to remove the ignition button cap. Restore the ignition button cap after the battery is installed.
  • Page 13 Assembly Instruction continued STEP 8: Attach propane gas tank to regulator by turning the regulator coupling clockwise as shown in figure below. LP gas cylinder must be fitted with a listed overfill prevention device (OPD). Secure liquid propone gas cylinder in the slide-out tray using the gas cylinder retention screw.
  • Page 14 Assembly Instruction continued STEP 9: The screws for rotisserie motor bracket are screwed into the right side of the grill housing. Remove the screws and install the rotisserie motor bracket as shown in the figure below. Assemble the rotisserie skewer as shown in the figure below.

  • Page 15: Gas Hook-Up

    Gas Hook-Up NEVER CONNECT AN UNREGULATED GAS SUPPLY QCC1 in the standard for compressed gas cylinder LINE TO THE APPLIANCE. USE THE valve outlet and inlet connection ANSI/CGA-V-1. REGULATOR/HOSE ASSEMBLY SUPPLIED. Manifold pressure: 11”(27.94cm) water column (W.C.). This is a liquid propane configured grill. Do not attempt L.P.

  • Page 16: Installer Final Check List

    Gas Hook-Up continued 5. When connecting regulator assembly to the valve, 7. If you have a gas connection leak you cannot repair, hand tighten the quick coupling nut clockwise to a turn gas OFF at supply tank, disconnect fuel line complete stop.

  • Page 17: Leak Testing

    Leak Testing GENERAL Only those parts recommended by the manufacturer should be used on the grill. Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas Substitution will void the warranty. Do not use the grill tightness check must be performed at the installation until all connections have been checked and do not site due to possible mishandling in shipment, or...
  • Page 18 Leak Testing continued CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane. The gas must be turned off at the supply cylinder when the unit is not in use.

  • Page 19: Operating Instruction

    Operating Instruction GENERAL USE OF THE GRILL AND ROTISSERIE WARNING: IMPORTANT! Each main burner is rated at 14,000 Btu/hr. The main USING THE SIDE BURNER: grill burners encompass the entire cooking area and Inspect the gas supply hose prior to turning the gas are side ported to minimize blockage from falling “ON”.

  • Page 20: Lighting Instruction

    Lighting Instruction WARNING: IMPORTANT! TO LIGHT THE MAIN BURNER: BEFORE LIGHTING… Never substitute regulators and hose assembly for those supplied with the grill. If a replacement is Inspect the gas supply hose prior to turning the gas necessary, contact the manufacturer for proper “ON”.
  • Page 21 Lighting Instruction continued FLAME CHARACTERISTICS Check for proper burner flame characteristics. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting. If any of these conditions exist call our customer service line. If the flame is yellow, it indicates insufficient air. If the flame is noisy and tends to lift away from the burner, it indicates too much air Each burner is adjusted prior to shipment;...

  • Page 22: Lighting Illustration

    Lighting Illustration Main & Side Burner Lighting Illustration: Rear Burner and Searing Main Burner lighting illustration: Step 1. Step to Light the Rear Burner: Make sure the lid is open Push and turn rear burner knob to "IGNITE/ON" and keep pushing for 3-4 seconds. While pushing the knob, simultaneously press electronic igniter for 3 to 4 seconds to light the burner.

  • Page 23: Match Lighting Instruction

    Match Lighting Instruction If the burner will not light after several attempts then the burner can be match lit. If you have attempted to light the main burners with the igniter, allow 5 minutes for any accumulated gas to dissipate. Insert a match into the lighting rod.

  • Page 24: Gas Conversion From Lp To Ng

    Gas Conversion From LP to NG NOTICE Dear customers: Thank you for choosing our barbeque grill and hope that you enjoy our product. Our gas valves and components are preset at the factory to operate on Liquid Propane (LP). If you wish to convert your grill from LP to Natural Gas (NG), we strongly recommend that you hire a professionally trained technician to convert the unit.
  • Page 25 Gas Conversion From LP to NG Continued TOOLS NEEDED: A- 6mm & 7mm LONG SOCKET & DRIVER B-CROSSHEAD SCREWDRIVER C-FLAT-HEAD SCREWDRIVER D-ADJUSTABLE WRENCH E-10mm OPEN END WRENCH F-VICE GRIPS NG Conversion Kit: NG regulator NG hose w/quick connector NG brass connector NG regulator hose NG regulator clamp ＊...
  • Page 26 Gas Conversion From LP to NG Continued Step 1: Replace Main Burner Orifice Remove cooking-grids and flame tamers. Remove the main burner from the firebox by loosening the screw near the back wall of the firebox. Locate LP-Orifice at access hole in front wall of fire box. Replace LP orifice with NG orifice (1.62 mm) in the NG orifices pack.
  • Page 27 Gas Conversion From LP to NG Continued Step 3: Replace Rear Burner Orifice Remove rear baffle from bowl Assembly. Grasp brass elbow with vice grip. With 10 mm wrench, remove LP orifice and replace with NG orifice (1.55mm). Restore rear baffle.
  • Page 28 Gas Conversion From LP to NG Continued Step 4: Replace Searing Burner Orifice Remove front 2 Phillips screws, Remove 3 Phillips screws an push the igniter towards the left and take off the sear burner brace. Remove the Searing Burner by lifting it towards rear and upward. Locate and remove the LP orifice on the valve inside the control panel with a hex socket bit driver.
  • Page 29 Gas Conversion From LP to NG Continued Step 5: Remove Regulator Use adjustable wrench to remove existing LP gas regulator and hose assembly. If you are replacing an existing natural gas grill, the supply hose that supplied natural gas to the old grill will work with your new grill. Replace the LP gas regulator and hose assembly with a natural gas supply hose and regulator (not supplied with the grill).

  • Page 30: Motor Instruction

    Motor Instruction • TO USE MOTOR SAFELY, PLEASE READ WARNING PRIOR TO USE ROTISSERIE DRIVE MOTOR USE ONLY FOR OUTDOORS. DO NOT EXPOSE TO RAIN. CAUTION: TO ENSURE CONTINUED PROTECTION AGAINST RISK OF ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY, TO REDUCE THE RISK OF ELECTRIC SHOCK, KEEP EXTENSION CORD CONNECTION DRY AND OFF THE GROUND.

  • Page 31: Refrigerator Safe Guide

    Refrigerator Safe Guide IMPORTANT: READ THE FOLLOWING PRIOR TO CONNECTING POWER AND USE To reduce the risk of fire, electrical shock or injury when using this unit, follow basic precaution, including the following. Remove all packages before using this unit. WARNING Use two or more people to move and install this unit.

  • Page 32: Refrigerator Installation Instruction

    Refrigerator Installation Instruction INSTALLATION INSTRUCTIONS Food Storage • Use plastic warp to keep food and place evenly on wire rack or drawer. • Keep hot food cool down before put into this Before Using Your Unit refrigerator for energy saving. •...

  • Page 33: Refrigerator Technical Data

    Refrigerator Technical Data ITEM DATA Voltage (V) Frequency (Hz) Current (A) 1.45 Input Wattage (W) Consumptions (KW.h/24h) Volume (cu.ft.) Dimension (mm) 520*508*520 Refrigerant R134a Refrigerant Weight (g) High Pressure (psig) Low Pressure (psig) Net Weight (kg) 30.5 Insulation...

  • Page 34: Care And Maintenance

    Care and Maintenance MAIN GRILL BURNER CLEANING STAINLESS STEEL Ensure the gas supply is off and the knobs are in the There are many different stainless steel cleaners “OFF” position. Make sure the grill is cool. Clean the available. Always use the mildest cleaning procedure exterior of the burner with a wire brush.
  • Page 35 Care and Maintenance continued STAINLESS STEEL : HOW TO REPLACE MAIN BURNER Step 1. Insert the burner into the orifice. Make sure the There are many different stainless steel cleaners orifice spud is inside the burner venturi . available. Always use the mildest cleaning procedure first, scrubbing in the direction of the grain.
  • Page 36 Care and Maintenance continued REFRIGERATOR • The outside of the unit should be cleaned with mild detergent and warm water. Operating Your Unit • Wring excess water out of the sponge or cloth before cleaning the area of the • Your unit has only one control for regulating controls, or any electrical parts.

  • Page 37: Troubleshooting

    Care and Maintenance continued Energy Saving Tips • Let hot foods cool to room temperature before placing in the unit. Overloading the unit forces the compressor to run longer. • Be sure to wrap foods properly, and wipe containers dry before placing them in the unit. This cuts down on frost build-up inside the unit.
  • Page 38 Troubleshooting continued PREHEATING: The grill lid should be in a closed position during the preheat time period. It is necessary to preheat the grill before cooking certain foods, depending on the type of food and the cooking temperature. Food that requires a high cooking temperature needs a pre-heat period of five minutes;...
  • Page 39 Troubleshooting continued You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service. PROBLEM (Grill) SOLUTION When attempting to light my •...
  • Page 40 Troubleshooting continued Grill only heats to 200-300 • Check to see if the fuel hose is bent or kinked. degrees. • Make sure the grill area is clear of dust. • Make sure the burner and orifices are clean. • Check for spiders and insects.

  • Page 41: Exploded View

    Exploded View 06 07 18 19 20 21 58 59...

  • Page 42: Part List

    Part List Part (Description) Part (Description) Small main lid handle tube Main control panel trim piece Small main lid trim piece Bezel Small main lid Control knob Small main lid handle heat insulating spacer Cart frame, front Small main lid handle seat Grease tray Main lid Grease tray handle...
  • Page 43 Part List Continued Part (Description) Part (Description) Tank bolt Tank tray Caster Front trim panel, left Side burner control panel trim piece Side burner orifice base Side burner orifice washer Side burner flex gas line Tank tray slide bracket, left Side manifold Side burner igniter wire Side burner cooking grid...

  • Page 44: Ordering Parts

    If you wish to convert at which products was purchased. If dealer service is some later date, be sure to contact your gas supplier or not available, contact: Nexgrill Industries, Inc. grill dealer before making the conversion. customer service...

  • Page 45: Grill Cooking Chart

    Grill Cooking Chart WEIGHT OR HEAT APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SETTING TIME AND TIPS Slice. Dot with butter or margarine. Wrap in VEGETABLES heavy -duty foil. Grill, turning occasionally Medium 12 to 20 minutes Grill, turning once. Brush occasionally with Fresh melted butter or margarine.
  • Page 46 Grill Cooking Chart continued WEIGHT OR HEAT APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SETTING TIME AND TIPS PORK Trim edges. Grill, turning once. Cook to Chops 1 inch Medium 20 to 30 minutes desired doneness. 1 -1/2 Well -done inches Medium 30 to 40 minutes Grill, turning occasionally.

  • Page 47: Grill Recipe Suggestion

    Grill Recipe Suggestion BBQ SALMON TANGY SEAFOOD KABOBS BBQ the chops brushing with the marinade occasionally. Serve with 1 lb. Large shrimp, shelled & 2 large salmon steaks deveined mixed salad, dressed with 2 tbs. Oil vinaigrette flavored with fresh dill. ¾...
  • Page 48 Grill Recipe Suggestion continued Preheat grill. Combine cheese, Pound flank steak to ¼ inch In blender, process 1/3 c. water, condensed soup, milk, BBQ sauce, thickness or flatten chicken breasts. onion, soy sauce, 2 tsp. oil and the oregano, salt and pepper in a large Mix oil, lime juice and seasonings next 8 ingredients until smooth.
  • Page 49 Grill Recipe Suggestion continued CHICKEN TANDOORI STYLE Marinade ribs for 3 hours. Use TURKEY marinade for basting by adding 8 large chicken thighs or 12 lb. turkey drumsticks beer to it. Place pan under the ribs Beer basting sauce: and baste frequently. To cook ribs 1 c.

  • Page 50: Limited Warranty

    Limited Warranty...
