IEI Technology AFL2-12A-D525 User Manual

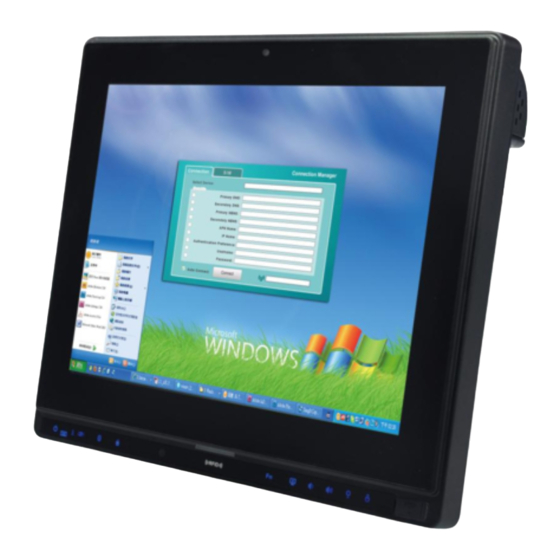

Fanless flat bezel panel pc with 1.8 ghz intel atom processor, tft lcd, wi-fi, touch screen, rfid reader, dual gbe lan, rs-232/422/485, camera, rohs
Hide thumbs Also See for AFL2-12A-D525:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

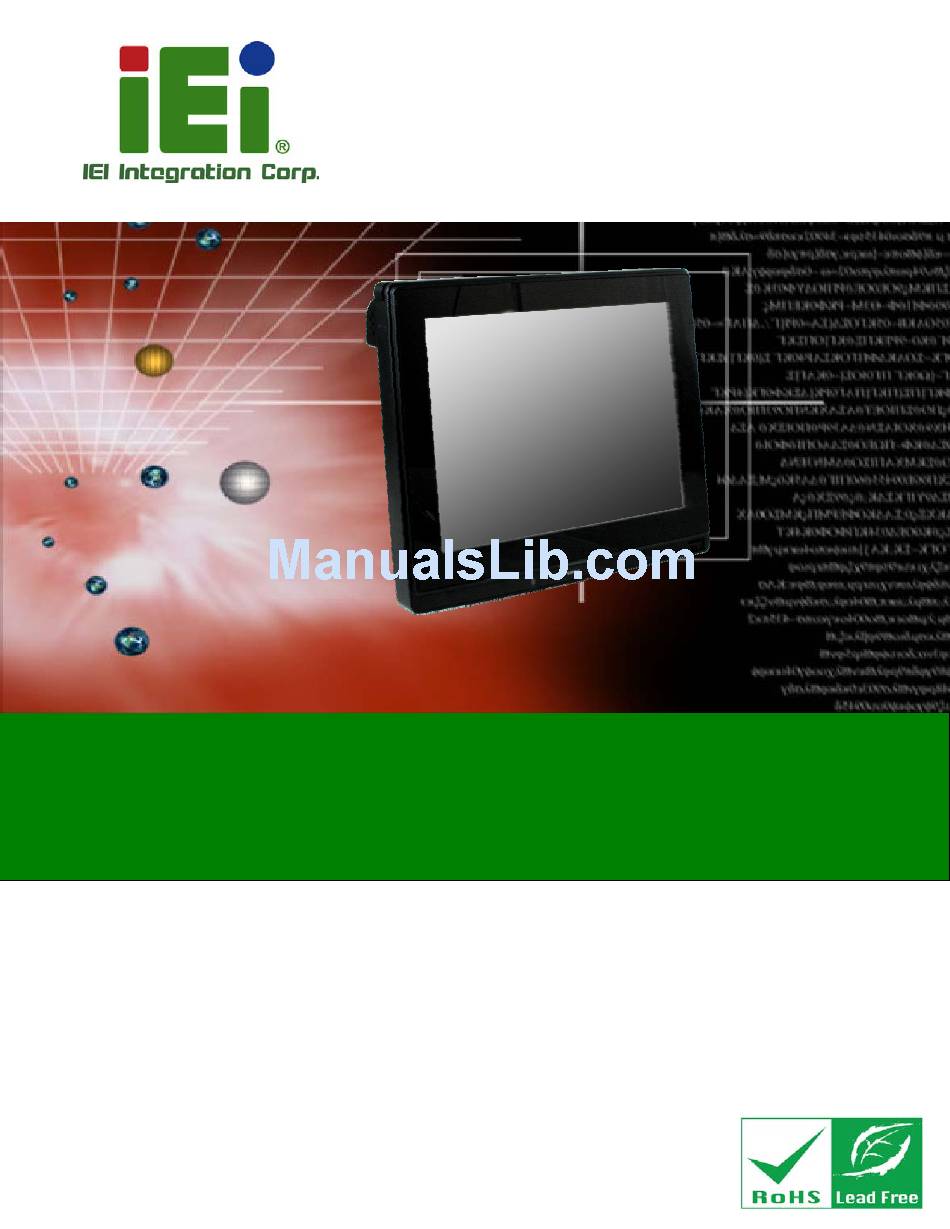

AFL2-12A-D525 Series Panel PC
MODEL:
AFL2-12A-D525
Fanless Flat Bezel Panel PC with 1.8 GHz Intel® Atom™ Processor
TFT LCD, Wi-Fi, Touch Screen, RFID Reader, Dual GbE LAN
Rev. 1.03 – June 16, 2014
RS-232/422/485, Camera, RoHS
User Manual
User Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFL2-12A-D525 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology AFL2-12A-D525

Summary of Contents for IEI Technology AFL2-12A-D525

  • Page 1 AFL2-12A-D525 Series Panel PC MODEL: AFL2-12A-D525 Fanless Flat Bezel Panel PC with 1.8 GHz Intel® Atom™ Processor TFT LCD, Wi-Fi, Touch Screen, RFID Reader, Dual GbE LAN RS-232/422/485, Camera, RoHS User Manual User Manual Page i Rev. 1.03 – June 16, 2014...
  • Page 2 AFL2-12A-D525 Series Panel PC Revision Date Version Changes June 16, 2014 1.03 Updated viewing angle spec July 25, 2013 1.02 Added information of the CPU temperature alert LED in Section 1.2.1.1 December 9, 2011 1.01 Added Warning page IV Revised Section 1.4 System Specifications Revised Section 3.1.1 Packing List...
  • Page 3 AFL2-12A-D525 Series Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 AFL2-12A-D525 Series Panel PC WARNING: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This...

  • Page 5: Table Of Contents

    AFL2-12A-D525 Series Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 AFL2-12A-D525 F PC O ..........2 EZEL ANEL VERVIEW 1.1.1 Model Variations ....................3 1.1.2 Features ......................3 1.1.3 Applications ....................... 3 1.2 E ....................4 XTERNAL VERVIEW 1.2.1 Front Panel ......................4 1.2.1.1 LED Indicators....................
  • Page 6 AFL2-12A-D525 Series Panel PC 2.7 S ....................... 19 YSTEM OWER 2.7.1 Power Mode ..................... 19 2.7.1.1 ATX Power Mode (Default)..............19 2.7.1.2 AT Power Mode ..................19 2.7.2 Power Adapter ....................20 3 UNPACKING ....................... 21 3.1 U ......................22 NPACKING 3.1.1 Packing List .....................
  • Page 7 AFL2-12A-D525 Series Panel PC 5.2 A ..................51 STATIC RECAUTIONS 5.3 T ....................52 URN OFF THE OWER 5.4 O ....................52 PENING THE YSTEM 5.4.1 Removing the Back Cover................52 5.4.2 Removing the Internal Aluminum Cover............53 5.5 R ..................
  • Page 8 AFL2-12A-D525 Series Panel PC 7 SOFTWARE DRIVERS ....................90 7.1 A ................91 VAILABLE OFTWARE RIVERS 7.2 S ................91 TARTING THE RIVER ROGRAM 7.3 C ................91 HIPSET RIVER NSTALLATION 7.4 G ................95 RAPHICS RIVER NSTALLATION 7.5 A .................
  • Page 9 AFL2-12A-D525 Series Panel PC List of Figures Figure 1-1: AFL2-12A-D525 Flat Bezel Panel PC .................2 Figure 1-2: AFL2-12A-D525 Front View ..................4 Figure 1-3: LED Indicators......................5 Figure 1-4: Function Keys ......................6 Figure 1-5: AFL2-12A-D525 Rear View ..................7 Figure 1-6: AFL2-12A-D525 I/O Interface Panel ................9 Figure 1-7: Top Panel View......................9...
  • Page 10 AFL2-12A-D525 Series Panel PC Figure 4-17: Install into a Rack/Cabinet ..................42 Figure 4-18: LAN Connection ......................43 Figure 4-19: DB-9 Connector.......................44 Figure 4-20: DB-9 Serial Port Connector..................45 Figure 4-21: RJ-45 Serial Port .....................46 Figure 4-22: RJ-45 Serial Port Connector ..................46 Figure 4-23: RS-422/485 Serial Port ....................47 Figure 4-24: RS-422/485 Cable ....................48...
  • Page 11 AFL2-12A-D525 Series Panel PC Figure 7-19: Touch Screen Driver Choose Install Location ..........103 Figure 7-20: Touch Screen Driver Installation Screen............104 Figure 7-21: Touch Screen Driver Update Complete ............. 104 Figure 7-22: PenMount Monitor Icon ..................105 Figure 7-23: PenMount Monitor Popup Menu................. 105 Figure 7-24: Configuration Screen...................
  • Page 12 AFL2-12A-D525 Series Panel PC List of Tables Table 1-1: AFL2-12A-D525 Model Variations ................3 Table 1-2: LED Indicators ......................6 Table 1-3: Function Key Descriptions ..................7 Table 1-4: System Specifications....................12 Table 4-1: DB-9 Connector Pinouts ....................44 Table 4-2: RJ-45 Serial Port Pinouts...................46 Table 4-3: RS-422/485 Serial Port Pinouts .................47...

  • Page 13: Introduction

    AFL2-12A-D525 Series Panel PC Chapter Introduction Page 1...

  • Page 14: Afl2-12A-D525 Flat Bezel Panel Pc Overview

    1.1 AFL2-12A-D525 Flat Bezel Panel PC Overview Figure 1-1: AFL2-12A-D525 Flat Bezel Panel PC The AFL2-12A-D525 is an Intel® Atom™ powered flat bezel panel PC with a rich variety of functions and peripherals. The AFL2-12A-D525 is designed for easy and simplified integration into kiosk and point-of-sales (POS) applications.

  • Page 15: Model Variations

    AT or ATX power mode 5-wire resistive or projected capacitive type touch screen RoHS compliance Auto-dimming control 1.3 megapixel webcam 1.1.3 Applications AFL2-12A-D525 Series panel PCs are elegant, sophisticated systems that can be easily implemented in commercial, industrial and corporate environments. Page 3...

  • Page 16: External Overview

    AFL2-12A-D525 Series Panel PC 1.2 External Overview 1.2.1 Front Panel The front side of the AFL2-12A-D525 is a flat bezel panel TFT LCD screen surrounded by an ABS/PC plastic frame. Figure 1-2: AFL2-12A-D525 Front View Page 4...

  • Page 17: Led Indicators

    AFL2-12A-D525 Series Panel PC 1.2.1.1 LED Indicators There are fifteen LED indicator lights located along the front of the LCD screen (Figure 1-3). Figure 1-3: LED Indicators The descriptions of each LED indicator are listed below. LED Indicator Description Power Shows power on/off status.

  • Page 18: Figure 1-4: Function Keys

    AFL2-12A-D525 Series Panel PC LED Indicator Description Lights on when the audio is turned off. Controlled by the Audio Mute hot keys. See Table 1-3 Shows the status of the function key below the LED Function indicator. Blinks when the corresponding button is pushed.

  • Page 19: Rear Panel

    FN + Brightness buttons for six seconds. Table 1-3: Function Key Descriptions 1.2.2 Rear Panel The rear panel provides access to retention screw holes that support the wall mounting. Refer to Figure 1-5. Figure 1-5: AFL2-12A-D525 Rear View Page 7...

  • Page 20: I/O Interface Panel

    AFL2-12A-D525 Series Panel PC 1.2.3 I/O Interface Panel The I/O interface panel located on the bottom of the AFL2-12A-D525 has the following features: 1 x Audio jack 1 x 9V ~ 36V DC-IN power jack 1 x VGA port 1 x RS-232 DB-9 connector...

  • Page 21: Top Panel And Side Panels

    The external I/O interface connector panel is shown in Figure 1-6. Figure 1-6: AFL2-12A-D525 I/O Interface Panel 1.2.4 Top Panel and Side Panels The top panel and side panels of AFL2-12A-D525 provide access to slots that support the panel mount and rack mount (Figure 1-7). Figure 1-7: Top Panel View...

  • Page 22: Internal Overview

    1.3 Internal Overview The AFL2-12A-D525 has the following components installed internally: 1 x Motherboard 1 x 1.0 GB 800 MHz DDR3 SO-DIMM 1.4 System Specifications The technical specifications for the AFL2-12A-D525 systems are listed in Table 1-4. Specification AFL2-12A-D525 LCD Size 12.1”...
  • Page 23 AFL2-12A-D525 Series Panel PC Contrast Ratio 700:1 LCD Color 16.2M Pixel Pitch (H x V) (mm) 0.240 (H) x 0.240 (V) Viewing Angle (H-V) 160º / 140º Backlight MTBF (hr) 50,000 Touch Screen 5-Wire resistive type touchscreen (select models only)

  • Page 24: Table 1-4: System Specifications

    AFL2-12A-D525 Series Panel PC Power Adapter Input: 100V AC ~ 240V AC @ 50 / 60 Hz Output: 19V DC Power Requirement 9V ~ 36V DC Power Consumption LED Functions Power / RFID / MIC / Auto-dimming / Wi-Fi / RFID device / AT/ATX...

  • Page 25: Detailed Specifications

    AFL2-12A-D525 Series Panel PC Chapter Detailed Specifications Page 13...

  • Page 26: Dimensions

    AFL2-12A-D525 Series Panel PC 2.1 Dimensions The AFL2-12A-D525 dimensions are shown below. Width: 310.0 mm Height: 265.0 mm Depth: 52.6 mm Figure 2-1: AFL2-12A-D525 Dimensions (mm) Page 14...

  • Page 27: Intel® Atom™ Processor

    AFL2-12A-D525 Series Panel PC Figure 2-2: AFL2-12A-D525 Dimensions (mm) cont. 2.2 Intel® Atom™ Processor An Intel® Atom™ D525 processor is installed in the system. The D525 CPU is a 1.8 GHz dual core processor with Direct Media Interface (DMI) speed of 2.5 GT/s. The CPU also features a 1.0 MB L2 cache.

  • Page 28: Memory Support

    AFL2-12A-D525 Series Panel PC 2.3.1 Memory Support 2.3.1.1 Installed Memory One 204-pin 1.0 GB 800 MHz DDR3 SO-DIMM is installed in the AFL2-12A-D525 and controlled by the Intel® Atom™ D525 CPU installed on the internal motherboard. 2.3.2 Storage Capacity The AFL2-12A-D525 comes equipped with a CompactFlash® Type II (CF Type II) memory disk slot.

  • Page 29: Lan Connectivity

    Revision 1.1 and can be interfaced to both USB 1.1 and USB 2.0 compliant devices. Figure 2-5: External USB Ports 2.5 Touchscreen LCD 2.5.1 Monitor A 12.1” LCD screen is installed on the front of the AFL2-12A-D525. The screen is shown in Figure 2-6 below. Page 17...

  • Page 30: Touch-Screen Module

    AFL2-12A-D525 Series Panel PC Figure 2-6: LCD Screen 2.5.2 Touch-Screen Module A controller for the touch screen is installed on the motherboard. The sensitive touch screen is accurate, reliable and durable. 2.6 Audio 2.6.1 Audio Codec Controller The integrated HD Audio compliant audio controller on the Intel® ICH8-M Southbridge is integrated to a Realtek ALC888 audio codec.

  • Page 31: Stereo Speakers

    AFL2-12A-D525 Series Panel PC 2.6.2 Stereo Speakers Two internal 1.5 W stereo speakers on the sides of the AFL2-12A-D525 are interfaced to the system. 2.7 System Power 2.7.1 Power Mode The system can be run in the AT power mode or the ATX power mode. Both these power modes are described below.

  • Page 32: Power Adapter

    AFL2-12A-D525 Series Panel PC 2.7.2 Power Adapter The system is shipped with a 100 V to 240 V AC power adapter that has a maximum power output of 65 W. The power adapter has a 19 V DC output connector.

  • Page 33: Unpacking

    AFL2-12A-D525 Series Panel PC Chapter Unpacking Page 21...

  • Page 34: Npacking

    Pull the plastic cover off the flat bezel panel PC. Step 7: Make sure all the components listed in the packing list are present. Step 0: 3.1.1 Packing List The AFL2-12A-D525 flat bezel panel PC is shipped with the following components: Quantity Item Image Standard AFL2-12A-D525 panel PC...
  • Page 35 AFL2-12A-D525 Series Panel PC Power adapter (P/N: 63040-010065-010-RS) Power cord (P/N: 32702-000401-100-RS) Power Transfer Cord (P/N:32000-089400-RS) M3 Screws Pack (P/N: 44013-030041-RS) M4 Screws Pack (P/N: 44403-040061-RS) Touch Pen (P/N: 43125-0002C0-00-RS) RJ-45 to DB-9 COM Port Cable (P/N: 32005-000200-200-RS) RS-422 cable...
  • Page 36 AFL2-12A-D525 Series Panel PC Optional Wall mounting kit (P/N: AFLWK-19/AFLWK-19B) (P/N: ARM-11-RS) Stand (P/N: STAND-A12) V-Stand (P/N: VSTAND-A12) Hybrid Card Reader (P/N: AFL2P-12AMSI-U-R10) Magnetic Stripe Reader (P/N: AFL2P-12AMSR-U-R10) Rack Mounting Kit (P/N: AFL2RK-12) OS: Win CE 6.0 (128MB CF Card)
  • Page 37 AFL2-12A-D525 Series Panel PC OS: Win XPE (2GB CF Card) (P/N: AFL2CF-12-D525-XPE-2G-R10) OS: Win XPE (4GB CF Card) (P/N: AFL2CF-12-D525-XPE-4G-R10) OS: Linux (2GB CF Card) (P/N: AFL2CF-12A-D525-LNX-R10) OS: Win 7 Embedded (4GB CF Card) (P/N: AFL2CF-12-D525-WES7P-4G-R10 AFL2CF-12-D525-WES7E-4G-R10) If any of these items are missing or damaged, contact the distributor or sales representative immediately.

  • Page 38: Installation

    AFL2-12A-D525 Series Panel PC Chapter Installation Page 26...

  • Page 39: Anti-Static Precautions

    AFL2-12A-D525 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL2-12A-D525. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFL2-12A-D525 is accessed internally, or any other...

  • Page 40: Installation And Configuration Steps

    Over-tightening back cover screws will crack the plastic frame. Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm). To install the HDD into the AFL2-12A-D525, please follow the steps below: Step 1: Remove two (2) retention screws from the HDD cover (Figure 4-1).

  • Page 41: Figure 4-1: Hdd Cover Retention Screws

    AFL2-12A-D525 Series Panel PC Figure 4-1: HDD Cover Retention Screws Step 2: Remove the HDD cover from the device. Step 3: Loosen the captive screw to release the HDD bracket from the chassis (Figure 4-2). Figure 4-2: HDD Bracket Screw...

  • Page 42: Figure4-3: Removing The Hdd Bracket

    AFL2-12A-D525 Series Panel PC Step 4: Slide the HDD bracket out of the device as shown (Figure 4-3). Figure 4-3: Removing the HDD Bracket Step 5: Insert an HDD into the bracket as shown (Figure 4-4). Figure 4-4: Inserting the HDD...

  • Page 43: Cf Card Installation

    Replace the HDD cover and secure it using two (2) retention screws. Step 0: 4.5 CF Card Installation To install a CF Card into the AFL2-12A-D525, please follow the steps below: NOTE: Before installation, it is recommended that a piece of tape be applied to the CF card to aid in removal.

  • Page 44: Figure 4-6: Hdd Cover Retention Screws

    AFL2-12A-D525 Series Panel PC Step 1: Remove two (2) retention screws from the HDD cover (Figure 4-6). Figure 4-6: HDD Cover Retention Screws Step 2: Remove the HDD cover from the device. Step 3: The CF card slot is located underneath the HDD bracket. (Figure 4-7).

  • Page 45: At/Atx Mode Selection

    Step 0: 4.6 AT/ATX Mode Selection AT and ATX power modes can both be used on the AFL2-12A-D525. The selection is made through an AT/ATX switch located on the I/O panel (Figure 4-9). To select AT mode or ATX mode, follow the steps below.

  • Page 46: Atx Power Mode

    Manufacturing shop flow 4.6.2 ATX Power Mode With the ATX mode selected, the AFL2-12A-D525 panel PC goes in a standby mode when it is turned off. The panel PC can be easily turned on via network or a power switch in standby mode.

  • Page 47: Mounting The System

    PC does not fall down and get damaged. The four methods of mounting the AFL2-12A-D525 are listed below. Wall mounting...

  • Page 48: Figure 4-10: Wall-Mounting Bracket

    AFL2-12A-D525 Series Panel PC Figure 4-10: Wall-mounting Bracket Step 6: Insert the four monitor mounting screws provided in the wall mount kit into the four screw holes on the real panel of the flat bezel panel PC and tighten until the screw shank is secured against the rear panel (Figure 4-11).

  • Page 49: Figure 4-11: Chassis Support Screws

    AFL2-12A-D525 Series Panel PC Step 8: Carefully insert the screws through the holes and gently pull the monitor downwards until the monitor rests securely in the slotted holes (Figure 4-11). Ensure that all four of the mounting screws fit snuggly into their respective slotted holes.

  • Page 50: Stand Mounting

    AFL2-12A-D525 Series Panel PC Figure 4-12: Secure the Panel PC 4.9.2 Stand Mounting To mount the AFL2-12A-D525 using the stand mounting kit, please follow the steps below. Step 1: Locate the screw holes on the rear of the AFL2-12A-D525. This is where the bracket will be attached.

  • Page 51: Arm Mounting

    Step 0: 4.9.3 Arm Mounting The AFL2-12A-D525 is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 100mm interface pad. To mount the AFL2-12A-D525 on an arm, please follow the steps below. Step 1: The arm is a separately purchased item.

  • Page 52: Cabinet And Rack Installation

    PC. Step 0: 4.9.4 Cabinet and Rack Installation The AFL2-12A-D525 flat bezel panel PC can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below:...

  • Page 53: Figure 4-15: The Rack/Cabinet Bracket

    AFL2-12A-D525 flat bezel panel PC and the rack/cabinet into which the AFL2-12A-D525 is installed. Step 1: Slide the rear chassis of the AFL2-12A-D525 flat bezel panel PC through the rack/cabinet bracket until the aluminum frame is flush against the front of the bracket (Figure 4-15).

  • Page 54: Figure 4-16: Secure The Rack/Cabinet Bracket

    AFL2-12A-D525 Series Panel PC Figure 4-16: Secure the Rack/Cabinet Bracket Step 4: Slide the flat bezel panel PC with the attached rack/cabinet bracket into a rack or cabinet (Figure 4-17). Figure 4-17: Install into a Rack/Cabinet Step 5: Once the flat bezel panel PC with the attached rack/cabinet bracket has been...

  • Page 55: Bottom Panel Connectors

    Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the onboard RJ-45 connector. Step 0: 4.10.2 Serial Device Connection The AFL2-12A-D525 has one male DB-9 port connector and one RJ-45 serial port connector on the I/O panel for serial device connection. Page 43...

  • Page 56: Serial Port Connection

    AFL2-12A-D525 Series Panel PC 4.10.2.1 DB-9 Serial Port Connection CN Label: DB-9 9-pin connector CN Type: CN Location: See Figure 4-19 CN Pinouts: See Table 4-1 A DB-9 serial port device can be connected to the DB-9 serial port on the bottom panel.

  • Page 57: Serial Port Connection

    CN Label: COM3 CN Type: RJ-45 CN Location: See Figure 4-21 See Table 4-2 CN Pinouts: A serial device can be attached to the RJ-45 serial port of the AFL2-12A-D525 panel PC Description Description DCD3 TXD3 DSR3 CTS3 RXD3 DTR3...

  • Page 58: Figure 4-21: Rj-45 Serial Port

    AFL2-12A-D525 Series Panel PC Description Description RTS3 Table 4-2: RJ-45 Serial Port Pinouts Figure 4-21: RJ-45 Serial Port Follow the steps below to connect a serial device to the RJ-45 serial port connector of the AFL2-12A-D525 panel PC. Step 1: Locate the RJ-45 serial port.

  • Page 59: Rs-422/485 Serial Port

    AFL2-12A-D525 Series Panel PC Step 4: Secure the connector. Secure the serial device connector to the external interface by tightening the two retention screws on either side of the connector. Step 0: 4.10.3 RS-422/485 Serial Port CN Label: RS 422/485...

  • Page 60: Usb Device Connection

    Step 0: 4.10.4 USB Device Connection There are two external USB 2.0 connectors. All connectors are perpendicular to the AFL2-12A-D525. To connect a USB 2.0 or USB 1.1 device, please follow the instructions below. Step 1: Located the USB connectors. The locations of the USB connectors are shown in Chapter 2.

  • Page 61: Figure 4-26: Usb Device Connection

    AFL2-12A-D525 Series Panel PC Step 2: Align the connectors. Align the USB device connector with one of the connectors on the bottom panel. See Figure 4-26. Figure 4-26: USB Device Connection Step 3: Insert the device connector. Once aligned, gently insert the USB device connector into the onboard connector.

  • Page 62: System Maintenance

    AFL2-12A-D525 Series Panel PC Chapter System Maintenance Page 50...

  • Page 63: System Maintenance Introduction

    AFL2-12A-D525 Series Panel PC 5.1 System Maintenance Introduction If the components of the AFL2-12A-D525 fail they must be replaced. Components that can be replaced include: SO-DIMM module WLAN Module Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions for the AFL2-12A-D525 are described below.

  • Page 64: Turn Off The Power

    Over-tightening back cover screws will crack the plastic frame. Maximum torque for cover screws is 5 kg-cm (0.36 lb-ft/0.49 Nm). To access the AFL2-12A-D525 internally the back cover must be removed. To remove the back cover, please follow the steps below.

  • Page 65: Removing The Internal Aluminum Cover

    AFL2-12A-D525 Series Panel PC Step 3: Remove a total of nine (9) retention screws from the back cover (Figure 5-1). Figure 5-1: Back Cover Retention Screws Step 4: Carefully separate the back cover from the chassis and lift the cover clear of the...

  • Page 66: Replacing Components

    AFL2-12A-D525 Series Panel PC Figure 5-2: Internal Cover Retention Screws Step 2: Lift the aluminum cover off the AFL2-12A-D525. Step 0: 5.5 Replacing Components 5.5.1 Memory Module Replacement The flat bezel panel PC is preinstalled with a 1.0 GB DDR3 memory module. If the memory module fails, follow the instructions below to replace the memory module.

  • Page 67: Wlan Card Replacement

    Replace the back cover and secure it using nine (9) previously removed retention screws. Step 0: 5.5.2 WLAN Card Replacement The AFL2-12A-D525 has one WLAN card slot. To replace the WLAN card, follow the instructions below. Step 1: Follow all anti-static procedures. See Section 5.2.

  • Page 68: Figure5-4: Removing The Antennas

    AFL2-12A-D525 Series Panel PC Step 5: Locate the WLAN card. Step 6: Disconnect the main and auxiliary antennas on the WLAN module (Figure 5-4). Figure 5-4: Removing the Antennas Step 7: Push the two spring clips in to release the WLAN card.

  • Page 69: Figure5-6: Removing The Wlan Card

    AFL2-12A-D525 Series Panel PC Step 8: Grasp the WLAN card by the edges and carefully pull it out of the socket (Figure 5-6). Figure 5-6: Removing the WLAN card Step 9: Install a new WLAN card by inserting the card into the slot at an angle Step 10: Push the WLAN card down until the spring retainer clips lock into place.

  • Page 70: Figure5-7: Attaching The Antennas

    AFL2-12A-D525 Series Panel PC Step 11: Connect the main (1) and auxiliary (2) antennas. The main antenna is indicated with a strip of black electrical tape. See Figure 5-7. NOTE: To ensure the WLAN module functions correctly, please make sure the WLAN antennas are attached in the proper configuration.

  • Page 71: Reinstalling The Covers

    AFL2-12A-D525 Series Panel PC 5.6 Reinstalling the Covers WARNING: Failing to reinstall the covers may result in permanent damage to the system. Please make sure all coverings are properly installed. When maintenance procedures are complete, please make sure all the covers are...

  • Page 72: Ami Bios Setup

    AFL2-12A-D525 Series Panel PC Chapter AMI BIOS Setup Page 60...

  • Page 73: Introduction

    AFL2-12A-D525 Series Panel PC 6.1 Introduction A licensed copy of the BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 74: Getting Help

    AFL2-12A-D525 Series Panel PC Esc key Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu F1 key General help, only for Status Page Setup Menu and Option...

  • Page 75: Main

    AFL2-12A-D525 Series Panel PC 6.2 Main The Main BIOS menu ( B IOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 76: Advanced

    AFL2-12A-D525 Series Panel PC System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 6.3 Advanced Use the Advanced menu ( B IOS Menu 2) to configure the CPU and peripheral devices...

  • Page 77: Acpi Settings

    AFL2-12A-D525 Series Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > ACPI Settings System ACPI Parameters. > CPU Configuration > IDE Configuration > USB Configuration > Super IO Configuration ---------------------- >...

  • Page 78: Cpu Configuration

    AFL2-12A-D525 Series Panel PC ACPI Sleep State [S1 (CPU Stop Clock)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used. (CPU Stop The system enters S1 (POS) sleep state. The...
  • Page 79 AFL2-12A-D525 Series Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Enabled for Windows XP and Linux (OS optimized Processor Type Intel(R) Atom(TM) for Hyper-Threading CPU D525 @ 1.80GHz Technology) and Disabled EMT64 Supported...

  • Page 80: Ide Configuration

    AFL2-12A-D525 Series Panel PC 6.3.3 IDE Configuration Use the IDE Configuration menu (BIOS Menu 5) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced...

  • Page 81: Usb Configuration

    AFL2-12A-D525 Series Panel PC Configures SATA devices as normal IDE device. EFAULT Configures SATA devices as AHCI device. AHCI 6.3.4 USB Configuration Use the USB Configuration menu (BIOS Menu 6) to read USB configuration information and configure the USB settings.

  • Page 82: Generic Storage Device 9454 [Auto]

    AFL2-12A-D525 Series Panel PC keyboard can control the system even when there is no USB driver loaded onto the system. Enabled Legacy USB support enabled EFAULT Disabled Legacy USB support disabled Auto Legacy USB support disabled if no USB devices are...

  • Page 83: Super Io Configuration

    AFL2-12A-D525 Series Panel PC 6.3.5 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the FDD controllers, parallel ports and serial ports. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 84: Serial Port [Enabled]

    AFL2-12A-D525 Series Panel PC 6.3.5.1.1 Serial Port 0 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disabled Disable the serial port Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 85: Serial Port [Enabled]

    AFL2-12A-D525 Series Panel PC Auto The serial port IO port address and interrupt address EFAULT are automatically detected. Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; address is IRQ11 IRQ=11 IO=3E8h; Serial Port I/O port address is 3E8h and the interrupt...

  • Page 86: H/W Monitor

    AFL2-12A-D525 Series Panel PC IO=2D0h; Serial Port I/O port address is 2D0h and the interrupt IRQ=10 address is IRQ10 Serial Port I/O port address is 2E0h and the interrupt IO=2E0h; address is IRQ10, 11 IRQ=10, 11 IO=2D0h; Serial Port I/O port address is 2D0h and the interrupt...

  • Page 87: Serial Port Console Redirection

    AFL2-12A-D525 Series Panel PC PC Health Status The following system parameters and values are shown. The system parameters that are monitored are: System Temperatures: CPU Temperature System Temperature Fan Speeds: CPU Fan Speed Voltages: VCC3V V_core +V1.05S +Vcc3S +Vcc5V VSB3V VBAT 6.3.7 Serial Port Console Redirection...

  • Page 88: Console Redirection [Disabled]

    AFL2-12A-D525 Series Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable or Disable. > Console Redirection Settings COM3 --------------------- Console Redirection [Disabled] : Select Screen ↑ ↓: Select Item >...

  • Page 89: Iei Feature

    AFL2-12A-D525 Series Panel PC 6.4 iEi Feature Use the iEi Feature menu (BIOS Menu 11) to configure the auto recovery function. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover...

  • Page 90: Chipset

    AFL2-12A-D525 Series Panel PC 6.5 Chipset Use the Chipset menu (BIOS Menu 12) to access the Northbridge and Southbridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 91: Host Bridge Configuration

    AFL2-12A-D525 Series Panel PC 6.5.1 Host Bridge Configuration Use the Host Bridge Configuration menu (BIOS Menu 13) to configure the host bridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset ******Memory Information****** Memory Frequency 800 Mhz...

  • Page 92: South Bridge Configuration

    AFL2-12A-D525 Series Panel PC 6.5.2 South Bridge Configuration Use the South Bridge Configuration menu (BIOS Menu 14) to configure the south bridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset Auto Power Button Function [Disabled] Select AC power state...

  • Page 93: Usb Function [Enabled]

    AFL2-12A-D525 Series Panel PC Disabled The onboard High Definition Audio controller is disabled onboard High Definition Audio controller Enabled EFAULT automatically detected and enabled USB Function [Enabled] Use the USB Function BIOS option to enable or disable USB function support.

  • Page 94: Intel Igd Swsci Opregion

    AFL2-12A-D525 Series Panel PC Disabled DMIC function disabled DMIC function enabled Enabled EFAULT BT Function [Enabled] Use the BT Function option to enable or disable the BT function. Disabled BT function disabled Enabled BT function enabled EFAULT AutoDimming Function [Enabled] Use the AutoDimming Function option to enable or disable the auto dimming function.

  • Page 95: Dvmt Mode Select [Dvmt Mode]

    AFL2-12A-D525 Series Panel PC DVMT Mode Select [DVMT Mode] Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology (DVMT) operating mode. Fixed Mode A fixed portion of graphics memory is reserved as EFAULT graphics memory.

  • Page 96: Boot

    AFL2-12A-D525 Series Panel PC 1024x768 18bit EFAULT 1280x1024 18bit 1366x768 18bit 1280x800 18bit 1280x600 18bit 6.6 Boot Use the Boot menu (BIOS Menu 16) to configure system boot options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main...

  • Page 97: Quiet Boot [Enabled]

    AFL2-12A-D525 Series Panel PC Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.

  • Page 98: Security

    AFL2-12A-D525 Series Panel PC 6.7 Security Use the Security menu (BIOS Menu 17) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Setup Administrator Password If ONLY the Administrator’s password is set,...

  • Page 99: Set Master Password

    AFL2-12A-D525 Series Panel PC NOTE: It is recommended that the system be reset after setting a new HDD password. Set Master Password Use the Set Master Password field to set or change the master HDD password. NOTE: It is recommended that the system be reset after setting a new master HDD password.

  • Page 100: Save & Exit

    AFL2-12A-D525 Series Panel PC 6.8 Save & Exit Use the Save & Exit menu (BIOS Menu 18) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 101: Save As User Defaults

    AFL2-12A-D525 Series Panel PC Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 102: Software Drivers

    AFL2-12A-D525 Series Panel PC Chapter Software Drivers Page 90...

  • Page 103: Available Software Drivers

    AFL2-12A-D525 Series Panel PC 7.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates.

  • Page 104: Figure 7-1: Chipset Driver Screen

    AFL2-12A-D525 Series Panel PC Step 4: The setup files are extracted as shown in Figure 7-1. Figure 7-1: Chipset Driver Screen Step 5: When the setup files are completely extracted the Welcome Screen in Figure 7-2 appears. Step 6: Click Next to continue.

  • Page 105: Figure 7-3: Chipset Driver License Agreement

    AFL2-12A-D525 Series Panel PC Step 7: The license agreement in Figure 7-3 appears. Step 8: Read the License Agreement. Step 9: Click Yes to continue. Figure 7-3: Chipset Driver License Agreement Step 10: The Read Me file in Figure 7-4 appears.

  • Page 106: Figure 7-4: Chipset Driver Read Me File

    AFL2-12A-D525 Series Panel PC Figure 7-4: Chipset Driver Read Me File Step 12: Setup Operations are performed as shown in Figure 7-5. Step 13: Once the Setup Operations are complete, click Next to continue. Figure 7-5: Chipset Driver Setup Operations Step 14: The Finish screen in Figure 7-6 appears.

  • Page 107: Graphics Driver Installation

    AFL2-12A-D525 Series Panel PC Step 15: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 7-6: Chipset Driver Installation Finish Screen 7.4 Graphics Driver Installation To install the Graphics driver, please do the following. Step 1: Access the driver list.

  • Page 108: Figure 7-7: Graphics Driver Read Me File

    AFL2-12A-D525 Series Panel PC Figure 7-7: Graphics Driver Read Me File Step 6: The installation files are extracted. See Figure 7-8. Step 7: Click Next to continue. Figure 7-8: Graphics Driver Setup Files Extracted Step 8: The Welcome Screen in Figure 7-9 appears.

  • Page 109: Figure 7-9: Graphics Driver Welcome Screen

    AFL2-12A-D525 Series Panel PC Figure 7-9: Graphics Driver Welcome Screen Step 10: The License Agreement in Figure 7-10 appears. Step 11: Click Yes to accept the agreement and continue. Figure 7-10: Graphics Driver License Agreement Step 12: The Read Me file in Figure 7-11 appears.

  • Page 110: Figure 7-11: Graphics Driver Read Me File

    AFL2-12A-D525 Series Panel PC Figure 7-11: Graphics Driver Read Me File Step 14: Setup Operations are performed as shown in Figure 7-12. Step 15: Once the Setup Operations are complete, click Next to continue. Figure 7-12: Graphics Driver Setup Operations Step 16: The Finish screen in Figure 7-13 appears.

  • Page 111: Audio Driver Installation

    AFL2-12A-D525 Series Panel PC Figure 7-13: Graphics Driver Installation Finish Screen 7.5 Audio Driver Installation To install the audio driver, please do the following. Step 1: Access the driver list. (See Section 7.2) Step 2: Click “Audio” and select the folder which corresponds to your operating system.

  • Page 112: Figure 7-14: Audio Driver Welcome Screen

    AFL2-12A-D525 Series Panel PC Figure 7-14: Audio Driver Welcome Screen Step 6: The audio driver installation begins. See Figure 7-15. Figure 7-15: Audio Driver Installation Page 100...

  • Page 113: Touch Screen Driver

    AFL2-12A-D525 Series Panel PC Step 7: When the installation is complete, the screen in Figure 7-16 appears. Step 8: Select “Yes, I want to restart my computer now” and click Finish. Step 0: Figure 7-16: AC’97 Driver Installation Complete 7.6 Touch Screen Driver To install the touch panel software driver, please follow the steps below.

  • Page 114: Figure 7-17: Touch Screen Driver Welcome Screen

    AFL2-12A-D525 Series Panel PC Figure 7-17: Touch Screen Driver Welcome Screen Step 6: The License Agreement shown in Figure 7-18 appears. Step 7: Click I A to accept and continue. GREE Figure 7-18: Touch Screen Driver License Agreement Step 8: Browse for an install location or use the one suggested (Figure 7-19).

  • Page 115: Figure 7-19: Touch Screen Driver Choose Install Location

    AFL2-12A-D525 Series Panel PC Figure 7-19: Touch Screen Driver Choose Install Location Step 10: The Install screen appears and displays the progress of the installation (Figure 7-20). Page 103...

  • Page 116: Figure 7-20: Touch Screen Driver Installation Screen

    AFL2-12A-D525 Series Panel PC Step 11: Click N to continue. Figure 7-20: Touch Screen Driver Installation Screen Step 12: When the installation is complete, click F to exit setup. (Figure 7-21). INISH Step 0: Figure 7-21: Touch Screen Driver Update Complete...

  • Page 117: Calibrating The Touch Screen

    AFL2-12A-D525 Series Panel PC 7.6.1 Calibrating the Touch Screen To calibrate the touch screen cursor with the motion of the touch screen pen (or finger), please follow the steps below: Step 1: Make sure the touch screen driver is properly installed.

  • Page 118: Figure 7-24: Configuration Screen

    AFL2-12A-D525 Series Panel PC Figure 7-24: Configuration Screen Step 6: Double click the PenMount 9000 icon as shown in Figure 7-24. Step 7: The calibration initiation screen in Figure 7-25 appears. Step 8: Select the Standard Calibration button as shown in Figure 7-25.

  • Page 119: Amcap Driver Installation

    AFL2-12A-D525 Series Panel PC Figure 7-26: Calibration Screen Step 10: Follow the instructions. The user is asked touch the screen at five specified points after which the screen is calibrated. Step 0: 7.7 AMCap Driver Installation To install the AMCap driver, please do the following.

  • Page 120: Figure 7-27: Amcap Driver Welcome Screen

    AFL2-12A-D525 Series Panel PC Figure 7-27: AMCap Driver Welcome Screen Step 6: Browse for an install location or use the one suggested (Figure 7-28). Step 7: Click I to continue. NSTALL Figure 7-28: AMCap Driver Choose Install Location Step 8: The program begins to install.

  • Page 121: Figure 7-29: Amcap Driver Installation Complete

    AFL2-12A-D525 Series Panel PC Step 9: When the driver installation is complete, the screen in Figure 7-29 appears. Step 10: Click Finish to save and exit. Step 0: Figure 7-29: AMCap Driver Installation Complete Page 109...

  • Page 122: A Safety Precautions

    AFL2-12A-D525 Series Panel PC Appendix Safety Precautions Page 110...

  • Page 123: Safety Precautions

    Do not apply voltage levels that exceed the specified voltage range. Doing so may cause fire and/or an electrical shock. Electric shocks can occur if the AFL2-12A-D525 chassis is opened when the AFL2-12A-D525 is running. Do not drop or insert any objects into the ventilation openings of the AFL2-12A-D525.

  • Page 124: Cpu Temperature Warning

    AFL2-12A-D525 Series Panel PC A.1.2 CPU Temperature Warning WARNING: If the CPU Temperature Alert LED shows RED, the CPU core temperature is too high. To lower the CPU temperature, lower the environment temperature or decrease the amount of running programs.

  • Page 125: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL2-12A-D525. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the AFL2-12A-D525 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 126: Product Disposal

    Please follow the national guidelines for electrical and electronic product disposal. A.2 Maintenance and Cleaning Precautions When maintaining or cleaning the AFL2-12A-D525, please follow the guidelines below. A.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the AFL2-12A-D525, please read the details below. Page 114...

  • Page 127: Cleaning Tools

    In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the AFL2-12A-D525. Cloth – Although paper towels or tissues can be used, a soft, clean piece of cloth is recommended when cleaning the AFL2-12A-D525.

  • Page 128: B Bios Configuration Options

    AFL2-12A-D525 Series Panel PC Appendix BIOS Configuration Options Page 116...

  • Page 129: Bios Configuration Options

    AFL2-12A-D525 Series Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 6. 　 System Overview .........................63 　 System Date [xx/xx/xx] ......................63 　 System Time [xx:xx:xx] .......................64 　 ACPI Sleep State [S1 (CPU Stop Clock)] ................66 　...
  • Page 130 AFL2-12A-D525 Series Panel PC 　 IGD - Boot Type [CRT + LFP] ....................83 　 LCD Panel Type [1024x768 18bit]..................83 　 Bootup NumLock State [On]....................84 　 Quiet Boot [Enabled] ......................85 　 Launch PXE OpROM [Disabled] ..................85 　 Boot Option #1 [Generic STORAGE DE…]................85 　...

  • Page 131: C Watchdog Timer

    AFL2-12A-D525 Series Panel PC Appendix Watchdog Timer Page 119...
  • Page 132 AFL2-12A-D525 Series Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 133: Example Program

    AFL2-12A-D525 Series Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 134: D Hazardous Materials Disclosure

    AFL2-12A-D525 Series Panel PC Appendix Hazardous Materials Disclosure Page 122...

  • Page 135: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    AFL2-12A-D525 Series Panel PC D.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 136 AFL2-12A-D525 Series Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 137 AFL2-12A-D525 Series Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
