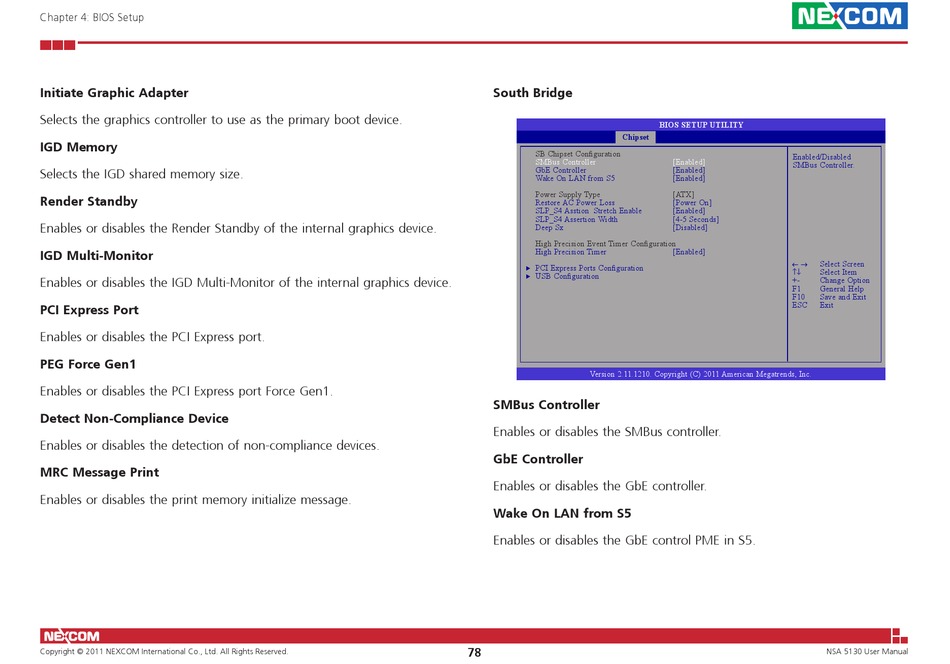

Nexcom NSA 5130 User Manual page 91

Chapter 4: BIOS Setup
Initiate Graphic Adapter
Selects the graphics controller to use as the primary boot device.
IGD Memory
Selects the IGD shared memory size.
Render Standby
Enables or disables the Render Standby of the internal graphics device.
IGD Multi-Monitor
Enables or disables the IGD Multi-Monitor of the internal graphics device.
PCI Express Port
Enables or disables the PCI Express port.
PEG Force Gen1
Enables or disables the PCI Express port Force Gen1.
Detect Non-Compliance Device
Enables or disables the detection of non-compliance devices.
MRC Message Print
Enables or disables the print memory initialize message.
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
South Bridge
Chipset
SB Chipset Configuration
SMBus Controller
GbE Controller
Wake On LAN from S5
Power Supply Type
Restore AC Power Loss
SLP_S4 Asstion Stretch Enable
SLP_S4 Assertion Width
Deep Sx
High Precision Event Timer Configuration
High Precision Timer
PCI Express Ports Configuration
u
USB Configuration
u
Version 2.11.1210. Copyright (C) 2011 American Megatrends, Inc.
SMBus Controller
Enables or disables the SMBus controller.
GbE Controller
Enables or disables the GbE controller.
Wake On LAN from S5
Enables or disables the GbE control PME in S5.
78
BIOS SETUP UTILITY
Enabled/Disabled
[Enabled]
SMBus Controller.
[Enabled]
[Enabled]
[ATX]
[Power On]
[Enabled]
[4-5 Seconds]
[Disabled]
[Enabled]
Select Screen
← →
Select Item
↑↓
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
