DIMENSIONS – MEDIUM CHASSIS

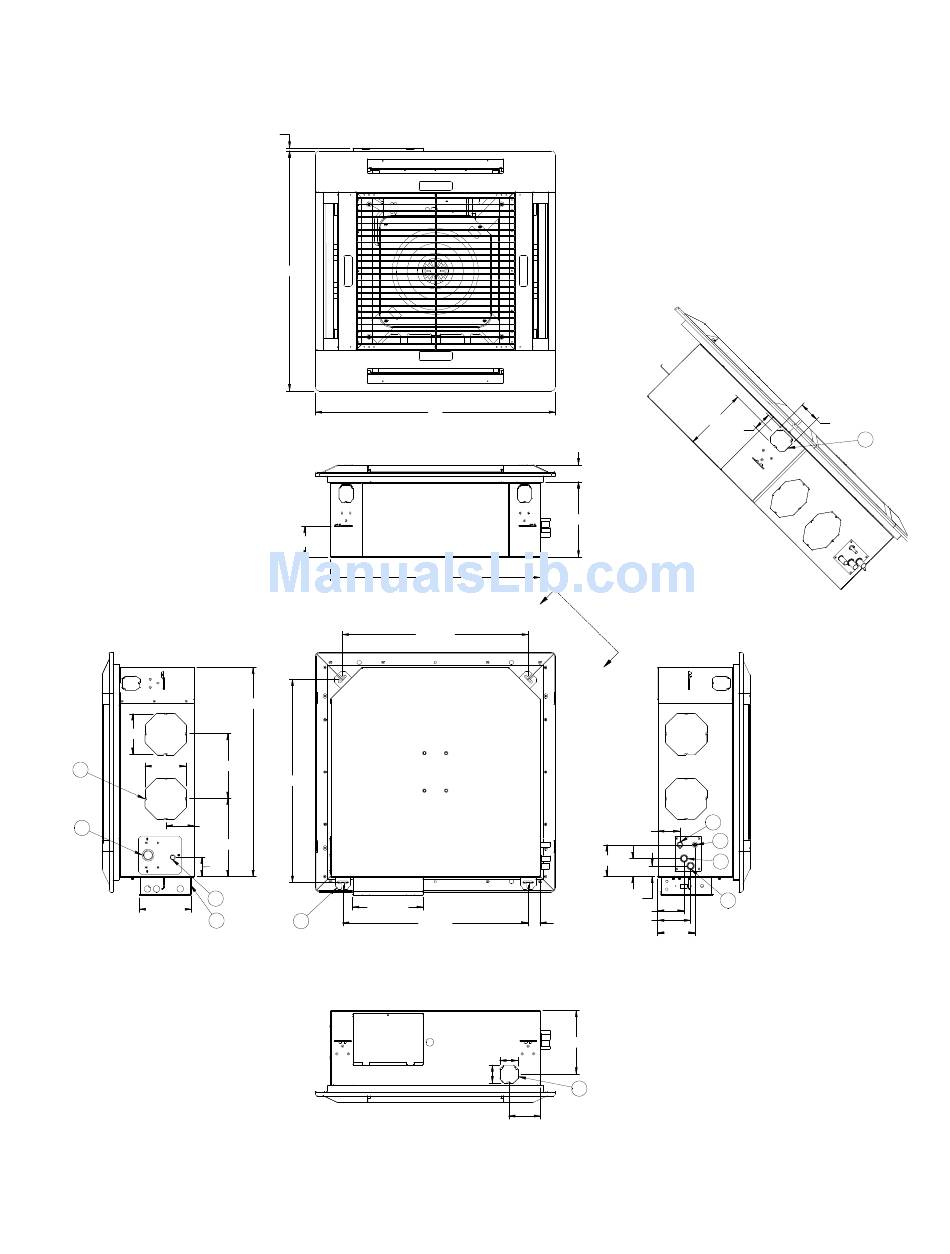

Figure 13.1
Dimensions – Medium Chassis: SSD/SSH 18 and SSD/SSH 24
6 1/4
6 5/16 10
6
4 3/8
7
12 1/16
3
8
8 13/16
9
11/16
37
4 3/4
28 11/16
32 5/16
31 3/8
12 9/16
10
37
2 5/8
11 5/8
32 3/8
A
A
4 7/8
28 9/16 1 7/8
9 13/16
2 3/4
2 3/4
5
4 7/8
8-504.6
1. DX Suction Line
2. DX Liquid Line
3. HW Coil Inlet (Optional)
4. HW Coil Outlet (Optional)
5. Fresh AIr Intake (x3)
6. Branch Duct Opening (x4)
7. Pump Inspection Port
8. Condensate Drain
9. Control Panel
10. Mounting Bracket
9 13/16
2 3/4
VIEW A-A
1
3 7/16
2
4
2 3/4
1 5/8
3
4 1/16
5 1/16
5 3/4
3 1/8
5
13
