DIMENSIONS – SMALL CHASSIS

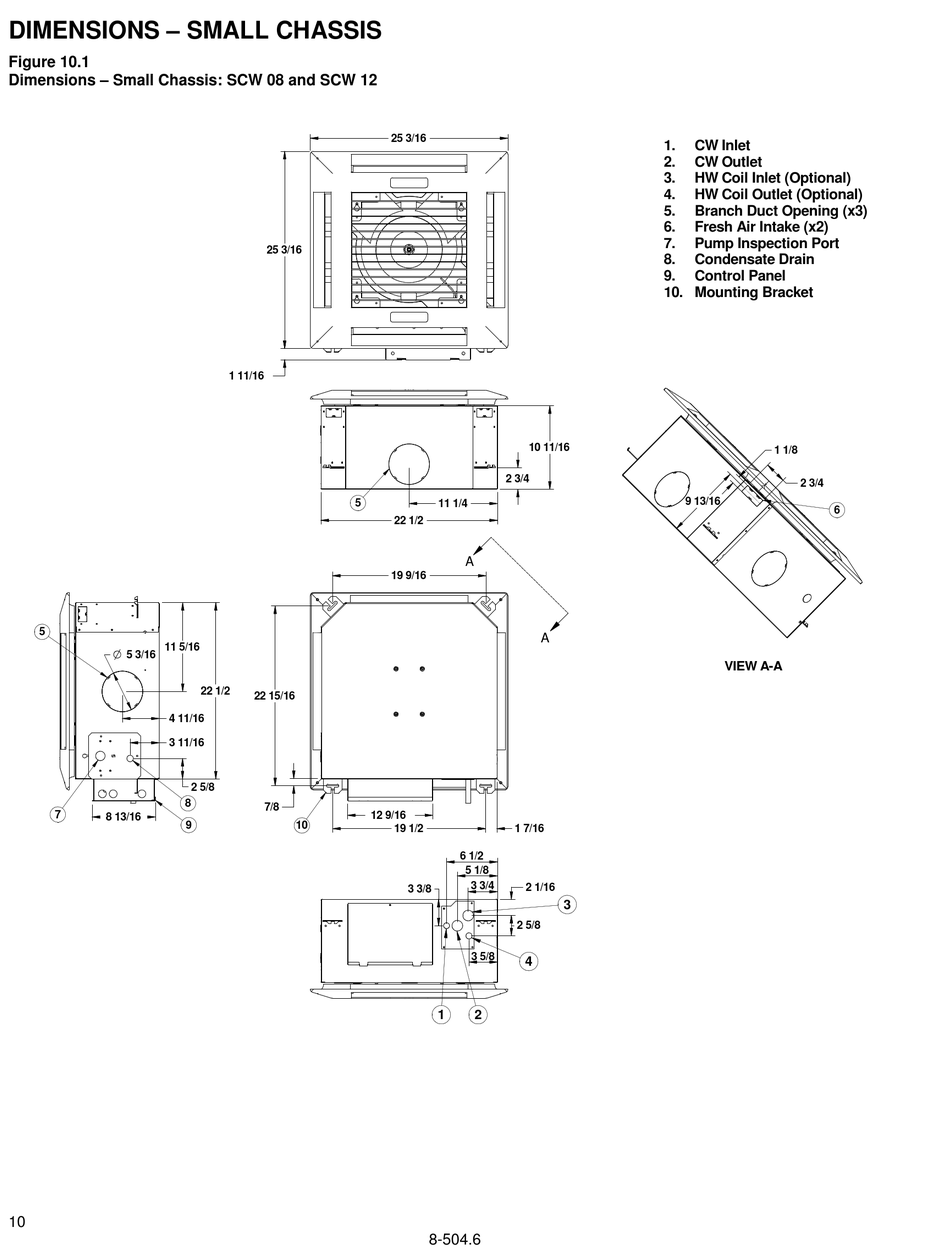

Figure 10.1
Dimensions – Small Chassis: SCW 08 and SCW 12
5
11 5/16
O
5 3/16
4 11/16
3 11/16
8
7
8 13/16
9
10
25 3/16
1 11/16
5
22 1/2
22 15/16
2 5/8
7/8
10
25 3/16
10 11/16
2 3/4
11 1/4
22 1/2
A
19 9/16
A
12 9/16
19 1/2 1 7/16
6 1/2
5 1/8
3 3/4
2 1/16
3 3/8
2 5/8
3 5/8
4
1 2
8-504.6
1. CW Inlet
2. CW Outlet
3. HW Coil Inlet (Optional)
4. HW Coil Outlet (Optional)
5. Branch Duct Opening (x3)
6. Fresh Air Intake (x2)
7. Pump Inspection Port
8. Condensate Drain
9. Control Panel
10. Mounting Bracket
9 13/16
VIEW A-A
3
1 1/8
2 3/4
6
