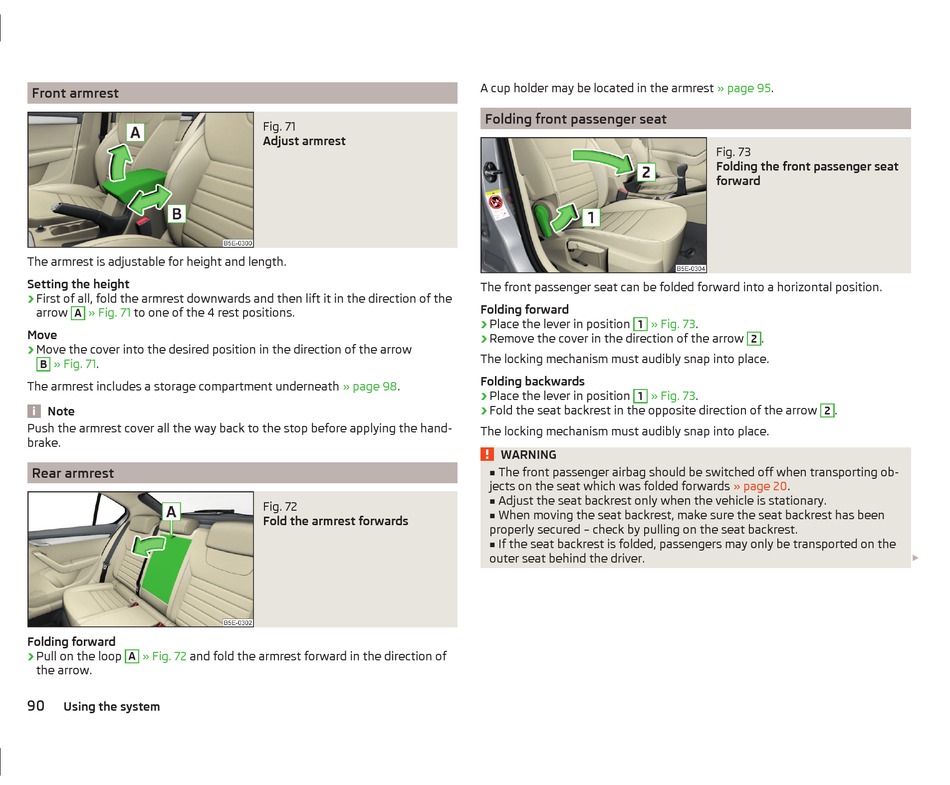

Front Armrest; Rear Armrest; Folding Front Passenger Seat - Skoda Octavia Owner's Manual

Front armrest

The armrest is adjustable for height and length.
Setting the height
›
First of all, fold the armrest downwards and then lift it in the direction of the
arrow » Fig. 71 to one of the 4 rest positions.
A
Move
›
Move the cover into the desired position in the direction of the arrow
» Fig. 71.
B
The armrest includes a storage compartment underneath
Note
Push the armrest cover all the way back to the stop before applying the hand-
brake.

Rear armrest

Folding forward
›
Pull on the loop » Fig. 72 and fold the armrest forward in the direction of
A
the arrow.
90
Using the system
Fig. 71
Adjust armrest
» page 98.
Fig. 72
Fold the armrest forwards
A cup holder may be located in the armrest

Folding front passenger seat

The front passenger seat can be folded forward into a horizontal position.
Folding forward
›
Place the lever in position » Fig.
1
›
Remove the cover in the direction of the arrow
The locking mechanism must audibly snap into place.
Folding backwards
›
Place the lever in position » Fig.
1
›
Fold the seat backrest in the opposite direction of the arrow
The locking mechanism must audibly snap into place.
WARNING
The front passenger airbag should be switched off when transporting ob-
■
jects on the seat which was folded forwards
Adjust the seat backrest only when the vehicle is stationary.
■
When moving the seat backrest, make sure the seat backrest has been
■
properly secured – check by pulling on the seat backrest.
If the seat backrest is folded, passengers may only be transported on the
■
outer seat behind the driver.
» page 95.
Fig. 73
Folding the front passenger seat
forward
73.
.
2
73.
.
2
» page 20.

