Skoda Octavia Owner's Manual page 165

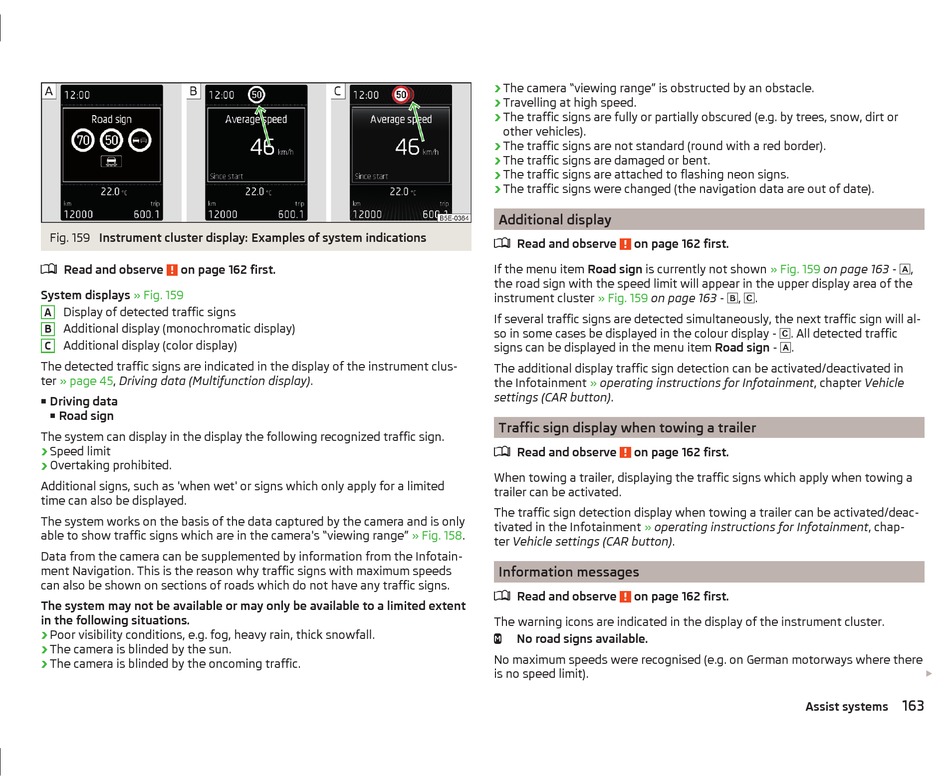

Fig. 159 Instrument cluster display: Examples of system indications

Read and observe on page 162 first.
System displays » Fig. 159
Display of detected traffic signs
A
Additional display (monochromatic display)
B
Additional display (color display)
C
The detected traffic signs are indicated in the display of the instrument clus-
ter » page 45, Driving data (Multifunction display).
■ Driving data
Road sign
■
The system can display in the display the following recognized traffic sign.
›
Speed limit
›
Overtaking prohibited.
Additional signs, such as 'when wet' or signs which only apply for a limited
time can also be displayed.
The system works on the basis of the data captured by the camera and is only
able to show traffic signs which are in the camera's "viewing range"
Data from the camera can be supplemented by information from the Infotain-
ment Navigation. This is the reason why traffic signs with maximum speeds
can also be shown on sections of roads which do not have any traffic signs.
The system may not be available or may only be available to a limited extent
in the following situations.
›
Poor visibility conditions, e.g. fog, heavy rain, thick snowfall.
›
The camera is blinded by the sun.
›
The camera is blinded by the oncoming traffic.
›
The camera "viewing range" is obstructed by an obstacle.
›
Travelling at high speed.
›
The traffic signs are fully or partially obscured (e.g. by trees, snow, dirt or
other vehicles).
›
The traffic signs are not standard (round with a red border).
›
The traffic signs are damaged or bent.
›
The traffic signs are attached to flashing neon signs.
›
The traffic signs were changed (the navigation data are out of date).
Additional display

Read and observe
If the menu item Road sign is currently not shown
the road sign with the speed limit will appear in the upper display area of the
instrument cluster
If several traffic signs are detected simultaneously, the next traffic sign will al-
so in some cases be displayed in the colour display - . All detected traffic
signs can be displayed in the menu item Road sign - .
The additional display traffic sign detection can be activated/deactivated in
the Infotainment
settings (CAR button).
Traffic sign display when towing a trailer

Read and observe
When towing a trailer, displaying the traffic signs which apply when towing a
trailer can be activated.
The traffic sign detection display when towing a trailer can be activated/deac-
tivated in the Infotainment
» Fig. 158.
ter Vehicle settings (CAR button).
Information messages

Read and observe
The warning icons are indicated in the display of the instrument cluster.
No road signs available.

No maximum speeds were recognised (e.g. on German motorways where there
is no speed limit).
on page 162 first.
» Fig. 159 on page 163 - , .
» operating instructions for Infotainment, chapter Vehicle
on page 162 first.
» operating instructions for Infotainment, chap-
on page 162 first.
» Fig. 159 on page 163 - ,

163
Assist systems
