BEC GigaConnect 6300VNL Quick Start Manual

4g/lte voip wireless broadband router
Hide thumbs Also See for GigaConnect 6300VNL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

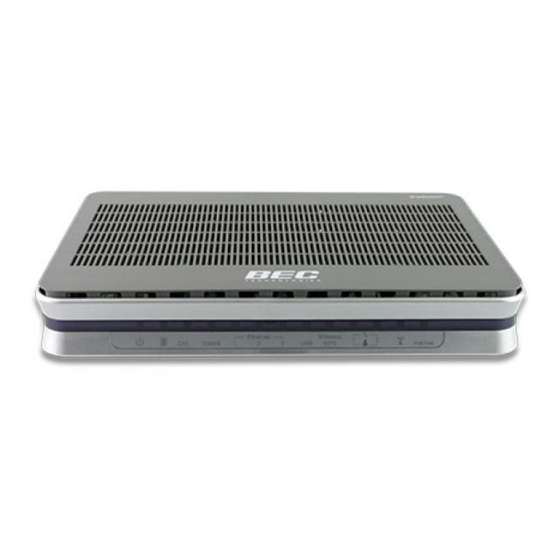

BEC 6300VNL
GigaConnect
®
4G/LTE VoIP Wireless Broadband
Router

Quick Start Guide

Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GigaConnect 6300VNL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEC GigaConnect 6300VNL

Summary of Contents for BEC GigaConnect 6300VNL

  • Page 1: Quick Start Guide

    BEC 6300VNL GigaConnect ® 4G/LTE VoIP Wireless Broadband Router Quick Start Guide Version 1.2...

  • Page 3: Package Contents

    BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON CD-ROM.

  • Page 4: Front Panel Leds

    No signal and the 4G_LTE module is in service No LTE module or LTE module fails Green IP connected and traffic is passing thru the device. Internet IP request failed. BEC 6300VNL is either in bridged mode or WAN connection not ready.

  • Page 5: Rear Panel Connectors

    BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router Rear Panel Connectors PORT MEANING LTE Antenna Screw the supplied LTE antennas onto the antenna connectors on both sides. Insert the mini SIM card (2FF) with the gold contact facing down. SIM Card Slot...

  • Page 6: Hardware Connection

    Quick Start Guide Hardware Connection Hardware Installation Power Connection Select power source from using a (1) DC power adapter or (2) UPS (Uninterruptible Power Supply) 1.1 Using the Supplied DC Power Adaptor Plug in the supplied power adapter to the wall jack, the other side to the 6300VNL then power ON the 6300VNL by pressing the Power On/Off button.
  • Page 7 Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the other side to the PC’s Ethernet interface. 3. WAN Link Interface and Connection BEC 6300VNL supports failover and fallback on multiple WAN interfaces, 4G LTE, EWAN and USB 3G/4G_LTE. <Please refer to User Manual for detailed Internet setup> 3.1 4G_LTE Connection Slide the SIM card into the card slot of the device with the gold contact facing down.
  • Page 8 Connect a USB 3G/4G LTE dongle or modem with an activate data plan to the USB port. 4. USB for Network File Sharing BEC 6300VNL has built-in FTP and Samba Servers, Simply plug in an external USB HD then follow the instruction setup in the User Guide.
  • Page 9 BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router 6. Phone Connection Connect RJ-11 cable to the router’s “Phone 1” or “Phone 2” when connecting to an analog phone set. Both ports (“Phone 1” and “Phone 2”) can make VoIP calls simultaneously. But...

  • Page 10: Connecting To The Router

    Quick Start Guide Connecting to the Router The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1 ~ 192.168.1.253.
  • Page 11 BEC 6300VNL 4G/LTE VoIP Wireless Broadband Router Step 3: Setup Wireless Connection Access Point: select Activated SSID: Assign an unique name Channel: pick from 1~11 Security Type: select a mode - Disable (No security) - WPA - WPA2 (Most secure one)

  • Page 12: Troubleshooting

    Quick Start Guide Troubleshooting 1. None of the LEDs are on when you turn on the router. Check the connection between the adapter and the router. If the error persists, you may have a hardware problem. In this case you should contact technical support. 2.
