User Manual

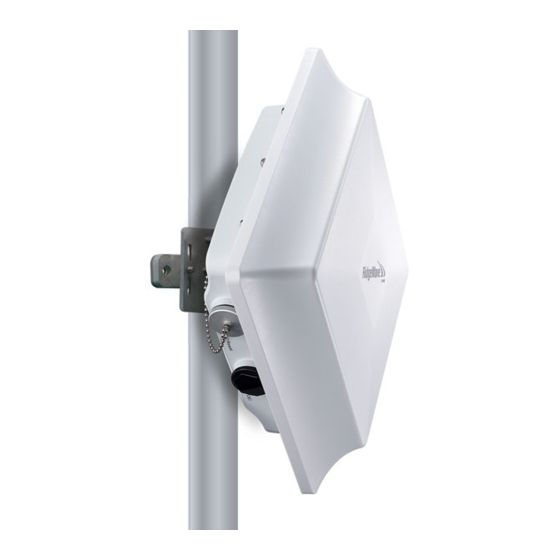

BEC 6900 R21 /
RidgeWave 6900
4G/LTE Outdoor Router
Last revised: September 2019
Version release: v1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEC 6900 R21 and is the answer not in the manual?

Questions and answers

Related Manuals for BEC BEC 6900 R21

Summary of Contents for BEC BEC 6900 R21

  • Page 1 User Manual BEC 6900 R21 / RidgeWave 6900 4G/LTE Outdoor Router Last revised: September 2019 Version release: v1.2...
  • Page 2 Copyright Notice Copyright@ 2019 BEC Technologies Inc. All rights reserved. BEC Technologies reserves the right to change and make improvement to this manual at any time without prior notice. No part of this document may be reproduced, copied, transmitted in any form or by any means without prior written permission from BEC Technologies, Inc.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS COPYRIGHT NOTICE ........1 SUPPORT CONTACT INFORMATION ....1 CHAPTER 1: INTRODUCTION ......1 .............. 1 NTRODUCTION TO YOUR OUTER & S ..............3 EATURES PECIFICATIONS ..............5 ARDWARE PECIFICATIONS ................5 PPLICATION IAGRAM CHAPTER 2: PRODUCT OVERVIEW ....6 ..........
  • Page 4 CHAPTER 4: DEVICE CONFIGURATION ..37 ................. 37 OGIN TO YOUR EVICE ....................39 TATUS Device Info ...................... 39 System Status ....................40 System Log ...................... 41 4G/LTE Status ....................42 Statistics ......................44 DHCP Table ...................... 46 ARP Table ......................46 VRRP Status .....................
  • Page 5 CHAPTER 5: TROUBLESHOOTING ....97 Problems with the Router ................97 Problem with LAN Interface ................97 Recovery Procedures ..................98 APPENDIX: PRODUCT SUPPORT & CONTACT ................. 99 FCC S ................100 TATEMENT (BEC 6900 R21) ....101 ROFESSIONAL NSTALLATION NSTRUCTIONS...

  • Page 6: Copyright Notice

    Lightweight, Compact and unobtrusive Design With multiple mounting options and a lightweight, it is easily to install the BEC 4G/LTE ODU by single person. The BEC 4G/LTE ODU also has a built-in passive Gigabit Power of Ethernet (GPoE) so both data and power can be sent from the unit.
  • Page 7 Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you connected to the Internet immediately. Firmware Upgradeable Device can be upgraded to the latest firmware through the WEB based GUI. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 8: Features & Specifications

    • Stateful Packet Inspection (SPI) • DoS attack prevention including Land Attack, Ping of Death, etc. • Access control • IP&MAC filter, URL Content Filter • Password protection for system management • VPN pass-through BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 9 • Firmware upgrades and configuration data upload and download via web-based GUI • Supports DHCP server / client / relay • Supports SNMP v1, v2, v3, MIB-I and MIB-II • TR-069 supports remote management Cloud-base Management Platform • BECentral ® BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 10: Hardware Specifications

    • LED Indicators: Power, LAN (PoE), LTE, and Internet Physical Specifications • Dimensions (W*H*D): 12.6" x 12.6" x 2.91" (320mm x 320mm x 74mm) • Weight: < 1.5kg • IP-68 Grade Enclosure Application Diagram BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 11: Chapter 2: Product Overview

    802.3at capable PoE injectors to connect with the RidgeWave 6900  It is mandatory to earth ground the BEC 4G/LTE ODU. Attention Improper grounding not only could damage the unit but also all equipment connected to it.

  • Page 12: Device Description

    IP request failed or System is in initial booting phase 3. Internet Green IP connected and traffic is passing thru the device 4. 3G/4G-LTE Green RSSI greater than -69 dBm. Excellent signal condition BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 13 RSSI from -99 to -81 dBm. Fair signal condition Indicator) Flashing quickly Orange RSSI less than -99 dBm. Poor signal condition Flashing slowly Orange No signal. 4G/LTE module is still in connected mode No 4G/LTE module or 4G/LTE module fails BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 14: Mounting Kit Installation - Using Lp2S Mounting Kit

    Bracket x 1 Attach the Stainless-Steel Bracket to the Enclosure Attach the stainless-steel bracket to the back of the BEC 4G/LTE ODU enclosure then use the supplied M6 Washer, Spring Washer, and M6x15 screws in the mounting kit to screw the bracket tightly.
  • Page 15 (1” ~ 3”). Use a flat-head screwdriver to turn the head of the screw clockwise to tighten it. The BEC 4G/LTE ODU must be directed towards the nearest base station. Completed BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 16 Product Overview Mounting Kit Installation – Using LP2S Kit Proper Grounding to Complete the Installation Attach the grounding wire to the BEC 4G/LTE ODU and tighten the screw. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 17: Mounting Kit Installation - Using Rt4R Mounting Kit

    Stainless Hose Clamp 1”-3” x 2 W-Bar x 1 15. M6 Washer x 2 16. M6 Spring Washer x 2 M6 x 60 Screw Bolt x 2 M6 Washer x 2 M6 Spring Washer x BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 18 Mounting Kit Installation – Using RT4R Kit Attach the Articulation Pole to the Enclosure Attach the articulation pole to the back of the BEC 4G/LTE ODU enclosure using the supplied M6 screws, M6 spring washers and M6x16 screws which are included in the mounting kit.
  • Page 19 Product Overview Mounting Kit Installation – Using RT4R Kit BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 20 Product Overview Mounting Kit Installation – Using RT4R Kit Note: The flexible mounting kit can be adjusted in multiple angles to align with the base station for higher efficiency. 45∘ 45∘ 45∘ 45∘ BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 21 2”, it can cause a gradually increase the bolt failure very fast. If diameter is load on both sides. smaller than 1.5”, the clamping force might be insufficient in holding the device to the pole. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 22 3. Attach the BEC 4G/LTE ODU Enclosure to the Pole Attach the articulation pole (BEC 4G/LTE ODU enclosure) to the T-formed bracket using the supplied M8 nut, M8 spring washer, M8 washer and M8x40 screw bolt.
  • Page 23 Attach the grounding wire to the BEC 4G/LTE ODU and tighten the screw. 5. Position Adjustment Adjust the BEC 4G/LTE ODU until it reaches the desire elevation and depression angle, then tight the M8 nut (see Attach the BEC 4G/LTE ODU Enclosure to the Pole for more information) 40°...

  • Page 24: Router Installation Instructions

    IMPORTANT: It is recommended to put the Gigabit PoE Injector on an UPS or Surge Protector. Use a grounding wire to ground your BEC 4G/LTE ODU is REQUIRED! BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 25 Step 2: Slide the SIM card with the mental contacts (gold plate) facing down to the SIM slot then push it all the way in until you hear the clicking sound. It is recommended to use an industrial-grade SIM card. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 26 Product Overview Router Installation Instructions Step 3: Screw the cap back tightly. Please power off the device before inserting or removing the SIM card. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 27: System Recovery Procedures

    System Recovery Procedures System Recovery Procedures The purpose is to allow users to restore the BEC 4G/LTE ODU to its initial stage when the device is outage, upgraded to a wrong / broken firmware, cannot access to the GUI with wrong username and/or password, etc.

  • Page 28: Chapter 3: Basic Installation

    If not, please refer to your Windows-related or other operating system manuals. Any TCP/IP capable workstation can be used to communicate with or through the BEC 4G/LTE ODU. To configure other types of workstations, please consult the manufacturer’s documentation.

  • Page 29: Network Configuration - Ipv4

    When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 30 Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 31: Configuring Pc In Windows 7/8 (Ipv4)

    When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 32 Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 33: Configuring Pc In Windows Vista (Ipv4)

    When the Network and Sharing Center window pops up, select and click on Manage network connections on the left windowpane. Select the Local Area Connection, and right click the icon to select Properties. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 34 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 35: Network Configuration - Ipv6

    When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 36 Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 37: Configuring Pc In Windows 7/8 (Ipv6)

    When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 38 Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 39: Configuring Pc In Windows Vista (Ipv6)

    Center at the top bar. When the Network and Sharing Center window pops up, select and click Manage network connections left windowpane. Select the Local Area Connection, and right click the icon to select Properties. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 40 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 41: Default Settings

    Device LAN IP Settings IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 DHCP Server: DHCP server is enabled. Start IP Address: 192.168.1.100 IP pool counts: 100 BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 42: Chapter 4: Device Configuration

    The default username and password are “admin” and “admin” respectively for the Administrator. NOTE: This username / password may vary by different Internet Service Providers. Congratulations! You have successfully logged on to your BEC 4G/LTE ODU BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 43 Device Configuration Login to the GUI Once you have logged on to your BEC 4G/LTE ODU via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you...

  • Page 44: Status

    Model Name: Name of the router for identification purpose. Firmware Version: Software version currently loaded in the router MAC Address: A unique number that identifies the router Data-Time: Setup correct time on the BEC 4G/LTE ODU with your PC. Check on Time Zone section for more configuration information.

  • Page 45: System Status

    Memory Total / Free / Cached (in Kbyte): Display the memory consumptions in kilobytes (kB). Click Refresh button to update the status. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 46: System Log

    In system log, you can check the operations status and any glitches to the router. Refresh: Press this button to refresh the statistics. Backup: Press to save the System log, log.cfg, to your PC. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 47: 4G/Lte Status

    Refresh: Click to refresh the statistics. Neighbour Cell: Display lists of neighboring cell information in the area.  Index: The numeric indicator of a cell tower.  Band: Display the support operating LTE band BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 48  Earfcn (E-URTA Absolute Radio Frequency Channel Number): Display the unique LTE band/carrier frequency.  PCI: Display the Physical Cell ID (PCI) that the BEC 4G/LTE ODU is connected to for data service.  RSRQ (LTE signal parameters): Reference Signal Receiving Quality measures the signal strength and is calculated based on both RSRP and RSSI.

  • Page 49: Statistics

    Receive Speed: Display the data rate receives from the mobile Internet. Refresh: Click to manually refresh the data. Auto Refresh: Select a time interval to refresh the data automatically or none to disable the feature. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 50 Receive Speed: Display the data rate receives from the LAN network. Refresh: Click to manually refresh the data. Auto Refresh: Select a time interval to refresh the data automatically or none to disable the feature. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 51: Dhcp Table

    MAC Address: The MAC address of a device, e.g. PC, notebook, printer, etc., that is corresponded with the IP address. VRRP Status Current Status: Display current VRRP status, Master or Backup. Current Master: Display the IP address of the Master BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 52: Quick Start

    Once changed, please use this new password next time when accessing to the router. Click NEXT to continue. Step 2 – Time Zone Choose your time zone. Click NEXT to continue. Step 3 – ISP Connection Type Set up your 4G/LTE Internet connection. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 53 The Setup Wizard has completed. Click on BACK to make changes or correct mistakes. Click NEXT to save the current settings and complete the Quick Start setups. Go back to the Status > Device Info to view the status. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 54: Configuration

    WAN Interface: List all available WAN interfaces. (In this section, you have selected to use 4G/LTE) Status: Choose Activated to enable the 4G/LTE connection. LTE Settings Usage Allowance: Enable and click “Usage Allowance” for further setting configuration of your 4G/LTE data usage. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 55 NOTE: This statistic information will get deleted after a factory reset.  Disable: No action taken LTE PCI Lock: Enable to force the BEC 4G/LTE ODU to connect with the specific Earfcn and Physical Cell ID. Network Mode: Select a cellular mode. Select Automatic to auto detect the best mode for you.
  • Page 56  Check Interval 5 x ___ Seconds: Default is set to 1 (5 seconds). Setup a timer to ping the keep alive IP. Background Ping: Select Yes to keep the 4G/LTE active at all time, prevent BEC 4G/LTE ODU from entering idle state.

  • Page 57: Lan

    IPv4 Parameters IP Address: Enter the IP address of Router in dotted decimal notation, for example, 192.168.1.254 BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 58  If set to Disabled, the DHCP server will be disabled.  If set to Relay, the BEC 4G/LTE ODU acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients. Enter the IP address of the actual, remote DHCP server in the Remote DHCP Server field in this case.
  • Page 59 The stateless mechanism allows a host to generate its own addresses using a combination of locally available information (MAC address) and information (prefix) advertised by routers. Routers advertise prefixes that identify the subnet(s) associated with a BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 60 Router Advertisement messages periodically which would multicast the IPv6 Prefix information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We suggest enabling this field. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 61: Loopback

    Telnet management IP and involved in BGP as BGP Update-Source and OSPF as Router ID. IP Address: Enter a dedicated IP address for the loopback interface. IP Subnet Mask: Enter the subnet mask for the loopback interface. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 62: Advanced Setup

    SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.  Enabled: It activates your SPI function.  Disabled: It disables the SPI function. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 63: Routing

    Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15. Click Save to add this route BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 64: Dynamic Routing

    However, area border routers do not need to be physically connected to the backbone - connection to it may be simulated using a virtual link. Click Save to apply the settings. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 65 AS number are the same, thus, an inter-AS communication, please enable the allowas-in. Otherwise, the router only support EBGP routing between different domains. Next-Hop-Self: Enable to use the router’s own loopback address as the next-hop address. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 66: Nat

    EWAN service the DMZ and Virtual server are applied to. Click DMZ or Virtual Server to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 67 Example: Skip port 80 (UDP/TCP) in the list. All Incoming request to access to port 80 (Web GUI) will be forwarded to the embedded HTTP server of BEC 4G/LTE ODU instead of the DMZ host. Click Add to add an entry to the Except Listing.
  • Page 68 NOTE: This feature disables automatically if WAN connection is in BRIDGE mode or NAT is being turned OFF. Virtual Server is also known as Port Forwarding that allows BEC 4G/LTE ODU to direct incoming traffic to a specific device in the network.
  • Page 69 IP addresses that are to be issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 70 Step 2: Login to the Gateway and go to Configuration / Advanced Setup / NAT / Virtual Server. FTP server uses TCP protocol with port 21. Enter “21” to Start and End Port Number. The BEC 4G/LTE ODU will accept port 21 requests from WAN side.

  • Page 71: Vrrp

    When deactivated, the lower priority backup is left in the master state. VRIP: An IP address which is associated with the virtual router. Advertisement period: Indicates the time interval in seconds between advertisements. Default in 1 second. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 72: Static Dns

    192.0.32.10 (IPv4). IP Address: The IP address you are going to give a specific domain name. Domain Name: The friendly domain name for the IP address. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 73: Qos

    WAN to LAN (Bandwidth): Control traffic from WAN to LAN (Downstream). Click Bandwidth Save to save settings. LAN Host Bandwidth: Rule Index: Index marking for each rule up to maximum of 16. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 74  External Port: The Port number on the remote / WAN side. Click Save to apply settings. To Remove a Policy: Simply select the Index then hit the Delete button to remove from the list. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 75: Time Schedule

    End Time: The ending point of the interval for the timeslot, anytime in 00:00 – 24:00. Click Save to apply your settings. Example, you can add a timeslot named “TimeSlot1” which features a period from 9:00 of Monday to 18:00 of Tuesday. Another TimeSlot2 BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 76: Mail Alert

    WAN IP change has been detected. Recipient’s Email (4G/LTE Usage Allowance): Enter a valid e-mail address to receive an alert message when the 4G/LTE over Usage Allowance occurs. Click Apply button to save settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 77: Access Management

    80, e.g. port 8080. HTTPS Port: Similar to HTTP which is an unencrypted communication using port 80. HTTPS is encrypted by SSL using port 443 instead. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 78: Snmp

    Authentication Protocol: Select the authentication protocol, MD5 and SHA. SNMP agent can communicate with the manager station through authentication and encryption to secure the message exchange. Set the authentication and encryption information here and below. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 79 Access Management – SNMP Authentication Key: Set the authentication key, 8-31 characters. Privacy Protocol: Select the privacy mode, DES and AES. Privacy Key: Set the privacy key, 8-31 characters. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 80: Syslog

    Remote System Log: Select Activated to enable this feature Server IP Address: Assign the remote log server IP address. Server UDP Port: Assign the remote log server port, 514 is commonly used. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 81: Universal Plug & Play

    Auto-configured: Select this check box to allow UPnP-enabled applications to automatically configure the BEC 4G/LTE ODU so that they can communicate through the BEC 4G/LTE ODU, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device;...

  • Page 82: Dynamic Dns (Ddns)

    Wildcard support: Select this check box to enable DYNDNS Wildcard. Period: Set the time period on how often the BEC 4G/LTE ODU will update the DDNS server with your current external IP address. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 83 If you do not have an account with Dynamic DNS, please go to www.dyndns.org to register an account first. User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/ DDNS: www.hometest.com using username/password test/test BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 84: Access Control

    Active: Yes to activate the rule. Secure IP Address: The default 0.0.0.0 allows any client to use this service to manage the BEC 4G/LTE ODU. Type an IP address range to restrict access to the client(s) without a matching IP address.
  • Page 85 Device Configuration Access Management – Access Contro Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 86: Packet Filter

    Type: Choose type of field you want to specify to monitor. Select “IPv4” for IPv4 address, port number and protocol. Select “IPv6” for IPv6 address, port number and protocol. Select “MAC” for MAC address. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 87 Destination Port Number: This is the Port or Port Ranges that defines the application. DSCP: show the set DSCP. Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 88 Source MAC Address: show the MAC address of the rule applied. Time Schedule: Select a TimeSlot to activate the rule. Go to Time Schedule to configure a time control first. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 89 URL (Host): Specified URL which is prohibited from accessing. Time Schedule: Select a TimeSlot to activate the rule. Go to Time Schedule to configure a time control first. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 90: Cwmp (Tr-069)

    ACS Login Information URL: Enter the ACS server login URL. Username: Specify the ACS Username for ACS authentication to the connection from CPE. Password: Enter the ACS server login password. Connection Request Information BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 91 Bind WAN Interface Interface: Specify any available or a single WAN interface to handle TR-069 requests. NATT Config - This is a proprietary feature provided by BEC. May leave them in blank, no configuration is required. NATT Server: By BEC administrator only.

  • Page 92: Parental Control

    Host Name: It is the domain name of your OpenDNS. If you don’t have one, please leave it blink. Username / Password: Put down your OpenDNS account username and password Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 93: Becentral Management

    Device Report Interval: Enter the interval time in seconds to send inform message periodically to the BECentral. Interface: Specify any available or a single WAN interface to handle BECentral requests. Click Save to apply settings. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 94: Maintenance

    The User account is with limited access (specified by advanced users with admin account) to the GUI. Total of 8 accounts can be created to grant access to manage the BEC 4G/LTE ODU via the web page.
  • Page 95 Guest Account: Enable to create this new guest account and select features to allow user account to access to. When someone accesses to the BEC 4G/LTE ODU using this “user” account, he/she can only manage and configure the features that is pre-selected in Web GUI Permission for this account.

  • Page 96: Time Zone

     NTP Server automatically: To synchronize time with the SNTP servers to get the current time from an SNTP server outside your network then choose your local time zone. After a successful connection to the Internet, BEC 4G/LTE ODU will retrieve the correct local time from the SNTP server this is specified.

  • Page 97: Firmware & Configuration

    . To upgrade the firmware of the BEC 4G/LTE ODU, you should download or copy the firmware to your local environment first. Click “Choose File” to specify the path of the firmware file. Then, click “Upgrade”...

  • Page 98: System Restart

    You may also restore your router to factory settings by holding the small Reset pinhole button on the back of your router in about more than 6s seconds whilst the router is turned on. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 99: Auto Reboot

    Device Configuration Maintenance – Auto Reboo Auto Reboot Schedule an automatic reboot for your BEC 4G/LTE ODU to ensure proper operation and best performance. This reboot will only reboot with current configuration settings and not overwrite any existing settings. Click Save to apply settings Example: Schedule BEC 4G/LTE ODU to reboot at 10:00pm (22:00) every weekday (Monday thru Friday) and reboot at 9:00am on Saturday and Sunday.

  • Page 100: Diagnostics Tool

    Click START to begin to diagnose the connection. Speed Time: Measure the current uplink and downlink speed rate.  Take less than a minute to run the test.  Result in Uplink / Downlink BEC 6900 R21 / RidgeWave 6900 User Manual...
  • Page 101  Take less than a minute to run the test.  Result in Uplink / Downlink Click Back to go back to the Diagnostic Tool Click START to begin to diagnose the connection. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 102: Chapter 5: Troubleshooting

    Troubleshooting Chapter 5: Troubleshooting If your BEC 4G/LTE ODU is not functioning properly, you can refer to this chapter for simple troubleshooting before contacting your service provider support. This can save you time and effort but if symptoms persist, consult your service provider.

  • Page 103: Recovery Procedures

    Please note that the router will only respond with its web interface at this address (192.168.1.1), and will not respond to ping request from your PC or other telnet operations. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 104: Appendix: Product Support & Contact

    If you come across any problems, please contact the dealer from where you have purchased the product. Contact BEC @ http://www.bectechnologies.net MAC OS is a registered Trademark of Apple Computer, Inc. Windows 10/8/7 and Windows Vista are registered Trademarks of Microsoft Corporation. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 105: Fcc Statement

    FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 25cm between the radiator & your body. BEC 6900 R21 / RidgeWave 6900 User Manual...

  • Page 106: Professional Installation Instructions (Bec 6900 R21)

    Please carefully select the installation position and make sure that the final output power does not exceed the limit set force in relevant rules. The violation of the rule could lead to serious federal penalty. V1041146 BEC 6900 R21 / RidgeWave 6900 User Manual...
