User Manual BEC MX-200Ae WWAN Failover Manager Last revised: September, 2020 Version release: v3.2...
Page 2
Copyright Notice Copyright@ 2020 BEC Technologies Inc. All rights reserved. BEC Technologies reserves the right to change and make improvement to this manual at any time without prior notice. No part of this document may be reproduced, copied, transmitted in any form or by any means without prior written permission from BEC Technologies, Inc.
TABLE OF CONTENTS COPYRIGHT NOTICE ........1 SUPPORT CONTACT INFORMATION ..... 1 CHAPTER 1: INTRODUCTION ......1 .............. 1 NTRODUCTION TO YOUR OUTER & S ..............3 EATURES PECIFICATIONS ..............5 ARDWARE PECIFICATIONS ................. 6 PPLICATION IAGRAMS CHAPTER 2: PRODUCT OVERVIEW ....7 ..........
Page 4
................. 26 OGIN TO YOUR EVICE ....................28 TATUS Device Info ...................... 28 System Status ....................29 System Log ...................... 29 4G/LTE Status ....................30 Statistics ......................32 DHCP Table ...................... 35 ARP Table ......................36 VRRP Status ..................... 36 ..................
Page 5
Parental Control ......................91 BECentral Management....................92 Maintenance ....................93 User Management ......................93 Certificate Management ....................95 Time Zone ........................97 Firmware & Configuration .................... 98 System Restart ......................99 Auto Reboot ........................ 100 Diagnostics Tool ......................101 CHAPTER 5: TROUBLESHOOTING .... 103 Problems with the Router ................
NTRODUCTION Introduction to your Router The BEC MX-200Ae WWAN Failover Manager is a high performance fixed wireless platform enabling real-time 4G Cellular data connectivity for your existing serial devices and Ethernet network. The MX-200Ae provides a reliable and cost-effective alternative solution for business continuity. The platform can serve as the primary connection or backup connection when wired connections fail are unavailable or non-existent.
Page 7
Introduction Firmware Upgradeable Device can be upgraded to the latest firmware through the WEB based GUI. BEC MX-200Ae User Manual...
• Universal Plug and Play (UPnP) compliant • Dynamic Domain Name System (DDNS) • Virtual server and DMZ • SNTP, DNS relay • IGMP proxy and IGMP snooping • MLD proxy and MLD snooping • Supports port-based Virtual LAN (VLAN) BEC MX-200Ae User Manual...
Page 9
• Web-based GUI for remote and local management (IPv4/IPv6) • Firmware upgrades and configuration data upload and download via web-based GUI • Supports DHCP server / client / relay • Supports SNMP • TR-069 supports remote management • BECentral Cloud Management BEC MX-200Ae User Manual...
• SIM Card: One (1) slot • Reset Button • Power Connector: 4-pin connectors • LED Indicators: Power / Internet / LTE / Ethernet Physical Specifications • Dimensions (W*H*D): 4.29" x 1.17" x 3.43" (109mm x 29.7mm x 87mm) BEC MX-200Ae User Manual...

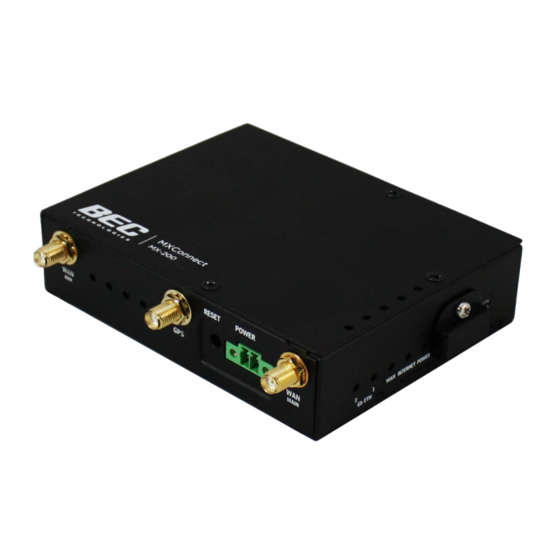

The MX-200Ae Advanced Industrial 4G/LTE Router is ideal the ideal solution for Digital signage, Remote surveillance, Vending Machines, Retail Point-of-Sales (PoS), Remote patient care/maintenance services, SCADA, Metering applications and much more. Industrial Industry: Power / Energy Industry: BEC MX-200Ae User Manual...
Only use the power adapter that comes with the package. Using a different voltage rating power adaptor may damage the router. Attention Package Contents ✓ (Optional Accessories) BEC MX-200Ae M2M Router * 1 ✓ ✓ 4G/LTE Antennas Quick Installation Guide * 1 ✓...
Ethernet cable (Cat-5 or Cat-5e) to any of those two LAN ports. RS-232 serial port for machine connection and data collection SERIAL Connect the male end of RS-232 serial data cable to the MX-200Ae and the other end to a machine or PC BEC MX-200Ae User Manual...
Page 14
POWER VCC (Left Connector): Power - Red Wire to connect to the Positive (+) terminal of the power supply. GND (Right Connector): Ground – Black Wire to connect to the ground of the power supply BEC MX-200Ae User Manual...
Page 15
Boot failure Insert mini SIM card (2FF) with the gold contact facing down. SIM Card Slot Push mini SIM card (2FF) inwards to eject it * Power off the MX-200Ae before inserting or removing the SIM card BEC MX-200Ae User Manual...
One of the most common causes of problems is bad cabling. Make sure that all connected devices are turned on. On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs are lit. If they are not, verify that you are using the proper cables. BEC MX-200Ae User Manual...
If not, please refer to your Windows-related or other operating system manuals. Any TCP/IP capable workstation can be used to communicate with or through the MX-200Ae. To configure other types of workstations, please consult the manufacturer’s documentation. Attention BEC MX-200Ae User Manual...
Network and Sharing Center When the Network and Sharing Center window pops up, select, and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-200Ae User Manual...
Page 19
In the TCP/IPv4 properties window, select the Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-200Ae User Manual...
Then click on Network and Internet. When the Network and Sharing Center window pops up, select, and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-200Ae User Manual...
Page 21
In the TCP/IPv4 properties window, select the Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-200Ae User Manual...
Center at the top bar. When the Network Sharing Center window pops up, select, and click on Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-200Ae User Manual...
Page 23
Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-200Ae User Manual...
Network and Sharing Center When the Network and Sharing Center window pops up, select, and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-200Ae User Manual...
Page 25
In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-200Ae User Manual...
Then click on Network and Internet. When the Network and Sharing Center window pops up, select, and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-200Ae User Manual...
Page 27
In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-200Ae User Manual...
Center at the top bar. When the Network and Sharing Center window pops up, select, and click Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-200Ae User Manual...
Page 29
Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-200Ae User Manual...
Caution: After pressing the RESET button for more than 6 seconds then release it, to be sure you power cycle the device again. Device LAN IP Settings IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 DHCP Server: DHCP server is enabled. Start IP Address: 192.168.1.100 IP pool counts: 100 BEC MX-200Ae User Manual...
The default username and password is “admin” and “admin” respectively for the Administrator. For the User account, default username and password is “user” and “user”. NOTE: This username / password may vary by different Internet Service Providers. Congratulations! You have successfully logged on to your MX-200Ae BEC MX-200Ae User Manual...
Page 32
VRRP Status Maintenance User Management Certificate Management Time Zone Firmware & Configuration System Restart Auto Reboot Diagnostic Tool Please see the relevant sections of this manual for detailed instructions on how to configure your MX-200Ae device. BEC MX-200Ae User Manual...
DHCP Server: Display LAN DHCP status of IPv4 and IPv6. Enable / 192.168.1.100~199: DHCPv4 server status on or off / DHCP IP range Enable / Stateless: DHCPv6 server status on or off / DHCPv6 server Type BEC MX-200Ae User Manual...
In system log, you can check the operations status and any glitches to the router. Refresh: Press this button to refresh the statistics. Backup: Press to save the System log, log.cfg, to your computer / notebook. BEC MX-200Ae User Manual...
Display the actual PCI (Physical Cell ID) that device is attached and to transfer the data. Card IMEI: The unique identification number that is used to identify the 4G/LTE module. Card IMSI: The international mobile subscriber identity used to uniquely identify the 4G/LTE module. BEC MX-200Ae User Manual...
Page 36
Billing Cycle: Display the start date and number of days remaining in current billing cycle Clean: Reset current saved mobile usage Save: Click to save current mobile status to ROM Refresh: Click to refresh the page. BEC MX-200Ae User Manual...
Receive Total Frames: Display the total number of frames received until the latest second since system is up. Receive Total Bytes: Display the total frames received till the latest second since system is up. Refresh: Click to refresh the page. BEC MX-200Ae User Manual...
Page 38
Receive Total Bytes: Display the number of bytes received until the latest second. Receive CRC Errors: Display the number of error packets on this port. Receive Under-size Frames: Display the number of under-size frames received until the latest second. Refresh: Click to refresh the page. BEC MX-200Ae User Manual...
Page 39
Receive Total Bytes: Display the number of bytes received until the latest second. Receive CRC Errors: Display the number of error packets on this port. Receive Under-size Frames: Display the number of under-size frames received until the latest second. Refresh: Click to refresh the page. BEC MX-200Ae User Manual...
Host Name: Display the hostname of the PC. IP Address: The IP allocated to the device. MAC Address: The MAC of the connected device. Expire Time: The total remaining interval since the IP assignment to the PC. BEC MX-200Ae User Manual...
MAC Address: The MAC address of a device, e.g. PC, notebook, printer, etc., that is corresponded with the IP address. VRRP Status Current Status: Display current VRRP status, Master or Backup. Current Master: Display the IP address of the Master BEC MX-200Ae User Manual...
Once changed, please use this new password next time when accessing to the router. Click NEXT to continue. Step 2 – Time Zone Choose your time zone. Click NEXT to continue. Step 3 – ISP Connection Type Set up your Internet connection. BEC MX-200Ae User Manual...
Page 43
Click NEXT to continue. Step 4 – Quick Start Completed The Setup Wizard has completed. Click on BACK to make changes or correct mistakes. Click NEXT to save the current settings and complete the Quick Start setups. BEC MX-200Ae User Manual...
Page 44
Device Configuration Quick Start Go back to the Status > Device Info to view the status. BEC MX-200Ae User Manual...
WAN Interface: List all available WAN interfaces. (In this section, you have selected to use 4G/LTE) Status: Choose Activated to enable the 4G/LTE connection. Usage Allowance: Enable and click “Usage Allowance” for further setting configuration of your 4G/LTE data usage. Usage Allowance BEC MX-200Ae User Manual...
Page 46
LTE Mode*: Display current selected LTE frequency band. To change the band, please click “LTE Mode” link to access to the band selection page. LTE Band LTE Band: A list of available LTE bands to choose from. BEC MX-200Ae User Manual...
Page 47
If you enter the PIN code incorrectly into the phone 3 times in a row, then the SIM card will be blocked and you will require a PUK code from your network/service provider. Connection: Default set to Always on to keep an always-on 4G/LTE connection. BEC MX-200Ae User Manual...
Page 48
MTU: Maximum Transmission Unit. The size of the largest datagram (excluding media-specific headers) an IP attempts to send through the interface. 0 means to use default MTU size, 1500byte. Click Save to apply settings. BEC MX-200Ae User Manual...
Page 49
EWAN (LAN 1) Status: Select to enable/activate or disable/deactivated the service. IPv4/IPv6 IP Version: Choose IPv4, IPv4/IPv6, IPv6 based on your environment. If you don’t know which one to choose from, please choose IPv4/IPv6 instead. ISP Connection Type: BEC MX-200Ae User Manual...
Page 50
Connect Manually: Select Connect Manually when you don't want the connection up all the time. TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum Segment Size (MSS). IP Options BEC MX-200Ae User Manual...
Page 51
Both means the router will periodically send routing information and accept routing information then incorporate into routing table. IN only means the router will only accept but will not send RIP packet. OUT only means the router will only send but will not accept RIP packet. BEC MX-200Ae User Manual...
Page 52
MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a Multicast Management protocol for IPv6 multicast packets. When router’s Internet configuration is finished successfully, you can go to status to get the connection information. Click Save to apply settings. BEC MX-200Ae User Manual...
With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that group. BEC MX-200Ae User Manual...
Page 54
TFTP server. (The option 160 is an extended feature in DHCP option, similar to option 66, but using http or https protocols.) Fixed Host In this field, users can map the specific IP (must in the DHCP IP pool) for some specific MAC, and this BEC MX-200Ae User Manual...
Page 55
DHCPv6 server. The Server maintains a database that keeps track of which addresses have been assigned to which hosts. DHCPv6 Server: Check whether to enable DHCPv6 server. DHCPv6 Server Type: Select Stateless or Stateful. When DHCPv6 is enabled, this parameter is available. BEC MX-200Ae User Manual...
Page 56
Router Advertisement messages periodically which would multicast the IPv6 Prefix information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We suggest enabling this field. Click Save to apply settings. BEC MX-200Ae User Manual...
Telnet management IP and involved in BGP as BGP Update-Source and OSPF as Router ID. IP Address: Enter a dedicated IP address for the loopback interface. IP Subnet Mask: Enter the subnet mask for the loopback interface. Click Save to apply settings. BEC MX-200Ae User Manual...
Dual WAN, is a feature to have two independent Internet connection connected concurrently, offers a reliable Internet connectivity and maximize bandwidth utilization for critical applications delivery. General Setting Mode: Select a mode then click Save to proceed. BEC MX-200Ae User Manual...
Page 59
(WAN2) after primary link fails to response in total of 90 seconds, 30 seconds for 3 consecutive failures. Note: Failover and Failback follow the same Connectivity Decision & Probe Cycle rule to failover from WAN1 to WAN2 or fallback from WAN2 to WAN1. BEC MX-200Ae User Manual...
Page 60
WAN failback or failover procedures. The valid range is from -111 ~ -5. 0 means don’t care/no need to check this value. NOTE: Both the RSRP and RSSI cannot be 0 at the same time. Click Save to apply settings. BEC MX-200Ae User Manual...
Page 61
Gateway: Internal system will wait for responses to the pings from the gateway of the WAN. Host: Internal system will wait for responses to the pings from a fixed IP address. Click Save to apply settings BEC MX-200Ae User Manual...
Balance by weight: Use an IP hash to balance traffic based on a ratio. It is to guarantee requests from the same IP address get forward to the same WAN interface. Click Save to apply settings BEC MX-200Ae User Manual...
Protocol: Select a protocol, TCP, UDP, ICMP, to use for this traffic. Click Save to apply settings Example: All traffics from IP 192.168.1.100/255.255.255.0 with port 8080 will go through WAN1 interface. The only time it would go through WAN2 interface is when WAN1 has no Internet connection. BEC MX-200Ae User Manual...
Page 64
Device Configuration Dual WAN – Protocol Binding BEC MX-200Ae User Manual...
SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side. Enabled: Activate your SPI function. Disabled: Deactivate the SPI function. Click Save to apply settings BEC MX-200Ae User Manual...
Gateway IP Address or Interface: This is the gateway IP address or existing interface to which packets are to be forwarded. Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15. Click Save to add this route BEC MX-200Ae User Manual...
Service Index: Associated to EWAN interface marking each EWAN service (0-7), to select which EWAN service the DMZ and Virtual server are applied to. Click DMZ or Virtual Server to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario. BEC MX-200Ae User Manual...
Page 68
Example: Skip port 80 (UDP/TCP) in the list. All Incoming request to access to port 80 (Web GUI) will be forwarded to the embedded HTTP server of MX-200Ae instead of the DMZ host. Click Add to add an entry to the Except Listing. BEC MX-200Ae User Manual...
Page 69
The starting port must be greater than zero (0). The end port must be greater than or equal to the start port. Local IP Address: Enter the server IP address in the network to receive the traffic/packets. Start / End Port Number (Local): Enter the start / end port number of the local application (service). BEC MX-200Ae User Manual...
Page 70
PC, with an address that does not fall into the range of IP addresses that are to be issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router. BEC MX-200Ae User Manual...
Page 71
Enter the static IP assigned to the local PC that is hosting the FTP server. Ex: 192.168.1.102 Enter "21” to Local Start and End Port number. The MX-200Ae will forward port 21 request from WAN to the specific LAN PC (Example: 192.168.1.102) in the network. Step 3: Click Save to save settings. BEC MX-200Ae User Manual...
When deactivated, the lower priority backup is left in the master state. VRIP: An IP address which is associated with the virtual router. Advertisement period: Indicates the time interval in seconds between advertisements. Default in 1 second. Click Save to apply settings. BEC MX-200Ae User Manual...
192.0.32.10 (IPv4). IP Address: The IP address you are going to give a specific domain name. Domain Name: The friendly domain name for the IP address. Click Save to apply settings. BEC MX-200Ae User Manual...
WAN to LAN (Bandwidth): Control traffic from WAN to LAN (Downstream). Click Bandwidth Save to save settings. Rule Index: Index marking for each rule up to maximum of 16. WAN Interface: Select a WAN interface connection to allow external access to your internal BEC MX-200Ae User Manual...
Page 75
External IP Address: The IP address on remote / WAN side. External Port: The Port number on the remote / WAN side. Click Save to apply settings. To Remove a Policy: Simply select the Index then hit the Delete button to remove from the list. BEC MX-200Ae User Manual...
End Time: The ending point of the interval for the timeslot, anytime in 00:00 – 24:00. Click Save to apply your settings. Example, you can add a timeslot named “TimeSlot1” which features a period from 9:00 of Monday to 18:00 of Tuesday. Another TimeSlot2 spanning from 09:00 to 18:00 of Wednesday BEC MX-200Ae User Manual...
Recipient’s Email (WAN IP Change Alert): Enter a valid e-mail address to receive an alert message when WAN IP change has been detected. Recipient’s Email (4G/LTE Usage Allowance): Enter a valid e-mail address to receive an alert message when the 4G/LTE over Usage Allowance occurs. Click Apply button to save settings BEC MX-200Ae User Manual...
Serial connection errors between the MX-200Ae and the serial device • Hardware issue with the Serial device • Serial device response time is longer than the specified Response Timeout value. Increase the time-out value to see if it helps BEC MX-200Ae User Manual...
Page 79
Enable to empty the buffer after TCP connection is up. ◼ Data packet Delimiter: A way to keep packets in tract. ⚫ Inter-character Time Gap: Default time is in 1000ms. After time has reached, serial BEC MX-200Ae User Manual...
Page 80
Port: Use 782(tcp/udp), an unassigned port. Specify a tcp/udp port other than port 782 for the SSH server. Port 22 is being reserved, don’t use this port. Note: MX-200Ae uses port 22 as default port the embedded SSH server. Click Save to apply settings BEC MX-200Ae User Manual...
When accessing to the web server (Web GUI), the browser will issue a warning page. To import certificates, go to Maintenance >> Certificate Management to upload files. Otherwise, select Default certificate and CA. Click Save to apply settings. BEC MX-200Ae User Manual...
Authentication Protocol: Select the authentication protocol, MD5 and SHA. SNMP agent can communicate with the manager station through authentication and encryption to secure the message exchange. Set the authentication and encryption information here and below. Authentication Key: Set the authentication key, 8-31 characters. BEC MX-200Ae User Manual...
Page 83
Device Configuration Access Management – SNMP Privacy Protocol: Select the privacy mode, DES and AES. Privacy Key: Set the privacy key, 8-31 characters. Click Save to apply settings. BEC MX-200Ae User Manual...
Remote System Log: Select Activated to enable this feature Server IP Address: Assign the remote log server IP address. Server UDP Port: Assign the remote log server port, 514 is commonly used. Click Save to apply settings. BEC MX-200Ae User Manual...
NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application. Click Save to apply settings. BEC MX-200Ae User Manual...
Wildcard support: Select this check box to enable DYNDNS Wildcard. Period: Set the time period on how often the MX-200Ae will update the DDNS server with your current external IP address. Click Save to apply settings. BEC MX-200Ae User Manual...
Page 87
Example: How to register a DDNS account If you do not have an account with Dynamic DNS, please go to www.dyndns.org to register an account first. User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/ DDNS: www.hometest.com using username/password test/test BEC MX-200Ae User Manual...
Default Rule 1: (Index 1), a rule to allow only clients from LAN to have access to all embedded applications (Web, FTP, etc.). Under this situation, clients from WAN cannot access the router even from Ping. BEC MX-200Ae User Manual...
Page 89
Device Configuration Access Management – Access Control Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side. BEC MX-200Ae User Manual...
Type: Choose type of field you want to specify to monitor. Select “IPv4” for IPv4 address, port number and protocol. Select “IPv6” for IPv6 address, port number and protocol. Select “MAC” for MAC address. BEC MX-200Ae User Manual...
Page 91
Destination Port Number: This is the Port or Port Ranges that defines the application. DSCP: show the set DSCP. Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or ICMP or ICMPv6 BEC MX-200Ae User Manual...
Page 92
Device Configuration Access Management – Packet Filter (IP & MAC Filter) MAC Source MAC Address: show the MAC address of the rule applied. Click Save to apply settings. BEC MX-200Ae User Manual...
Page 93
In a word, the command serves as a switch to the access of some specific URL with the filter on. URL (Host): Specified URL which is prohibited from accessing. Click Save to apply settings. BEC MX-200Ae User Manual...
User Name: Specify the ACS User Name for ACS authentication to the connection from CPE. Password: Enter the ACS server login password. Connection Request Information Path: Local path in HTTP URL for an ACS to make a Connection Request notification to the CPE. BEC MX-200Ae User Manual...
Page 95
Bind WAN Interface Interface: Specify any available or a single WAN interface to handle TR-069 requests. NATT Config - This is a proprietary feature provided by BEC. May leave them in blank, no configuration is required. NATT Server: By BEC administrator only.
Parent Control: Enable the feature by clicking the Activated Host Name: It is the domain name of your OpenDNS. If you don’t have one, please leave it blink. Username / Password: Put down your OpenDNS account username and password Click Save to apply settings. BEC MX-200Ae User Manual...
BECentral Management Port: Port listened by the BECentral. Organization ID: Customer ID Device Report Interval: Enter the interval time in seconds to send inform message periodically to the BECentral. Interface: Specify any available or a single WAN interface to handle BECentral requests. BEC MX-200Ae User Manual...
User Name: Create account(s) user name for GUI management. New Password: Enter a new password for this user account. Confirmed Password: Re-enter the new password again; you must enter the password exactly the same as in the previous field BEC MX-200Ae User Manual...
Page 99
When someone accesses to the MX-200Ae using this “user” account, he/she can only manage and configure the features that is pre-selected in Web GUI Permission for this account. Click Save to apply settings. BEC MX-200Ae User Manual...
Private Key File: Browse to locate the target file on PC before uploading it. If PKCS enabled, please ignore this setting. Password: Enter the password if any, which is used to protect the private key. Otherwise, leave it empty. Click Apply to save settings. Trusted CA Listing BEC MX-200Ae User Manual...
Page 101
Index #: The numeric account indicator. The maximum entry is up to 2. CA Name: Description of the CA. CA Certificate File: Browse to locate the target certificate file on PC before uploading it. Click Apply to save settings. BEC MX-200Ae User Manual...
Daylight Saving: Select this option if you use daylight savings time. NTP Server Address: Enter the IP address of your time server. Check with your ISP/network administrator if you are unsure of this information. Click Save to apply settings. BEC MX-200Ae User Manual...
Upgrade: Click “Upgrade” to begin the upload process. This process may take up to two minutes. DO NOT turn off or power cycle the device while firmware upgrading is still in process. Improper operation could damage your MX-200Ae. BEC MX-200Ae User Manual...
You may also restore your router to factory settings by holding the small Reset pinhole button on the back of your router in about more than 6s seconds whilst the router is turned on. BEC MX-200Ae User Manual...
This reboot will only reboot with current configuration settings and not overwrite any existing settings. Click Save to apply settings Example: Schedule MX-200Ae to reboot at 10:00pm (22:00) every weekday (Monday thru Friday) and reboot at 9:00am on Saturday and Sunday. BEC MX-200Ae User Manual...
Click Yes, enter the IP address or domain then Start Trace Route. IP Address or Domain: Set the destination host (IP, domain name) to be traced. Max TTL value: Set the max Time to live (TTL) value. Shown as we “trace” www.billion.com below. BEC MX-200Ae User Manual...
Page 107
Device Configuration Maintenance – Diagnostic Test Ping other IP Address: Click Yes to ping any desired IP address or a domain. Click START to begin to diagnose the connection. BEC MX-200Ae User Manual...
If the problem persists, most likely it is due to the malfunction of your hardware. Please contact your service provider or BEC for technical support. You have forgotten your login Try the default username "admin" and password username or password "admin".
5. Internet LED lit Red, and router starts to write firmware into flash. Please DO NOT power off the router at this step. 6. Internet LED lit Green when successfully upgrade firmware. 7. Power cycle off/on the MX-200Ae BEC MX-200Ae User Manual...
If you come across any problems please contact the dealer from where you have purchased the product. Contact BEC @ http://www.bectechnologies.net MAC OS is a registered Trademark of Apple Computer, Inc. Windows 10/8/7 and Windows Vista are registered Trademarks of Microsoft Corporation BEC MX-200Ae User Manual...
FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. V0141160 BEC MX-200Ae User Manual...
