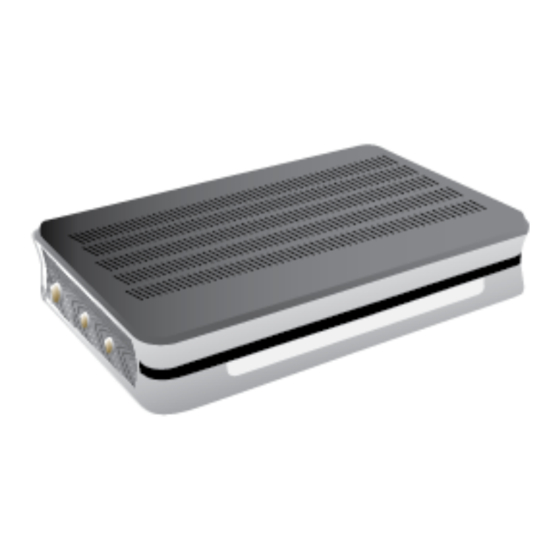

- Page 1 BEC 6600AEL Gigabit LTE Multi-Service Router Quick Start Guide...
- Page 2 IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE ONLINE USER MANUAL. Package Contents ✓ BEC 6600AEL Gigabit LTE Multi-Service Router x 1 ✓ This Quick Start Guide x 1 ✓ RJ-45 Ethernet Cable x 1 ✓...
- Page 3 Quick Start Guide Front Panel - LEDs / LTE Connectors PORT MEANING LTE Antenna Screw the supplied LTE antennas onto the antenna connectors on both sides. Connectors STATUS DESCRIPTION Green System is up and ready Power Boot failure Green Transmission speed is at Gigabit speed (1000Mbps) Ethernet Port Orange Transmission speed is at 10/100Mbps...
-
Page 4: Rear Panel - Ports / Connectors
BEC 6600AEL Gigabit LTE Multi-Service Router Rear Panel – Ports / Connectors PORT MEANING Wi-Fi Antenna Screw the supplied Wi-Fi antennas onto the antenna connectors on both sides Connectors LTE Antenna Screw the supplied LTE antennas onto the antenna connectors on both sides... -
Page 5: Hardware Connection
Quick Start Guide Hardware Connection Back Panel Ports & Connectors Wi-Fi & LTE Antenna Setup... -
Page 6: Hardware Installation
Power Connection Plug in the supplied power adapter to the wall jack and the other side to the device. Power ON the 6600AEL by pressing the Power On/Off button. 2. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports and the other side... - Page 7 Quick Start Guide 3. WAN Link Interface and Connection BEC 6600AEL offers WAN failover and failback between multiple WAN interfaces. <Refer to the User Manual for detailed setup> 3.1 4G/LTE Connection Slide the SIM card into the card slot of the device with the gold contact facing down. Make sure that the SIM card is slid into the bottom of the slot with a click.
- Page 8 BEC 6600AEL Gigabit LTE Multi-Service Router 4. USB for Network File Sharing BEC 6600AEL has built-in FTP and Samba Servers, simply plug in an external USB HD then follow the instruction setup in the User Guide.
- Page 9 Quick Start Guide Quick Setup Your Router Wired Broadband Connection - Before start configuring the 6600AEL, make sure you have the Ethernet WAN connected with your Internet box or fiber line. The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1...
- Page 10 BEC 6600AEL Gigabit LTE Multi-Service Router Step 4: Setup Wireless Connection Access Point: select Activated SSID: Assign a unique name Channel: pick from 1~11 Security Type: select a mode - Disable (No security) - WPA - WPA2 (Most secure one)
-
Page 11: Troubleshooting
Quick Start Guide Troubleshooting 1. None of the LEDs are on when you turn on the router. Check the connection between the adapter and the router. If the error persists, you may have a hardware problem. In this case you should contact technical support. 2. - Page 12 RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
