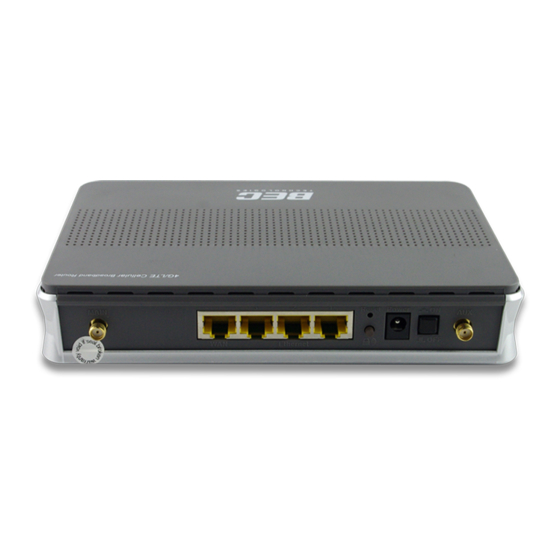

BEC 6200WZL
4G/LTE Cellular Broadband Router
Quick Start Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEC 6200WZL and is the answer not in the manual?

Questions and answers

Related Manuals for BEC BEC 6200WZL

Summary of Contents for BEC BEC 6200WZL

  • Page 1 BEC 6200WZL 4G/LTE Cellular Broadband Router Quick Start Guide...

  • Page 3: Ethernet Cable

    BEC 6200WZL 4G/LTE Cellular Broadband Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON CD-ROM.

  • Page 4: Front Panel Leds

    No signal and the 4G_LTE module is in service No LTE module or LTE module fails Green WAN IP received and traffic is passing thru the device. Internet WAN IP request failed. BEC 6200WZL is either in bridged mode or WAN connection not ready.

  • Page 5: Rear Panel Connectors

    BEC 6200WZL 4G/LTE Cellular Broadband Router Rear Panel Connectors PORT MEANING LTE Antenna Screw the supplied LTE antennas onto the antenna connectors on both sides. Insert the mini SIM card (2FF) with the gold contact facing down. SIM Card Slot...

  • Page 6: Hardware Connection

    Quick Start Guide Hardware Connection Connect the detachable 3G/4G-LTE antennas to the two jacks on the back of the device and make sure they are firmly screwed in. The MAIN antenna connector is used for primary 3G/4G-LTE. If deciding to use ONE antenna, make sure the MAIN antenna connector is being connected at all times.
  • Page 7 BEC 6200WZL 4G/LTE Cellular Broadband Router 3. WAN Link Interface and Connection BEC 6200WZL support dual WAN interfaces, 4G LTE and EWAN. <Please refer to User Manual for detailed Internet setup> 3.1 4G_LTE Connection Slide the SIM card into the card slot of the device with the gold contact facing down. Make sure that the SIM card has been slid into the bottom of the slot with a click.

  • Page 8: Connecting To The Router

    Quick Start Guide Connecting to the Router The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1 ~ 192.168.1.253.

  • Page 9: Troubleshooting

    BEC 6200WZL 4G/LTE Cellular Broadband Router Step 2: WAN / Internet Connection Setup Select the appropriate WAN protocol then fill out the information provided by your ISP in all relevant parameters. For 3G/4G_LTE connection, if your Service Provider is not on the list, please select Other and fill out all of the appropriate fields.

  • Page 10: Product Support And Contact Information

    Quick Start Guide 2. You have forgotten your router login and/or password. Try the default login and password, please refer to User Manual. If this fails, you can restore your router to its factory settings by holding the Reset button on the back of your router for 6 seconds or more.
