BEC 6300VNL User Manual

4g/lte voip wireless broadband router
Hide thumbs Also See for 6300VNL:
Table of Contents

Advertisement

Quick Links

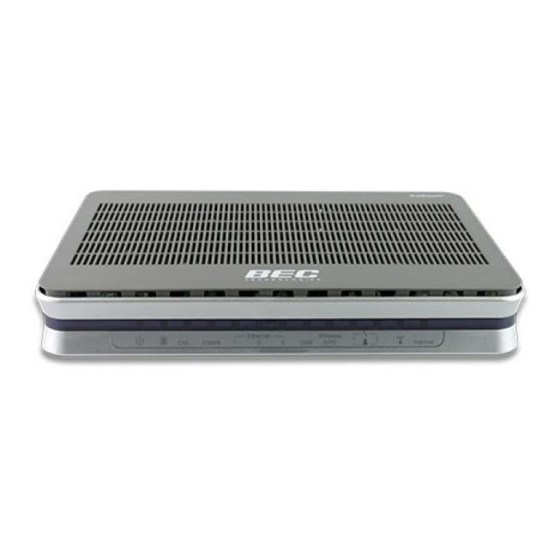

BEC 6300VNL
®
GigaConnect
4G/LTE VoIP Wireless Broadband Router

User Manual

Version release: v1.09
Last revised: Sept, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6300VNL and is the answer not in the manual?

Questions and answers

Related Manuals for BEC 6300VNL

Summary of Contents for BEC 6300VNL

  • Page 1: User Manual

    BEC 6300VNL ® GigaConnect 4G/LTE VoIP Wireless Broadband Router User Manual Version release: v1.09 Last revised: Sept, 2015...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1: INTRODUCTION ......1 .............. 1 NTRODUCTION TO YOUR OUTER & S ..............1 EATURES PECIFICATIONS ..............1 ARDWARE PECIFICATIONS ................. 1 PPLICATION IAGRAMS CHAPTER 2: PRODUCT OVERVIEW ....2 ..........2 MPORTANT OTE FOR SING OUTER ................
  • Page 3 CHAPTER 4: DEVICE CONFIGURATION ..27 ................. 27 OGIN TO YOUR EVICE ....................29 TATUS Device Info ...................... 30 System Status ....................32 System Log ...................... 32 3G/4G-LTE Status..................... 33 Statistics ......................34 DHCP Table ...................... 39 Disk Status ....................... 39 VoIP Status ......................
  • Page 4 Dynamic DNS ........................ 98 Access Control ......................100 Packet Filter ........................ 102 CWMP (TR-069) ......................105 Parental Control ......................107 SAMBA & FTP Server ....................108 Maintenance ....................111 User Management ..................... 111 Time Zone ........................115 Firmware & Configuration ..................116 System Restart ......................

  • Page 5: Chapter 1: Introduction

    If your network requires wider coverage, the built-in Wireless Distribution System (WDS) allows you to expand your wireless network without additional wires or cables. BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) also supports the Wi-Fi Protected Setup (WPS) standard and allows users to establish a secure wireless network just by pressing a button.
  • Page 6 Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you connected to the Internet immediately. Firmware Upgradeable Device can be upgraded to the latest firmware through the WEB based GUI. BEC 6300VNL User Manual...

  • Page 7: Features & Specifications

    • DHCPv4 / v6 • Universal Plug and Play (UPnP) Compliant • Dynamic Domain Name System (DDNS) • Virtual Server and DMZ • SNTP, DNS proxy • IGMP snooping and IGMP proxy • MLD snooping and MLD proxy BEC 6300VNL User Manual...
  • Page 8 • Codec: G.729, G.726, G.711 A-Law, G.711 u-Law • DTMF Method: Inband, RFC 2833, SIP Info • Caller ID Generation: DTMF, FSK • Silence Suppression (VAD), Echo Cancellation • Call Waiting, Conference Call • Speed Dial, Return Call, Redial • Don't Disturb BEC 6300VNL User Manual...
  • Page 9 • Web-based GUI for remote and local management (IPv4/IPv6) • Firmware upgrades and configuration data upload and download via web-based GUI • Supports DHCP server / client / relay • Supports SNMP v1, v2, v3, MIB-I and MIB-II • TR-069 supports remote management BEC 6300VNL User Manual...

  • Page 10: Hardware Specifications

    • Wireless on/off and WPS push button • DC Power jack • UPS Power with 4-pin connectors • Power switch to switch between DC power and UPS power. Physical Specifications • Dimensions (W*H*D): 9.04" x 6.10" x 1.27"(229.5mm x 155mm x 32.24mm) BEC 6300VNL User Manual...

  • Page 11: Introduction To Your Router

    Introduction Application Diagrams Application Diagrams BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) is an all-in-one router, supporting 2 connection options (4/LTE and EWAN) to connect to the Internet. 4G/LTE router mode With an embedded 4G/LTE module, the router can be used to connect to high speed mobile fixed wireless connection.

  • Page 12: Chapter 2: Product Overview

     Do not use the router in high humidity or high temperature.  Do not use the same power source for the BEC 6300VNL on other equipment.  Do not open or repair the case yourself. If the device becomes...

  • Page 13: Device Description

    Product Overview Device Description / Front Panel LEDs Device Description Front Panel LEDs BEC 6300VNL User Manual...
  • Page 14 No signal and the 4G_LTE module is in service No LTE module or LTE module fails Green IP connected and traffic is passing thru the device. Internet IP request failed. BEC 6300VNL is either in bridged mode or WAN connection not ready. BEC 6300VNL User Manual...

  • Page 15: Rear Panel Connectors

    Connect the supplied Power Adapter to this jack. Power Jack (DC) Power ON/OFF switch (1) with Power Switch ON: power up by the supplied DC power adaptor Power Source (2) with Power Switch OFF: power up by the UPS battery unit BEC 6300VNL User Manual...

  • Page 16: Power Source

    Power Source Power Source BEC 6300VNL offers two kinds of power input, namely, DC power Adapter and DC UPS (or BBU). BEC 6300VNL can take the advantage of UPS (Uninterruptible Power Supply) to keep working even if the power outage hit your router when the router in working in DC UPS mode.
  • Page 17  Green LED: UPS AC power is working; UPS battery is also working well  Orange LED Only UPS AC power is working. Battery failure- need a new battery replacement  Orange LED: UPS AC power failure; UPS battery is working BEC 6300VNL User Manual...

  • Page 18: System Recovery Procedures

    Step 2 – Reset your 6300VNL Device 2.1 Power off your 6300VNL 2.2 Power on the 6300VNL while pushing the RESET button with a small pointed object (such as paper clip, needle, toothpick, and etc.). 2.3 When the POWER LED turns RED, keep holding and pushing the RESET button until the INTERNET LED flashes in GREEN Step 3 –...

  • Page 19: Cabling

    Make sure that all other devices (e.g. telephones, fax machines, analogue modems) connected to the same telephone line as your BEC router have a line filter connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and that all line filters are correctly installed in a right way.

  • Page 20: Chapter 3: Basic Installation

    If not, please refer to your Windows-related or other operating system manuals. Any TCP/IP capable workstation can be used to communicate with or through the BEC 6300VNL. To configure other types of workstations, please consult the manufacturer’s documentation. BEC 6300VNL User Manual...

  • Page 21: Network Configuration - Ipv4

    Network and Sharing Center When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC 6300VNL User Manual...
  • Page 22 In the TCP/IPv4 properties window, select the Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6300VNL User Manual...

  • Page 23: Configuring Pc In Windows 7/8 (Ipv4)

    Then click on Network and Internet. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC 6300VNL User Manual...
  • Page 24 In the TCP/IPv4 properties window, select the Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6300VNL User Manual...

  • Page 25: Configuring Pc In Windows Vista (Ipv4)

    Center at the top bar. When the Network and Sharing Center window pops up, select and click Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC 6300VNL User Manual...
  • Page 26 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6300VNL User Manual...

  • Page 27: Configuring Pc In Windows Xp (Ipv4)

    3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties. 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration. BEC 6300VNL User Manual...

  • Page 28: Network Configuration - Ipv6

    Network and Sharing Center When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC 6300VNL User Manual...
  • Page 29 In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6300VNL User Manual...

  • Page 30: Configuring Pc In Windows 7/8 (Ipv6)

    Then click on Network and Internet. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC 6300VNL User Manual...
  • Page 31 In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6300VNL User Manual...

  • Page 32: Configuring Pc In Windows Vista (Ipv6)

    Center at the top bar. When the Network and Sharing Center window pops up, select and click Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC 6300VNL User Manual...
  • Page 33 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC 6300VNL User Manual...

  • Page 34: Configuring Pc In Windows Xp (Ipv6)

    1. On the Desktop, Click Start > Run, type cmd, then press Enter key in the keyboard, the following screen appears. 2. Key in command ipv6 install Installation of IPv6 is now completed. Please test it to see if it works or not. . BEC 6300VNL User Manual...

  • Page 35: Default Settings

    Attention release it, to be sure you power cycle the device again. Device LAN IP Settings IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 DHCP Server: DHCP server is enabled. Start IP Address: 192.168.1.100 IP pool counts: 100 BEC 6300VNL User Manual...

  • Page 36: Information From Your Isp

    DHCP Client (it can be automatically assigned by your ISP when Dynamic IP Address you connect or be set manually). IP address, Subnet mask, Gateway address, and Domain Name Static IP Address System (DNS) IP address (it is fixed IP address). Pure Bridge Bridge Mode BEC 6300VNL User Manual...

  • Page 37: Chapter 4: Device Configuration

    “Go”, a user name and password window prompt appears. The default username and password is “admin” and “admin” respectively for the Administrator. NOTE: This username / password may vary by different Internet Service Providers. Congratulations! You have successfully logged on to your BEC 6300VNL. BEC 6300VNL User Manual...
  • Page 38 Device Configuration Login to GUI Once you have logged on to your 6300VNL via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which includes:...

  • Page 39: Status

    Device Configuration Status Status In this section, you can check the router working status, including Device Info, System Log, 3G/4G- LTE Status, Statistics, DHCP Table, Disk Status, and VoIP Status. BEC 6300VNL User Manual...

  • Page 40: Device Info

    Model Name: Name of the router for identification purpose. Firmware Version: Software version currently loaded in the router MAC Address: A unique number that identifies the router  IPv4: IP Address: LAN port IPv4 address. Subnet Mask: LAN port IP subnet mask. BEC 6300VNL User Manual...
  • Page 41 Network Name: The name of the LTE network the router is connecting to. Card IMEI: The unique identification number that is used to identify the 3G/4G-LTE module. Card IMSI: The international mobile subscriber identity used to uniquely identify the 3G/4G-LTE module. BEC 6300VNL User Manual...

  • Page 42: System Status

    System status displays the current router system (CPU and Memory) usage. System Log In system log, you can check the operations status and any glitches to the router. Refresh: Press this button to refresh the statistics. BEC 6300VNL User Manual...

  • Page 43: 3G/4G-Lte Status

    Card IMSI: The international mobile subscriber identity used to uniquely identify the 3G/4G-LTE module. Network Mode: Display current network operating mode. Network Band: Indicated the current radio frequency band used. Refresh: Press this button to refresh the statistics. BEC 6300VNL User Manual...

  • Page 44: Statistics

    Receive CRC Errors: This field displays the number of error packets on this port. Receive Under-size Frames: This field displays the number of under-size frames received until the latest second. Refresh: Press this button to refresh the statistics. BEC 6300VNL User Manual...
  • Page 45 Receive Total Frames: This field displays the total number of frames received until the latest second since system is up. Receive Total Bytes: This field displays the total frames received till the latest second since system is up. BEC 6300VNL User Manual...
  • Page 46 Receive Total Frames: This field displays the total number of frames received until the latest second since system is up. Receive Total Bytes: This field displays the total frames received till the latest second since system is up. BEC 6300VNL User Manual...
  • Page 47 Receive CRC Errors: This field displays the number of error packets on this port. Receive Under-size Frames: This field displays the number of under-size frames received until the latest second. Refresh: Press this button to refresh the statistics. BEC 6300VNL User Manual...
  • Page 48 Receive Error Frames: This field displays the number of error frames received until the latest second. Receive Drop Frames: This field displays the number of drop frames received until the latest second. Refresh: Press this button to refresh the statistics. BEC 6300VNL User Manual...

  • Page 49: Dhcp Table

    Expire Time: The total remaining interval since the IP assignment to the PC. Disk Status Partition: Display the USB storage partition. Disk Space (KB): Display the total storage space of the NAS in Kbytes unit. Free Space (KB): Display the available space in Kbytes unit. BEC 6300VNL User Manual...

  • Page 50: Voip Status

    Answer Time: The answer time of phone call End Time: The end time of the call Talk Duration: Time duration of individual calls from dial/call to hang-up. Status: Current call status if phones are off hook or in a call. BEC 6300VNL User Manual...

  • Page 51: Quick Start

    Set new password of the “admin” account to access for router management. The default is “admin”. Once changed, please use this new password next time when accessing to the router. Click NEXT to continue. Step 2 – Time Zone Choose your time zone. Click NEXT to continue. BEC 6300VNL User Manual...
  • Page 52 Step 4 – ISP Connection Type Set up your Internet connection. 4.1 Select an appropriate WAN connection protocol then click NEXT to continue. 4.2 If selected 3G/4G-LTE or 3G/4G-LTE USB (for example). Input all relevant 3G/4G-LTE parameters from your ISP. BEC 6300VNL User Manual...
  • Page 53 Step 5 – Quick Start Completed The Setup Wizard has completed. Click on BACK to modify changes or mistakes. Click NEXT to save the current settings. Switch to Status > Device Info to view the status. BEC 6300VNL User Manual...

  • Page 54: Configuration

    Click to access and configure the available features in the following: Interface Setup, Advanced Setup, VoIP, Access Management, and Maintenance. These functions are described in the following sections. Interface Setup Here are the features under Interface Setup: Internet, LAN, Wireless and Wireless MAC Filter. BEC 6300VNL User Manual...

  • Page 55: Internet

    Device Configuration Interface Setup – Internet (EWAN) Internet  EWAN Multi Service Service Index: The index marks the EWAN interface of different ISP type, ranging from 0-7. Service Summary: The overall service information. BEC 6300VNL User Manual...
  • Page 56 Bridge Interface for PPPoE: When “Activated”, the device will gain WAN IP from your ISP with the PPPoE account. But if your PC is connected to the router working as a DHCP client, in this mode, the BEC 6300VNL User Manual...
  • Page 57 IGMP Proxy: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group. Choose whether enable IGMP proxy. IPv6 options (only when choose IPv4/IPv6 or just IPv6 in IP version field above): BEC 6300VNL User Manual...
  • Page 58 MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a Multicast Management protocol for IPv6 multicast packets. When router’s Internet configuration is finished successfully, you can go to status to get the connection information. BEC 6300VNL User Manual...
  • Page 59 IP address, features such as routing capabilities, NAT, firewall, etc., will be disabled by default. However, the client router behind the BEC 6300VNL can get a WAN IP address instead. When disabled, BEC 6300VNL is in router mode that it handles a WAN IP address and all routing- related features become available.
  • Page 60 Dual APN: BEC 6300VNL can support up to two (2) APNs. Select Single or Dual. APN: An APN is similar to a URL on the WWW, it is what the unit makes a GPRS / UMTS call. The service provider is able to attach anything to an APN to create a data connection, requirements for APNs varies between different service providers.
  • Page 61 1. Send a text message, reboot#<password>, to +513 123 4567. 6300VNL will reboot the system upon receiving of this text message. 2. Send a text message, *60, to +513 123 4567. 6300VNL will send the current 3G/ 4G status information back including IMEI number, System up time, Network mode, Signal strength, WAN IP, and Connection time.
  • Page 62 IP address, features such as routing capabilities, NAT, firewall, etc., will be disabled by default. However, the client router behind the BEC 6300VNL can get a WAN IP address instead. When disabled, BEC 6300VNL is in router mode that it handles a WAN IP address and all routing- related features become available.
  • Page 63 NAT: Select this option to Disabled/Enable the NAT (Network Address Translation) function. Enable NAT to grant multiples devices in LAN to access to the Internet through a single WAN IP. When router’s Internet configuration is finished successfully, you can go to the Status to check connection information. BEC 6300VNL User Manual...

  • Page 64: Lan

    IP Subnet Mask: The default is 255.255.255.0. User can change it to other such as 255.255.255.128. Alias IP Address: This is for local networks virtual IP interface. Specify an IP address on this virtual interface. Alias IP Subnet Mask: Specify a subnet mask on this virtual interface. BEC 6300VNL User Manual...
  • Page 65  If set to Disabled, the DHCP server will be disabled.  If set to Relay, the BEC 6300VNL acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients. Enter the IP address of the actual, remote DHCP server in the Remote DHCP Server field in this case.
  • Page 66 (MAC address) and information (prefix) advertised by routers. Routers advertise prefixes that identify the subnet(s) associated with a link, while hosts generate an "interface identifier" that uniquely identifies an interface on a subnet. An BEC 6300VNL User Manual...
  • Page 67 Router Advertisement: Check to Enable or Disable the Issue Router Advertisement feature. This feature is to send Router Advertisement messages periodically which would multicast the IPv6 Prefix information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We suggest enabling this field. BEC 6300VNL User Manual...

  • Page 68: Wireless

    This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN. BEC 6300VNL User Manual...
  • Page 69 MCS (Modulation and Coding Scheme): There are options 0~15 and AUTO to select from. AUTO is recommended. SSID Settings Available SSID: User can determine how many virtual SSIDs to be used. Default is 1, maximum is 4. BEC 6300VNL User Manual...
  • Page 70 WEP and WPA. There are five alternatives to select from: WEP 64-bit, WEP 128-bit, WPA-PSK, WPA2-PSK, and Mixed WPA/WPA2-PSK. If you require high security for transmissions, please select WPA-PSK, WPA2-PSK or WPA/WPA2-PSK. BEC 6300VNL User Manual...
  • Page 71 WPA Algorithms: TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. Pre-Shared key: The key for network authentication. The input format should be 8-63 ASKII characters or 64 hexadecimal characters BEC 6300VNL User Manual...
  • Page 72 It is easy to be installed, just define the peer’s MAC of the connected AP. WDS Mode: select Activated to enable WDS feature and Deactivated to disable this feature. MAC Address: Enter the AP MAC addresses (in XX:XX:XX:XX:XX:XX format) of the peer connected BEC 6300VNL User Manual...
  • Page 73 Interface Setup – Wireless (Example on WPS using PIN) Example: WPS using PIN Method (Personal Information Number) PIN Method – Configure 6300VNL as a Registrar 1. Jot down the client’s Pin (e.g. 04640776) from the WPS utility (e.g. Ralink Utility) 2.
  • Page 74 Device Configuration Interface Setup – Wireless (Example on WPS using PIN) 4. The client’s SSID and security setting will now be configured to match the SSID and security setting of the registrar, the 6300VNL router. BEC 6300VNL User Manual...
  • Page 75 PIN Method – Configure 6300VNL as an Enrollee 1. Jot down the AP PIN Code (e.g. 03454435) from the BEC 6300VNL. Press Start WPS. 2. Launch the wireless client’s WPS utility (e.g. Ralink Utility). Set the Config Mode as Registrar. Enter the PIN number in the PIN Code (e.g.
  • Page 76 Device Configuration Interface Setup – Wireless (Example on WPS using PIN) 3. The router’s (AP’s) SSID and security setting will now be configured to match the SSID and security setting of the registrar (client). BEC 6300VNL User Manual...
  • Page 77 2. Launch the wireless client’s WPS Utility (e.g. Ralink Utility). Set the Config Mode as Enrollee. Then press the WPS button and choose the correct AP (e.g. Billion_AP) from the WPS AP List section before pressing the PBC button to run the scan. BEC 6300VNL User Manual...
  • Page 78 3. When the PBC button is pushed, a wireless communication will be established between your router and the PC. The client’s SSID and security setting will now be configured to match the SSID and security setting of the router. BEC 6300VNL User Manual...

  • Page 79: Wireless Mac Filter

    Select Allow to permit access to the router, MAC addresses not listed will be denied access to the router. MAC Address: Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless station that are allowed or denied access to the specified in these address fields. BEC 6300VNL User Manual...

  • Page 80: Advanced Setup

     Disabled: It disables the firewall function. SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.  Enabled: It activates your SPI function.  Disabled: It disables the SPI function. BEC 6300VNL User Manual...

  • Page 81: Routing

    Gateway IP Address/Interface: This is the gateway IP address or existing interface to which packets are to be forwarded. Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15. BEC 6300VNL User Manual...

  • Page 82: Nat

    Service Index: Associated to EWAN interface marking each EWAN service (0-7), to select which EWAN service the DMZ and Virtual server are applied to. Click DMZ or Virtual Server to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario. BEC 6300VNL User Manual...
  • Page 83 DMZ Host IP Address: Give a static IP address to the DMZ Host when Enabled radio button is checked. Be aware that this IP will be exposed to the WAN/Internet. Select the Save button to apply your changes. BEC 6300VNL User Manual...
  • Page 84 Virtual Server NOTE: This feature disables automatically if WAN connection is in BRIDGE mode. Virtual Server is also known as Port Forwarding that allows 6300VNL to direct all incoming traffic to the servers on the LAN. Configure a virtual rule in 6300VNL for remote users accessing services such as Web or FTP services via the public (WAN) IP address that can be automatically redirected to local servers in the LAN network.
  • Page 85 PC, with an address that does not fall into the range of IP addresses that are to be issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router. BEC 6300VNL User Manual...
  • Page 86 Enter the static IP assigned to the local PC that is hosting the FTP server. Ex: 192.168.1.102 Enter “21” to Local Start and End Port number. BEC 6300VNL will forward port 21 request from WAN to the specific LAN PC (ex:192.168.1.102) in the network.

  • Page 87: Static Dns

    Static DNS is a concept relative to Dynamic DNS, in static DNS system, the IP mapped is static without change IP Address: The IP address you are going to give a specific domain name. Domain Name: The friendly domain name for the IP address. Press Save button to apply your settings. BEC 6300VNL User Manual...

  • Page 88: Qos

    Source Port Range: Set the port range value that you want to filter on source side. Protocol ID: Set the protocol ID type of packets that you want to filter (TCP, UDP, ICMP, and IGMP). Priority: Select to prioritize the traffic which the rule categorizes, High or Low. BEC 6300VNL User Manual...

  • Page 89: Interface Grouping

    EWAN Service: The available EWAN interface. Move to Interface Setup to add other EWAN interface. 3G/4G-LTE: The available 3G/4G-LTE interfaces. Ethernet LAN: The available Ethernet interfaces. Wireless LAN: The available wireless interfaces. Group Summary: Click Group Summary to check current group information. BEC 6300VNL User Manual...
  • Page 90 Example: Create two EWAN services, Service0 (PPPoE) and Service1 (Bridge). You are going to group the ports and services into two working group, as shown below. Group Index Group Port EWAN0,LAN1, LAN2, WLAN1 EWAN1, LAN3 Click Group Summary to show the configuration results. BEC 6300VNL User Manual...

  • Page 91: Time Schedule

    Day of Week / Start Time / End Time: Mon. to Sun. Specify the time interval for each timeslot from “Day of Week”. For example, user can add a timeslot named “TimeSlot1” which features a period from 9:00 of Monday to 18:00 of Tuesday. Another TimeSlot2 spanning from 09:00 to 18:00 of Friday BEC 6300VNL User Manual...

  • Page 92: Voip

    RTP port. Interface: Select a WAN interface for Phone_1 and Phone_2. Phone: Select “1”, the following parameters will be applicable to Phone1. In BEC 6300VNL, Phone_1 and Phone_2 are allowed to be of different characteristics, including different SIP registrar. You need to configure individually for phone1 and phone 2 and can have up to 2 different VoIP accounts.
  • Page 93 SIP Outbound Proxy Address: Set the SIP outbound proxy address. It is usually used to realize the communication between two phones when at least one of them is located behind a NAT router. SIP Outbound Proxy Port: Set the SIP Outbound proxy port. BEC 6300VNL User Manual...

  • Page 94: Media

     G.729: It is used to encoder and decoder voice information into a single packet which reduces the bandwidth consumption.  G.726: It is an ITU-T ADPCM speech codec standard covering the transmission of voice at rates of 32kbit/s. BEC 6300VNL User Manual...

  • Page 95: Advanced

    DTMF Transport Mode: Select the DTMF mode. Listening Volume: Adjust the volume of listener, -6 to 6, from lowest to highest. Speaking Volume: Adjust the volume of microphone; -6 to 6, from lowest to highest. BEC 6300VNL User Manual...

  • Page 96: Speed Dial

    Phone Number: The complete destination number Example: Save phone number 83455301 to the speed dial list. When you want call 83455301 through phone 1, you can simply dial 301# to make your desired call. BEC 6300VNL User Manual...

  • Page 97: Dial Plan

    VoIP User-defined Profiles link on the VoIP Basic page. @ <IP address or Domain> or @<IP address or Domain>: <Port number>: This is used to call the desired party under a specified SIP server, also the SIP port number can be specified. BEC 6300VNL User Manual...
  • Page 98 'Main Digit Sequence' box.  Then end up with the following rule ~ <:03>[2-5]x. Rule 3, Want to create a prefix (#2) that when dialed can be remove (#2) digit sequence and used to BEC 6300VNL User Manual...
  • Page 99  Then have the following rule ~ <#3:233>x.@10.1.1.30:5800 Now when you prefix number with #3 the call will route via selected provider 10.1.1.30:5800 The #3 is not dialed, only replace with the digits 233 and following BEC 6300VNL User Manual...

  • Page 100: Call Features

     Unconditional forwarding to: Forward all incoming calls to a pre-selected phone number automatically. Input a phone number in the given space.  On Busy forwarding to: Forward incoming calls to a pre-selected phone number when the line is busy. Input a phone number in the given space BEC 6300VNL User Manual...
  • Page 101 Note: Before enabling this feature, please consult with your VoIP Service Provide to be sure it can be supported. There is a ringtone list available in the BEC 6300VNL, after enabling this feature, your BEC 6300VNL will adapt a specific ring pattern on the list requested by your VoIP Service Provider for a specific...
  • Page 102 Under this circumstance, users need to pay for such service, please ensure you check with your SIP provider for more information.  Disable to let the BEC 6300VNL to handle all available call features. Return Call (Dial number: *69): Dial *69 to redial the latest incoming call number.

  • Page 103: Nat Traversal For Voip

    6300VNL VoIP is behind the NAT / another router to ensure all incoming calls (anyone from outside to place calls) can get picked up and protect the SIP network as well. NOTE: Use this feature if your BEC 6300VNL is behind another router on a private network and does not obtain a public IP address.
  • Page 104 Step – 5: Bill tells Larry that it is Mark and he wants to set up a conference with Mark. Step – 6: Bill presses flash again to merge all 3 calls. Step – 7: Bill, Larry and Mark hold a 3-way conference call from now on. BEC 6300VNL User Manual...

  • Page 105: Access Management

    Access Management – Device Management Access Management Device Management Device management offers users a way to change the embedded web server accessing port, default 80. User can change the http port to 8080 or something else here. BEC 6300VNL User Manual...

  • Page 106: Snmp

    Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. BEC 6300VNL serves as a SNMP agent which allows a manager station to manage and monitor the router through the network.

  • Page 107: Remote Syslog

    Auto-configured: Select this check box to allow UPnP-enabled applications to automatically configure the BEC 6300VNL so that they can communicate through the BEC 6300VNL, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device;...

  • Page 108: Dynamic Dns

    Dynamic DNS: Select this check box to activate Dynamic DNS. Service Provider: Select from drop-down menu for the appropriate service provider, for example: www.dyndns.org. My Host Name: Type the domain name assigned to your BEC 6300VNL by your Dynamic DNS provider. Username: Type your user name.
  • Page 109 Example: How to register a DDNS account Note first users have to go to the Dynamic DNS registration service provider to register an account. User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/ DDNS: www.hometest.com using username/password test/test BEC 6300VNL User Manual...

  • Page 110: Access Control

    Secure IP Address: The default 0.0.0.0 allows any client to use this service to manage the BEC 6300VNL. Type an IP address range to restrict access to the client(s) without a matching IP address. Application: Choose a service that you want to all access to all the secure IP clients. The drop-down menu lists all the common used applications.
  • Page 111 Device Configuration Access Management – Access Control Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side. BEC 6300VNL User Manual...

  • Page 112: Packet Filter

    Select “IPv6” for IPv6 address, port number and protocol. Select “MAC” for MAC address. Source IP Address: The source IP address of packets to be monitored. 0.0.0.0 means “Don’t care”. Source Subnet Mask: Enter the subnet mask of the source network. BEC 6300VNL User Manual...
  • Page 113 Destination Port: This is the Port or Port Ranges that defines the application. DSCP: show the set DSCP. Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or ICMP or ICMPv6 BEC 6300VNL User Manual...
  • Page 114 “Individual Active” field; if some time you want to allow access to this URL, you simply select No in individual active field. In a word, the command serves as a switch to the access of some specific URL with the filter on. URL (Host): Specified URL which is prohibited from accessing. BEC 6300VNL User Manual...

  • Page 115: Cwmp (Tr-069)

    CWMP: Select activated to enable CWMP. ACS Login Information URL: Enter the ACS server login URL. User Name: Specify the ACS User Name for ACS authentication to the connection from CPE. Password: Enter the ACS server login password. BEC 6300VNL User Manual...
  • Page 116 ACS. When the inform interval time arrives, the CPE will send inform message to automatically connect to ACS. NATT Config - This is a proprietary feature provided by BEC. May leave them in blank, no configuration is required. NATT Server: By BEC administrator only.

  • Page 117: Parental Control

    Browser PC, you can directly check the checkbox of Browser’s MAC Address. Block Schedule: Select a timeslot throughout which the above set MAC is restricted to access internet. Time Schedule to set the exact timeslot. Timeslot1 at Time Schedule: BEC 6300VNL User Manual...

  • Page 118: Samba & Ftp Server

    SAMBA /FTP access and operation permission of objects in SAMBA and FTP server.  New user: users can create new user(s) to grant it (them) access and permission to the SAMBA & FTP server. Please see User Management. BEC 6300VNL User Manual...
  • Page 119 , but if you enter \\SambaSvr, please be sure your working PC is in the same workgroup as set in the samba server set above.) 2. Enter the Username and password. 3. Users can browse and access USB storage. BEC 6300VNL User Manual...
  • Page 120 2) Create ftp sites (LAN IP / WAN IP, 192.168.1.254, and set the account, port). 3) Connect to the ftp site. 2. Web FTP access 1) Enter ftp://192.168.1.254 at the address bar of the web page. 2) Enter the account's username and password. BEC 6300VNL User Manual...

  • Page 121: Maintenance

    User Name: Create account(s) user name for GUI management. New Password: Enter a new password for this user account. Confirmed Password: Re-enter the new password again; you must enter the password exactly the same as in the previous field BEC 6300VNL User Manual...
  • Page 122 Web GUI Permission Login using the Administrator account, you will have the full accessibility to manage & control your BEC 6300VNL device and can also create user accounts for others to control some of the open configuration settings. BEC 6300VNL User Manual...
  • Page 123 FTP Access: Enable to grant the user access to the FTP server. Permission: Set the operation permission for the user, Read/Write or Read. SAMBA Authority SAMBA Access: Enable to grant the user access to the SAMBA server. BEC 6300VNL User Manual...
  • Page 124 Interface Setup / Advanced Setup / Access Management Setup / Maintenances: Enable to grant this user access to these features. When someone accesses to the 6300VNL using this “user” account, he/she can only manage and configure the features that is pre-selected in Web GUI Permission for this account..

  • Page 125: Time Zone

    With default, 6300VNL does not contain the correct local time and date. There are several options to setup, maintain, and configure current local time/date on the 6300VNL. If you plan to use Time Schedule feature, it is extremely important you set up the Time Zone correctly.

  • Page 126: Firmware & Configuration

    Firmware is the software that controls the hardware and provides all functionalities which are available in the GUI. This software may be improved and/or modified; your BEC 6300VNL provides an easy way to update the code to take advantage of the changes. .

  • Page 127: System Restart

    You may also restore your router to factory settings by holding the small Reset pinhole button on the back of your router in about more than 6s seconds whilst the router is turned on. BEC 6300VNL User Manual...

  • Page 128: Diagnostics Tool

    The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides. 3G/4G-LTE or 3G/4G-LTE USB Click START to begin to diagnose the connection. BEC 6300VNL User Manual...
  • Page 129 Device Configuration Maintenance – Diagnostic Tool EWAN Click START to begin to diagnose the connection. BEC 6300VNL User Manual...

  • Page 130: Chapter 5: Troubleshooting

    HAPTER ROUBLESHOOTING If your BEC 6300VNL is not functioning properly, you can refer to this chapter for simple troubleshooting before contacting your service provider support. This can save you time and effort but if symptoms persist, consult your service provider.

  • Page 131: Recovery Procedures

    Please note that the router will only respond with its web interface at this address (192.168.1.1), and will not respond to ping request from your PC or other telnet operations. BEC 6300VNL User Manual...

  • Page 132: Appendix: Product Support & Contact

    If you come across any problems please contact the dealer from where you have purchased the product. Contact BEC @ http://www.bectechnologies.net MAC OS is a registered Trademark of Apple Computer, Inc. Windows 7/98, Windows NT, Windows 2000, Windows ME, Windows XP, and Windows Vista are registered Trademarks of Microsoft Corporation. BEC 6300VNL User Manual...
  • Page 133 FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. V102brc9dg4 BEC 6300VNL User Manual...
