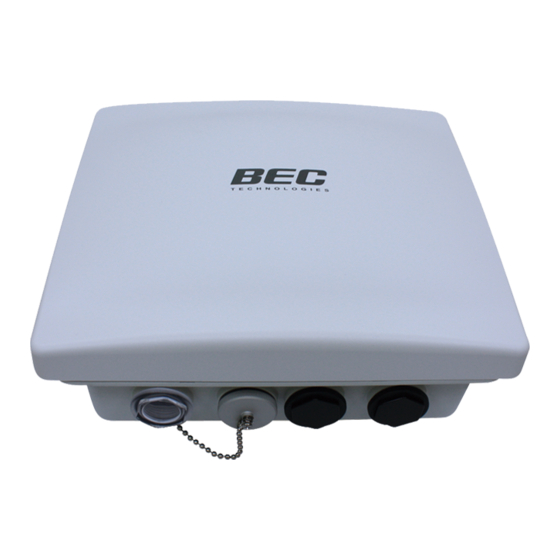

- Page 1 BEC 6800RUL 4G/ LTE Outdoor Router Quick Start Guide...
-
Page 3: Package Contents
BEC 6800RUL 4G/LTE Outdoor Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON CD-ROM. -
Page 4: Hardware Overview
Quick Start Guide Hardware Overview CONNECTORS DESCRIPTION Insert the SIM card into the SIM slot; press the reset button to reset device SIM/ Reset or restore to factory default settings LAN(PoE) Connect to a computer/ Passive PoE using an Ethernet cable. LED Description: DESCRIPTION 1. -
Page 5: Mounting Kit Installation
BEC 6800RUL 4G/LTE Outdoor Router Mounting Kit Installation Attach the Articulation Pole to the Enclosure Attach the articulation pole to the back of the BEC 6800RUL using M6*16 screws and washers. A -45 or +45 degree adjustment Dual-Polarized Antenna Cross-Polarized Antenna Mounting on Wall or a Pole 2.1 Mounting on Wall... - Page 6 2.2.1 Mounting BEC 6800RUL on a Pole with T-formed Bracket Attach the articulation pole to the T-formed bracket by using M8x40 bolts, nut, spring washer and washer. Dual-Polarized Antenna – The original of the source position, the nominal position, is seeing BEC logo when facing toward the 6800RUL,...
- Page 7 BEC 6800RUL 4G/LTE Outdoor Router Cross-Polarized Antenna – From the nominal position, adjusting and rotating the 6800RUL -45 or +45, anticlockwise or clockwise, degree angle. Position Adjustment 3.1 Using a Embedded Directional Antenna 3.1.1 Find the location and best angle for getting the strongest signal from the base station.
- Page 8 Quick Start Guide 3.2 Using two (2) Omni Directional Antennas 3.2.1 Find the location and best angle for getting the strongest signal from the base station. The CPE must be directed towards the nearest base station. 3.3 Using an External Yagi Antenna Find a good spot to mount the Yagi antenna, such as a chimney or rooftop, to avoid trees, building, and any metal objects.
-
Page 9: Connecting To The Router
BEC 6800RUL 4G/LTE Outdoor Router Connecting to the Router 1. Power on your LTE router Step 1: Assemble M25 cable gland Step 2: Unscrew the LAN (PoE) port and insert the supplied outdoor Ethernet cable (RJ-45) through material A-D, and then connect the RJ-45 Ethernet cable into the CPE port. - Page 10 Quick Start Guide 2. Set up your LTE Internet Connection Step 1: Unscrew the cap of SIM card slot. Step 2: Slide the SIM card into the card slot of the device. Make sure that the SIM card is slid into the bottom of the slot with a click.
- Page 11 SIM card. Warning Step 4: Login to your BEC 6800RUL LTE router The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1 ~ 192.168.1.253.
-
Page 12: Troubleshooting
Quick Start Guide the appropriate fields. 5.3 Saving Configuration & Connection attempts to the Internet: Wait for 30 - 60 seconds for the router to establish an Internet connection. If no responses for more than 120 seconds please check the SIM Card connection or/and information is/are being input properly.
