Summary of Contents for BEC VG2600
-
Page 1: Quick Start Guide

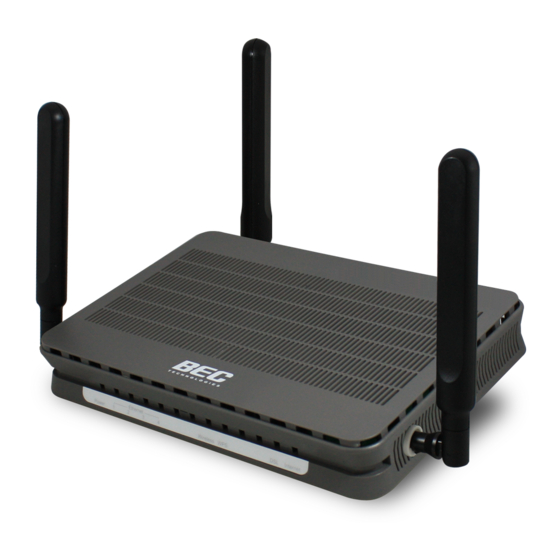

BEC VG2600 ® GigaConnect Wireless-N Broadband Voice Gateway Quick Start Guide Version 1.1... -
Page 3: Package Contents
BEC VG2600 Wireless-N Broadband Voice Gateway PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL ON CD-ROM. -
Page 4: Front Panel Leds
Phone 1 & 2 Green Successfully registered and ready to be used. Orange Phone is off-hook, in-use Green IP connected and traffic is passing thru the device. Internet IP request failed. BEC VG2600 is either in bridged mode or WAN connection not ready. -
Page 5: Rear Panel Connectors
BEC VG2600 Wireless-N Broadband Voice Gateway Rear Panel Connectors PORT MEANING Antenna Screw the supplied Wi-Fi antennas onto the antenna connectors on both sides. Phone (1X-2X) Connect your analog phone to this port with a RJ-11 cable. Connect an external USB dongle / hard drive for storage, network sharing, etc... -
Page 6: Hardware Connection
Hardware Connection Hardware Installation Power Connection Plug in the supplied power adapter to the wall jack, the other side to the VG2600 then power it on by pressing the Power On/Off button. 2. LAN Connection Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the other side... - Page 7 BEC VG2600 Wireless-N Broadband Voice Gateway 3. EWAN Connection Connect RJ-45 Ethernet cable to the EWAN port, and connect the other side to another alternative broadband device, such as Cable Modem, VDSL, Fiber Modem or PON optic lines. <Please refer to User Manual for detailed instruction.>...
-
Page 8: Connecting To The Router
*This username / password may vary by different Internet Service Providers. Quick Setup Your Router Use the Quick Start for fast connection setup. Before start configuring the VG2600, make sure you have the WAN port connected with your Internet box or fiber line. Step 1: Change Administration Password Setup a new password for “admin”... - Page 9 BEC VG2600 Wireless-N Broadband Voice Gateway Step 3: Setup Wireless Connection Access Point: select Activated SSID: Assign an unique name Channel: pick from 1~11 Security Type: select a mode Disable (No security) WPA2 (Most secure one) WPA / WPA2 (auto detect WPA mode with...
-
Page 10: Troubleshooting
Quick Start Guide Troubleshooting 1. None of the LEDs are on when you turn on the router. Check the connection between the adapter and the router. If the error persists, you may have a hardware problem. In this case you should contact technical support. 2.
