EBL/VRM

Use EBL (Electronic Bearing Range) and VRM (Variable Range Ring) to measure the distance and bearing between any two targets
on the Radar View.
The EBL and VRM can be set as a pair, and you can set two pairs. The marker is tied to the center of the vessel. As the vessel's
position and heading move, the EBL/VRM also moves.
Create an EBL/VRM
1. With a Radar View displayed on-screen, tap Radar in the status bar.
OR
Press the MENU key.
2. Select EBL/VRM.
3. Select EBL/VRM (1) or EBL/VRM (2), and turn it on.
4. Select Adjust.
5. Use the Joystick to move the cursor until it is positioned over the chosen EBL/VRM intersection.
6. Press the ENTER key.
VRM

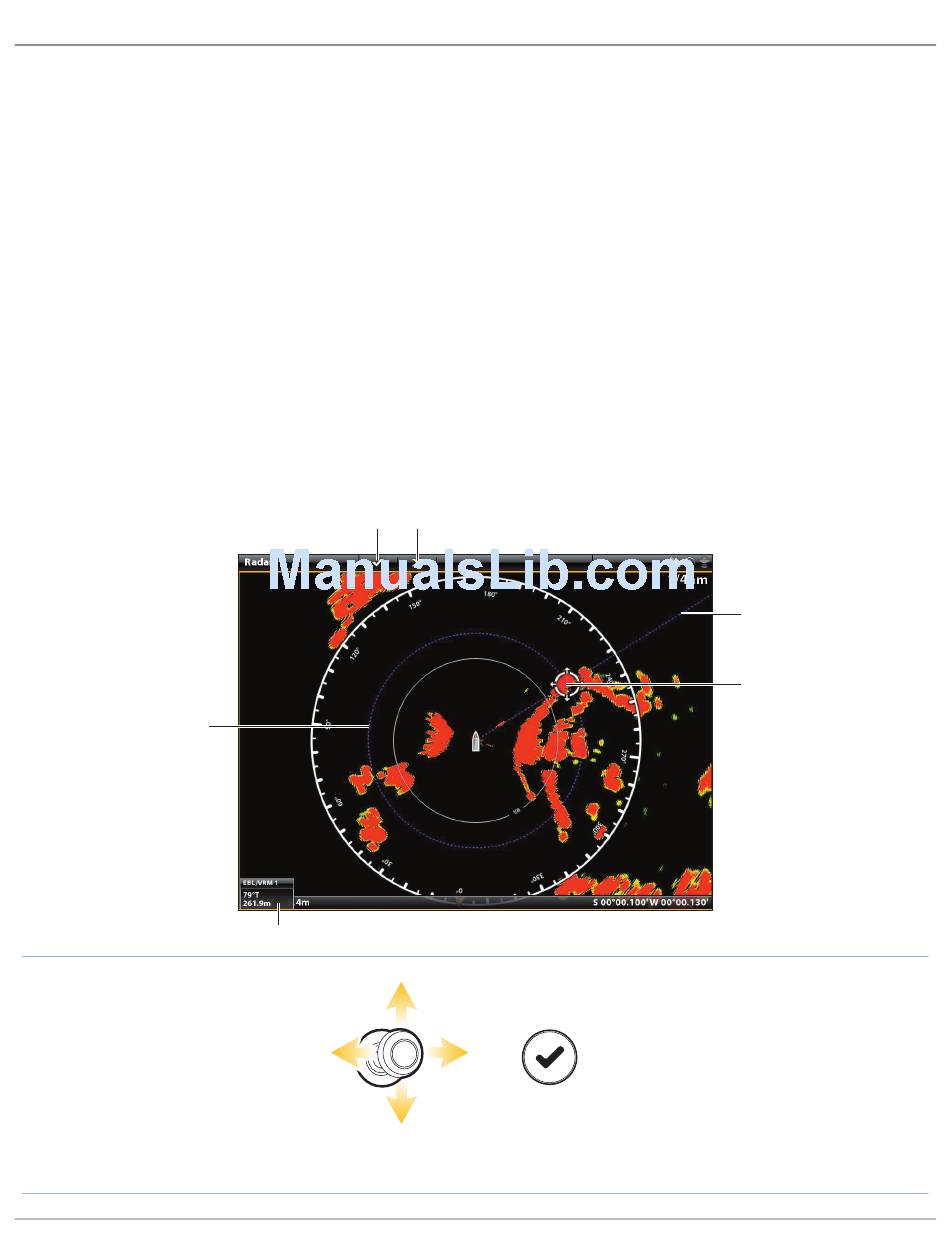

Setting the EBL/VRM
enter close
EBL/VRM digital readout turned on (see Overlays)
Select a Position Enter
125
EBL
cursor positioned
over EBL/VRM
intersection
EBL/VRM
