Revolabs Fusion™ Microphone System- Polycom VSX7000s Setup Guide

OTES A ND

A UTIONS

This setup guide will guide you through the steps needed to properly connect a

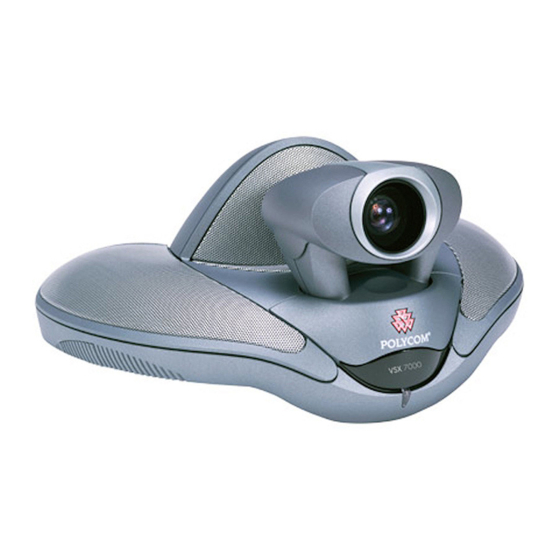

Revolabs Fusion Microphone System to a Polycom VSX7000s video codec.

1. Connecting the Cables

2. Configuring the VSX7000s Video Codec

It is important to carefully follow these instructions in order and completely .

Note:

Otherwise your Fusion Microphone System and/or the video codec may not function

properly. Please read through these instructions completely before proceeding.

Contact Revolabs technical support if you have any questions.

Requirements for connecting systems:

1. Revolabs Fusion 4 or 8 Channel Microphone System

2. Polycom VSX7000s video codec

3. Qty 2 RCA-RCA male cable

4. Amplified speakers

Page 1 OTES A ND A UTIONS This setup guide will guide you through the steps needed to properly connect a Revolabs Fusion Microphone System to a Polycom VSX7000s video codec. 1. Connecting the Cables 2. Configuring the VSX7000s Video Codec It is important to carefully follow these instructions in order and completely .
Page 2 2. Connect a male RCA-RCA audio cable between the “CONF OUT” port on the Fusion and the red “LINE INPUT” port on the VSX7000s. 3. Connect a Male RCA audio cable between the “Room Out” port on the Fusion and the Speakers.
Page 3 6. DISABLE Polycom microphones by removing checkmark on ENABLE POLYCOM MICROPHONES 7. Set the output volume on the VSX7000s to 100% or “50” in the audio configuration menu. NOTE: You must use your Fusion remote control to control the room volume for both the audio and video conference calls.
