Introduction
1.1.2 Overview of Inverter
1
1

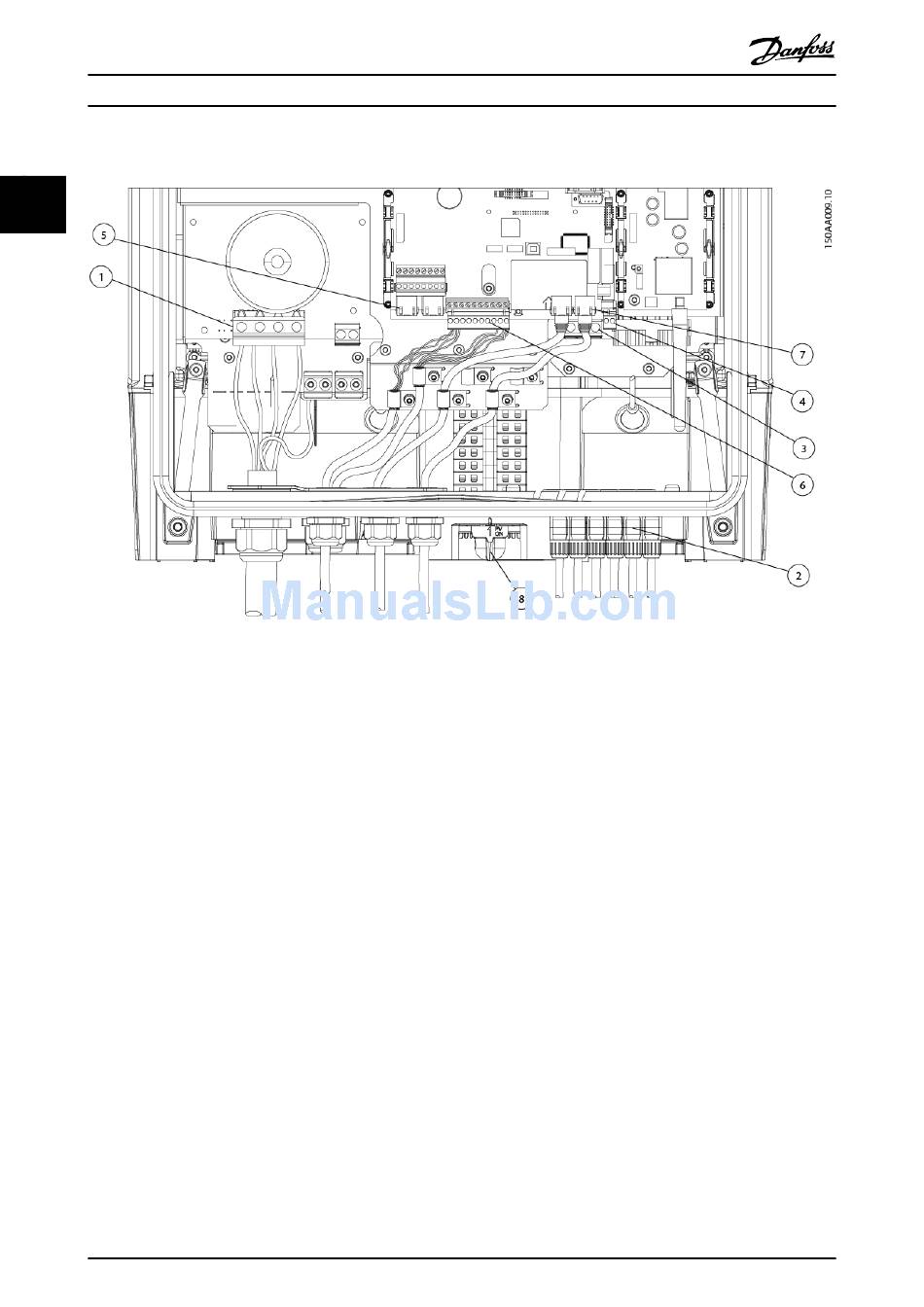

Illustration 1.3 Overview of Danfoss TLX inverter
Live Parts
1.
AC Connection Area
2.
DC Connection Area
3.
Terminal block for parallel connection
4.
Auxiliary output: Potential free relay
PELV (Safe to touch)
The TLX Pro and TLX Pro+ variants can also be configured via the web interface. For further information refer to the Web
Server User Manual.
4
5.
Auxiliary interface: RS-485
6.
Auxiliary interface: Temperature, Irradiation,
Energy meter (SO)
7.
Auxiliary interface: Ethernet
Other
8.
PV load switch
L00410309-09_02
