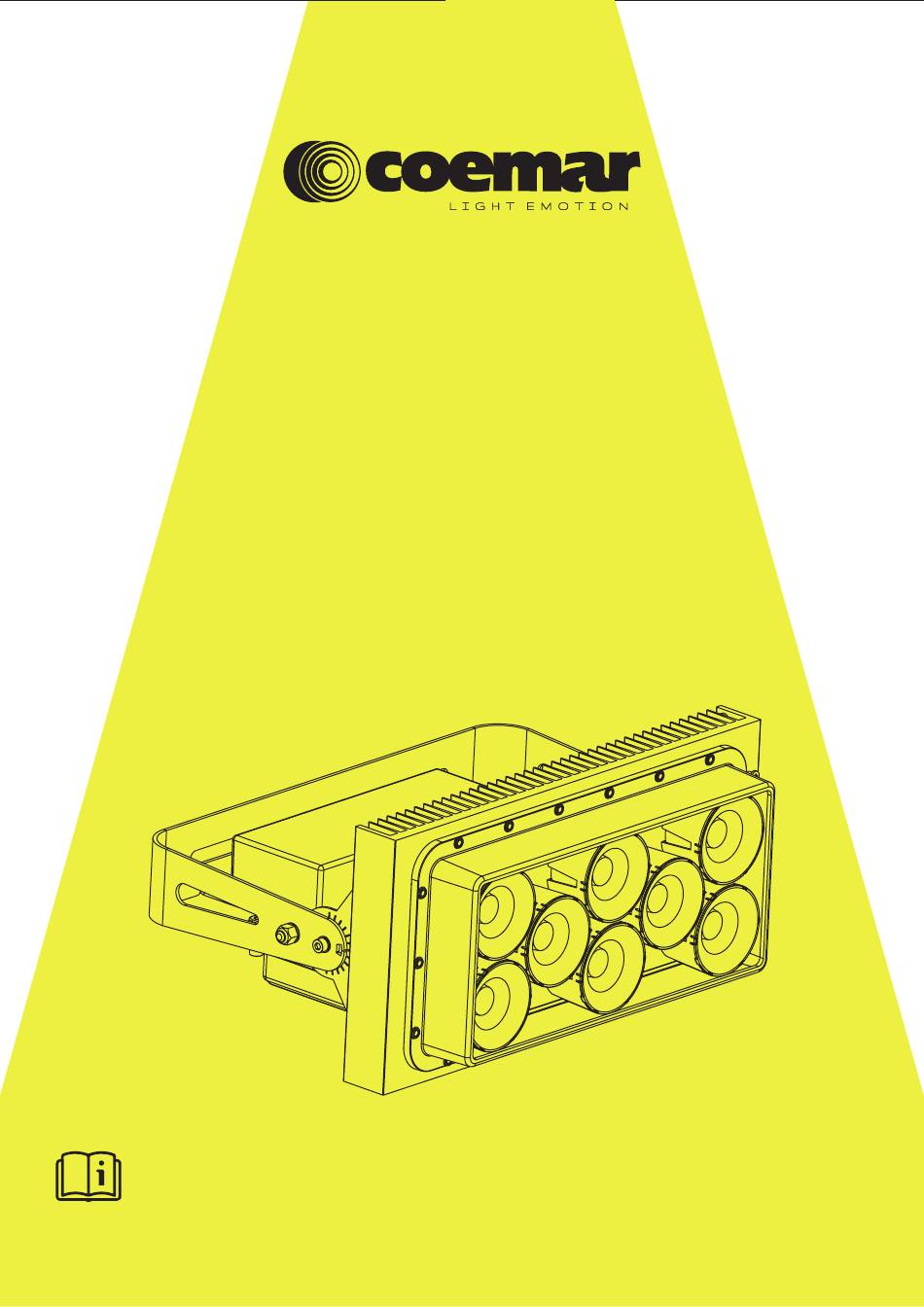

- Page 1 SunLite LED User Manual User Manual version 1.0 Edition September 2021...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your SunLite LED Series: this information will assist us in providing spare parts, repairs or in answering any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
Index 1. Packaging and transportation ..........................Pag. 5 1.1 Packaging ................................Pag. 5 1.2 Transportation ..............................Pag. 5 2. General information ............................... Pag. 5 2.1 Safety informations ............................Pag. 5 2.2 Warranty conditions ............................Pag. 6 2.3 EC norms ................................. Pag. 6 3. Product specifications .............................Pag. 7 3.1 Technical characteristics ...........................Pag. - Page 4 User Manual version 1.0 Edition June 2021...
-
Page 6: Packaging And Transportation
Congratulations on having purchased a Coemar product. You have assured yourself of a fixture of the highest quality, both in componentry and in the technology used. We renew our invitation to you to complete the service information on the previous page, to expedite any request for service information or spares (in case of problems encountered either during, or subsequent to, installation). - Page 7 3. The level of technology of SunLite LED requires the use of specialised personnel for all service applications; refer all work to your authorised Coemar service centre. 4. A good earth connection is essential for the proper functioning of the projector.
-
Page 8: Warranty Conditions
DANGER! Risk of injury or death through epileptic seizure. Do not use the effect near stairways, in corridors or near public exits. Provide advance notice that strobe lighting is in use. Display advisory notices on the set, at the point of ticket sales, on tickets if possible, in the program, and at the entrance(s) to the venue or studio. -
Page 9: Product Specifications
Product specifications Technical characteristics Power supply AC 100-277 V , 50-60 Hz, auto-sensing Maximum current 1.0 A at 230 V, 2.0 A at 115 V Power factor Cosφ = 0.97 at 230V, Cosφ = 0.99 at 115V Max power consumption 225 W Color temperature VariWhite LEDs from 2.700 to 6.500 K... -
Page 10: Unit's Main Components
Valves cannot be cleaned and must be replaced if they become blocked. Valve replacement intervals depend on the amount of dirt and dust in the installation location. We recommend that you consult your Coemar supplier about possible inspection intervals. *Tightening torque of: 10nm... -
Page 11: Back Panel Description
Back panel description 42V IN DC POWER POWER SUPPLY ELECTRONIC LED OUT DMX IN/OUT OPTIONAL Recommended Power Plug Connector (optional) SYMBOL CONNECTION E - Green/Yellow Power Junction Connector for AC AC/L - Brown Cod Art. RCN 72 AC/N - Blue Pin 1 = Earth Power Connector for AC CEE 16A Pin 2 = L-Brown... -
Page 12: Installation
Mechanical installation SunLite LED Series may be hung from an appropriate structure in any position or on tripod. If hanging the fixture from a lighting truss or similar, we recommend the use of an appropriate clamp “A”, as shown in the fol- lowing diagram. -
Page 13: Powering Up
The unit may operates at voltages ranges from 100V to 277V at a frequency of 50 or 60 Hz. It is not needed to effect any setup procedures: SunLite LED Series will automatically adjust its operation to suit any frequency or voltage within this range. -
Page 14: Control Signal Connections
The use of a thermal/magnetic circuit breaker is recommended. Strict adherence to regulatory norms is strongly recommended. SunLite LED Series should not be powered through a dimmer as this may damage the internal switching power supply. Prior to connecting the device to mains power, ensure that the mains characteristics are within the rec- ommended range for the use of SunLite LED Series. -
Page 15: Turning On The Projector
. Setup via RDM Quick guide to menu The SunLite LED Series required RDM (Remote Device Management) to set up fixtures. Using an RDM- compliant DMX controller, you can communicate with all the fixtures on a data link without needing to connect to each fixture individually. - Page 16 ERROR DESCRIPTION SOLUTION MEMORY Memory Reading Error Perform A “Factory Reset” HW MEMORY Memory Hardware Error Contact Coemar DMX ADDR Dmx Addressing Error The Personality Dimension Exceeds 512 Channels NTC ERROR Temperature Sensor Disconnected Check Wiring Ntc Led SHORT NTC...
-
Page 17: Dmx Chart
LED control frequency tuning 5.000 Hz 212 - 217 83% - 85% no effect 218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% Projector: SunLite LED Series Chart name: DMX512 function software version: 0.039 Edition: 1 Date: 07.09.2021... - Page 18 0 to 100% - 255 - 100% white tone proportional proportional value from 2.700 K to 6.500 K - 255 - 100% Projector: SunLite LED Series Chart name: DMX512 function software version: 0.039 Edition: 1 Date: 07.09.2021...
-
Page 19: Dmx Chart Sunrise Mode
218 - 240 85% LED control frequency tuning 20.000 Hz 241 - 255 95% - 100% Note 1: If channels 3 and 4 are used simultaneously, channel 4 prevails. Projector: SunLite LED Series Chart name: DMX512 function software version: 0.039 Edition: 1... -
Page 20: Dmx Chart Raw Mode
- 255 - 100% from 0 to 100% cold white led fine proportional cold white led fine control 16 bit - 255 - 100% Projector: SunLite LED Series Chart name: DMX512 function software version: 0.039 Edition: 1 Date: 07.09.2021... -
Page 21: Accessories And Spare Parts
. Accessories and spare parts All the components of SunLite LED Series are available as spare parts from your Coemar dealer or Service. Ac- curate description of the fixture, model number and type will assist us in providing for your requirements in an efficient and effective manner. -
Page 22: Periodic Controls
11.4 Fuses SunLite LED Series has an automatic fuse that in most cases does not need to be replaced. . F.A.Q. and answers The following list shows common issues that may be simply solved. If issues persist, the unit must be repaired by a qualified personnel or just contact your Coemar service. - Page 23 User notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 24 Information on disposal of the equipment The equipment at the end of its useful life must be disposed of at an appropriate recycling center for waste electrical and electronic equipment. The treatment and disposal of environmentally friendly, helps prevent potential negative environmental and health and promote the reuse and / or recycling of materials making up the equipment.
- Page 25 Coemar Lighting s.r.l. Via Carpenedolo 90 46043 Castiglione delle Stiviere, Mantova, Italy phone. +39 0376/1514412 - fax +39 0376/1514380 info@coemar.com Coemar reserves the right to change specifications without prior notice...
