Intelix HDMI-F Installation Manual

Intelix HDMI-F

Introduction

The active Intelix HDMI-F balun allows an HDMI (high-definition

multimedia interface) video signal to be transmitted up to 150 feet via

inexpensive twisted pair cabling, such as Cat 5e or Cat 6. The HDMI-F

supports standard HDTV resolutions and is HDCP compliant.

Two individual runs of twisted pair cable—one run of shielded and one run of

unshielded—are required when installing the HDMI-F balun. The video signal

should be transmitted on the shielded twisted pair. In environments

susceptible to high electromagnetic interference, two shielded twisted pair

cables should be used.

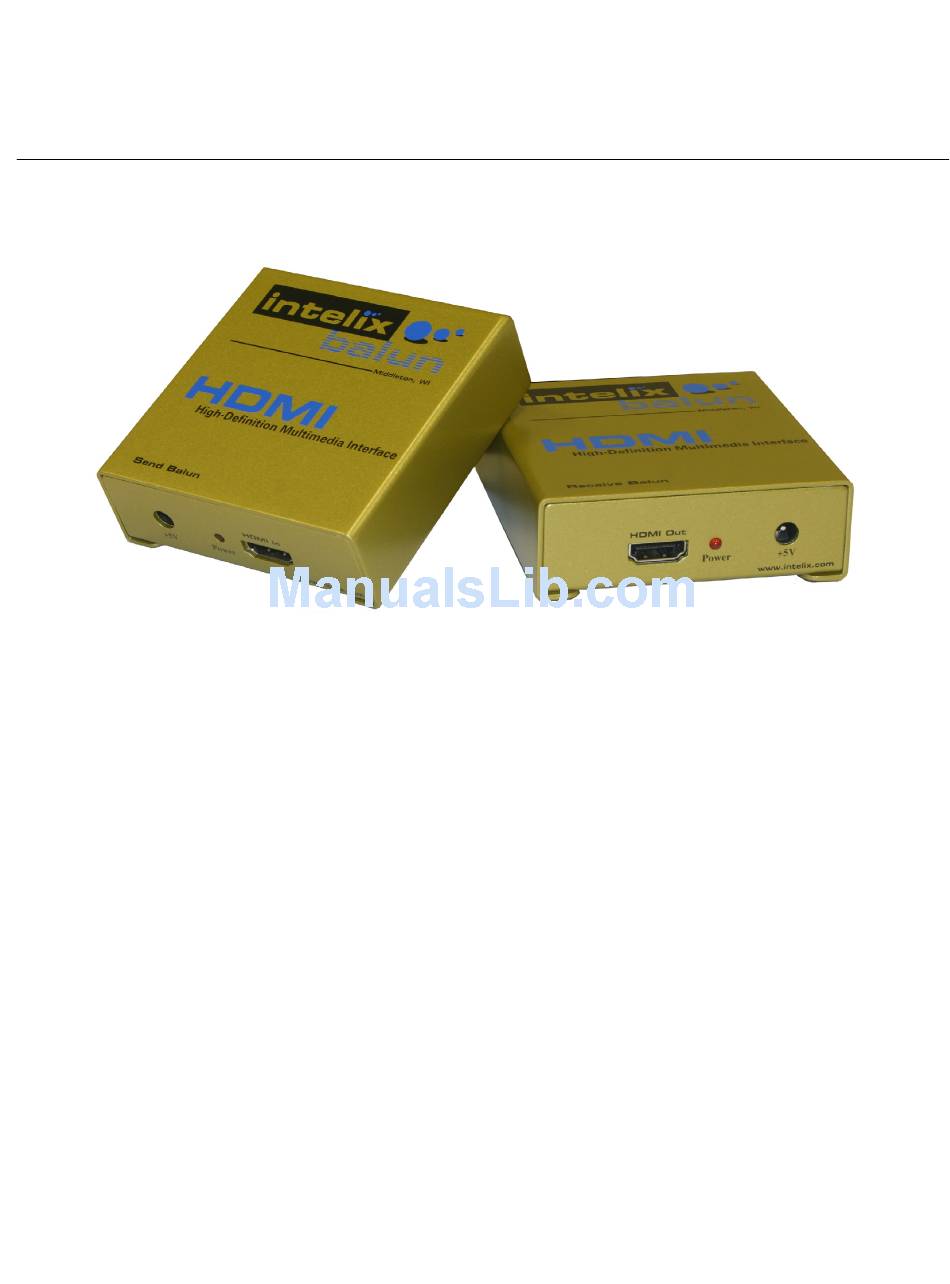

The Intelix HDMI-F includes a send balun, receive balun, 6 foot HDMI cable,

two power supplies, and mounting brackets.

Table of Contents

Do you have a question about the HDMI-F and is the answer not in the manual?

Page 1 The active Intelix HDMI-F balun allows an HDMI (high-definition multimedia interface) video signal to be transmitted up to 150 feet via inexpensive twisted pair cabling, such as Cat 5e or Cat 6. The HDMI-F supports standard HDTV resolutions and is HDCP compliant.
Page 2 EIA/TIA 568B standard. Please ensure that wiring is straight- through. 2. Connect the HDMI-F send balun to the HDMI output of the video source. Do not connect the 5V power supply. 3. Connect the HDMI-F receive balun to the HDMI input of the receiver at the remote end.
Page 3 Send Balun Dip Switch Settings Setting Switch 1 Switch 2 Switch 3 Switch 4 No Boost Normal Boost (Default) Strong Boost Undefined Receiver Balun Dip Switch Settings Setting Switch 1 Switch 2 Switch 3 Switch 4 No EQ (Default) EQ Setting 2 EQ Setting 3 Maximum EQ Adjustment Guidelines:...
Page 4: Technical Specifications
The Intelix HDMI-F conforms to HDMI and HDCP specifications. Intelix does not guarantee operation with devices that do not conform to these specifications. The Intelix HDMI-F passes HDCP signals and does not manipulate them in any way. Intelix LLC...
