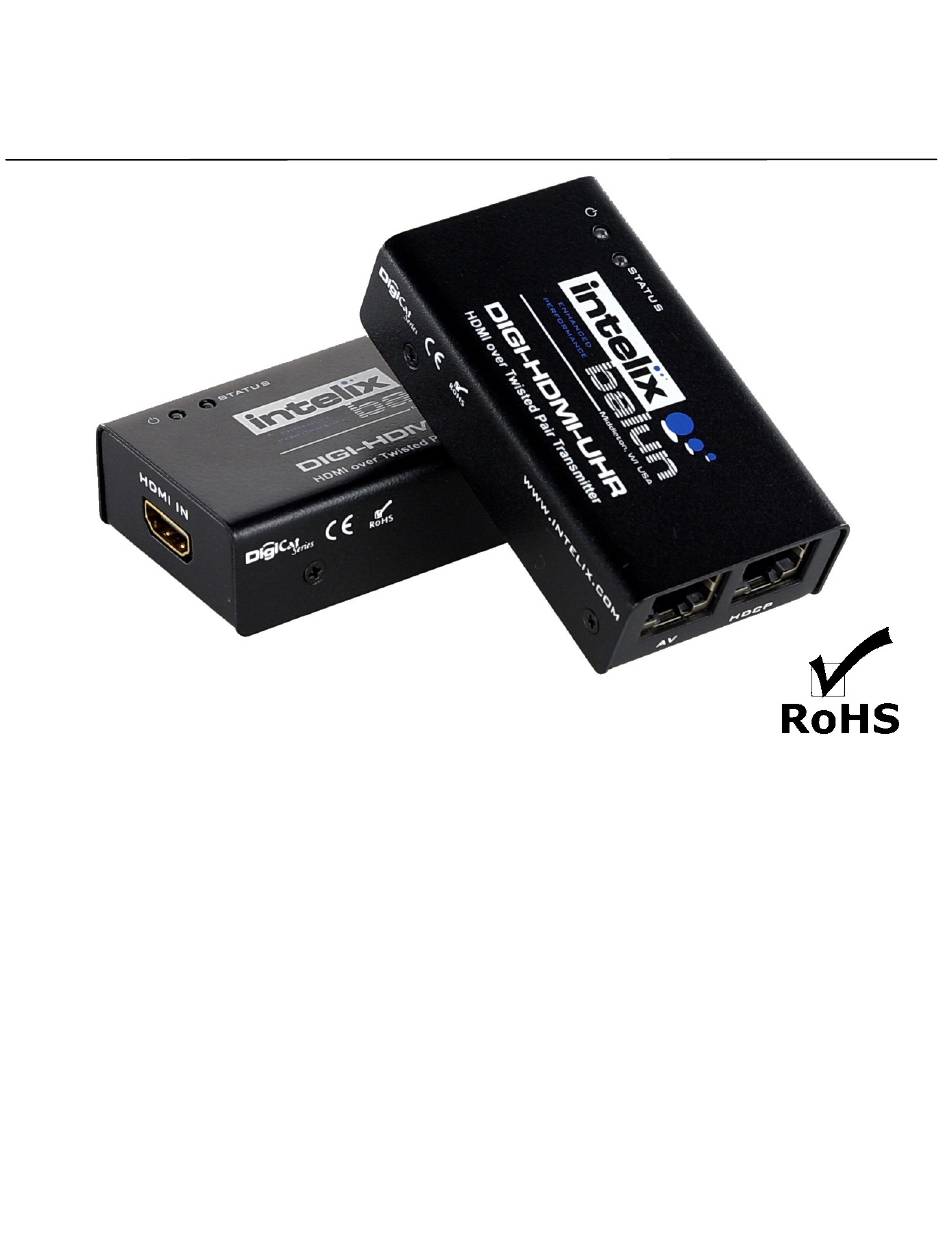

Intelix DIGI-HDMI-UHR

Installation Manual

Introduction

The active Intelix DIGI-HDMI-UHR balun transmits an HDMI (high-

definition multimedia interface) audio and video signal up to 150 feet via

inexpensive twisted pair cabling, such as Cat 5e or Cat 6. The DIGI-HDMI-

UHR supports standard HDTV resolutions and is HDCP compliant.

Two individual runs of twisted pair cable are required when installing the

DIGI-HDMI-UHR balun. The unit is fully compatible with Cat 5e and Cat 6.

In environments susceptible to high electromagnetic interference, two shielded

twisted pair cables should be used.

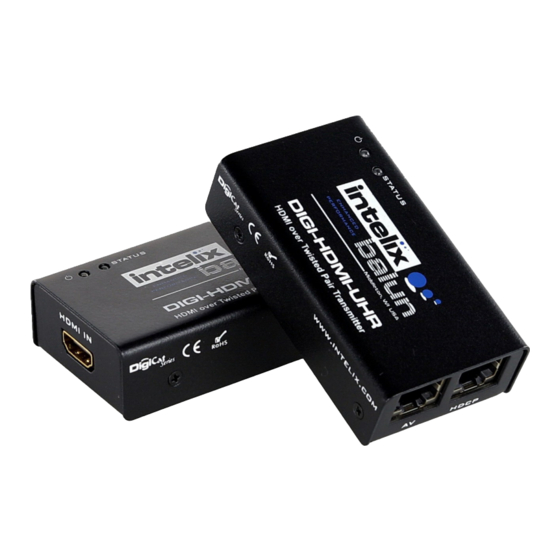

The Intelix DIGI-HDMI-UHR includes one send balun, one receive balun, one

power supply, and two mounting brackets. The system is powered on the

receive end.

Need help?

Do you have a question about the DIGI-HDMI-UHR and is the answer not in the manual?

Page 1 UHR supports standard HDTV resolutions and is HDCP compliant. Two individual runs of twisted pair cable are required when installing the DIGI-HDMI-UHR balun. The unit is fully compatible with Cat 5e and Cat 6. In environments susceptible to high electromagnetic interference, two shielded twisted pair cables should be used.
Page 2 HDMI cable. Be sure to test both HDMI cables required for system installation. 5. Connect the DIGI-HDMI-UHR send balun to the HDMI output of the video source. 6. Connect the DIGI-HDMI-UHR receive balun to the HDMI input of the receiving device at the remote end.
Page 3 Troubleshooting Symptom Probable Causes Possible Solutions No signal Incorrect cable Verify that both ends of the twisted pair termination cables use 568B crimp pattern. Status LED is off No signal Incorrect cable Swap the twisted pair cables in the AV and connection HDCP RJ45 inputs on the receive balun.
Page 4 Regulatory CE, RoHS Intelix Part Number DIGI-HDMI-UHR Ordering Information DIGI-HDMI-UHR package includes one send unit, one receive unit, two mounting brackets, and one power supply The Intelix DIGI-HDMI-UHR conforms to HDMI and HDCP specifications. Intelix does not guarantee operation with devices that do not conform to these specifications.
