Summary of Contents for Intelix HDMI-5X1

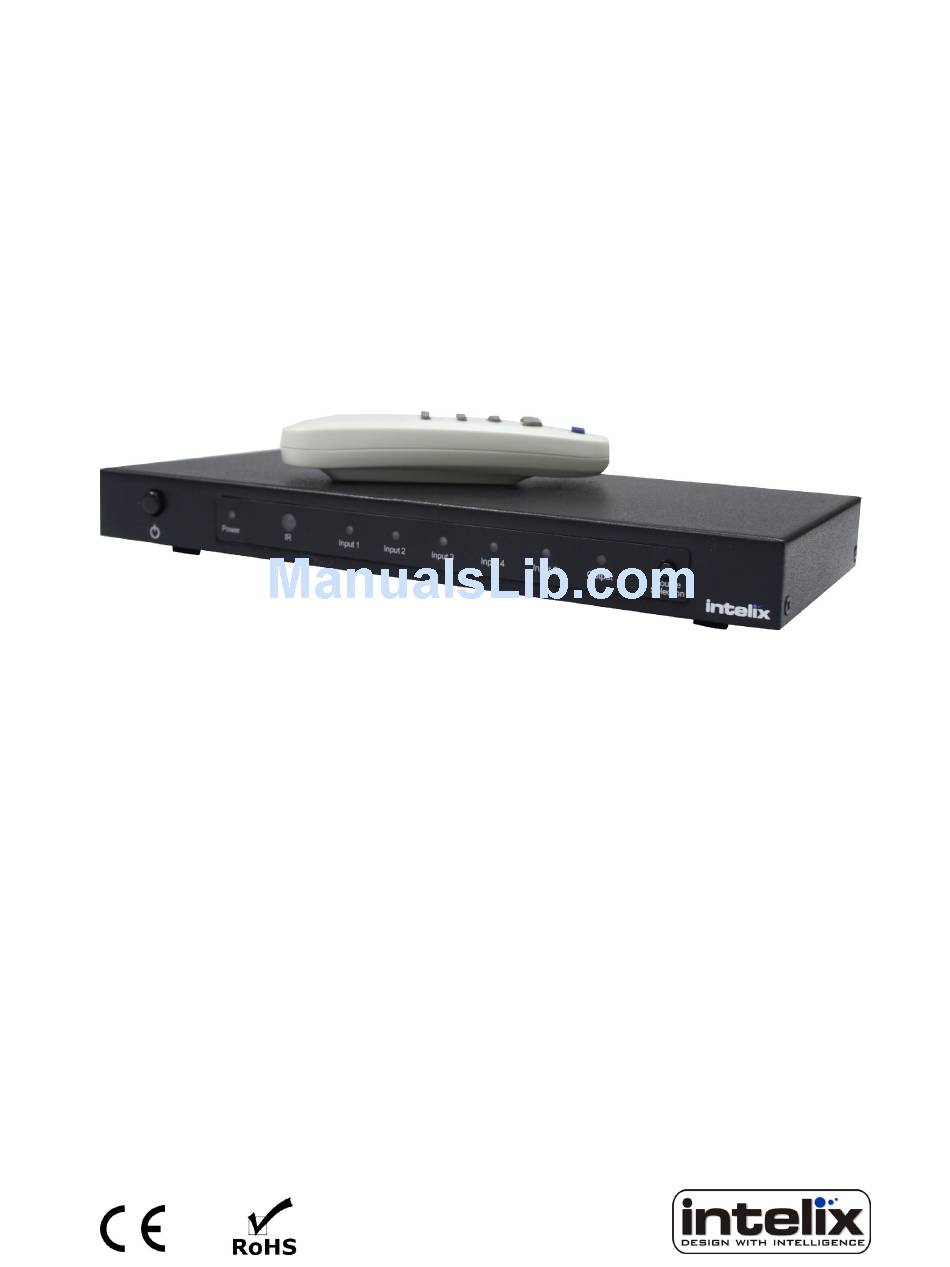

- Page 1 HDMI-5X1 5 input by 1 output HDMI Switcher...
- Page 2 Intelix HDMI-5X1 Installation Manual Table of Contents Overview..................... 3 Installation ..................4 Technical Specifications ..............5 Warranty ..................... 6 Contact Information………………………………………………… .. 7 Copyright 2007 Intelix LLC. Design with Intelligence www.intelix.com...

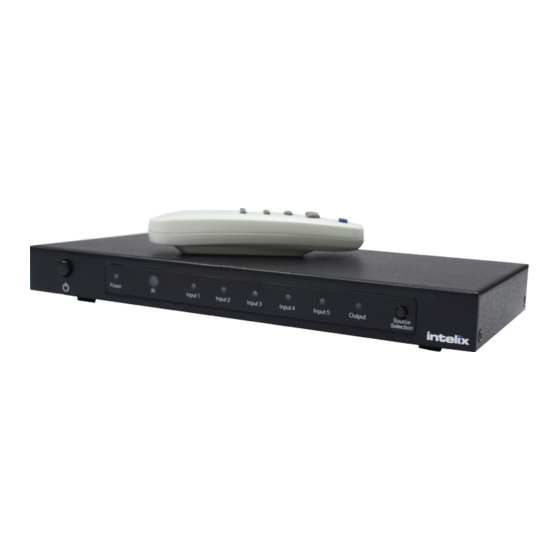

- Page 3 IR remote control, or a third-party IR control system. An optional rear-panel enhancement switch provides additional gain for cable lengths over 15 feet. The HDMI-5X1 supports resolutions up to 1080p and is HDCP compliant.
-
Page 4: Led Status
Intelix HDMI-5X1 Installation Manual Installation To install the Intelix HDMI-5X1 switcher, please perform the following steps. 1. Power-off the source and destination HDMI devices. 2. Connect the input sources to the HDMI-5X1 using high-quality HDMI cables. 3. Connect the output destination to the HDMI-5X1 using a high-quality HDMI cable. -
Page 5: Technical Specifications
Intelix HDMI-5X1 Installation Manual Technical Specifications Signal Rate..................... 1.65 Gbps Output Video ...............HDMI 1.2a, HDCP 1.0/1.1 Maximum Single Link Range..........1600 x 1200, 1080p Input DDC Signal ..............5.0 volts p-p (TTL) Input Video Signal..............0.5 – 1.0 volts p-p Input Connectors ..........Five (5) HDMI type A connectors Output Connectors..........One (1) HDMI type A connector... - Page 6 3) Malfunction resulting from abuse or misuse of the product; 4) Exterior chassis appearance; 5) Malfunction occurring after repairs have been made by anyone other than Intelix or any of its authorized service representatives; 6) Acts of nature; 7) Optional embedded software upgrades or updates.
-
Page 7: Thank You For Your Purchase
Intelix HDMI-5X1 Installation Manual Thank you for your purchase. We appreciate your business. Please contact us with your questions and comments. Intelix 2222 Pleasant View Road Suite 1 Middleton, WI 53562 Phone: 608-831-0880 Toll-Free: 866-4-MATMIX Fax: 608-831-1833 www.intelix.com intelix@intelix.com Copyright 2007 Intelix LLC.
