    AS-1H1V-WP Installation Guide Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference.
  • Page 4 AS-1H1V-WP Installation Guide 26. When the apparatus is not in use or during its relocation, take care of the power cord and plugs; e.g. tie up the power cord with cable tie or similar. The tie must be free from sharp edges and the like that might cause abrasion of the power cord.
  • Page 5: Table Of Contents

    AS-1H1V-WP Installation Guide Table of Contents Important Safety Instructions ��������������������������������������������������������������������������������������������������������������������������� Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ���������������������������������������������������������������������������������������������������������������������������������� Basic Installation ����������������������������������������������������������������������������������������������������������������������������������������������� HDBaseT Cabling Requirements ������������������������������������������������������������������������������������������������������������������������ Contact Closure Inputs ��������������������������������������������������������������������������������������������������������������������������������������...
  • Page 6 AS-1H1V-WP Installation Guide RS232 Control ������������������������������������������������������������������������������������������������������������������������������������������������� Switching Commands ���������������������������������������������������������������������������������������������������������������������������������������� Power Management ����������������������������������������������������������������������������������������������������������������������������������������� HDCP Compliance ��������������������������������������������������������������������������������������������������������������������������������������������� Device Baud Rate ���������������������������������������������������������������������������������������������������������������������������������������������� Device Information �������������������������������������������������������������������������������������������������������������������������������������������� Factory Reset����������������������������������������������������������������������������������������������������������������������������������������������������� EDID Configuration ������������������������������������������������������������������������������������������������������������������������������������������� VGA Scaling Configuration �������������������������������������������������������������������������������������������������������������������������������� Display Control Settings ������������������������������������������������������������������������������������������������������������������������������������ Display Control Queries ������������������������������������������������������������������������������������������������������������������������������������� Display Control Hex Commands ������������������������������������������������������������������������������������������������������������������������...
  • Page 7: Product Overview

    The AS-1H1V-WP will detect which input has an active video input, and switch to that input – if both inputs are active, the “last in” will be selected. There are additional contact closure inputs provided on the rear of the unit to allow third party control.
  • Page 8: Front And Rear Panels

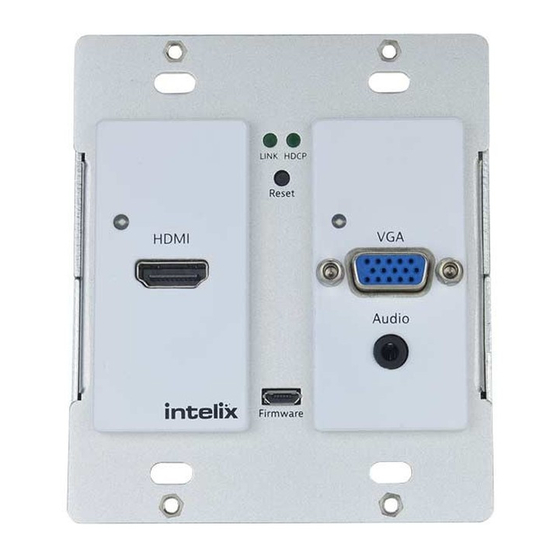

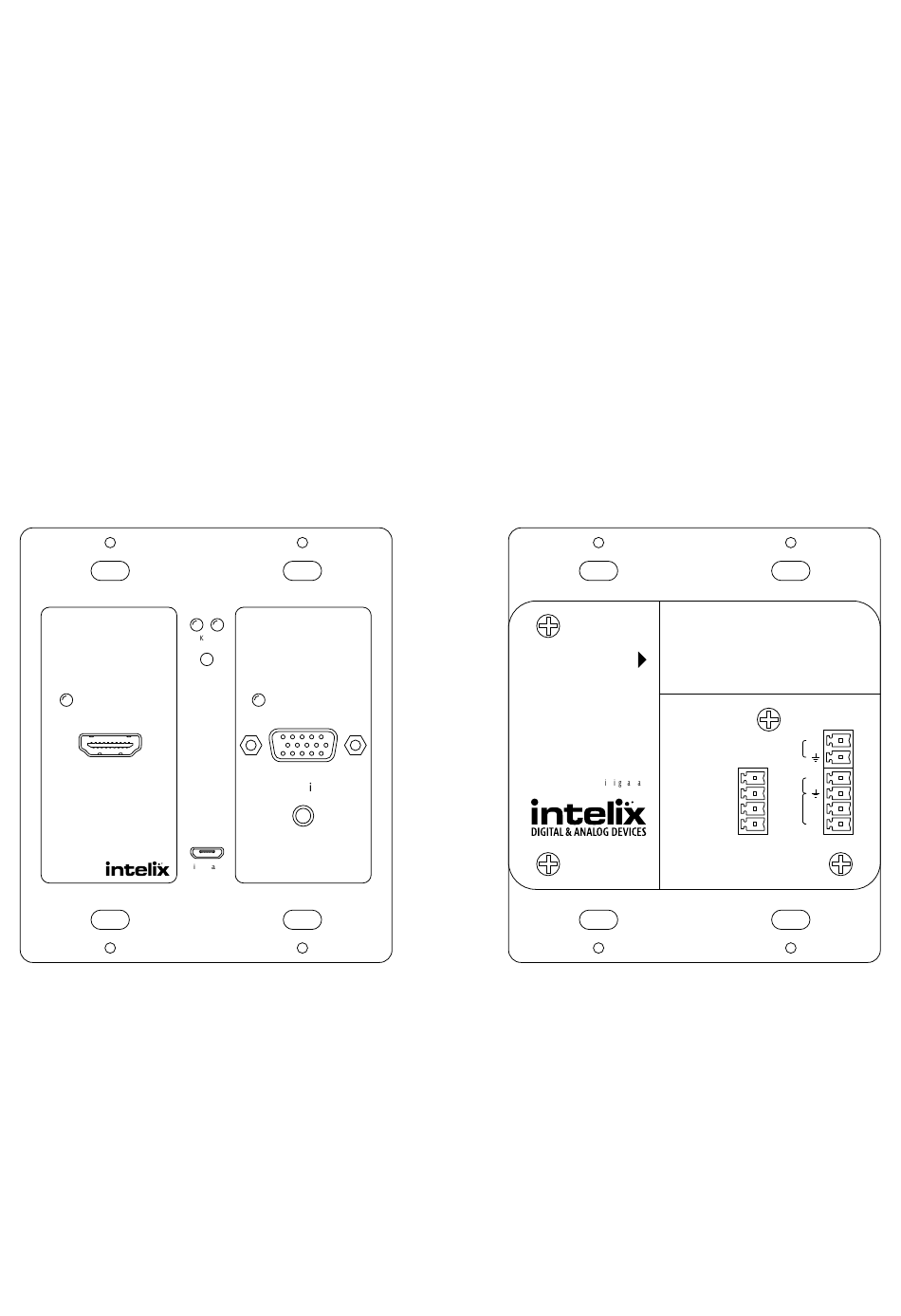

    AS-1H1V-WP Installation Guide Front and Rear Panels Front Panel HDMI input and input status LED Status LEDs and Reset button VGA with analog audio input and input status LED Micro USB port for firmware updating...
  • Page 9: Rear Panel

    AS-1H1V-WP Installation Guide Rear Panel Contact closures 12V DC power input HDBaseT output with PoH input support RS232 and 12V DC output...
  • Page 10: Installation Instructions

    Connect shielded Category 5E or greater twisted pair cable with the TIA/EIA-568B crimp pattern between the transmitter (AS-1H1V-WP) and the HDBaseT receiver. If the HDBaseT receiver cannot provide power to the AS-1H1V-WP, connect the included power supply to the 12V DC power input of the device.
  • Page 11: Contact Closure Inputs

    “GND” terminal. Normally open, momentary switches should be used. The AS-1H1V-WP ships from the factory with a jumper in place between the “AUTO”, and “GND” terminals; this should remain in place if you wish the unit to switch automatically when a video signal is present.
  • Page 12: 12V Dc Output Power

    AS-1H1V-WP Installation Guide 12V DC Output Power The AS-1H1V-WP can provide power to an external 12V DC device that draws 500mA or less of total current. This voltage will be provided if the AS-1H1V-WP is powered directly or via PoH.
  • Page 13: General Operation

    General Operation Automatic Switching By placing a jumper between the “Auto” and “Gnd” terminals on the back of the AS-1H1V-WP, the unit will switch inputs by sensing an active video signal. The AS-1H1V-WP will switch automatically to the “last in” connected input. For example, if an VGA signal is currently displayed, and then connect an HDMI source, the unit will switch to the HDMI input.
  • Page 14: Reset Button

    AS-1H1V-WP Installation Guide Reset Button The reset button located under the Status Indicators will reboot the AS-1H1V-WP. This may need to be used if in EDID pass-through mode, and the AS-1H1V-WP was powered on before the display during installation, which may prevent the EDID from being read correctly.
  • Page 15: Hdcp Management

    No Signal If the AS-1H1V-WP detects no video on either the HDMI or the VGA input for a set amount of time, the AS-1H1V-WP will go into low-power mode. The default time is 30 minutes, which can be adjusted by using the Display Control Software or sending an RS232 command.
  • Page 16: Display Control Functionality

    Display Control Functionality The AS-1H1V-WP may be used to control power and input status of the LCD or Projector connected to an HDBaseT receiver. When the AS-1H1V-WP is “woken up from low-power mode, it will send the preprogrammed “Power On”...
  • Page 17 GET AUTO<CR><LF> Get Auto-switching state AUTO ON!<CR><LF> OR AUTO OFF!<CR><LF> Power Management In addition to going to a low-power mode when using the Display Control functions, the AS-1H1V-WP can also be set to this mode via RS232. Description Command Response STANDBY<CR><LF>...
  • Page 18 AS-1H1V-WP Installation Guide HDCP Compliance Description Command Response HDCP ON<CR><LF> HDCP ON!<CR><LF> HDCP Compliance ON HDCP OFF<CR><LF> HDCP OFF!<CR><LF> HDCP Compliance OFF GET HDCP<CR><LF> Get HDCP Compliance status HDCP ON! <CR><LF> OR HDCP OFF!<CR><LF> Device Baud Rate The default baud rate for the AS-1H1DP is 9600. This can be changed to accommodate various installation needs: 2400, 4800, 9600, 19200, 38400, 57600, 115200.
  • Page 19 AS-1H1V-WP Installation Guide EDID Configuration The EDID settings listed below will only be passed to the HDMI input. Description Command Response EDID UHD<CR><LF> EDID UHD!<CR><LF> UHD/30 EDID FHD<CR><LF> EDID FHD!<CR><LF> 1080p EDID HD<CR><LF> EDID HD!<CR><LF> 720p EDID WUXGA<CR><LF> EDID WUXGA!<CR><LF>...
  • Page 20 AS-1H1V-WP Installation Guide Display Control Settings Description Command Response DFG1 DFG1!<CR><LF> Turn Display Control ON Display Control On<CR><LF> DFG0 DFG0!<CR><LF> Turn Display Control OFF Display Control Off<CR><LF> DONxx DON!<CR><LF> Store the ON command for Display Example: pwron<CR> Control (xx = up to 25 characters) DONpwron <CR><LF>...
  • Page 21 AS-1H1V-WP Installation Guide Display Control Queries The query responses will be identical to the Display Control commands entered into the device. Description Command Response DFG? Display Control state? DFG1<CR> OR DFG0<CR> DON? DONpwron<CR> Display On command? DOF? DOFpwroff<CR> Display Off command? DIS? DIShdmi1<CR>...
  • Page 22 AS-1H1V-WP Installation Guide Troubleshooting Device does not power on Apply an active video signal; the unit may be in standby mode. » Transmit the WAKE command via RS232. » If using a receiver with PoH, verify that the receiver is powered.
  • Page 23 HDCP, Link, VGA, and HDMI Reset Switch Microswitch Available Models AS-1H1V-WP-W (White Faceplate and Painted Insert), AS-1H1V-WP-B (Black Faceplate and Painted Insert) Included Accessories Installation Guide, Power Supply, Two (2) 4-pin Removable Screw Terminals, RS232 cable (3-pin to DE9), 2-pin Removable Screw Terminal, USB Programming Cable...
