AS-1H1DP Installation and

Operation Guide

AS-1H1DP
HDMI/D spl Port Auto-Sw tch
F rmw re
HDCP
L n
DP
HDMI
PoH
Auto
DP
Gnd
HDMI
TX
RX
HDBT
HDMI Out
HDMI In
D spl
Port In
Cont ct
RS232
24V DC
Rev 160415
11675 Ridgeline Dr.
Toll-Free: 800-530-8998
Colorado Springs, CO 80921
Fax: 719-260-0075
supportlibav@libav.com

Advertisement

Table of Contents
loading

Summary of Contents for Intelix AS-1H1DP

  • Page 1: Operation Guide

    AS-1H1DP Installation and Operation Guide AS-1H1DP HDMI/D spl Port Auto-Sw tch F rmw re HDCP HDMI Auto HDMI HDBT HDMI Out HDMI In D spl Port In Cont ct RS232 24V DC Rev 160415 11675 Ridgeline Dr. Toll-Free: 800-530-8998 Colorado Springs, CO 80921 Fax: 719-260-0075 supportlibav@libav.com...
  • Page 3: Important Safety Instructions

    AS-1H1DP Installation Guide Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference.
  • Page 4 AS-1H1DP Installation Guide 26. When the apparatus is not in use or during its relocation, take care of the power cord and plugs; e.g. tie up the power cord with cable tie or similar. The tie must be free from sharp edges and the like that might cause abrasion of the power cord.
  • Page 5: Table Of Contents

    AS-1H1DP Installation Guide Table of Contents Important Safety Instructions ��������������������������������������������������������������������������������������������������������������������������� Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������������ Basic Installation ������������������������������������������������������������������������������������������������������������������������������������������������� HDBaseT Cabling Requirements �������������������������������������������������������������������������������������������������������������������������� Contact Closure Inputs ��������������������������������������������������������������������������������������������������������������������������������������...
  • Page 6 AS-1H1DP Installation Guide RS232 Control ������������������������������������������������������������������������������������������������������������������������������������������������� Switching Commands ���������������������������������������������������������������������������������������������������������������������������������������� Power Management ����������������������������������������������������������������������������������������������������������������������������������������� HDCP Compliance ��������������������������������������������������������������������������������������������������������������������������������������������� DisplayPort Audio���������������������������������������������������������������������������������������������������������������������������������������������� Device Baud Rate ���������������������������������������������������������������������������������������������������������������������������������������������� Device Information �������������������������������������������������������������������������������������������������������������������������������������������� Factory Reset����������������������������������������������������������������������������������������������������������������������������������������������������� EDID Configuration ������������������������������������������������������������������������������������������������������������������������������������������� Display Control Settings ������������������������������������������������������������������������������������������������������������������������������������ Display Control Queries ������������������������������������������������������������������������������������������������������������������������������������� Display Control Hex Commands ������������������������������������������������������������������������������������������������������������������������...
  • Page 7: Product Overview

    30 minutes or being inactive for 3 hours by default. The AS-1H1DP will detect which input has an active video input, and switch to that input – if both inputs are active, the “last in” will be selected. There are additional contact closure inputs provided on the rear of the unit to allow third party control.
  • Page 8: Front And Rear Panels

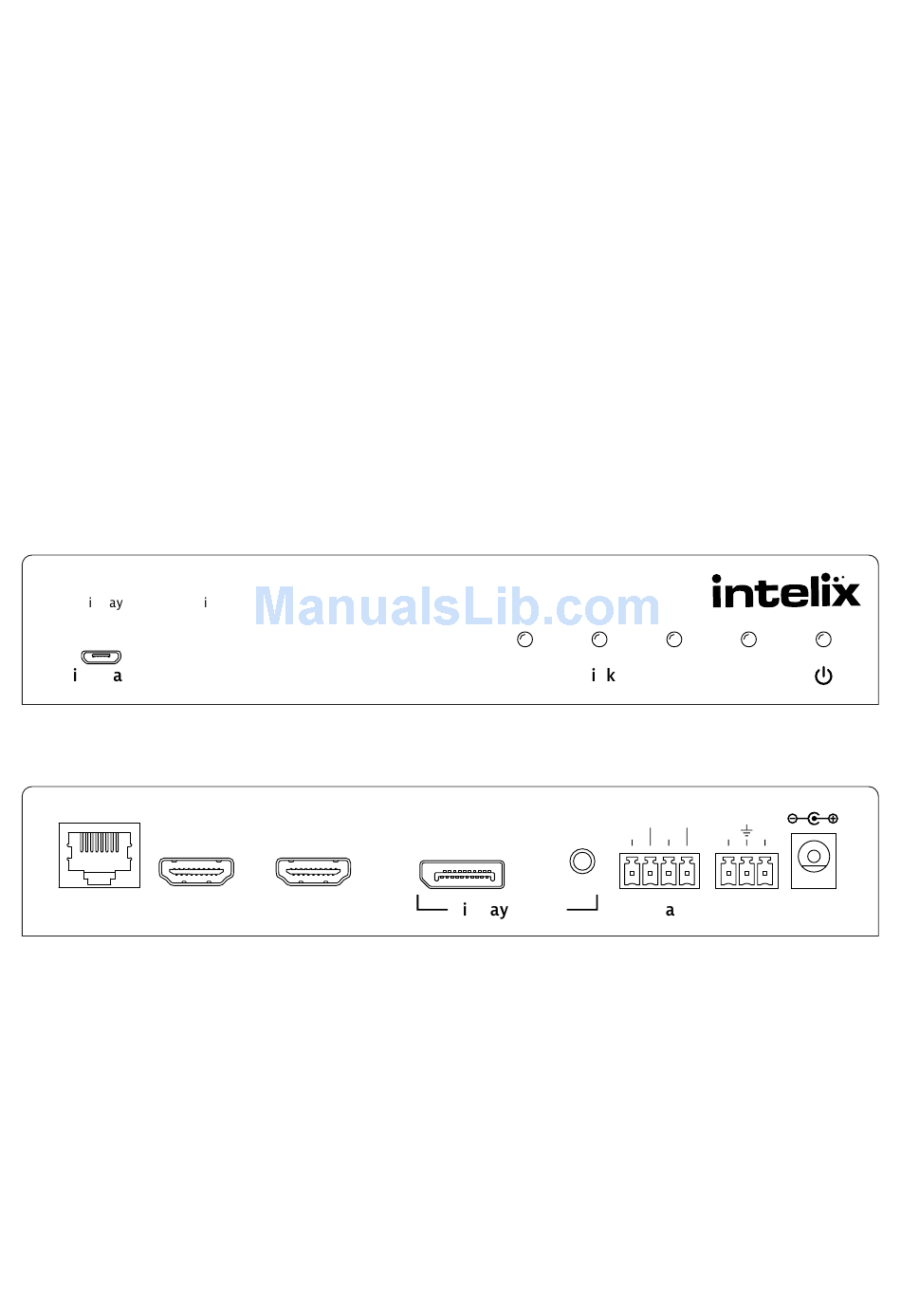

    AS-1H1DP Installation Guide Front and Rear Panels Front Panel AS-1H1DP HDMI/D spl Port Auto-Sw tch F rmw re HDCP HDMI Micro USB port for firmware updating HDCP status LED HDBaseT Link status LED DisplayPort input status LED HDMI input status LED...
  • Page 9: Installation Instructions

    Connect shielded Category 5E or greater twisted pair cable with the TIA/EIA-568B crimp pattern between the transmitter (AS-1H1DP) and the HDBaseT receiver. If the HDBaseT receiver cannot provide power to the AS-1H1DP or the receiver requires remote power, connect the included power supply to the 24V DC power input of the device.
  • Page 10: Contact Closure Inputs

    “GND” terminal. Normally open, momentary switches should be used. The AS-1H1DP ships from the factory with a jumper in place between the “AUTO”, and “GND” terminals; this should remain in place if you wish the unit to switch automatically when a video signal is present.
  • Page 11: Device Power

    RS232 through the HDBaseT receiver. To use the RS232 extension capabilities of the AS-1H1DP, connect the TX, ground, and RX control signal wires to the removable 3-pole terminal block. Consult the manual of the control device(s) to determine which pins the TX and RX signals are carried on.
  • Page 12: General Operation

    General Operation Automatic Switching By placing a jumper between the “Auto” and “Gnd” terminals on the back of the AS-1H1DP, the unit will switch inputs by sensing an active video signal. The AS-1H1DP will switch automatically to the “last in” connected input. For example, if a DisplayPort signal is currently displayed, and then connect an HDMI source, the unit will switch to the HDMI input.
  • Page 13: Firmware Port

    A separate document will provide usage instructions once a new firmware update is available. EDID Management An essential part of operation is the EDID table, which is transmitted to the source from the AS-1H1DP input. The AS-1H1DP features a pass through EDID mode for the HDMI and DisplayPort inputs. The preferred native timing of the display will be transmitted to the source.
  • Page 14: Low Power Mode

    No Signal If the AS-1H1DP detects no video on either the HDMI or the DisplayPort input for a set amount of time, the AS-1H1DP will go into low-power mode. The default time is 30 minutes, which can be adjusted by using the Display Control Software or sending an RS232 command.
  • Page 15: Hardware Reset

    AS-1H1DP Installation Guide Hardware Reset A hardware reset will reset the AS-1H1DP to the factory default setting. This procedure may be necessary if the device RS232 settings have been changed. Short the HDMI and DP contact closures to Ground for 10 seconds.
  • Page 16: Rs232 Control

    GET AUTO<CR><LF> Get Auto-switching state AUTO ON!<CR><LF> OR AUTO OFF!<CR><LF> Power Management In addition to going to a low-power mode when using the Display Control functions, the AS-1H1DP can also be set to this mode via RS232. Description Command Response STANDBY<CR><LF>...
  • Page 17: Hdcp Compliance

    AUDIO Internal<CR><LF> Device Baud Rate The default baud rate for the AS-1H1DP is 9600. This can be changed to accommodate various installation needs: 2400, 4800, 9600, 19200, 38400, 57600, 115200. If the baud rate has been changed, but the rate is unknown, a hardware reset (see page 15) must be performed on the device.
  • Page 18: Factory Reset

    AS-1H1DP Installation Guide Factory Reset The factory reset command will reset every setting to the factory defaults. EDID, HDCP, scaling, and Display Control settings will all be reset to the original settings. Use extreme caution when the device is used in a live environment.
  • Page 19: Display Control Settings

    AS-1H1DP Installation Guide Display Control Settings Description Command Response DFG1 DFG1!<CR><LF> Turn Display Control ON Display Control On<CR><LF> DFG0 DFG0!<CR><LF> Turn Display Control OFF Display Control Off<CR><LF> DONxx DON!<CR><LF> Store the ON command for Display Example: pwron<CR> Control (xx = up to 25 characters) DONpwron <CR><LF>...
  • Page 20: Display Control Queries

    AS-1H1DP Installation Guide Display Control Queries The query responses will be identical to the Display Control commands entered into the device. Description Command Response DFG? Display Control state? DFG1<CR> OR DFG0<CR> DON? DONpwron<CR> Display On command? DOF? DOFpwroff<CR> Display Off command? DIS? DIShdmi1<CR>...
  • Page 21: Troubleshooting

    AS-1H1DP Installation Guide Troubleshooting Device does not power on Apply an active video signal; the unit may be in standby mode. » Transmit the WAKE command via RS232. » If using a receiver with PoH, verify that the receiver is powered.
  • Page 22: Technical Specifications

    AS-1H1DP Installation Guide Technical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle DisplayPort Input One (1) DisplayPort Receptacle Analog Audio One (1) 3.5 mm TRS Receptacle HDBaseT Port One (1) 8P8C port (Shielded RJ45) HDMI Output One (1) HDMI Type A Receptacle Power One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel...
  • Page 23 AS-1H1DP Installation Guide...
  • Page 24 Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
