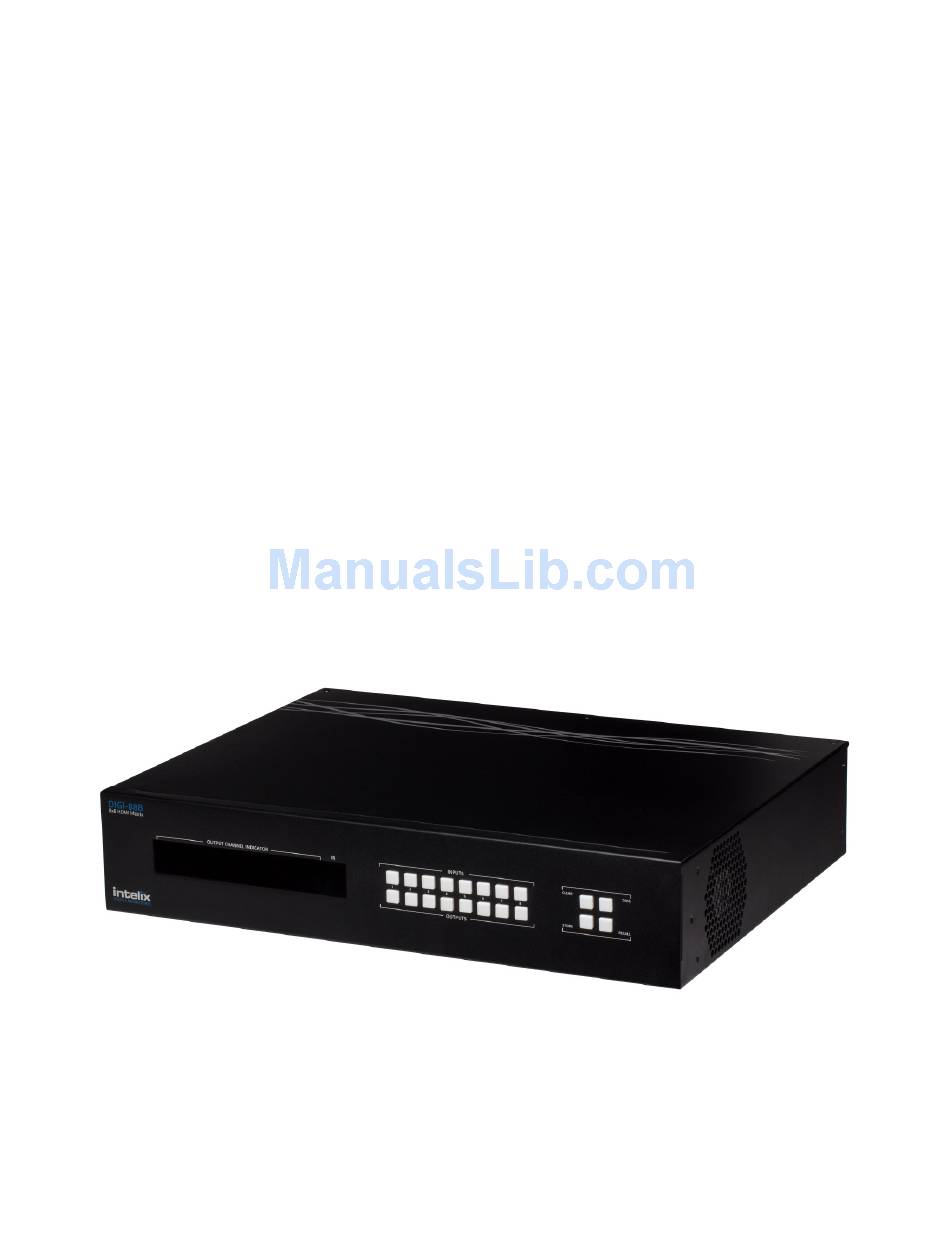

Page 1: Operation Guide
DIGI-88B Installation and Operation Guide Rev 140813 8001 Terrace Ave Phone: 608-831-0880 Suite 201 Toll-Free: 866-462-8649 Middleton, WI 53562 Fax: 608-831-1833... -
Page 2: Important Safety Instructions
Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. -
Page 3: Table Of Contents
Static IP assignment via TCP/IP ...................... 16 DHCP IP assignment via TCP/IP ...................... 18 Web Control ..............................19 Logging into the DIGI-88B via Web Browser.................. 19 Changing the Password to the Web Control.................. 20 RS232 and TCP/IP Commands ........................21... - Page 4 DIGI-88B Installation Guide RS485 Connection .......................... 21 TCP/IP Connection ......................... 21 Special Characters .......................... 21 DIGI-88B Command Protocol ......................22 Discrete IR Commands ........................25 Troubleshooting ............................26 Matrix does not power on ......................26 Cannot view 3D content ........................ 26 Cannot hear surround sound audio ....................
-
Page 5: Overview
Intelix HDMI matrix switchers. The DIGI-88B has dual outputs on each output port, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. The HDBaseT ports support 1080p HDMI video with audio, bi-directional wide-band IR, matrix control via IR and HDCP compliance. -
Page 6: Front Panel
8 – Chassis Feet –Factory installed feet for shelf top installations 9 – Rack Ears – Optional rack ears for rack mounting the DIGI-88B in an equipment rack. Explanation of use for the front panel control is located in the section Front Panel and IR Remote Operation... -
Page 7: Rear Panel
10 - IR Emitter Ports– IR emitters to control HDMI sources in the rack. 11 - RS232 Control – serial communication for third party control. 12 - AC Power Input – 110v-240vAC power inlet. IR Remote The included IR remote performs routing functions available on the front panel of the DIGI-88B. -
Page 8: Installation Instructions
Rack Mounting Instructions The DIGI-88B requires one rack unit (2 RU) of space. At least 2 inches of free air space is required on both sides of the DIGI-88B for proper side ventilation. Avoid mounting the DIGI-88B near a power amplifier or any other source of significant heat. -
Page 9: Edid Management
The matrix also features an EDID copy mode that can be used when other EDID’s do not meet the installation requirements. The default EDID for the DIGI-88B is 1080p with stereo audio. All EDID modes are outlined in the table below:... -
Page 10: Front Panel And Ir Remote Operation
DIGI-88B Installation Guide Front Panel and IR Remote Operation Basic Routing To set a single route using the front panel of the DIGI-88B: 1. Press the desired input button (source). 2. Press the desired output button (display). 3. Front panel will flash the New Input Number. -
Page 11: Ir Remote Operation
DIGI-88B Installation Guide IR Remote Operation Overview The included IR remote includes features that allow several different control options. When using the remote with front panel window or IR Ext, the remote can be used to cycle each input through previous or next input source. -
Page 12: Ir Remote Code
The IR remote includes a System Code Switch that will allow you to toggle between two [2] command sets. This is useful for locations where two DIGI-88B units are installed. 1. Press the System Code Switch button three times in quick succession. -
Page 13: Ip Address Assignment
DIGI-88B Installation Guide IP Address Assignment The DIGI-88B ships from the factory with a default IP address of 192.168.0.178. You can change this IP address to a different static IP address or to DHCP using the DIGI-88B Docklight configuration file, which can be found on the Intelix website. -
Page 14: Dhcp Ip Assignment Via Rs232
You can change the IP mode to DHCP using RS232 1. Download Docklight and the DIGI-88B from the Intelix website. 2. Connect the included USB -> RS232 adapter to an open USB port on your computer, or if you have a serial port, connect a straight through serial cable. - Page 15 5. Start Communication. 6. Turn the power to the DIGI-88B on – after 5 seconds, the DIGI-88B will send some lines of information you can see in the communications window. This confirms that you are communicating properly.
-
Page 16: Static Ip Assignment Via Tcp/Ip
2. Connect a network crossover cable (not included) between your computer and the DIGI-88B LAN Port. 3. Change the IP address of your computer to fit in the same subnet as the DIGI-88B current IP address. The unit’s default IP address is 192.168.0.178, so set your IP address to 192.168.0.177 for first time connection. - Page 17 [23] after the IP address you enter to signify the communication port. 8. Start Communication. 9. Turn the power to the DIGI-88B on – after 5 seconds, the DIGI- 88B will send some lines of information you can see in the communications window.
-
Page 18: Dhcp Ip Assignment Via Tcp/Ip
12. Verify that the IP address changed in the communication window. . *Note – it can take 5-10 seconds for the unit to report back the confirmed change. DHCP IP assignment via TCP/IP Setting the DIGI-88B to DHCP while connected via TCP/IP is not recommended. -
Page 19: Web Control
5. Clicking the buttons after each output changes the HDMI routing accordingly. *Note: Do not select “Update Firmware” unless instructed by Intelix Support to do so. This puts the unit into a bootloader mode, which can be cancelled by power cycling the DIGI-88B. -
Page 20: Changing The Password To The Web Control
DIGI-88B Installation Guide Changing the Password to the Web Control 1. Log into the Web Control utility by using the instructions above. 2. Click the “Change Password” link at the bottom of the Web Control screen. The following screen will appear: 3. -
Page 21: Rs232 And Tcp/Ip Commands
DIGI-88B Installation Guide RS232 and TCP/IP Commands RS232 Connection The RS232 control port requires a standard straight-through serial cable for operation. The default settings for the RS232 port are: 9600 baud 8 Data Bits 1 Stop Bit Parity = none... -
Page 22: Digi-88B Command Protocol
DIGI-88B Installation Guide DIGI-88B Command Protocol Important Note: Be sure to include a carriage return after the command line when the command includes the “<CR><LF>” suffix. Also, there is a space between “cir” and the code, which is required. RS232, RS485, and TCP/IP Routing Commands... - Page 23 DIGI-88B Installation Guide Output 4 Commands Function Command Response new route Select Input Down cir<SP>38<CR><LF> new route Select Input Up cir<SP>39<CR><LF> Output 5 Commands Function Command Response Select Input 1 cir<SP>40<CR><LF> s51<CR><LF> The updated status for output 5. Represented as an ASCII string in the format of “sXY”...
- Page 24 DIGI-88B Installation Guide RS232, RS485, and TCP/IP System Commands Misc. Commands Function Command Response Get Device Type br<SP><CR><LF> aDIGI-88B ASCII string containing the letter “a” followed by the name of the device Get Device Status bc<SP><CR><LF ASCII string in the format of: >...
-
Page 25: Discrete Ir Commands
DIGI-88B Installation Guide Discrete IR Commands An addendum to this manual can be found on the Intelix website that contains discrete IR codes for all crosspoint commands. You can import these codes into your 3 party control system for use with an IR... -
Page 26: Troubleshooting
DIGI-88B Installation Guide Troubleshooting Matrix does not power on Verify power outlet is active. Verify continuity in power cable. Cannot view 3D content Copy EDID from output to input. Verify display is 3D compatible. Verify source device can output 3D content. -
Page 27: Technical Specifications
DIGI-88B Installation Guide Technical Specifications DIGI-88B I/O Connections HDMI Inputs Eight (8) HDMI Type A Receptacle Connector (1 per input) HDMI Outputs Eight (8) HDMI Type A Receptacle Connector (1 per output) HDBaseT Outputs Eight (8) 8P8C port (Shielded RJ45) (1 per output) IR Input Eight (8) 3.5 mm jack (TRS) (1 per input) -
Page 28: Digib-Emt
DIGI-88B Installation Guide DIGIB-EMT Signal Characteristics Wide-Band Infrared (IR) 30 KHz to 56 KHz at 5V DC reference Physical Characteristics Material, Emitter Housing Deep red translucent plastic Dimensions, Emitter Housing 6 mm x 9.5 mm x 15 mm (0.24 in. x 0.37 in. x 0.59 in.) Cable Length 2 m (6.56 ft) - Page 29 DIGI-88B Installation Guide This page intentionally left blank.
- Page 30 DIGI-88B Installation Guide This page intentionally left blank.
- Page 31 DIGI-88B Installation Guide This page intentionally left blank.
- Page 32 DIGI-88B Installation Guide Thank you for your purchase. Please contact us with your questions and comments. Intelix 8001 Terrace Ave, Ste 201 Middleton, WI 53562 Phone: 608-831-0880 Toll Free: 866-462-8649 Fax: 608-831-1833 www.intelix.com intelix@intelix.com...
