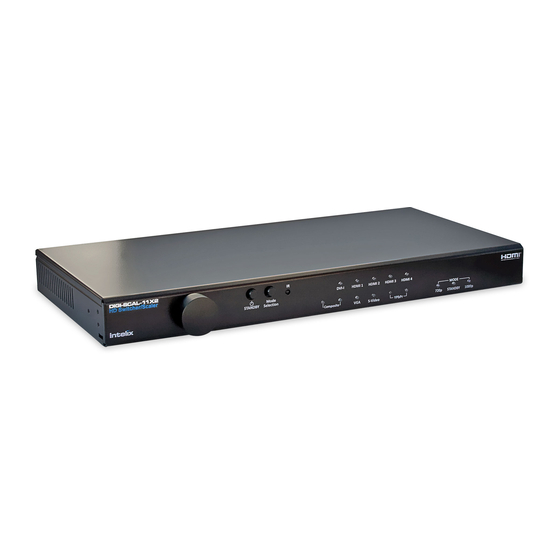

- Page 1 DIGI-SCAL-11X2 11x2 Switcher/Scaler/Format Converter...
-
Page 2: Table Of Contents
Intelix DIGI-SCAL-11X2 Installation Manual Table of Contents Overview ..................... 4 Installation ..................5 Operation ................... 7 Technical Specifications ..............13 Warranty .................... 14 Contact Information………………………………………………… . 16 Copyright 2011 Intelix LLC. Design with Intelligence Rev. 1103 www.intelix.com... -
Page 3: Important Safety Instructions
Do not block the air ventilation openings. Only mount the equipment per Intelix’s instructions. Use only with the cart, stand, tripod, bracket, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over. -
Page 4: Overview
720p or 1080p, and it converts the signals to HDMI for seamless integration into your HD environment. The DIGI-SCAL-11X2 makes your old skool equipment look good and your new school technology state-of-the-art. Design with Intelix and Design with Intelligence. -
Page 5: Installation
4. Connect the output destinations to the DIGI-SCAL-11X2 using high-quality HDMI, stereo audio, and/or digital audio cables. 5. If desired, connect a second HDMI destination to the DIGI-SCAL-11X2. HDMI outputs 1 and 2 are paralleled. 6. Connect the included 5 VDC power supply to the DIGI-SCAL-11X2. - Page 6 Intelix DIGI-SCAL-11X2 Installation Manual 8. Power-on the DIGI-SCAL-11X2. 9. Power-on the source and destination audio and video devices. www.intelix.com...
-
Page 7: Operation
Intelix DIGI-SCAL-11X2 Installation Manual Operation To operate the Intelix DIGI-SCAL-11X2, please perform the following steps. Note: The DIGI-SCAL-11X2 features on-board memory. Settings are stored during power off and restored during power on. Additional system saves occur automatically every five minutes. -
Page 8: Front Panel Control
Intelix DIGI-SCAL-11X2 Installation Manual Front Panel Control The DIGI-SCAL-11X2 features front panel control for source and mode selection. 1. Power on the unit by selecting the Standby button. 2. Select the desired audio-visual input with the rotary control knob. 3. Select the desired mode (720p or 1080p) with the Mode Selection button. - Page 9 Intelix DIGI-SCAL-11X2 Installation Manual Included Remote Control The DIGI-SCAL-11X2 includes a wireless remote control for source selection, mode selection, and system configuration. 1. Verify the IR sensor on the front panel of the DIGI-SCAL- 11X2 is visible. 2. Aim the remote control at the sensor window. Push the desired button.
- Page 10 Intelix DIGI-SCAL-11X2 Installation Manual PC Bypass Mode PC Bypass Mode allows a computer’s native resolution to display on the destination monitor. In essence, this mode disables format conversion of the DVI and VGA inputs, even though the output is still on the HDMI connectors.
- Page 11 Intelix DIGI-SCAL-11X2 Installation Manual IR Remote Control The DIGI-SCAL-11X2 supports remote control via IR through a front panel IR sensor. 1. If controlling the DIGI-SCAL-11X2 through the IR sensor on the front panel, place an IR emitter directly over the front panel sensor.
- Page 12 RS232 Remote Control The DIGI-SCAL-11X2 supports remote control through a rear panel RS232 control port. 1. If controlling the DIGI-SCAL-11X2 through the RS232 control port on the rear panel, connect a straight-through serial cable directly to the matrix. 9600 baud rate...
-
Page 13: Technical Specifications
Dimensions ................16.9” x 1.75” x 7.9” 1 RU Enclosure ..................... Black metal Max Power Consumption ................. 15 watts Power ......................5 VDC Regulatory ..................... CE, RoHS Shipping Weight ..................... 8 lbs Intelix Part Number ..............DIGI-SCAL-11X2 Warranty ..................... 2 years www.intelix.com... -
Page 14: Warranty
No agent or reseller of Intelix is authorized to modify this warranty or to make additional warranties on behalf of Intelix. Statements, representations or warranties made by any party other than Intelix does not constitute warranties by Intelix. - Page 15 14 days of the advanced replacement shipment. Intelix will match shipping method for units still under warranty. If a unit which is out of warranty needs repair, the dealer must pay for shipping, replacement parts, and a fixed $100/hr* labor fee.
-
Page 16: Contact Information
Intelix DIGI-SCAL-11X2 Installation Manual Thank you for your purchase. We appreciate your business. Please contact us with your questions and comments. Intelix 2222 Pleasant View Road Suite 1 Middleton, WI 53562 Phone: 608-831-0880 Toll-Free: 866-4-MATMIX Fax: 608-831-1833 www.intelix.com intelix@intelix.com Copyright 2011 Intelix LLC.
