AS-2H-WP Installation and
HDMI 1
Rev 160330
Operation Guide
LIN
HDCP
Reset
HDMI 2
F rmw re
11675 Ridgeline Dr.
Colorado Springs, CO 80921
PoH In
HDBT Out
AS-2H-WP
GND
HDMI Auto-Sw tch n W llpl te
Auto
HD 2
HD 1
12V
IN
12V
OUT
RS232
TX
RX
Toll-Free: 800-530-8998
Fax: 719-260-0075
supportlibav@libav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-2H-WP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intelix AS-2H-WP

  • Page 1 AS-2H-WP Installation and Operation Guide HDCP PoH In HDBT Out Reset HDMI 1 HDMI 2 AS-2H-WP HDMI Auto-Sw tch n W llpl te Auto HD 2 RS232 HD 1 F rmw re Rev 160330 11675 Ridgeline Dr. Toll-Free: 800-530-8998 Colorado Springs, CO 80921 Fax: 719-260-0075 supportlibav@libav.com...
  • Page 3: Important Safety Instructions

    AS-2H-WP Installation Guide Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference.
  • Page 4 AS-2H-WP Installation Guide 26. When the apparatus is not in use or during its relocation, take care of the power cord and plugs; e.g. tie up the power cord with cable tie or similar. The tie must be free from sharp edges and the like that might cause abrasion of the power cord.
  • Page 5: Table Of Contents

    AS-2H-WP Installation Guide Table of Contents Important Safety Instructions ��������������������������������������������������������������������������������������������������������������������������� Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ���������������������������������������������������������������������������������������������������������������������������������� Basic Installation ����������������������������������������������������������������������������������������������������������������������������������������������� HDBaseT Cabling Requirements ������������������������������������������������������������������������������������������������������������������������ Contact Closure Inputs ��������������������������������������������������������������������������������������������������������������������������������������...
  • Page 6 AS-2H-WP Installation Guide RS232 Control ������������������������������������������������������������������������������������������������������������������������������������������������� Switching Commands ���������������������������������������������������������������������������������������������������������������������������������������� Power Management ����������������������������������������������������������������������������������������������������������������������������������������� HDCP Compliance ��������������������������������������������������������������������������������������������������������������������������������������������� Device Baud Rate ���������������������������������������������������������������������������������������������������������������������������������������������� Device Information �������������������������������������������������������������������������������������������������������������������������������������������� Factory Reset����������������������������������������������������������������������������������������������������������������������������������������������������� EDID Configuration ������������������������������������������������������������������������������������������������������������������������������������������� Display Control Settings ������������������������������������������������������������������������������������������������������������������������������������ Display Control Queries ������������������������������������������������������������������������������������������������������������������������������������� Display Control Hex Commands ������������������������������������������������������������������������������������������������������������������������...
  • Page 7: Product Overview

    The AS-2H-WP will detect which input has an active video input, and switch to that input – if both inputs are active, the “last in” will be selected. There are additional contact closure inputs provided on the rear of the unit to allow third party control.
  • Page 8: Front And Rear Panels

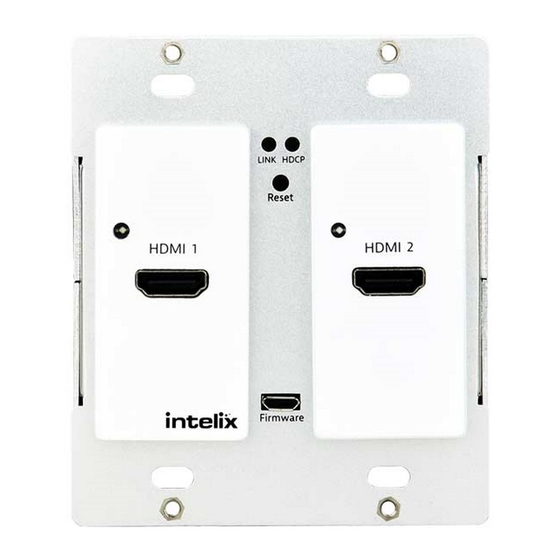

    AS-2H-WP Installation Guide Front and Rear Panels Front Panel HDCP Reset HDMI 1 HDMI 2 F rmw re HDMI input 1 and input status LED Status LEDs and Reset button HDMI input 2 and input status LED Micro USB port for firmware updating...
  • Page 9: Rear Panel

    AS-2H-WP Installation Guide Rear Panel PoH In HDBT Out AS-2H-WP HDMI Auto-Sw tch n W llpl te Auto HD 2 RS232 HD 1 Contact closures 12V DC power input HDBaseT output with PoH input support RS232 and 12V DC output...
  • Page 10: Installation Instructions

    AS-2H-WP. Power on attached audio/video devices. Apply power to the HDBaseT receiver. If the HDBaseT receiver cannot provide power to the AS-2H-WP, connect the power supply going to the AS- 2H-WP to an AC outlet. Connect HDMI sources.
  • Page 11: Contact Closure Inputs

    “GND” terminal. Normally open, momentary switches should be used. The AS-2H-WP ships from the factory with a jumper in place between the “AUTO”, and “GND” terminals; this should remain in place if you wish the unit to switch automatically when a video signal is present.
  • Page 12: 12V Dc Output Power

    AS-2H-WP Installation Guide 12V DC Output Power The AS-2H-WP can provide power to an external 12V DC device that draws 500mA or less of total current. This voltage will be provided if the AS-2H-WP is powered directly or via PoH.
  • Page 13: General Operation

    General Operation Automatic Switching By placing a jumper between the “Auto” and “Gnd” terminals on the back of the AS-2H-WP, the unit will switch inputs by sensing an active video signal. The AS-2H-WP will switch automatically to the “last in” connected input. For example, if an HDMI signal is currently displayed on input 1, and then connect another HDMI source, the unit will switch to HDMI input 2.
  • Page 14: Reset Button

    AS-2H-WP Installation Guide Reset Button The reset button located under the Status Indicators will reboot the AS-2H-WP. This may need to be used if in EDID pass-through mode, and the AS-2H-WP was powered on before the display during installation, which may prevent the EDID from being read correctly.
  • Page 15: Low Power Mode

    If the unit does not switch inputs (auto or contact closure) or communicate via RS232 for a set amount of time, the AS-2H-WP will go into low-power mode. The default time is 3 hours, which can be adjusted by using the Display Control Software.
  • Page 16: Hardware Reset

    AS-2H-WP Installation Guide Hardware Reset A hardware reset will reset the AS-2H-WP to the factory default setting. This procedure may be necessary if the device RS232 settings have been changed. Short the HD 1 and HD 2 contact closures to Ground for 10 seconds.
  • Page 17 GET AUTO<CR><LF> Get Auto-switching state AUTO ON!<CR><LF> OR AUTO OFF!<CR><LF> Power Management In addition to going to a low-power mode when using the Display Control functions, the AS-2H-WP can also be set to this mode via RS232. Description Command Response STANDBY<CR><LF>...
  • Page 18 AS-2H-WP Installation Guide HDCP Compliance Description Command Response HDCP ON<CR><LF> HDCP ON!<CR><LF> HDCP Compliance ON HDCP OFF<CR><LF> HDCP OFF!<CR><LF> HDCP Compliance OFF GET HDCP<CR><LF> Get HDCP Compliance status HDCP ON! <CR><LF> OR HDCP OFF!<CR><LF> Device Baud Rate The default baud rate for the AS-2H is 9600. This can be changed to accommodate various installation needs: 2400, 4800, 9600, 19200, 38400, 57600, 115200.
  • Page 19 AS-2H-WP Installation Guide EDID Configuration The EDID settings listed below will be passed to both HDMI inputs. Description Command Response EDID UHD<CR><LF> EDID UHD!<CR><LF> UHD/30 EDID FHD<CR><LF> EDID FHD!<CR><LF> 1080p EDID HD<CR><LF> EDID HD!<CR><LF> 720p EDID WUXGA<CR><LF> EDID WUXGA!<CR><LF> 1920x1200 EDID WXGA2<CR><LF>...
  • Page 20 AS-2H-WP Installation Guide Display Control Settings Description Command Response DFG1 DFG1!<CR><LF> Turn Display Control ON Display Control On<CR><LF> DFG0 DFG0!<CR><LF> Turn Display Control OFF Display Control Off<CR><LF> DONxx DON!<CR><LF> Store the ON command for Display Example: pwron<CR> Control (xx = up to 25 characters) DONpwron <CR><LF>...
  • Page 21 AS-2H-WP Installation Guide Display Control Queries The query responses will be identical to the Display Control commands entered into the device. Description Command Response DFG? Display Control state? DFG1<CR> OR DFG0<CR> DON? DONpwron<CR> Display On command? DOF? DOFpwroff<CR> Display Off command? DIS? DIShdmi1<CR>...
  • Page 22 AS-2H-WP Installation Guide Troubleshooting Device does not power on Apply an active video signal; the unit may be in standby mode. » Transmit the WAKE command via RS232. » If using a receiver with PoH, verify that the receiver is powered.
  • Page 23 HDCP, Link, HDMI 1, and HDMI 2 Reset Switch Microswitch Available Models AS-2H-WP-W (White Faceplate and Painted Insert), AS-2H-WP-B (Black Faceplate and Painted Insert) Included Accessories Installation Guide, Power Supply, Mounting Brackets with Screws, Two (2) 4-pin Removable Screw Terminals, RS232 cable (3-pin to DE9), 2-pin Removable Screw Terminal...
  • Page 24 Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
